Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#19819) — 309 parça

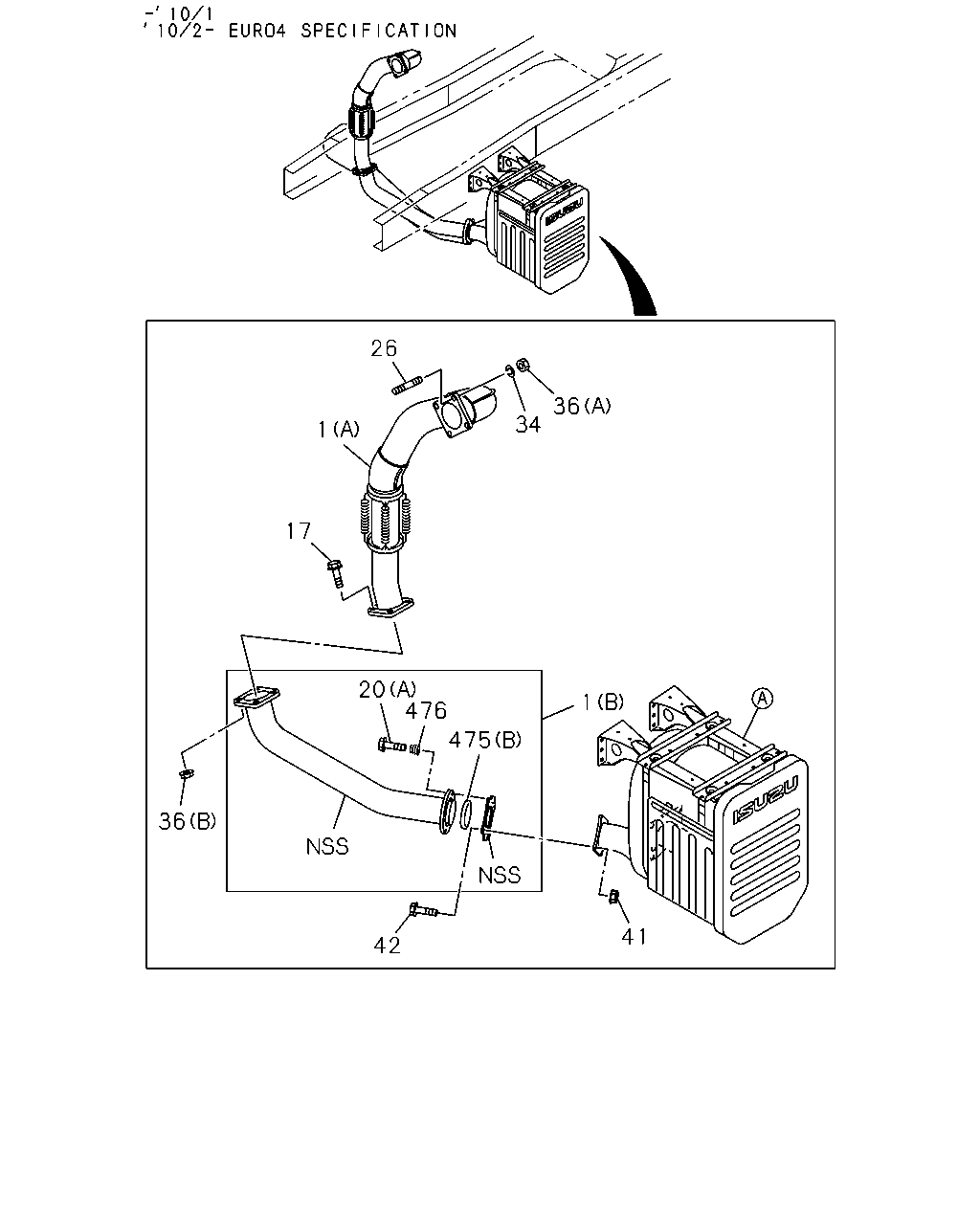

26 36 34 1 17 20 476 1 475 36 41 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-97632-948-0	01	1	1009-
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97635-861-0	01	1	1009-
1	PIPE; EXH (B)	1-22123-683-1	01	1	0904-1008
1	PIPE; EXH EURO4 SPECIFICATION<KBT> (B)	1-22123-683-1	01	1	1009-
1	PIPE; EXH (A)	1-22124-029-0	01	1	0904-1008
1	PIPE; EXH EURO4 SPECIFICATION<KBT> (A)	1-22124-029-0	01	1	1009-
17	BOLT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> M12X120 FLANGE	0-28056-212-0	02	1	1009-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0904-1008
17	BOLT; EXH PIPE EURO4 SPECIFICATION<KBT> M12X25 FLANGE	1-09000-604-0	04	1	1009-
20	BOLT; FLANGE,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12X35 FLANGE	0-28051-235-0	10	1	1009-
20	BOLT; FLANGE,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X51.4	8-94436-943-0	03	1	1009-
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	05	1	0904-1008
20	BOLT; FLANGE,EXH PIPE EURO4 SPECIFICATION<KBT> (A) M10X51.4	8-94436-943-0	05	1	1009-
26	STUD; EXH MANIF EURO4 SPECIFICATION<KBT> M12X140 L=160	1-09302-163-0	04	1	1009-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0904-1008
26	STUD; EXH MANIF EMISSION REGULATION NEW LONG TERM<JBG> M12X125 L=145	8-97617-265-0	04	1	1009-1402
26	STUD; EXH MANIF EMISSION REGULATION NEW LONG TERM<JBG> M12X125 L=145	8-97648-063-0	04	1	1403-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0904-
36	NUT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12 FLANGE	0-91180-212-0	04	1	1009-
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0904-1008
36	NUT; EXH PIPE EURO4 SPECIFICATION<KBT> (B) M12	0-91110-512-0	04	1	1009-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0904-1008
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1009-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0904-1008
41	NUT; EXH PIPE TO EXH SILENCER EURO4 SPECIFICATION<KBT> M12	0-91110-512-0	08	1	1009-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0904-1008
42	BOLT; EXH PIPE TO EXH SILENCER EURO4 SPECIFICATION<KBT> M12X25 FLANGE	1-09000-604-0	08	1	1009-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0904-1008
475	BEARING; SEAL,VIBNON,EXH PIPE EURO4 SPECIFICATION<KBT> (B) OD=112	1-22119-294-1	01	1	1009-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0904-
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0904-1008
476	SPRING; VIBNON,EXH PIPE EURO4 SPECIFICATION<KBT>	8-94141-851-0	02	1	1009-

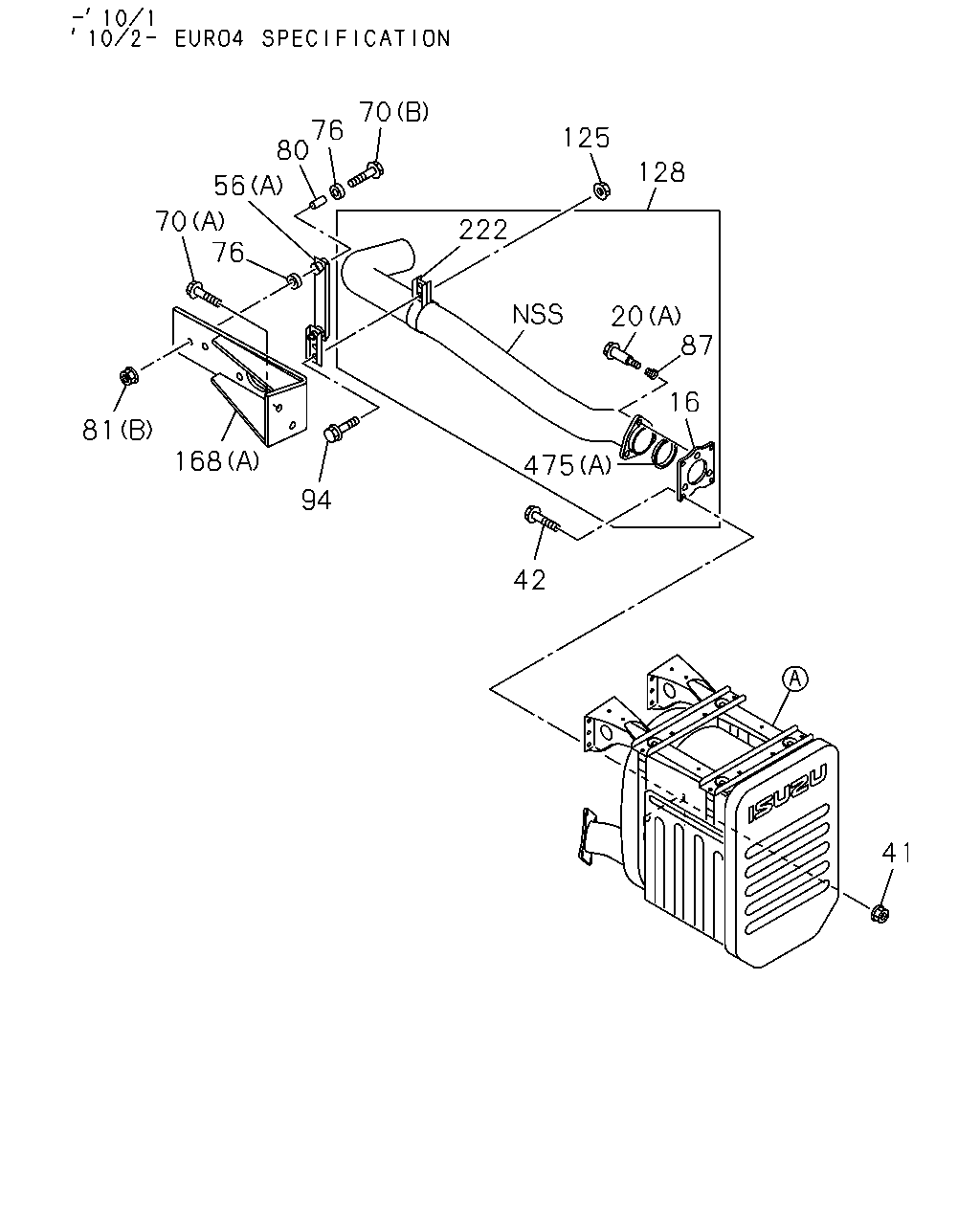

70 76 80 125 128 56 70 76 222 20 87 16 81 168 475 94 42 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	FLANGE; EXH PIPE	1-22115-229-0	01	1	0904-1008
16	FLANGE; EXH PIPE EURO4 SPECIFICATION<KBT>	1-22115-229-0	01	1	1009-
20	BOLT; FLANGE,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12X35 FLANGE	0-28051-235-0	10	1	1009-
20	BOLT; FLANGE,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X51.4	8-94436-943-0	03	1	1009-
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	05	1	0904-1008
20	BOLT; FLANGE,EXH PIPE EURO4 SPECIFICATION<KBT> (A) M10X51.4	8-94436-943-0	05	1	1009-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0904-1008
41	NUT; EXH PIPE TO EXH SILENCER EURO4 SPECIFICATION<KBT> M12	0-91110-512-0	08	1	1009-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0904-1008
42	BOLT; EXH PIPE TO EXH SILENCER EURO4 SPECIFICATION<KBT> M12X25 FLANGE	1-09000-604-0	08	1	1009-
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97617-858-0	01	1	1009-
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97635-852-0	01	1	1009-
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-97635-853-0	01	1	1009-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-070-0	01	1	0904-1008
56	BRACKET; CLAMP,EXH PIPE EURO4 SPECIFICATION<KBT> (A)	1-22152-070-0	01	1	1009-
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (D) M8X30 FLANGE	0-28050-830-0	02	1	1009-
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X30 FLANGE	0-28051-030-0	04	1	1009-
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X50 FLANGE	0-28051-050-0	04	1	1009-
70	BOLT; BRKT (C) M10X20 FLANGE	0-28051-020-0	04	1	0904-1008
70	BOLT; BRKT EURO4 SPECIFICATION<KBT> (C) M10X20 FLANGE	0-28051-020-0	04	1	1009-
70	BOLT; BRKT (A) M10X30 FLANGE	0-28051-030-0	02	1	0904-1008
70	BOLT; BRKT EURO4 SPECIFICATION<KBT> (A) M10X30 FLANGE	0-28051-030-0	02	1	1009-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	05	1	0904-1008
70	BOLT; BRKT EURO4 SPECIFICATION<KBT> (B) M10X50 FLANGE	0-28051-050-0	05	1	1009-
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0904-1008
76	SUPPORT; BRKT EURO4 SPECIFICATION<KBT> OD=40	1-22159-094-0	02	1	1009-
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0904-1008
80	COLLAR; DIST,SUPPORT RUBBER EURO4 SPECIFICATION<KBT> L=22	9-22159-024-0	01	1	1009-
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M8 FLANGE	0-91180-108-0	04	1	1009-
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10 FLANGE	0-91180-210-0	08	1	1009-
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0904-1008
81	NUT; BRKT EURO4 SPECIFICATION<KBT> (B) M10 FLANGE	0-91180-210-0	01	1	1009-
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	08	1	0904-1008
81	NUT; BRKT EURO4 SPECIFICATION<KBT> (A) M12 FLANGE	0-91180-212-0	08	1	1009-
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0904-
94	BOLT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG> M8X40 FLANGE	0-28650-840-0	04	1	1009-
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	0904-1008
94	BOLT; CLAMP EURO4 SPECIFICATION<KBT> M8X40 FLANGE	0-28650-840-0	02	1	1009-
125	NUT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE	0-91180-108-0	04	1	1009-
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	0904-1008
125	NUT; CLAMP EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	02	1	1009-
128	PIPE; EXH,RR EMISSION REGULATION NEW LONG TERM<JBG>	8-97635-839-1	01	1	1009-
128	PIPE; EXH,RR	1-22126-524-1	01	1	0904-1008
128	PIPE; EXH,RR EURO4 SPECIFICATION<KBT>	1-22126-524-1	01	1	1009-
168	BRACKET; EXH PIPE,FRT EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97622-205-0	01	1	1009-
168	BRACKET; EXH PIPE,FRT (A)	1-22131-995-1	01	1	0904-1008
168	BRACKET; EXH PIPE,FRT EURO4 SPECIFICATION<KBT> (A)	1-22131-995-1	01	1	1009-1504
168	BRACKET; EXH PIPE,FRT EURO4 SPECIFICATION<KBT> (A)	8-98302-583-0	01	1	1505-
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0904-1008
222	CLAMP; EXH PIPE EURO4 SPECIFICATION<KBT>	1-22133-276-0	01	1	1009-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0904-1008
475	BEARING; SEAL,VIBNON,EXH PIPE EURO4 SPECIFICATION<KBT> (B) OD=112	1-22119-294-1	01	1	1009-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0904-

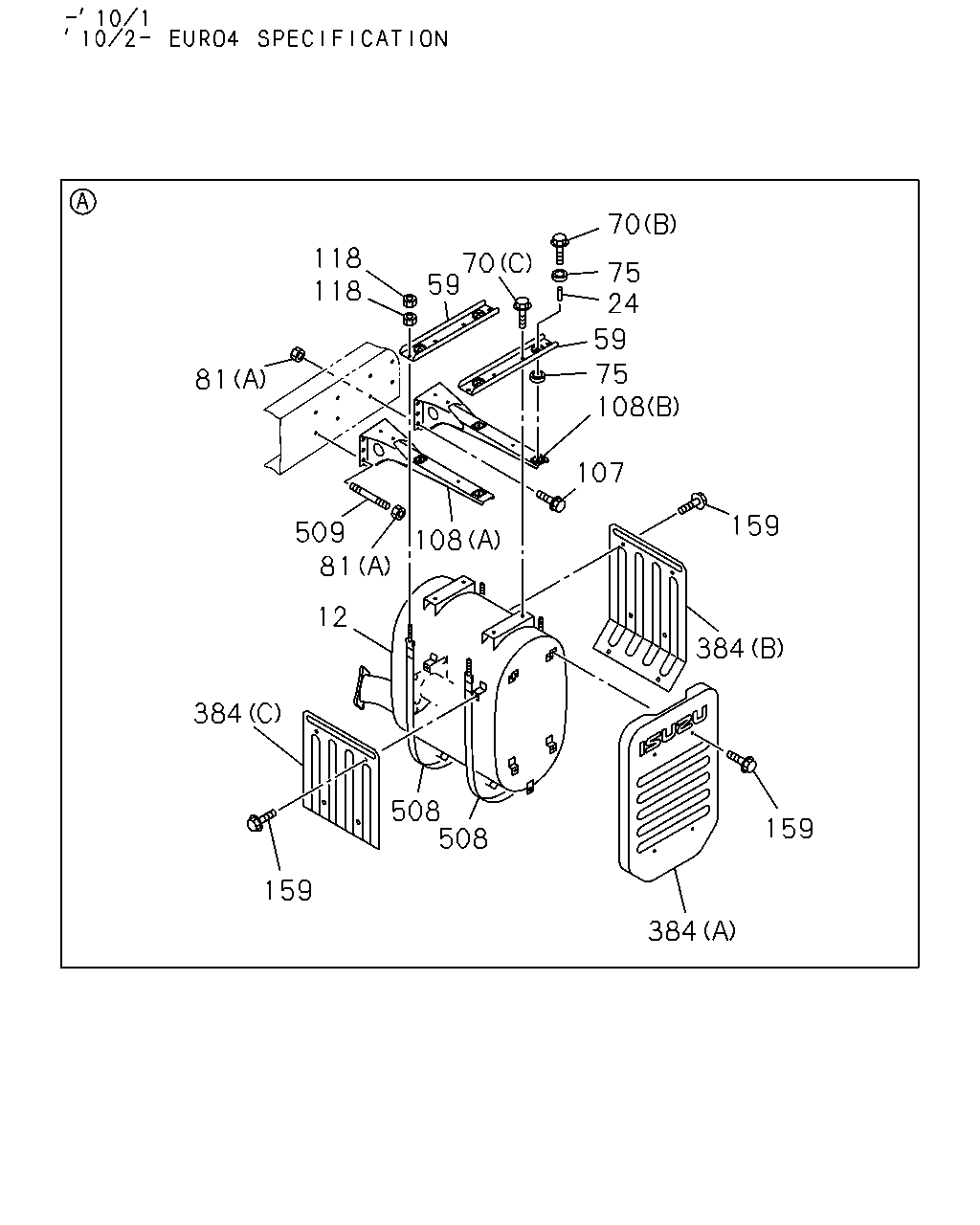

70 118 118 70 59 75 24 59 75 108 81 107 108 159 509 81 12 384 384 508 508 159 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH	8-97611-402-0	01	1	0904-1008
12	SILENCER ASM; EXH EURO4 SPECIFICATION<KBT>	8-97611-402-0	01	1	1009-
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0904-1008
24	COLLAR; DIST,CLAMP EURO4 SPECIFICATION<KBT> L=22	9-22159-024-0	04	1	1009-
59	BRACKET; EXH SILENCER,FRT	1-22151-710-1	02	1	0904-1008
59	BRACKET; EXH SILENCER,FRT EURO4 SPECIFICATION<KBT>	1-22151-710-1	02	1	1009-
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (D) M8X30 FLANGE	0-28050-830-0	02	1	1009-
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X30 FLANGE	0-28051-030-0	04	1	1009-
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X50 FLANGE	0-28051-050-0	04	1	1009-
70	BOLT; BRKT (C) M10X20 FLANGE	0-28051-020-0	04	1	0904-1008
70	BOLT; BRKT EURO4 SPECIFICATION<KBT> (C) M10X20 FLANGE	0-28051-020-0	04	1	1009-
70	BOLT; BRKT (A) M10X30 FLANGE	0-28051-030-0	02	1	0904-1008
70	BOLT; BRKT EURO4 SPECIFICATION<KBT> (A) M10X30 FLANGE	0-28051-030-0	02	1	1009-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	05	1	0904-1008
70	BOLT; BRKT EURO4 SPECIFICATION<KBT> (B) M10X50 FLANGE	0-28051-050-0	05	1	1009-
75	RUBBER; SUPPORT,BRKT EMISSION REGULATION NEW LONG TERM<JBG> OD=40	1-22159-094-0	10	1	1009-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0904-1008
75	RUBBER; SUPPORT,BRKT EURO4 SPECIFICATION<KBT> OD=40	1-22159-094-0	08	1	1009-
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M8 FLANGE	0-91180-108-0	04	1	1009-
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10 FLANGE	0-91180-210-0	08	1	1009-
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0904-1008
81	NUT; BRKT EURO4 SPECIFICATION<KBT> (B) M10 FLANGE	0-91180-210-0	01	1	1009-
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	08	1	0904-1008
81	NUT; BRKT EURO4 SPECIFICATION<KBT> (A) M12 FLANGE	0-91180-212-0	08	1	1009-
107	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10X25 FLANGE	0-28051-025-0	10	1	1009-
107	BOLT; BRKT M12X35 FLANGE	0-28051-235-0	04	1	0904-1008
107	BOLT; BRKT EURO4 SPECIFICATION<KBT> M12X35 FLANGE	0-28051-235-0	04	1	1009-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-774-3	01	1	0904-1008
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EURO4 SPECIFICATION<KBT> (A)	1-22131-774-3	01	1	1009-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-775-3	01	1	0904-1008
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EURO4 SPECIFICATION<KBT> (B)	1-22131-775-3	01	1	1009-
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	0904-1008
118	NUT; SILENCER MTG BRKT EURO4 SPECIFICATION<KBT> M10	0-91110-510-0	08	1	1009-
159	BOLT; HEAT PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> M8X22 W/LK&PL WASHER	1-09030-042-0	18	1	1009-
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0904-1008
159	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<KBT> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1009-
384	PROTECTOR; HEAT SILENCER MTG (B)	1-22119-341-3	01	1	0904-1008
384	PROTECTOR; HEAT SILENCER MTG EURO4 SPECIFICATION<KBT> (B)	1-22119-341-3	01	1	1009-
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-378-4	01	1	0904-1008
384	PROTECTOR; HEAT SILENCER MTG EURO4 SPECIFICATION<KBT> (A)	1-22119-378-4	01	1	1009-
384	PROTECTOR; HEAT SILENCER MTG (C)	1-22119-527-0	01	1	0904-1008
384	PROTECTOR; HEAT SILENCER MTG EURO4 SPECIFICATION<KBT> (C)	1-22119-527-0	01	1	1009-
508	BAND; EXHAUST SILENCER	1-22159-382-0	02	1	0904-1008
508	BAND; EXHAUST SILENCER EURO4 SPECIFICATION<KBT>	1-22159-382-0	02	1	1009-
509	STUD; BRKT M12X40 L=56	1-09300-123-0	04	1	0904-

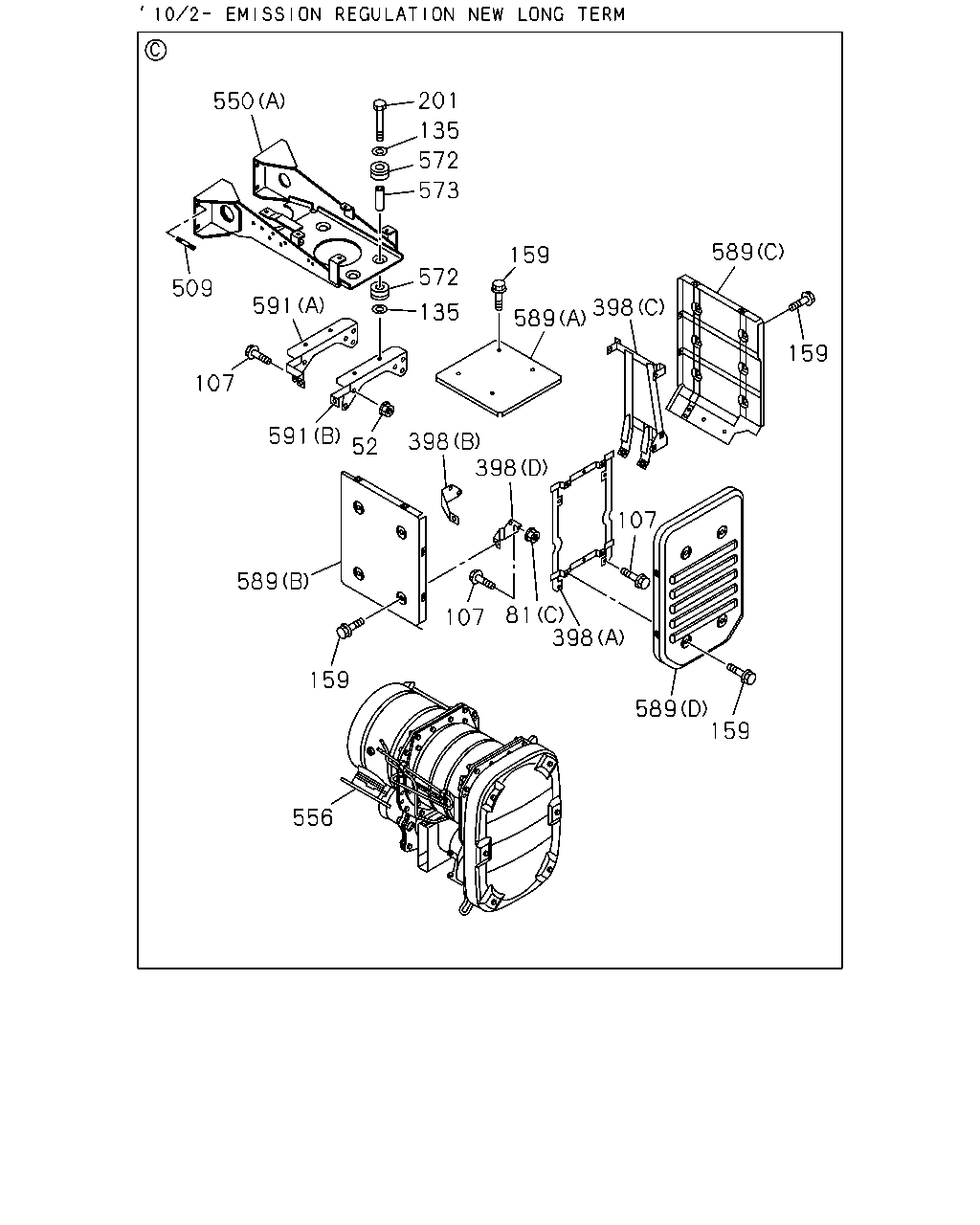

201 550 135 572 573 589 159 572 509 591 398 135 589 159 107 591 398 398 52 107 589 81 398 107 159 589 159 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	01	1	1009-
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	11	1	1009-
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M12 FLANGE	0-91180-212-0	08	1	1009-
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M8 FLANGE	0-91180-108-0	04	1	1009-
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10 FLANGE	0-91180-210-0	08	1	1009-
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0904-1008
81	NUT; BRKT EURO4 SPECIFICATION<KBT> (B) M10 FLANGE	0-91180-210-0	01	1	1009-
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	08	1	0904-1008
81	NUT; BRKT EURO4 SPECIFICATION<KBT> (A) M12 FLANGE	0-91180-212-0	08	1	1009-
107	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10X25 FLANGE	0-28051-025-0	10	1	1009-
107	BOLT; BRKT M12X35 FLANGE	0-28051-235-0	04	1	0904-1008
107	BOLT; BRKT EURO4 SPECIFICATION<KBT> M12X35 FLANGE	0-28051-235-0	04	1	1009-
135	WASHER; PL,STAY EMISSION REGULATION NEW LONG TERM<JBG> ID=10.5 OD=32	0-91614-810-0	04	1	1009-
159	BOLT; HEAT PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> M8X22 W/LK&PL WASHER	1-09030-042-0	18	1	1009-
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0904-1008
159	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<KBT> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1009-
201	BOLT; STAY EMISSION REGULATION NEW LONG TERM<JBG> M10X50	0-10956-050-0	04	1	1009-
398	BRACKET; HEAT PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97611-750-1	01	1	1009-
398	BRACKET; HEAT PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97615-808-0	01	1	1009-
398	BRACKET; HEAT PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97616-210-0	01	1	1009-
398	BRACKET; HEAT PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-97618-558-1	01	1	1009-
509	STUD; BRKT M12X40 L=56	1-09300-123-0	04	1	0904-

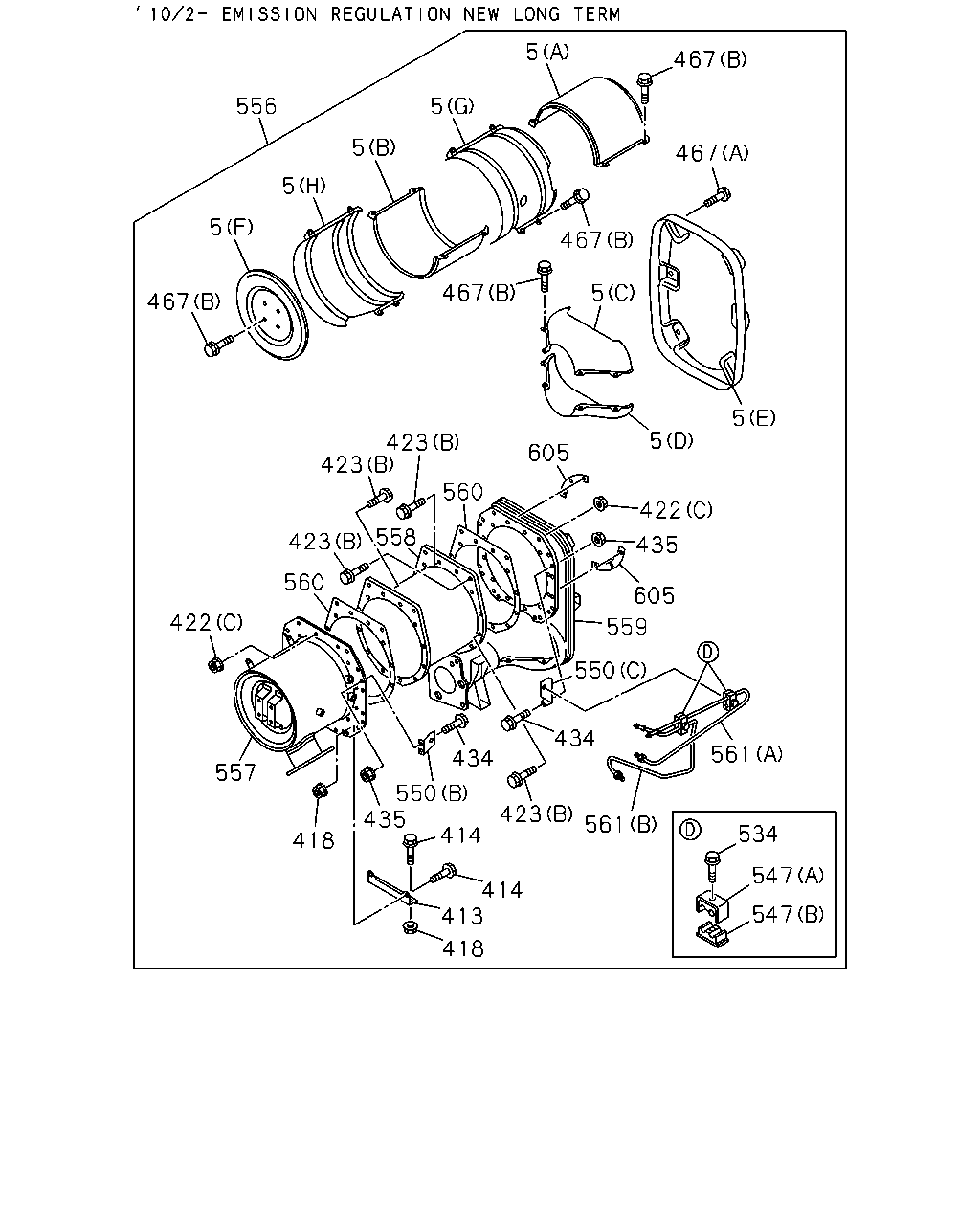

550	BRACKET; DPD EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97633-538-0	01	1	1009-
550	BRACKET; DPD EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98048-154-0	01	1	1009-
550	BRACKET; DPD EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-98048-155-0	01	1	1009-
556	DPD ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98084-618-5	01	1	1009-
572	RUBBER EMISSION REGULATION NEW LONG TERM<JBG>	8-98035-816-0	08	1	1009-
573	TUBE; DIST EMISSION REGULATION NEW LONG TERM<JBG> L=25	1-14234-083-0	04	1	1009-
589	PROTECTOR; HEAT,DPD EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97615-792-0	01	1	1009-
589	PROTECTOR; HEAT,DPD EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97615-798-0	01	1	1009-
589	PROTECTOR; HEAT,DPD EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97616-212-1	01	1	1009-
589	PROTECTOR; HEAT,DPD EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-97633-015-0	01	1	1009-
591	STAY; DPD EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97636-012-0	01	1	1009-
591	STAY; DPD EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97636-013-0	01	1	1009-

5 467 556 5 5 467 5 5 467 467 5 467 5 5 423 423 605 560 422 558 423 435 560 605 422 559 550 434 561 434 557 550 435 423 561 534 414 418 547 414 413 547 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-98048-157-0	01	1	1009-
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98048-158-0	01	1	1009-
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-98048-159-0	01	1	1009-
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-98048-160-0	01	1	1009-
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (E)	8-98048-161-0	01	1	1009-
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (F)	8-98060-018-0	01	1	1009-
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (G)	8-98060-019-0	01	1	1009-
5	PROTECTOR; HEAT EMISSION REGULATION NEW LONG TERM<JBG> (H)	8-98060-020-0	01	1	1009-
413	BRACKET; EXH PIPE,CONN EMISSION REGULATION NEW LONG TERM<JBG>	8-98048-297-0	01	1	1009-
414	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10X30 FLANGE	0-28051-030-0	04	1	1009-
418	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-110-0	04	1	1009-
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C) M8 FLANGE	0-91180-108-0	18	1	1009-
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M10 FLANGE	0-91180-210-0	02	1	1009-
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12 FLANGE	0-91180-212-0	04	1	1009-
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C) M10X35 FLANGE	0-28051-035-0	02	1	1009-
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M12X35 FLANGE	0-28051-235-0	04	1	1009-
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M8X35 FLANGE	0-28650-835-0	24	1	1009-
434	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M8X25 FLANGE	0-28050-825-0	02	1	1009-
435	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE	0-91180-108-0	02	1	1009-
467	BOLT; PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> (B) M8X20 FLANGE	0-28650-820-0	06	1	1009-
467	BOLT; PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> (A) M6X16	8-98019-179-0	17	1	1009-
534	BOLT; CLIP EMISSION REGULATION NEW LONG TERM<JBG> M6X35 FLANGE	0-28650-635-0	02	1	1009-
547	CLIP; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97381-635-0	02	1	1009-
547	CLIP; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97381-636-0	02	1	1009-
550	BRACKET; DPD EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97633-538-0	01	1	1009-
550	BRACKET; DPD EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98048-154-0	01	1	1009-
550	BRACKET; DPD EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-98048-155-0	01	1	1009-
556	DPD ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98084-618-5	01	1	1009-
557	CATALYST ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98048-141-5	01	1	1009-
558	FILTER ASM EMISSION REGULATION NEW LONG TERM<JBG>	8-98061-187-2	01	1	1009-
559	COVER; RR EMISSION REGULATION NEW LONG TERM<JBG>	8-98084-621-0	01	1	1009-
560	GASKET; DPD EMISSION REGULATION NEW LONG TERM<JBG>	8-97381-467-0	02	1	1009-
561	PIPE; DPD EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-98084-622-1	01	1	1009-
561	PIPE; DPD EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-98084-623-1	01	1	1009-
605	PLATE; NUT EMISSION REGULATION NEW LONG TERM<JBG>	8-98048-577-0	02	1	1009-

60 52 593 226 168 36 34 1 226 121 264 45 17 26 422 45 44 593 36 84 1 422 423 44 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-97632-948-0	01	1	1009-
1	PIPE; EXH EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97635-861-0	01	1	1009-
1	PIPE; EXH (B)	1-22123-683-1	01	1	0904-1008
1	PIPE; EXH EURO4 SPECIFICATION<KBT> (B)	1-22123-683-1	01	1	1009-
1	PIPE; EXH (A)	1-22124-029-0	01	1	0904-1008
1	PIPE; EXH EURO4 SPECIFICATION<KBT> (A)	1-22124-029-0	01	1	1009-
17	BOLT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> M12X120 FLANGE	0-28056-212-0	02	1	1009-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0904-1008
17	BOLT; EXH PIPE EURO4 SPECIFICATION<KBT> M12X25 FLANGE	1-09000-604-0	04	1	1009-
26	STUD; EXH MANIF EURO4 SPECIFICATION<KBT> M12X140 L=160	1-09302-163-0	04	1	1009-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0904-1008
26	STUD; EXH MANIF EMISSION REGULATION NEW LONG TERM<JBG> M12X125 L=145	8-97617-265-0	04	1	1009-1402
26	STUD; EXH MANIF EMISSION REGULATION NEW LONG TERM<JBG> M12X125 L=145	8-97648-063-0	04	1	1403-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0904-
36	NUT; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12 FLANGE	0-91180-212-0	04	1	1009-
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0904-1008
36	NUT; EXH PIPE EURO4 SPECIFICATION<KBT> (B) M12	0-91110-512-0	04	1	1009-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0904-1008
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1009-
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X35 FLANGE	0-28051-035-0	08	1	1009-
44	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M12X35 FLANGE	0-28051-235-0	04	1	1009-
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X40 FLANGE	0-28051-040-0	02	1	1009-
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M10X50 FLANGE	0-28051-050-0	01	1	1009-
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X60 FLANGE	0-28051-060-0	02	1	1009-
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	01	1	1009-
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	11	1	1009-
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M12 FLANGE	0-91180-212-0	08	1	1009-
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97615-818-0	01	1	1009-
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97619-123-0	01	1	1009-
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97635-851-0	02	1	1009-
84	GASKET; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG>	1-22116-030-0	01	1	1009-
121	WASHER; PL,BRKT EMISSION REGULATION NEW LONG TERM<JBG> OD=55	9-09852-169-0	02	1	1009-
168	BRACKET; EXH PIPE,FRT EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97622-205-0	01	1	1009-
168	BRACKET; EXH PIPE,FRT (A)	1-22131-995-1	01	1	0904-1008
168	BRACKET; EXH PIPE,FRT EURO4 SPECIFICATION<KBT> (A)	1-22131-995-1	01	1	1009-1504
168	BRACKET; EXH PIPE,FRT EURO4 SPECIFICATION<KBT> (A)	8-98302-583-0	01	1	1505-
226	RUBBER; CUSHION EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-94457-277-1	02	1	1009-
226	RUBBER; CUSHION EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-94457-278-1	02	1	1009-
264	TUBE; DIST,SUPPORT RUBBER EMISSION REGULATION NEW LONG TERM<JBG> (B) L=25	1-14234-083-0	01	1	1009-
264	TUBE; DIST,SUPPORT RUBBER EMISSION REGULATION NEW LONG TERM<JBG> (A) L=37.5	9-22151-217-0	02	1	1009-
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C) M8 FLANGE	0-91180-108-0	18	1	1009-
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M10 FLANGE	0-91180-210-0	02	1	1009-
422	NUT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12 FLANGE	0-91180-212-0	04	1	1009-
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C) M10X35 FLANGE	0-28051-035-0	02	1	1009-
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M12X35 FLANGE	0-28051-235-0	04	1	1009-
423	BOLT; PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M8X35 FLANGE	0-28650-835-0	24	1	1009-
593	COVER; EXH THROTTLE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97620-541-0	01	1	1009-
593	COVER; EXH THROTTLE EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97621-937-0	01	1	1009-

570

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	570	ADAPTER; EXH PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-

70 75 70 94 62 75 56 70 62 56 70 70 52 75 75 60 94 125 81 75 60 81 264 75 60 52 300 20 272 52 56 81 170 11 45 81 20 272 332 11 220 231 300 20 87 128 475 20 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	PIPE; EXH,RR EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97635-840-1	01	1	1009-
11	PIPE; EXH,RR EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97635-842-1	01	1	1009-
20	BOLT; FLANGE,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B) M12X35 FLANGE	0-28051-235-0	10	1	1009-
20	BOLT; FLANGE,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X51.4	8-94436-943-0	03	1	1009-
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	05	1	0904-1008
20	BOLT; FLANGE,EXH PIPE EURO4 SPECIFICATION<KBT> (A) M10X51.4	8-94436-943-0	05	1	1009-
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X40 FLANGE	0-28051-040-0	02	1	1009-
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M10X50 FLANGE	0-28051-050-0	01	1	1009-
45	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X60 FLANGE	0-28051-060-0	02	1	1009-
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	01	1	1009-
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	11	1	1009-
52	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> M12 FLANGE	0-91180-212-0	08	1	1009-
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97617-858-0	01	1	1009-
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97635-852-0	01	1	1009-
56	BRACKET; CLAMP,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (D)	8-97635-853-0	01	1	1009-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-070-0	01	1	0904-1008
56	BRACKET; CLAMP,EXH PIPE EURO4 SPECIFICATION<KBT> (A)	1-22152-070-0	01	1	1009-
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97615-818-0	01	1	1009-
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97619-123-0	01	1	1009-
60	BRACKET; FRAME TO BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C)	8-97635-851-0	02	1	1009-
62	TUBE; DIST,BRKT EMISSION REGULATION NEW LONG TERM<JBG> L=22	9-22159-024-0	04	1	1009-
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (D) M8X30 FLANGE	0-28050-830-0	02	1	1009-
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (A) M10X30 FLANGE	0-28051-030-0	04	1	1009-
70	BOLT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10X50 FLANGE	0-28051-050-0	04	1	1009-
70	BOLT; BRKT (C) M10X20 FLANGE	0-28051-020-0	04	1	0904-1008
70	BOLT; BRKT EURO4 SPECIFICATION<KBT> (C) M10X20 FLANGE	0-28051-020-0	04	1	1009-
70	BOLT; BRKT (A) M10X30 FLANGE	0-28051-030-0	02	1	0904-1008
70	BOLT; BRKT EURO4 SPECIFICATION<KBT> (A) M10X30 FLANGE	0-28051-030-0	02	1	1009-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	05	1	0904-1008
70	BOLT; BRKT EURO4 SPECIFICATION<KBT> (B) M10X50 FLANGE	0-28051-050-0	05	1	1009-
75	RUBBER; SUPPORT,BRKT EMISSION REGULATION NEW LONG TERM<JBG> OD=40	1-22159-094-0	10	1	1009-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0904-1008
75	RUBBER; SUPPORT,BRKT EURO4 SPECIFICATION<KBT> OD=40	1-22159-094-0	08	1	1009-
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (C) M8 FLANGE	0-91180-108-0	04	1	1009-
81	NUT; BRKT EMISSION REGULATION NEW LONG TERM<JBG> (B) M10 FLANGE	0-91180-210-0	08	1	1009-
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0904-1008
81	NUT; BRKT EURO4 SPECIFICATION<KBT> (B) M10 FLANGE	0-91180-210-0	01	1	1009-
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	08	1	0904-1008
81	NUT; BRKT EURO4 SPECIFICATION<KBT> (A) M12 FLANGE	0-91180-212-0	08	1	1009-
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0904-
94	BOLT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG> M8X40 FLANGE	0-28650-840-0	04	1	1009-
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	0904-1008
94	BOLT; CLAMP EURO4 SPECIFICATION<KBT> M8X40 FLANGE	0-28650-840-0	02	1	1009-
125	NUT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE	0-91180-108-0	04	1	1009-
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	0904-1008
125	NUT; CLAMP EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	02	1	1009-
128	PIPE; EXH,RR EMISSION REGULATION NEW LONG TERM<JBG>	8-97635-839-1	01	1	1009-
128	PIPE; EXH,RR	1-22126-524-1	01	1	0904-1008
128	PIPE; EXH,RR EURO4 SPECIFICATION<KBT>	1-22126-524-1	01	1	1009-
170	NUT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE	0-91180-108-0	02	1	1009-
220	CLAMP; EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG>	8-97621-090-0	03	1	1009-
231	BOLT; CLAMP EMISSION REGULATION NEW LONG TERM<JBG> M8X40 FLANGE	0-28650-840-0	02	1	1009-
264	TUBE; DIST,SUPPORT RUBBER EMISSION REGULATION NEW LONG TERM<JBG> (B) L=25	1-14234-083-0	01	1	1009-
264	TUBE; DIST,SUPPORT RUBBER EMISSION REGULATION NEW LONG TERM<JBG> (A) L=37.5	9-22151-217-0	02	1	1009-
272	NUT; FLANGE EMISSION REGULATION NEW LONG TERM<JBG> M12 FLANGE	0-91180-212-0	12	1	1009-
300	PROTECTOR; HEAT,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A)	8-97621-351-1	01	1	1009-
300	PROTECTOR; HEAT,EXH PIPE EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97635-856-0	01	1	1009-
332	BOLT; HEAT PROTECTOR EMISSION REGULATION NEW LONG TERM<JBG> M8X20 FLANGE	0-28650-820-0	04	1	1009-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0904-1008
475	BEARING; SEAL,VIBNON,EXH PIPE EURO4 SPECIFICATION<KBT> (B) OD=112	1-22119-294-1	01	1	1009-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0904-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
