1-41 — FUEL PIPING; CHASSIS (#19817) — 21 parça

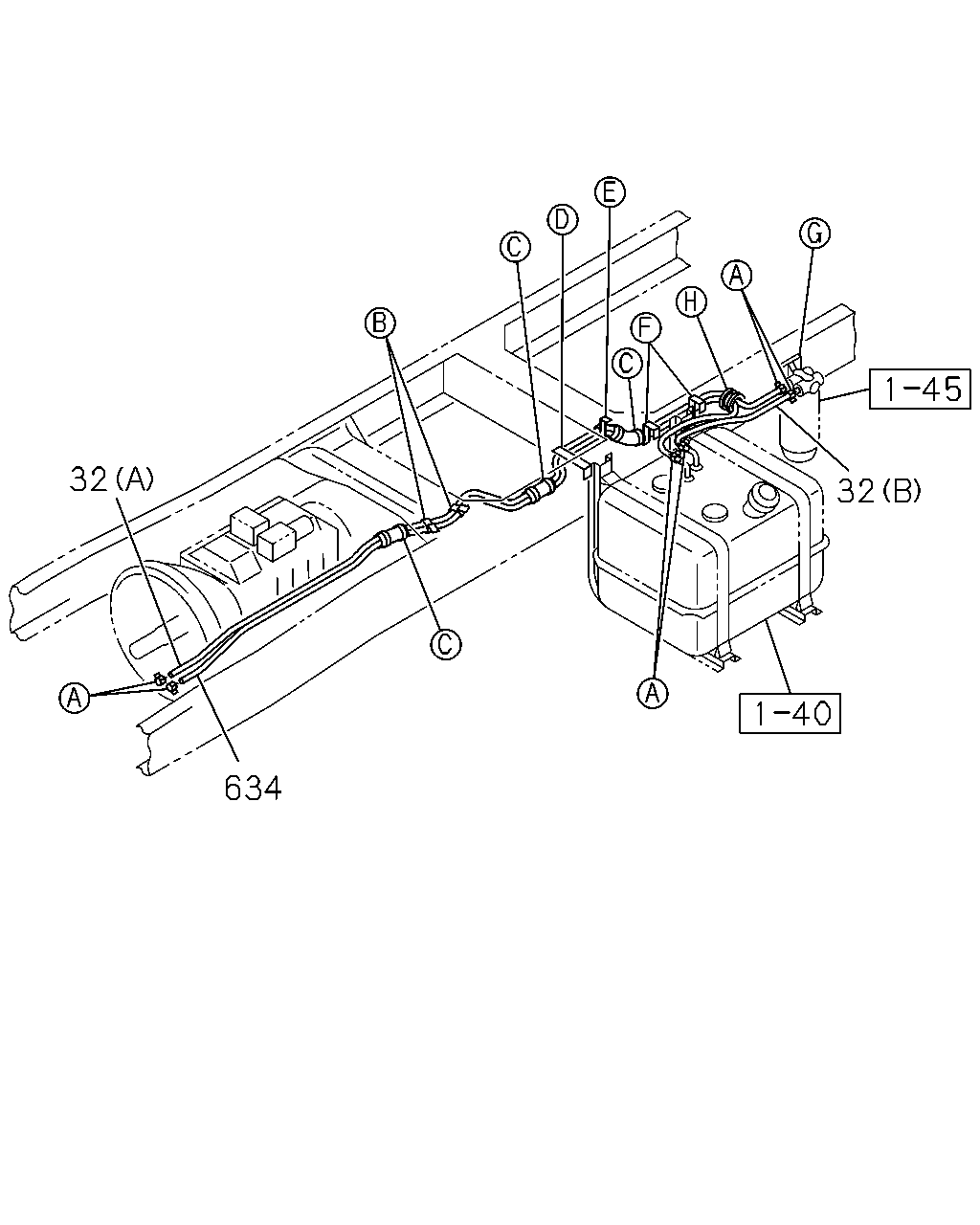

çizim 129716
32 32 634
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 0904-
32 PIPE; DELIVERY,FUEL TANK
(A) L=3750 SERVICED BY L=5350 		0-01262-535-0 01 1 0904-
634 HOSE; RUBBER RETURN
L=3250 SERVICED BY L=8000 		0-01260-800-0 01 1 0904-

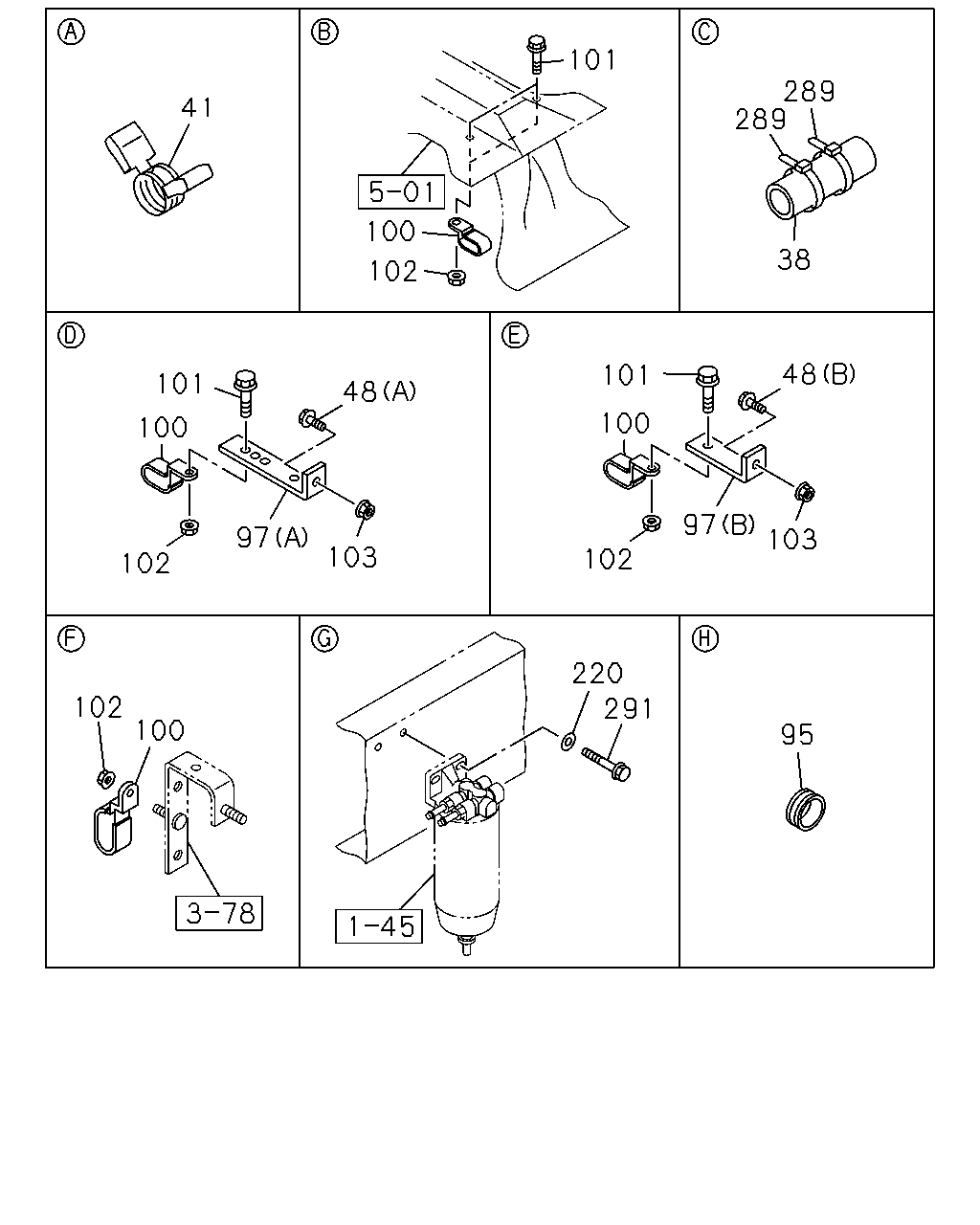

çizim 129723
101 289 289 41 100 38 102 48 101 101 48 100 100 97 97 103 103 102 102 220 291 102 100 95
BalonParca AdiParca NoAdetTipApplied Date
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 04 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
ID=19 		8-94238-569-0 02 1 0904-
48 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0904-
48 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0904-
95 BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0904-
97 BRACKET; CLIP
(B) L=55 		1-47475-304-0 01 1 0904-
97 BRACKET; CLIP
(A) 		1-82698-358-0 02 1 0904-
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 09 1 0904-
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 0904-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0904-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 09 1 0904-
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0904-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0904-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 06 1 0904-
291 BOLT; FILER TO BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 0904-1002
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1003-1009
291 BOLT; FILER TO BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 1010-
