1-40 — FUEL TANK (#19816) — 29 parça

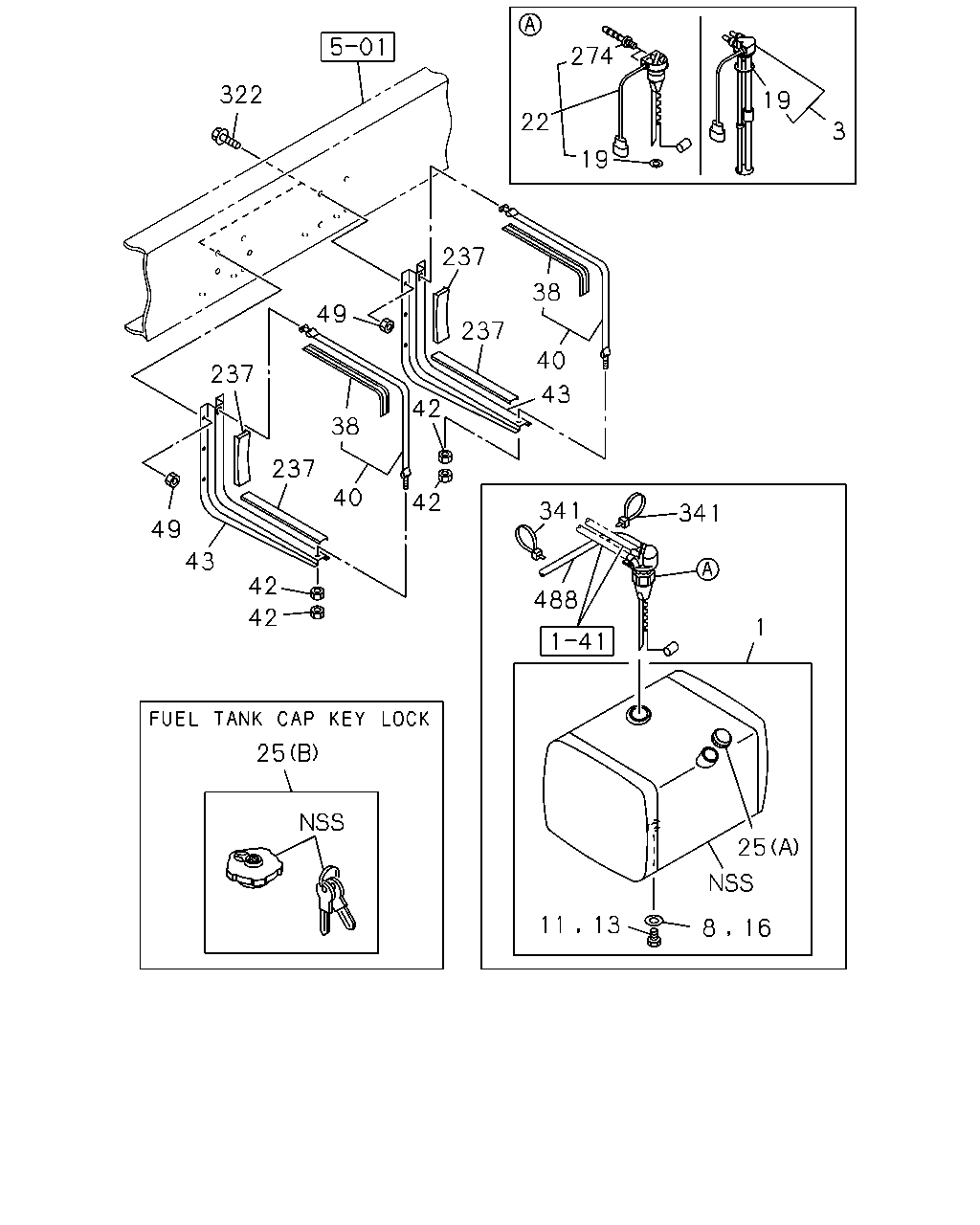

çizim 129655
3 19 19 274 22 322 237 237 38 40 341 341 488 1 25 8 16 13 11 25 42 42 43 49 40 42 42 43 38 237 49 237
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
1050X680X625 400L 		1-87411-699-1 01 1 0904-1109
1 TANK; FUEL
1050X680X625 400L 		1-87411-788-3 01 1 1110-
3 UNIT; FUEL TANK,SUB 8-98217-749-0 01 1 1211-
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1211-
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1211-
13 PLUG; SCREW,SUB TANK JOINT
M18X12 		0-92002-418-0 01 1 0904-1210
16 GASKET; PLUG
ID=18.2 T=1.6 		8-98030-453-0 01 1 0904-1210
19 GASKET; FUEL TANK UNIT
ID=58 		1-83149-005-0 01 1 0904-1210
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1211-
22 UNIT; FUEL TANK 1-83141-132-0 01 1 0904-1210
25 CAP; FILLER,FUEL TANK
(B) 		8-98108-595-0 01 1 0904-
25 CAP; FILLER,FUEL TANK
(A) 		8-98115-780-0 01 1 0904-1109
25 CAP; FILLER,FUEL TANK
(A) 		8-98182-306-0 01 1 1110-
38 INSULATION; SUPPORT BELT
L=1156 		1-22553-039-1 02 1 0904-
40 BELT; SUPPORT,FUEL TANK
L=1210 		1-22550-261-0 02 1 0904-1110
40 BELT; SUPPORT,FUEL TANK
L=1210 		8-98202-448-0 02 1 1111-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 0904-
43 BRACKET; FUEL TANK 1-53461-525-1 02 1 0904-
49 NUT; BRKT
M12 		0-91110-512-0 12 1 0904-
237 GASKET; BRKT TO FUEL TANK 1-22553-037-1 04 1 0904-
274 CONNECTOR; ELBOW,FUEL TANK PIPE 1-83149-006-0 02 1 0904-1210
322 BOLT; BRKT FIX
M12X45 FLANGE 		0-28051-245-0 12 1 0904-
341 CLIP; BAND,RUBBER HOSE
L=350 		1-09707-183-0 02 1 0904-
488 HOSE; RUBBER 8-98134-936-0 01 1 0904-
çizim 129709
467 329 329
BalonParca AdiParca NoAdetTipApplied Date
329 JOINT ASM; EYE,FUEL PIPE
(A) 		8-94409-622-0 01 1 0904-1002
329 JOINT ASM; EYE,FUEL PIPE
(A) NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1003-
329 JOINT ASM; EYE,FUEL PIPE
(B) 		8-97358-699-0 01 1 0904-1002
329 JOINT ASM; EYE,FUEL PIPE
(B) NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1003-
467 BOLT
NPTF3/8-18 		8-97329-623-0 02 1 0904-
