1-31 — AIR DUCT (#19814) — 145 parça

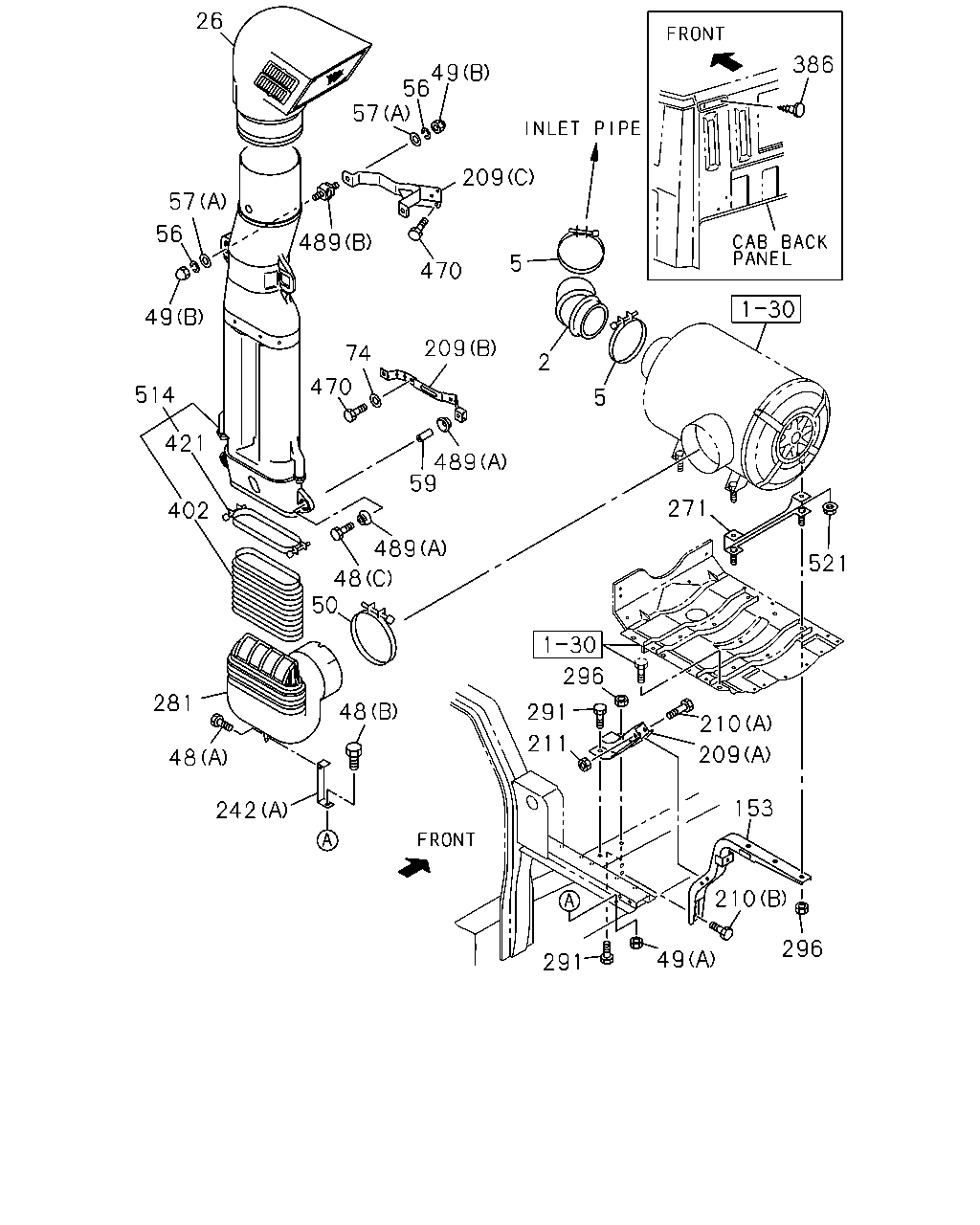

çizim 129665
26 386 49 56 57 209 57 56 489 5 470 49 209 74 2 470 514 5 421 489 59 271 402 489 521 48 50 296 281 48 291 210 211 209 48 153 242 210 296 49 291
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; ACL 1-14231-955-1 01 1 0904-1008 ●
2 HOSE; ACL 1-14231-955-1 01 1 1009- ● ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0904-1008 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1009- ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-202-2 01 1 1002-1003 ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1004- ● ● ●
26 DUCT; AIR INT 1-14219-258-1 01 1 0904-1001 ●
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1002- ● ● ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0904-1008 ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1009- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0904-1008 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1009- ● ● ●
48 BOLT; AIR DUCT
(C) M10X60 		1-09030-044-1 02 1 0904-1001 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1002- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1002- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 01 1 1002- ● ● ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91180-210-0 01 1 0904-1008 ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91180-210-0 01 1 1009- ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0904-1001 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 1002- ● ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0904-1008 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1009- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1002- ● ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0904-1001 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1002- ● ● ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1002- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 1002- ● ● ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 04 1 0904-1001 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 1002- ● ● ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0904-1008 ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1009- ● ● ●
74 WASHER; PL,ACL
ID=8.4 OD=22 		1-09985-188-0 01 1 0904-1001 ●
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 1002- ● ● ●
153 BRACKET; ACL,FRT 1-53419-309-0 01 1 0904-1008 ●
153 BRACKET; ACL,FRT 1-53419-309-0 01 1 1009- ● ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 0904-1008 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1009- ● ● ●
209 BRACKET; ACL
(C) 		1-79990-045-2 01 1 0904-1001 ●
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1002- ● ● ●
209 BRACKET; ACL
(B) 		8-98115-405-1 01 1 0904-1001 ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1002- ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0904-1008 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1009- ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0904-1008 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1009- ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0904-1008 ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C) 		8-98113-588-1 01 1 1002- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1002- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (C) 		8-98041-993-1 01 1 1002- ● ● ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0904-1008 ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1009- ● ● ●
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 0904-1008 ●
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1009- ● ● ●
281 DUCT; AIR,VERTICAL INT 1-14230-194-0 01 1 0904-1001 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 1002- ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 0904-1008 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1009- ● ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0904-1008 ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1009- ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0904-1008 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1009- ● ● ●
402 GASKET; RUBBER 1-14230-149-2 01 1 0904-1001 ●
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-2 01 1 1002- ● ● ●
421 CLAMP; AIR DUCT 1-14239-237-0 01 1 0904-1001 ●
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 1002- ● ● ●
470 BOLT; BRKT
M8X25 FLANGE 		8-98074-570-0 04 1 0904-1001 ●
470 BOLT; BRKT
PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 04 1 1002- ● ● ●
489 RUBBER; SUPPORT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0904-1001 ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1002- ● ● ●
489 RUBBER; SUPPORT
(B) 		8-97080-149-0 02 1 0904-1001 ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 1002- ● ● ●
514 DUCT; PRE CLEANER 1-14230-170-1 01 1 0904-1001 ●
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-1 01 1 1002- ● ● ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 0904-1008 ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1009- ● ● ●

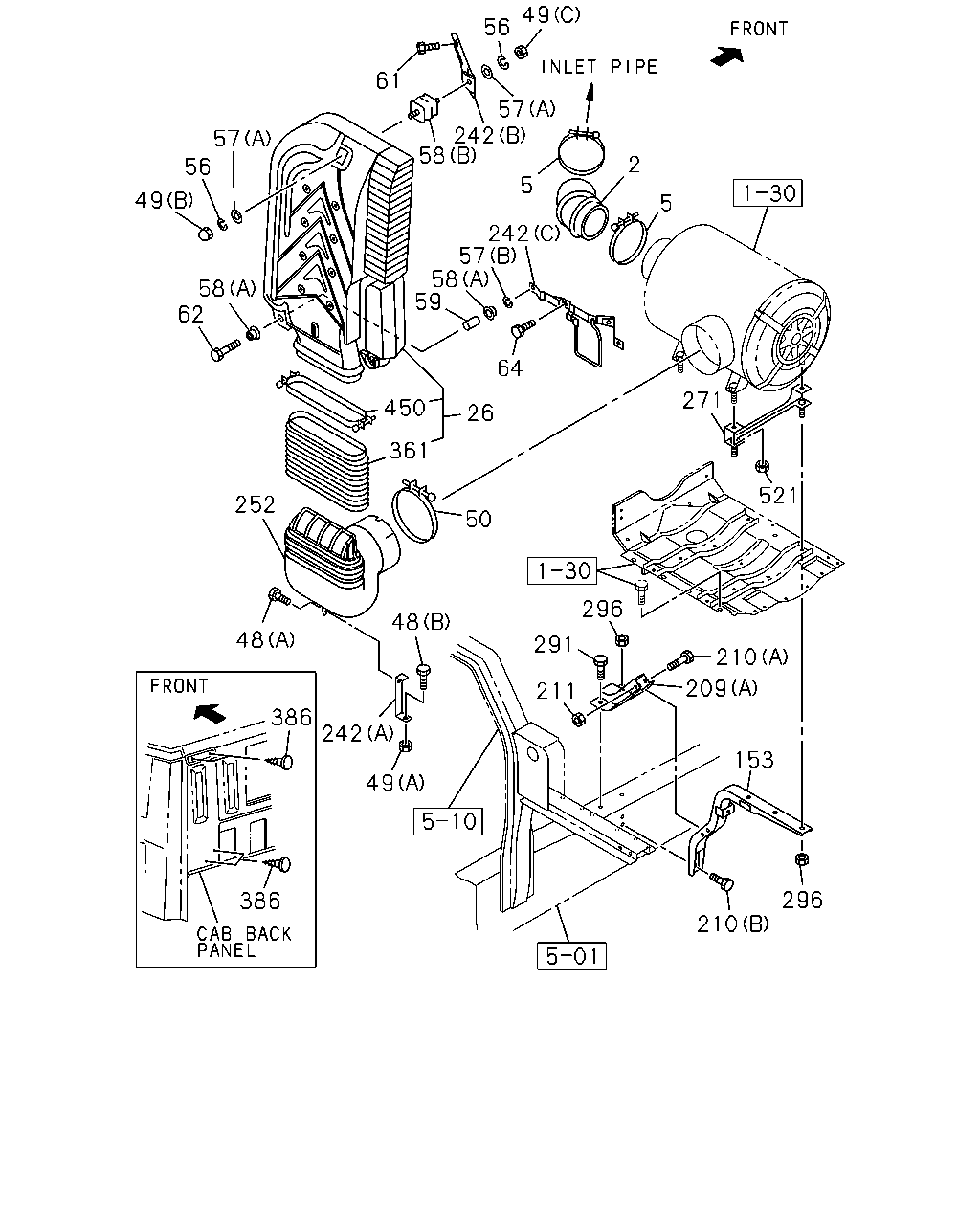

çizim 129838
49 56 61 57 242 58 57 56 2 5 49 5 242 57 58 59 58 62 64 271 450 26 361 521 252 50 296 48 48 291 210 209 211 386 242 153 49 296 386 210
BalonParca AdiParca NoAdetTipApplied Date A B C
2 HOSE; ACL 1-14231-955-1 01 1 0904-1008 ●
2 HOSE; ACL 1-14231-955-1 01 1 1009- ● ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0904-1008 ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1009- ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-202-2 01 1 1002-1003 ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1004- ● ● ●
26 DUCT; AIR INT 1-14219-258-1 01 1 0904-1001 ●
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1002- ● ● ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0904-1008 ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1009- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0904-1008 ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1009- ● ● ●
48 BOLT; AIR DUCT
(C) M10X60 		1-09030-044-1 02 1 0904-1001 ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1002- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1002- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 01 1 1002- ● ● ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91180-210-0 01 1 0904-1008 ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91180-210-0 01 1 1009- ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0904-1001 ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 1002- ● ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0904-1008 ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1009- ● ● ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1002- ● ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0904-1001 ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1002- ● ● ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1002- ● ● ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 1002- ● ● ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 04 1 0904-1001 ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 1002- ● ● ●
58 SUPPORT; AIR INL DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) 		8-98125-944-1 01 1 1002- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1002- ● ● ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (B) 		8-97080-149-0 01 1 1002- ● ● ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0904-1008 ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1009- ● ● ●
61 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1002- ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X60 		1-09030-044-1 02 1 1002- ● ● ●
64 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1002- ● ● ●
153 BRACKET; ACL,FRT 1-53419-309-0 01 1 0904-1008 ●
153 BRACKET; ACL,FRT 1-53419-309-0 01 1 1009- ● ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 0904-1008 ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1009- ● ● ●
209 BRACKET; ACL
(C) 		1-79990-045-2 01 1 0904-1001 ●
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1002- ● ● ●
209 BRACKET; ACL
(B) 		8-98115-405-1 01 1 0904-1001 ●
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1002- ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0904-1008 ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1009- ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0904-1008 ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1009- ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0904-1008 ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ● ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C) 		8-98113-588-1 01 1 1002- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1002- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (C) 		8-98041-993-1 01 1 1002- ● ● ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0904-1008 ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1009- ● ● ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 1002- ● ● ●
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 0904-1008 ●
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1009- ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 0904-1008 ●
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1009- ● ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0904-1008 ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1009- ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-2 01 1 1002- ● ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0904-1008 ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1009- ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 1002- ● ● ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 0904-1008 ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1009- ● ● ●
