Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#19812) — 60 parça
Tümü
A - 6WG1 TC-R
B - 6WG1 TC-C
C - 6WG1 TC-S
◀

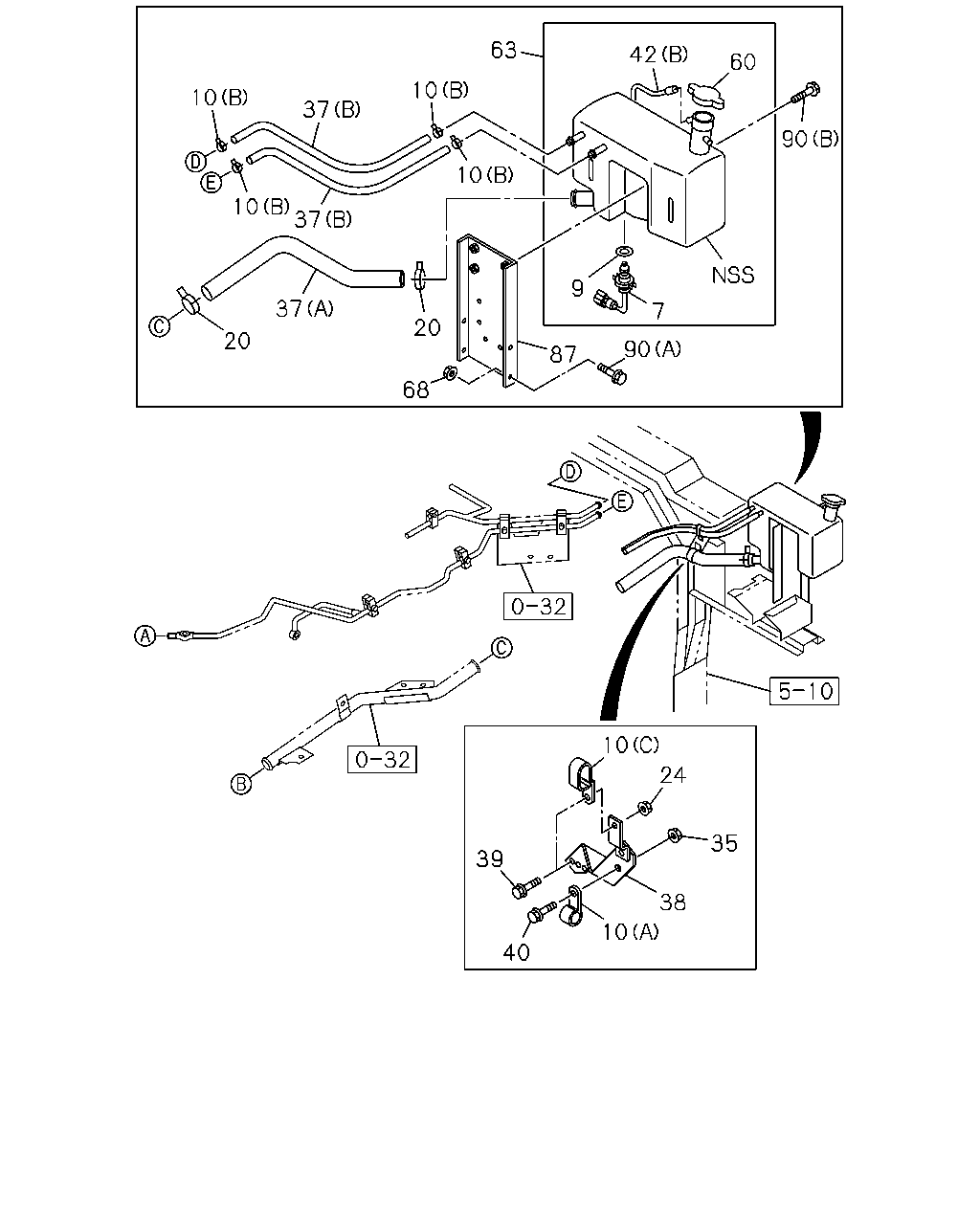

[111A] SUB TANK SIDE (43 parça)

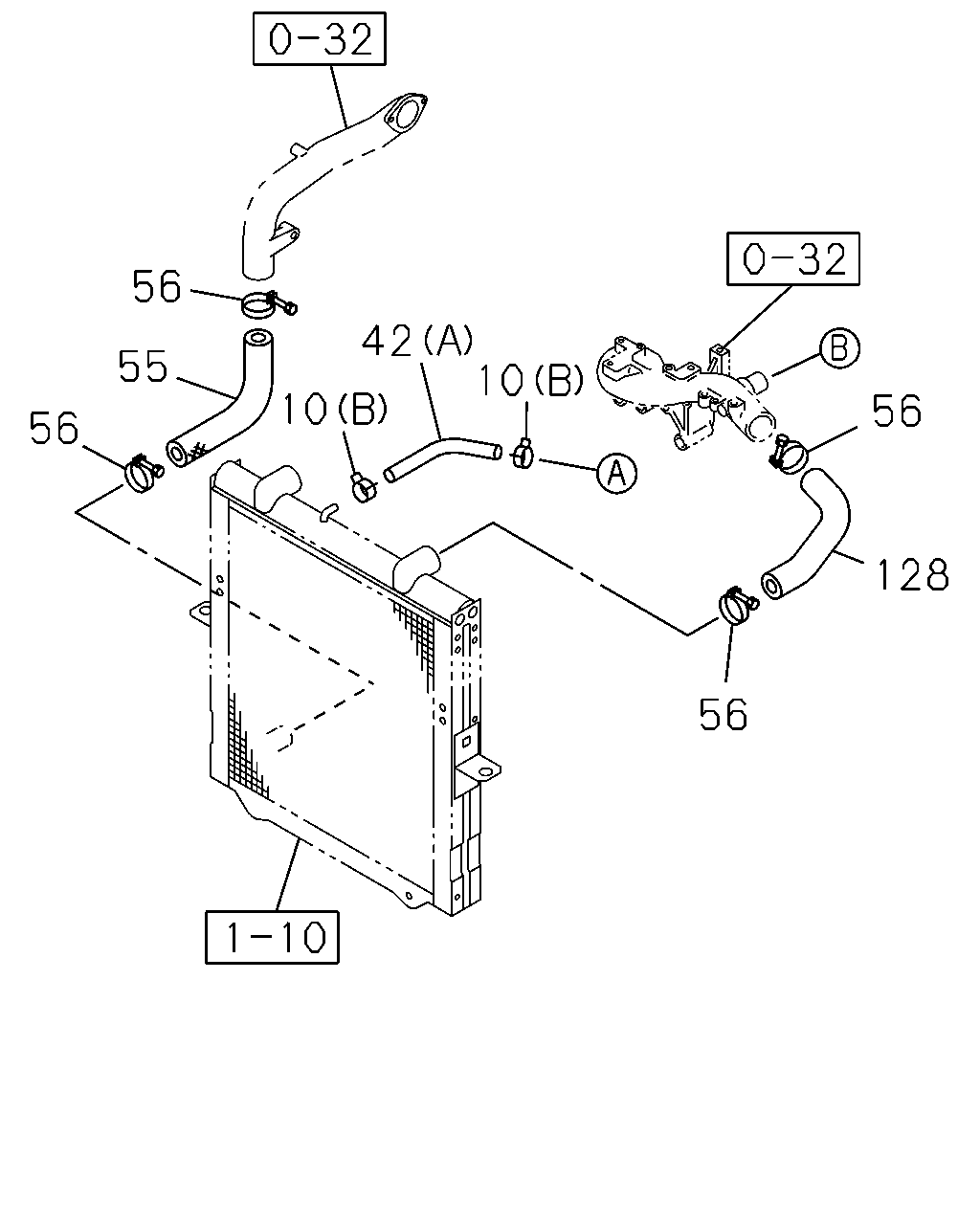

[111A] RADIATOR SIDE (17 parça)
▶
63
42
60
10
10
37
90
10
10
37
9
37
7
20
20
90
87
68
10
24
35
39
38
10
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0904-1008
●
7
SWITCH ASM; TANK
1-82480-093-1
01
1
1009-1206
●
●
●
7
SWITCH ASM; TANK
8-97640-800-0
01
1
1207-
●
●
●
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
0904-1008
●
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
1009-
●
●
●
10
CLIP; RUBBER HOSE
(C) ID=16X2 L=20
0-95325-535-0
01
1
0904-1008
●
10
CLIP; RUBBER HOSE
(C) ID=16X2 L=20
0-95325-535-0
01
1
1009-
●
●
●
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0904-1008
●
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
1009-
●
●
●
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0904-1008
●
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1009-
●
●
●
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0904-1008
●
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
1009-
●
●
●
24
NUT
M8 FLANGE
0-91180-108-0
01
1
0904-1008
●
24
NUT
M8 FLANGE
0-91180-108-0
01
1
1009-
●
●
●
35
NUT
M10 FLANGE
0-91180-210-0
01
1
0904-1008
●
35
NUT
M10 FLANGE
0-91180-210-0
01
1
1009-
●
●
●
37
HOSE; RUBBER
(A)
1-21430-207-0
01
1
0904-1008
●
37
HOSE; RUBBER
(A)
1-21430-207-0
01
1
1009-
●
●
●
37
HOSE; RUBBER
(B)
8-98061-808-1
02
1
0904-1008
●
37
HOSE; RUBBER
(B)
8-98061-808-1
02
1
1009-
●
●
●
38
BRACKET; RUBBER HOSE
1-21489-202-2
01
1
0904-1008
●
38
BRACKET; RUBBER HOSE
1-21489-202-2
01
1
1009-
●
●
●
39
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
02
1
0904-1008
●
39
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
02
1
1009-
●
●
●
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
0904-1008
●
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
1009-
●
●
●
42
HOSE; RUBBER
(A) L=280 SERVICED BY L=3000
0-03559-300-0
01
1
0904-1008
●
42
HOSE; RUBBER
(A) L=280 SERVICED BY L=3000
0-03559-300-0
01
1
1009-
●
●
●
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
0904-1008
●
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
1009-
●
●
●
60
CAP; SUB TANK
1-21450-137-0
01
1
0904-1008
●
60
CAP; SUB TANK
1-21450-137-0
01
1
1009-
●
●
●
63
TANK ASM; SUB
1-21481-147-2
01
1
0904-1008
●
63
TANK ASM; SUB
1-21481-147-2
01
1
1009-
●
●
●
68
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0904-1008
●
68
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1009-
●
●
●
87
BRACKET; SUB TANK
1-21489-193-2
01
1
0904-1008
●
87
BRACKET; SUB TANK
1-21489-193-2
01
1
1009-
●
●
●
90
BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE
0-28650-825-0
04
1
0904-1008
●
90
BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE
0-28650-825-0
04
1
1009-
●
●
●
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0904-1008
●
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
1009-
●
●
●
56
42
10
55
10
56
56
128
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
10
CLIP; RUBBER HOSE
(C) ID=16X2 L=20
0-95325-535-0
01
1
0904-1008
●
10
CLIP; RUBBER HOSE
(C) ID=16X2 L=20
0-95325-535-0
01
1
1009-
●
●
●
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0904-1008
●
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
1009-
●
●
●
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0904-1008
●
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
1009-
●
●
●
42
HOSE; RUBBER
(A) L=280 SERVICED BY L=3000
0-03559-300-0
01
1
0904-1008
●
42
HOSE; RUBBER
(A) L=280 SERVICED BY L=3000
0-03559-300-0
01
1
1009-
●
●
●
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
0904-1008
●
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
1009-
●
●
●
55
HOSE; WATER,RAD OUTLET
1-21430-194-1
01
1
1009-
●
55
HOSE; WATER,RAD OUTLET
1-21437-979-2
01
1
0904-1008
●
55
HOSE; WATER,RAD OUTLET
1-21437-979-2
01
1
1009-
●
●
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
0904-1008
●
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
1009-
●
●
●
128
HOSE; WATER,RAD INL
1-21437-977-1
01
1
0904-1008
●
128
HOSE; WATER,RAD INL
1-21437-977-1
01
1
1009-
●
●
●
