◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#1981) — 91 parça

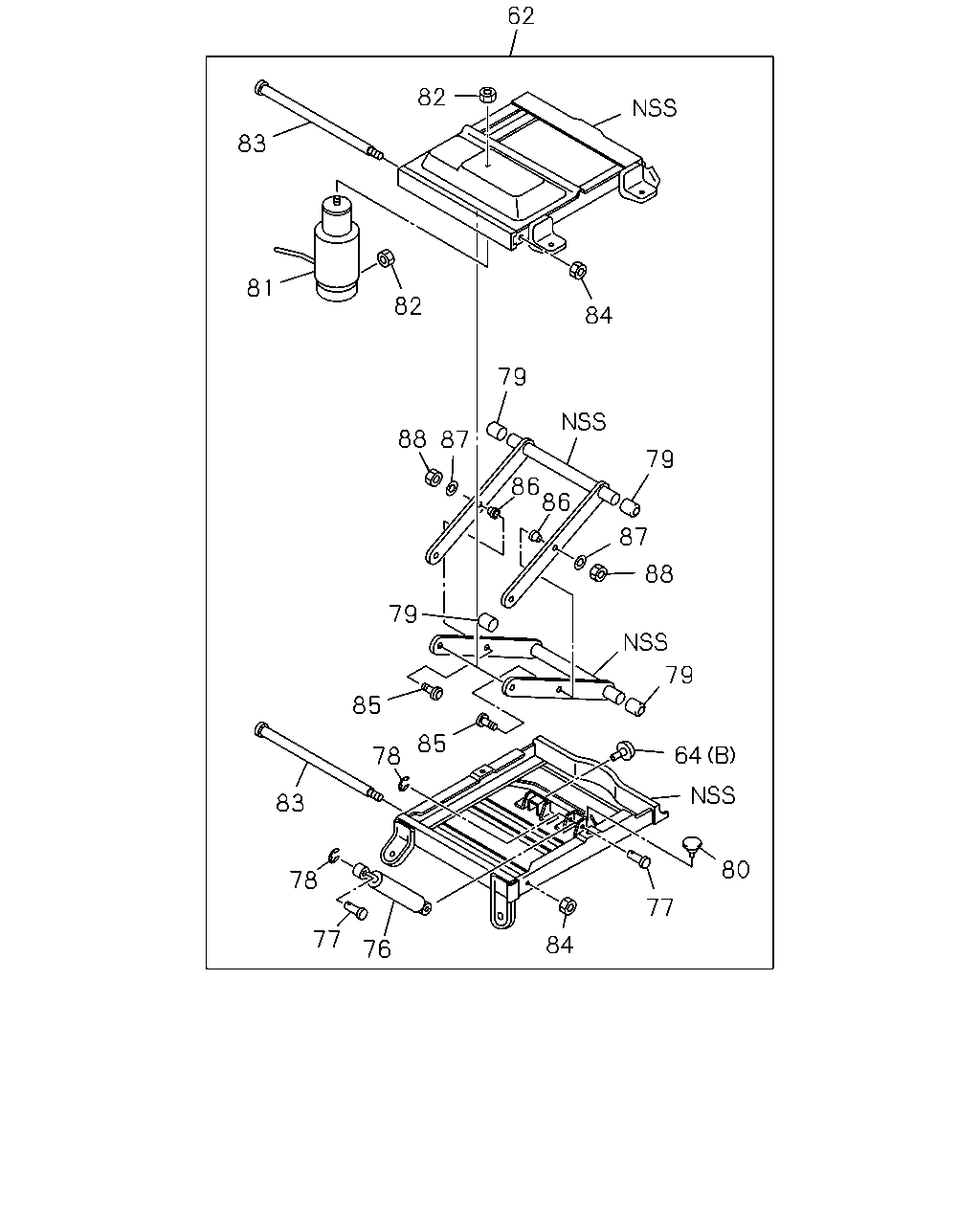

çizim 94094
62 82 83 81 82 84 79 88 87 79 86 86 87 88 79 79 85 85 64 78 83 80 78 77 77 84 76
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75538-114-7 01 1 9207- ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-09987-123-0 01 1 9207- ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75537-194-0 01 1 9207- ● ● ● ●
76 DAMPER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75537-197-0 01 1 9207- ● ● ● ●
77 PIN; DAMPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		9-08201-035-0 02 1 9207- ● ● ● ●
78 RING; SNAP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=8 		9-09185-008-0 02 1 9207- ● ● ● ●
79 ROLLER ASM; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75538-119-0 04 1 9207- ● ● ● ●
80 RUBBER; STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		9-61468-039-0 02 1 9207- ● ● ● ●
81 SPRING; AIR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75537-195-0 01 1 9207- ● ● ● ●
82 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-09984-096-0 02 1 9207- ● ● ● ●
83 PIN; LOW & UPR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-016-0 02 1 9207- ● ● ● ●
84 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75530-014-0 02 1 9207- ● ● ● ●
85 BOLT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75538-118-0 02 1 9207- ● ● ● ●
86 BUSHING; GUIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75148-153-0 02 1 9207- ● ● ● ●
87 WASHER; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> ID=10.5 OD=26 		9-09160-710-0 02 1 9207- ● ● ● ●
88 NUT; AIR SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M10 		8-94279-519-0 02 1 9207- ● ● ● ●
çizim 95298
367 118 117 28 367 28 135 404 141 143 118 135 141 143 136 139 135 137
BalonParca AdiParca NoAdetTipApplied Date A B C D
28 HOLDER; GUIDE,HD REST
(A) LIGHT BLUE 		8-94477-444-0 01 1 9207- ● ● ● ●
28 HOLDER; GUIDE,HD REST
(A) LIGHT BLUE 		8-94477-441-0 01 1 9207- ● ● ● ●
28 HOLDER; GUIDE,HD REST
HEAD REST PASSENGER SIDE<SL9> (B) LIGHT BLUE 		8-94477-444-0 02 1 9207- ● ● ● ●
28 HOLDER; GUIDE,HD REST
HEAD REST PASSENGER SIDE<SL9> (B) LIGHT BLUE 		8-94477-441-0 02 1 9207- ● ● ● ●
117 REST; HD
HEAD REST PASSENGER SIDE<SL9> 		1-75657-020-0 02 1 9207- ● ● ● ●
118 SEAT ASM; BENCH
HEAD REST PASSENGER SIDE<SL9> SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-300-2 01 1 9207- ● ● ● ●
118 SEAT ASM; BENCH
HEAD REST PASSENGER SIDE<SL9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-298-2 01 1 9207- ● ● ● ●
118 SEAT ASM; BENCH
EXC. HEAD REST PASSENGER SIDE<SL9>,SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-297-2 01 1 9207- ● ● ● ●
118 SEAT ASM; BENCH
SAUDI ARABIA EQUIPMENT(WH1) EXC. HEAD REST PASSENGER SIDE<SL9> 		1-75028-301-2 01 1 9207- ● ● ● ●
135 NUT; SEAT STAND
(A) M8 FLANGE 		8-94279-504-1 01 1 9207- ● ● ● ●
135 NUT; SEAT STAND
(B) M8 FLANGE 		8-94279-504-1 02 1 9207- ● ● ● ●
136 STAND; PASSENGER SEAT 1-75558-454-1 01 1 9207- ● ● ● ●
137 BOLT; STAND 1-09980-566-0 02 1 9207- ● ● ● ●
137 BOLT; STAND 1-09980-566-0 04 1 9505- ● ● ● ●
139 BOLT; PASSENGER SEAT 1-09980-566-0 05 1 9207-9504 ● ● ● ●
139 BOLT; PASSENGER SEAT 1-09980-566-0 01 1 9505- ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
HEAD REST PASSENGER SIDE<SL9> SAUDI ARABIA EQUIPMENT(WH1) 		1-75118-993-0 01 1 9207- ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
HEAD REST PASSENGER SIDE<SL9> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75118-992-0 01 1 9207- ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
EXC. HEAD REST PASSENGER SIDE<SL9>,SAUDI ARABIA EQUIPMENT(WH1) 		1-75118-991-0 01 1 9207- ● ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
SAUDI ARABIA EQUIPMENT(WH1) EXC. HEAD REST PASSENGER SIDE<SL9> 		1-75118-994-0 01 1 9207- ● ● ● ●
143 COVER; TRIM,BENCH SEAT,CUSHION
SAUDI ARABIA EQUIPMENT(WH1) 		1-75118-996-0 01 1 9207- ● ● ● ●
143 COVER; TRIM,BENCH SEAT,CUSHION
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75118-995-0 01 1 9207- ● ● ● ●
367 BOOT; HD REST
(A) 		8-94412-828-0 02 1 9207- ● ● ● ●
367 BOOT; HD REST
HEAD REST PASSENGER SIDE<SL9> (B) 		8-94412-828-0 04 1 9207- ● ● ● ●
404 PLUG; SEAT
OD=15 L=14.5 		1-76378-157-0 05 1 9207- ● ● ● ●

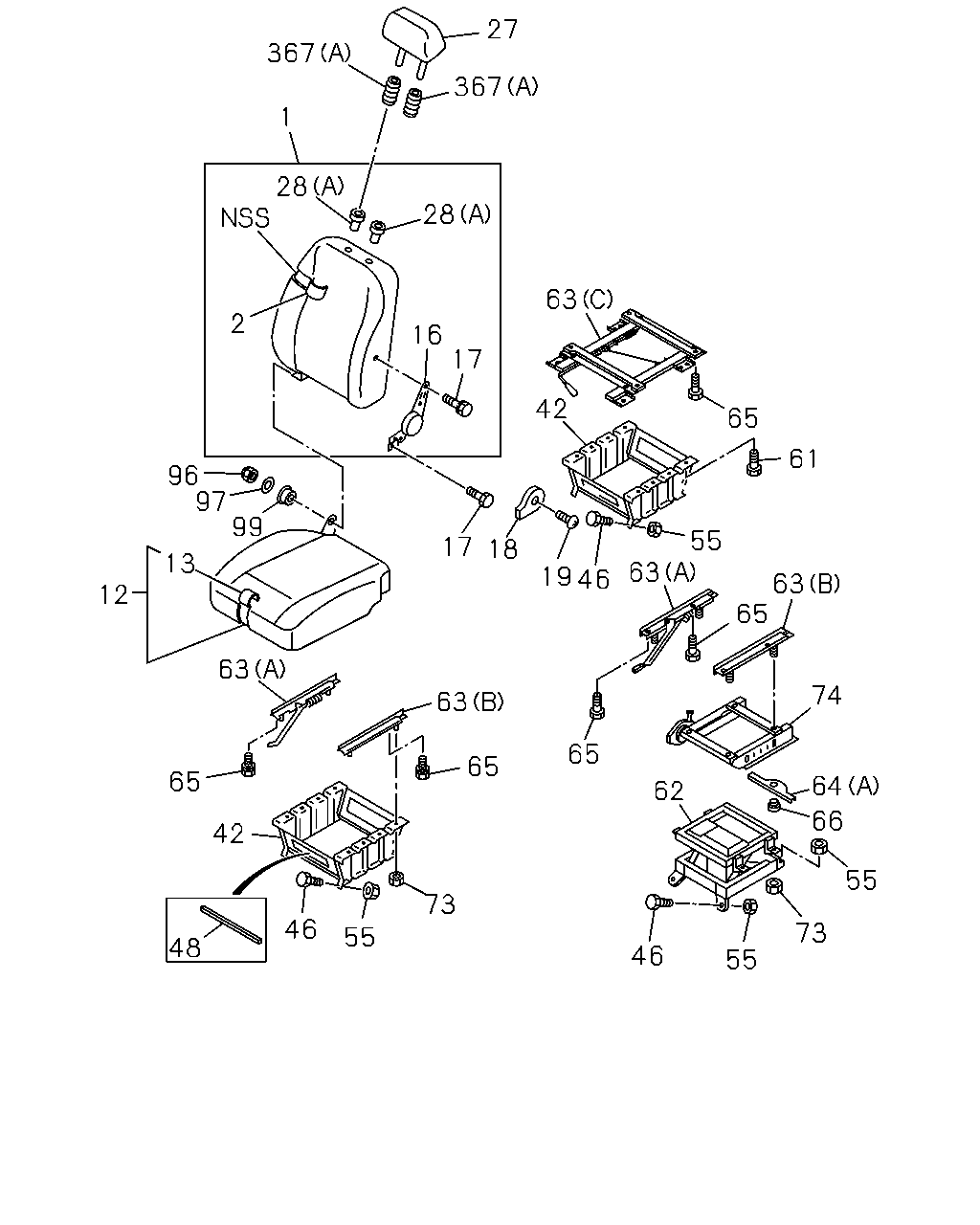

çizim 96437
27 367 367 1 28 28 63 2 16 17 42 65 61 96 97 99 55 17 18 13 63 19 46 63 65 12 63 74 63 65 65 65 64 62 66 42 55 73 46 73 55 48 46 55
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BACK ASM; SEAT
SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-320-0 01 1 9207- ● ● ● ●
1 BACK ASM; SEAT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-319-0 01 1 9207- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-114-0 01 1 9207- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-115-0 01 1 9207- ● ● ● ●
12 CUSHION; SEAT,FRT
SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-326-0 01 1 9207- ● ● ● ●
12 CUSHION; SEAT,FRT
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75028-325-0 01 1 9207- ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-108-0 01 1 9207- ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75116-109-0 01 1 9207- ● ● ● ●
16 ADJUSTER ASM; RECLINING 1-75418-015-2 01 1 9207- ● ● ● ●
17 BOLT; RECLINING
M8X20 		1-09980-438-0 04 1 9207- ● ● ● ●
18 COVER; RECLINING 1-75417-061-0 01 1 9207- ● ● ● ●
19 SCREW; COVER
M6X6 		1-09981-499-0 01 1 9207- ● ● ● ●
27 REST; HD,FRT SEAT 1-75657-020-0 01 1 9207- ● ● ● ●
28 HOLDER; GUIDE,HD REST
(A) LIGHT BLUE 		8-94477-444-0 01 1 9207- ● ● ● ●
28 HOLDER; GUIDE,HD REST
(A) LIGHT BLUE 		8-94477-441-0 01 1 9207- ● ● ● ●
28 HOLDER; GUIDE,HD REST
HEAD REST PASSENGER SIDE<SL9> (B) LIGHT BLUE 		8-94477-444-0 02 1 9207- ● ● ● ●
28 HOLDER; GUIDE,HD REST
HEAD REST PASSENGER SIDE<SL9> (B) LIGHT BLUE 		8-94477-441-0 02 1 9207- ● ● ● ●
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75558-294-4 01 1 9207- ● ● ● ●
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SAUDI ARABIA EQUIPMENT(WH1) 		1-75558-294-4 01 1 9207- ● ● ● ●
42 STAND; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75557-391-8 01 1 9207- ● ● ● ●
42 STAND; DRIVER SEAT
SAUDI ARABIA EQUIPMENT(WH1) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75557-391-8 01 1 9207- ● ● ● ●
46 BOLT; STAND TO FLOOR 1-09980-566-0 02 1 9207- ● ● ● ●
46 BOLT; STAND TO FLOOR
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-09980-566-0 04 1 9207-9504 ● ● ● ●
48 PROTECTOR; SEAT STAND
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> SERVICED BY L=500 		1-79937-746-0 01 1 9207- ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M8 FLANGE 		8-94279-504-1 02 1 9207- ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE 		8-94279-504-1 04 1 9207-9504 ● ● ● ●
61 BOLT; SEAT TO STAND
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-09980-566-0 04 1 9505- ● ● ● ●
61 BOLT; SEAT TO STAND
DRIVING POSITION WIDE LEG SPACE<PR2> SAUDI ARABIA EQUIPMENT(WH1) 		1-09980-566-0 04 1 9505- ● ● ● ●
62 DAMPER ASM; SEAT SUSP
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75538-114-7 01 1 9207- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (C) 		1-75518-034-2 01 1 9207- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
DRIVING POSITION WIDE LEG SPACE<PR2> SAUDI ARABIA EQUIPMENT(WH1) (C) 		1-75518-034-2 01 1 9207- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75518-020-1 01 1 9207- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
SAUDI ARABIA EQUIPMENT(WH1) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75518-020-1 01 1 9207- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-75518-020-1 01 1 9207- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75518-019-1 01 1 9207- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
SAUDI ARABIA EQUIPMENT(WH1) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75518-019-1 01 1 9207- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75518-019-1 01 1 9207- ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B) 		1-09987-123-0 01 1 9207- ● ● ● ●
64 STOPPER; LWR,SUSPENSION DEVICE
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (A) 		1-75537-194-0 01 1 9207- ● ● ● ●
65 SCREW; ADJ TO SEAT
M8X23 W/LK WASHER 		8-94254-743-0 04 1 9207- ● ● ● ●
66 RUBBER; LWR STOPPER
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75537-130-0 01 1 9207- ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE 		8-94279-518-0 04 1 9505- ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
SAUDI ARABIA EQUIPMENT(WH1) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		8-94279-518-0 04 1 9505- ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> M8 FLANGE 		5-09440-005-0 08 1 9207- ● ● ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> 		1-75517-018-4 01 1 9207- ● ● ● ●
96 NUT; LK,HINGE
M8 		1-09984-109-0 01 1 9207- ● ● ● ●
97 WASHER; PL,RECLINING
ID=8.5 OD=18 BLACK 		5-09985-056-0 01 1 9207- ● ● ● ●
99 BUSHING; SEAT BACK 1-75508-004-0 01 1 9207- ● ● ● ●
367 BOOT; HD REST
(A) 		8-94412-828-0 02 1 9207- ● ● ● ●
367 BOOT; HD REST
HEAD REST PASSENGER SIDE<SL9> (B) 		8-94412-828-0 04 1 9207- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
