◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#19807) — 52 parça

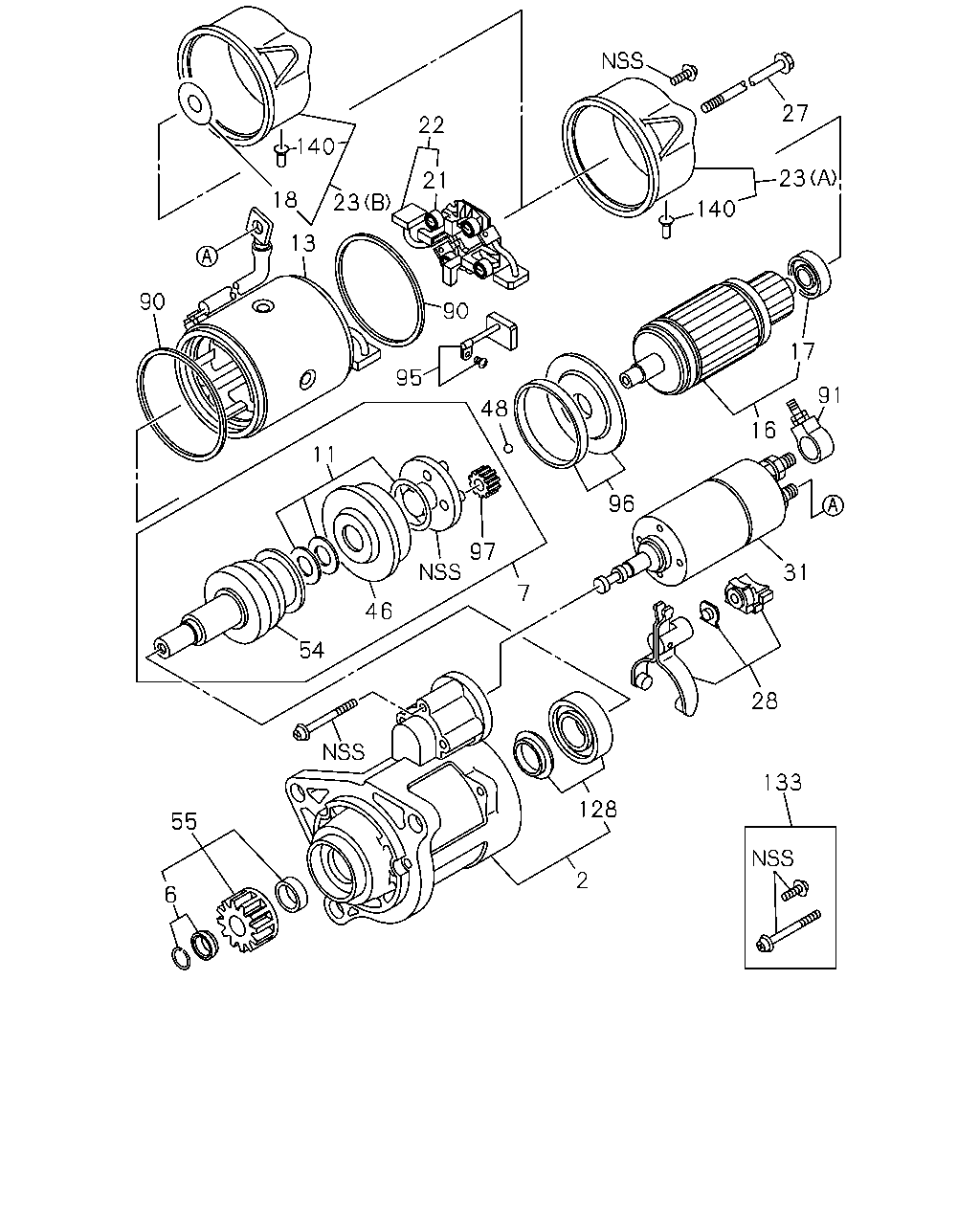

çizim 129647
140 22 21 23 13 18 90 11 95 90 48 97 7 46 54 55 6 2 128 133 28 31 16 91 17 140 23 27 96
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-97380-508-4 		1-81123-065-0 01 1 1306-
2 CASE; PINION,STARTER
ASM PART: A = 8-97380-508-4 		1-81123-065-0 01 1 -1605
6 STOPPER; PINION STARTER
ASM PART: A = 8-97380-508-4 		1-81129-785-0 01 1 -1605
6 STOPPER; PINION STARTER
ASM PART: A = 8-97380-508-4 		1-81129-785-0 01 1 1306-
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-794-0 01 1 -1605
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-794-0 01 1 1306-
11 WASHER; GEAR SHAFT STARTER
ASM PART: A = 8-97380-508-4 		1-81129-781-0 01 1 1306-
11 WASHER; GEAR SHAFT STARTER
ASM PART: A = 8-97380-508-4 		1-81129-781-0 01 1 -1605
13 YOKE; STARTER
ASM PART: A = 8-97380-508-4 		8-97381-362-1 01 1 -1605
13 YOKE; STARTER
ASM PART: A = 8-97380-508-4 		8-97381-362-1 01 1 1306-
16 ARMATURE; STARTER
ASM PART: A = 8-97380-508-4 		1-81121-067-0 01 1 -1605
16 ARMATURE; STARTER
ASM PART: A = 8-97380-508-4 		1-81121-067-0 01 1 1306-
17 BEARING; ARMATURE,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-952-0 01 1 1306-
17 BEARING; ARMATURE,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-952-0 01 1 -1605
18 WASHER; THRUST,ARMATURE,STARTER
ASM PART: A = 8-97380-508-4 		8-98237-580-0 01 1 1306-
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-97380-508-4 		1-81129-828-0 04 1 -1605
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-97380-508-4 		1-81129-828-0 04 1 1306-
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-97380-508-4 		1-81121-071-0 01 1 -1605
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-97380-508-4 		1-81121-071-0 01 1 1306-
23 COVER; RR COVER STARTER
(A) ASM PART: A = 8-97380-508-4 		1-81115-233-0 01 1 -1605
23 COVER; RR COVER STARTER
(B) ASM PART: A = 8-97380-508-4 		8-98237-570-0 01 1 1306-
27 BOLT; THROUGH,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-769-0 01 1 1306-
27 BOLT; THROUGH,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-769-0 01 1 -1605
28 LEVER; SHIFT,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-783-0 01 1 -1605
28 LEVER; SHIFT,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-783-0 01 1 1306-
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97380-508-4 		8-97381-364-0 01 1 1306-
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97380-508-4 		8-97381-364-0 01 1 -1605
46 GEAR; CLU STARTER
ASM PART: A = 8-97380-508-4 		1-81123-061-0 01 1 -1605
46 GEAR; CLU STARTER
ASM PART: A = 8-97380-508-4 		1-81123-061-0 01 1 1306-
48 BALL; PINION,STARTER
ASM PART: A = 8-97380-508-4 		8-97116-515-0 01 1 -1605
48 BALL; PINION,STARTER
ASM PART: A = 8-97380-508-4 		8-97116-515-0 01 1 1306-
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-782-0 01 1 1306-
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-782-0 01 1 -1605
55 PINION; CLU,STARTER
ASM PART: A = 8-97380-508-4 		1-81129-784-0 01 1 -1209
55 PINION; CLU,STARTER
ASM PART: A = 8-97380-508-4 		8-98222-732-0 01 1 1210-1605
55 PINION; CLU,STARTER
ASM PART: A = 8-97380-508-4 		8-98222-732-0 01 1 1306-
90 GASKET; ARMATURE
ASM PART: A = 8-97380-508-4 		1-81129-827-0 02 1 1306-
90 GASKET; ARMATURE
ASM PART: A = 8-97380-508-4 		1-81129-827-0 02 1 -1605
91 COVER; STARTER
ASM PART: A = 8-97380-508-4 		1-81129-786-0 01 1 -1605
91 COVER; STARTER
ASM PART: A = 8-97380-508-4 		1-81129-786-0 01 1 1306-
95 BRUSH ASM; STARTER
ASM PART: A = 8-97380-508-4 		1-81116-067-0 01 1 1306-
95 BRUSH ASM; STARTER
ASM PART: A = 8-97380-508-4 		1-81116-067-0 01 1 -1605
96 GASKET; FRT CASE
ASM PART: A = 8-97380-508-4 		1-81129-796-0 01 1 -1605
96 GASKET; FRT CASE
ASM PART: A = 8-97380-508-4 		1-81129-796-0 01 1 1306-
97 GEAR; STARTER
ASM PART: A = 8-97380-508-4 		1-81123-056-0 04 1 1306-
97 GEAR; STARTER
ASM PART: A = 8-97380-508-4 		1-81123-056-0 04 1 -1605
128 BEARING; STARTER
ASM PART: A = 8-97380-508-4 		1-81129-780-0 01 1 1306-
128 BEARING; STARTER
ASM PART: A = 8-97380-508-4 		1-81129-780-0 01 1 -1605
133 SCREW SET; STARTER
ASM PART: A = 8-97380-508-4 		1-81129-787-0 01 1 1306-
133 SCREW SET; STARTER
ASM PART: A = 8-97380-508-4 		1-81129-787-0 01 1 -1605
140 GROMMET; RR COVER
ASM PART: A = 8-97380-508-4 		8-97376-389-0 01 1 -1605
140 GROMMET; RR COVER
ASM PART: A = 8-97380-508-4 		8-97376-389-0 01 1 1306-
