◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#19805) — 141 parça

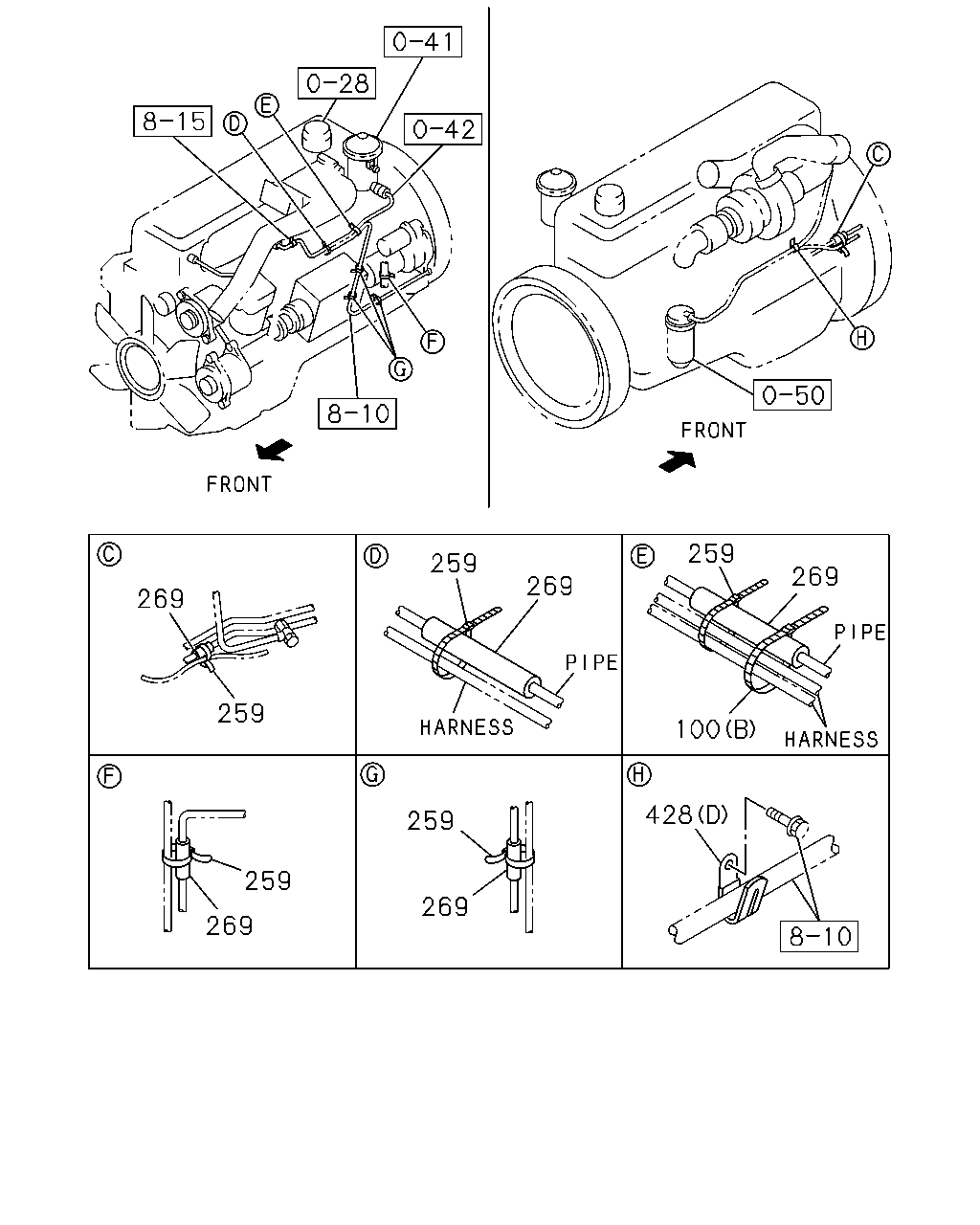

çizim 129625
259 259 269 269 269 259 100 428 259 259 269 269
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 0904-
100 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0904-1205
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 01 1 1009-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		5-09707-031-1 05 1 0904-1008
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=140 		5-09707-031-1 05 1 1009-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=140 		8-98216-431-0 05 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 01 1 0904-1008
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140 		5-09707-031-1 06 1 1009-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140 		8-98216-431-0 06 1 1206-
269 SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30 		9-09956-682-0 03 1 0904-
428 CLIP; HARNESS
(A) ID=30X2 L=28 		1-09701-266-0 01 1 0904-
428 CLIP; HARNESS
(A) ID=35X2 L=32 		1-09701-314-0 03 1 0904-
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 0904-
428 CLIP; HARNESS
(B) 		1-82699-993-1 01 1 0904-
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0904-
çizim 129633
10 296 296
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER 1-81171-100-1 01 1 0904-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 0904-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 0904-

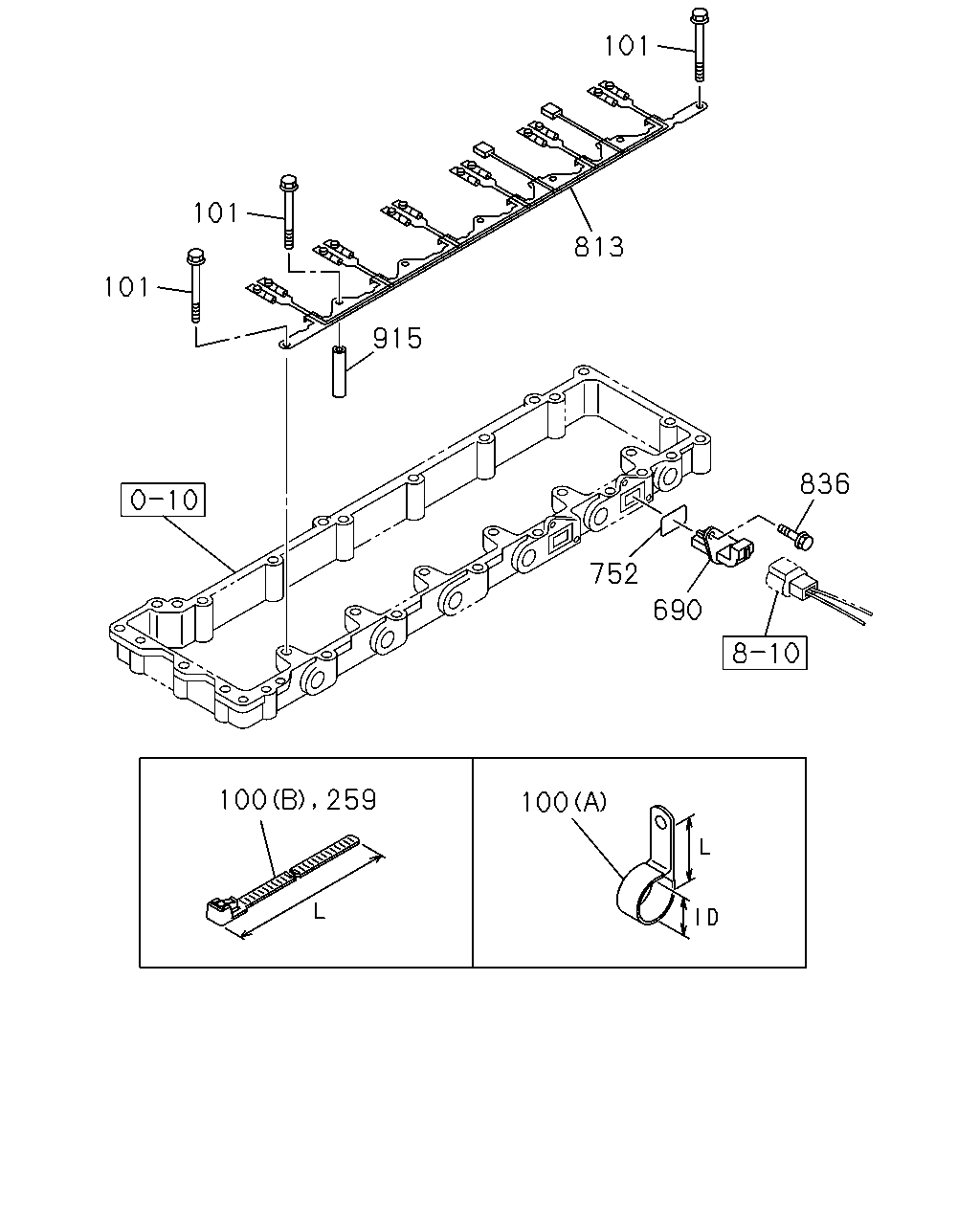

çizim 129642
101 101 813 101 915 836 752 690 100 259 100
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 0904-
100 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0904-1205
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1206-
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 0904-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 01 1 1009-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		5-09707-031-1 05 1 0904-1008
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=140 		5-09707-031-1 05 1 1009-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=140 		8-98216-431-0 05 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
L=251 		8-97619-917-0 01 1 0904-1008
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140 		5-09707-031-1 06 1 1009-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140 		8-98216-431-0 06 1 1206-
690 CONNECTOR 8-94390-858-1 02 1 0904-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0904-
813 HARNESS; INJECTOR 1-82641-338-1 01 1 0904-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 0904-
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 0904-
çizim 129643
428 428 441 441 428 428 441
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
(A) ID=30X2 L=28 		1-09701-266-0 01 1 0904-
428 CLIP; HARNESS
(A) ID=35X2 L=32 		1-09701-314-0 03 1 0904-
428 CLIP; HARNESS
(C) 		1-82699-911-0 01 1 0904-
428 CLIP; HARNESS
(B) 		1-82699-993-1 01 1 0904-
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0904-
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 05 1 0904-0904
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 05 1 0905-
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28650-820-0 02 1 0904-

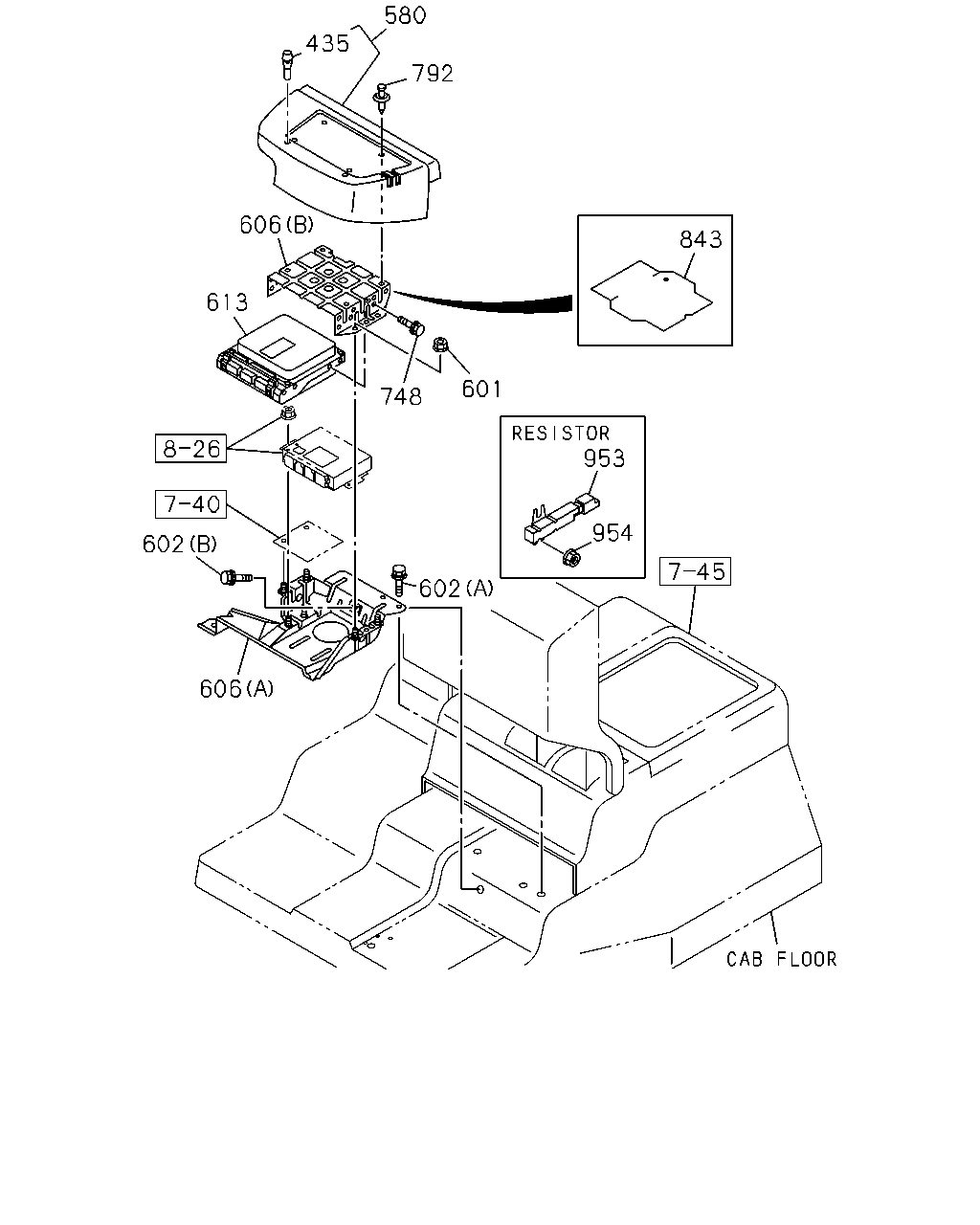

çizim 129644
580 435 792 606 843 613 601 748 953 954 602 602 606
BalonParca AdiParca NoAdetTipApplied Date
435 RUBBER; CUSHION 1-72537-138-0 02 1 0904-
580 COVER; CONT UNIT 1-72537-279-2 01 1 0904-
601 NUT; UNIT
M6 FLANGE 		0-91180-106-0 04 1 0904-
602 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0904-
602 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0904-
606 BRACKET; CONT UNIT
(A) 		1-72537-230-1 01 1 0904-
606 BRACKET; CONT UNIT
(B) 		1-72537-333-0 01 1 0904-
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) SPEED LIMITER 95KM<NNT> 		8-97985-240-1 01 1 1012-
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) SPEED LIMITER 110KM<8MJ> 		8-97985-236-1 01 1 1012-
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ> 		8-97985-144-1 01 1 1012-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98173-219-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-436-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-225-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-929-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-437-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-981-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-941-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-461-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-993-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ> 		8-98177-928-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ> 		8-98184-435-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ> 		8-98238-980-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-940-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-459-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-992-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-897-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-448-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-231-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-891-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-472-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-243-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-935-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-449-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-987-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-947-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-473-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-999-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ> 		8-98177-934-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ> 		8-98184-447-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ> 		8-98238-986-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ> 		8-98177-896-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ> 		8-98184-446-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ> 		8-98237-230-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98177-946-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-471-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98238-998-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ> 		8-98177-890-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ> 		8-98184-470-1 01 1 1012-1301
613 CONTROL UNIT; ENG
6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ> 		8-98237-242-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98171-484-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98184-460-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		8-98237-237-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ> 		8-98157-591-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ> 		8-98184-434-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ> 		8-98237-224-0 01 1 1302-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ> 		8-98171-482-0 01 1 1009-1012
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ> 		8-98184-458-1 01 1 1101-1301
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ> 		8-98237-236-0 01 1 1302-
613 CONTROL UNIT; ENG 8-98141-358-0 01 1 0904-1008
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) EURO4 SPECIFICATION<KBT> 		8-98141-358-0 01 1 1009-1011
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) SPEED LIMITER 100KM<NMU> 		8-97985-238-1 01 1 1012-
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0904-
792 FASTENER
D8X13.5 		1-09987-270-0 04 1 0904-
843 SEAL; BRKT 1-76770-009-2 01 1 0904-1101
843 SEAL; BRKT 8-98119-974-0 01 1 1102-
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 0904-
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0904-

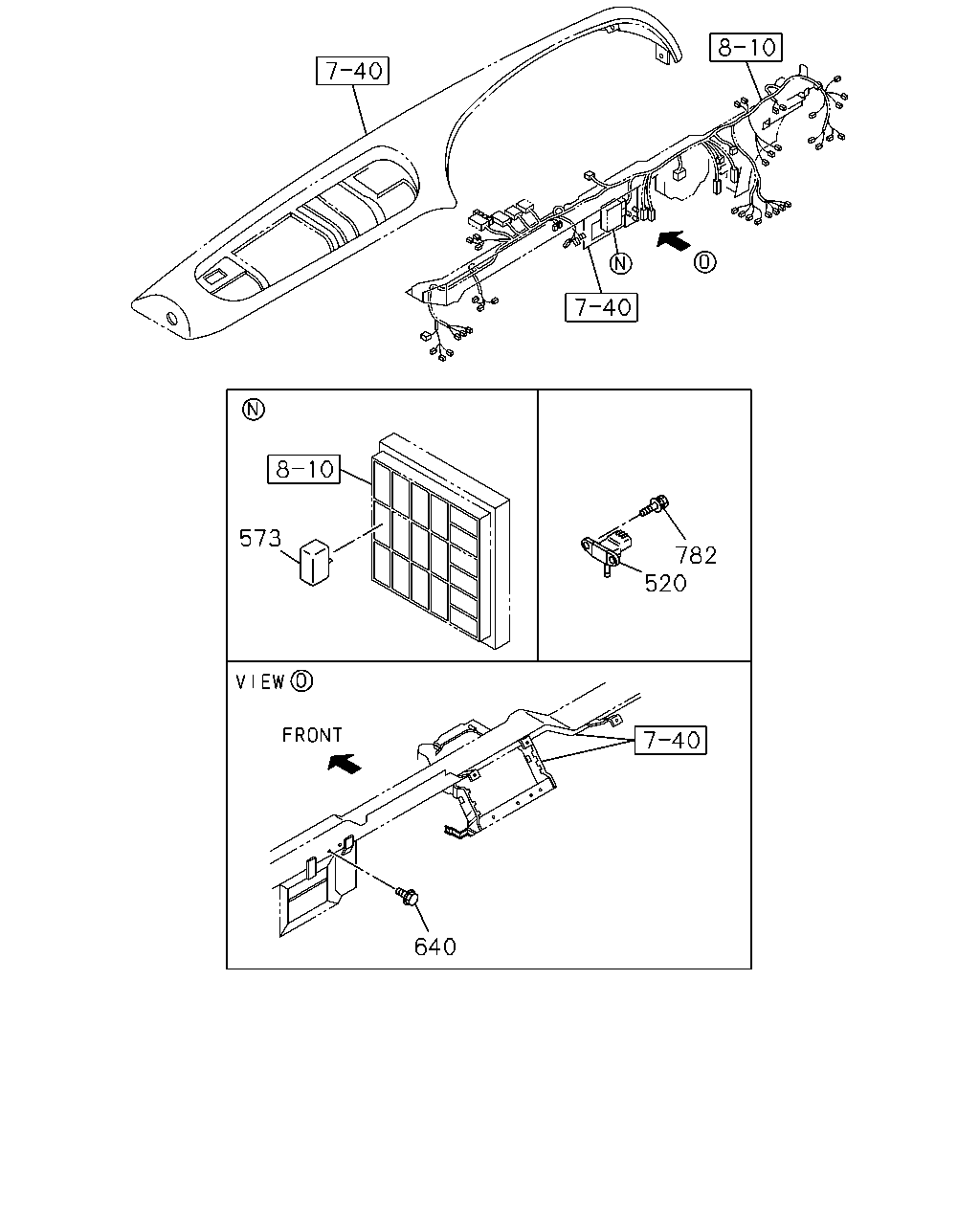

çizim 129650
573 782 520 640
BalonParca AdiParca NoAdetTipApplied Date
520 SENSOR; PRESSURE 8-98020-514-0 01 1 0904-
573 RELAY; ELEC GOV
24V 10A PANASONIC 		8-97173-035-1 01 1 0904-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0904-
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0904-

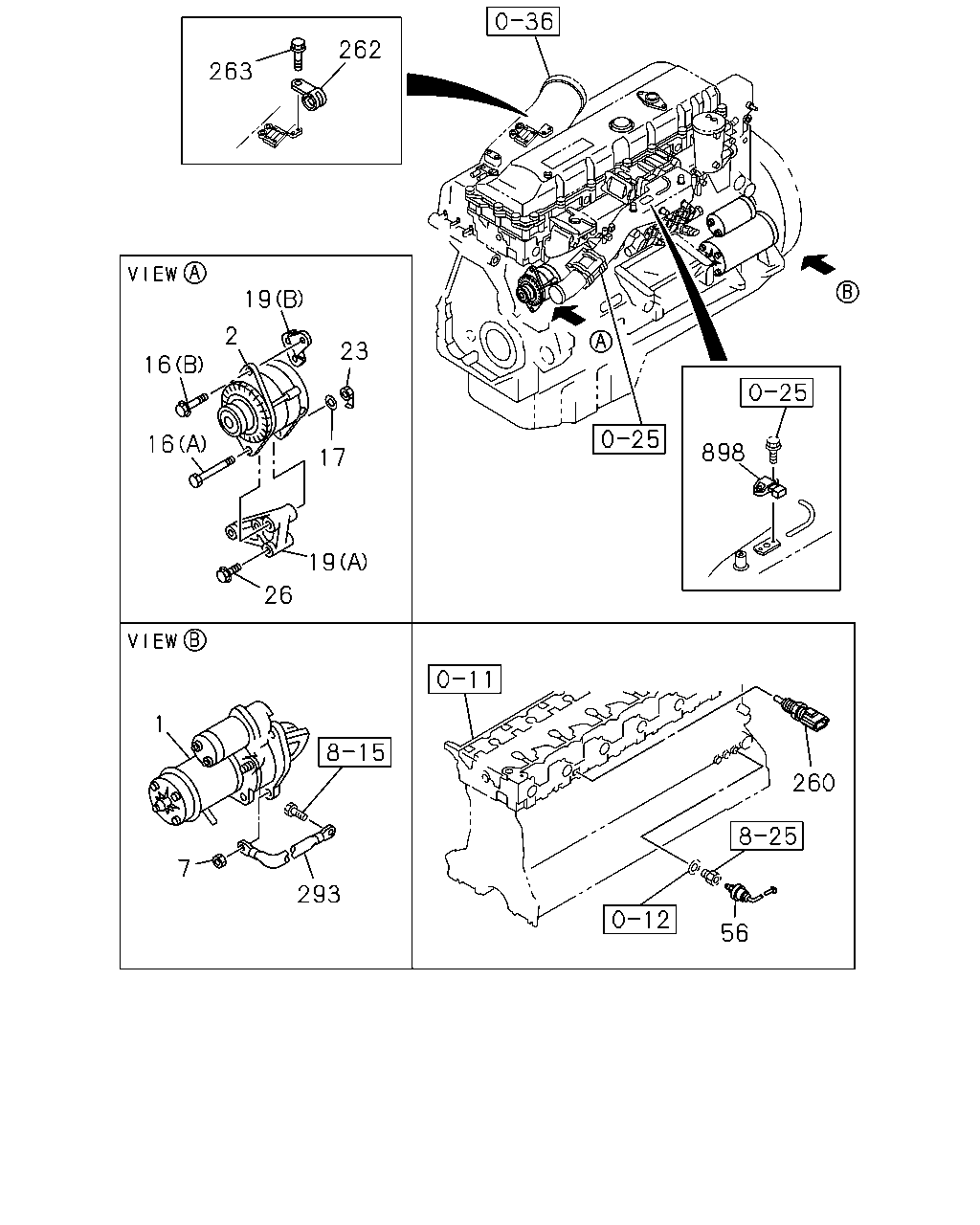

çizim 129661
262 263 19 2 23 16 16 898 17 19 26 1 260 7 293 56
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 0904-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		8-98013-613-4 01 1 1009-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI 		8-98013-612-3 01 1 1009-1112
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI 		8-98200-162-0 01 1 1201-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI 		1-81200-484-8 01 1 0904-1008
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-R(75L) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI 		1-81200-484-8 01 1 1009-1112
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-R(75L) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI 		8-98200-154-0 01 1 1201-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		1-81200-572-8 01 1 0904-1008
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-R(75L) GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		1-81200-572-8 01 1 1009-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 0904-
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 0904-
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 0904-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0904-
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 0904-
19 BRACKET; GEN
(A) 		8-97607-133-0 01 1 0904-
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0904-0910
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 0911-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0904-
56 SWITCH; OIL PRESSURE WARNING 1-82410-163-1 01 1 0904-
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0904-1406
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1407-
262 CLIP; HARNESS
ID=17 L=20 		8-97619-251-0 01 1 0904-
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0904-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 0904-
898 SENSOR; BOOST 8-98009-418-0 01 1 0904-

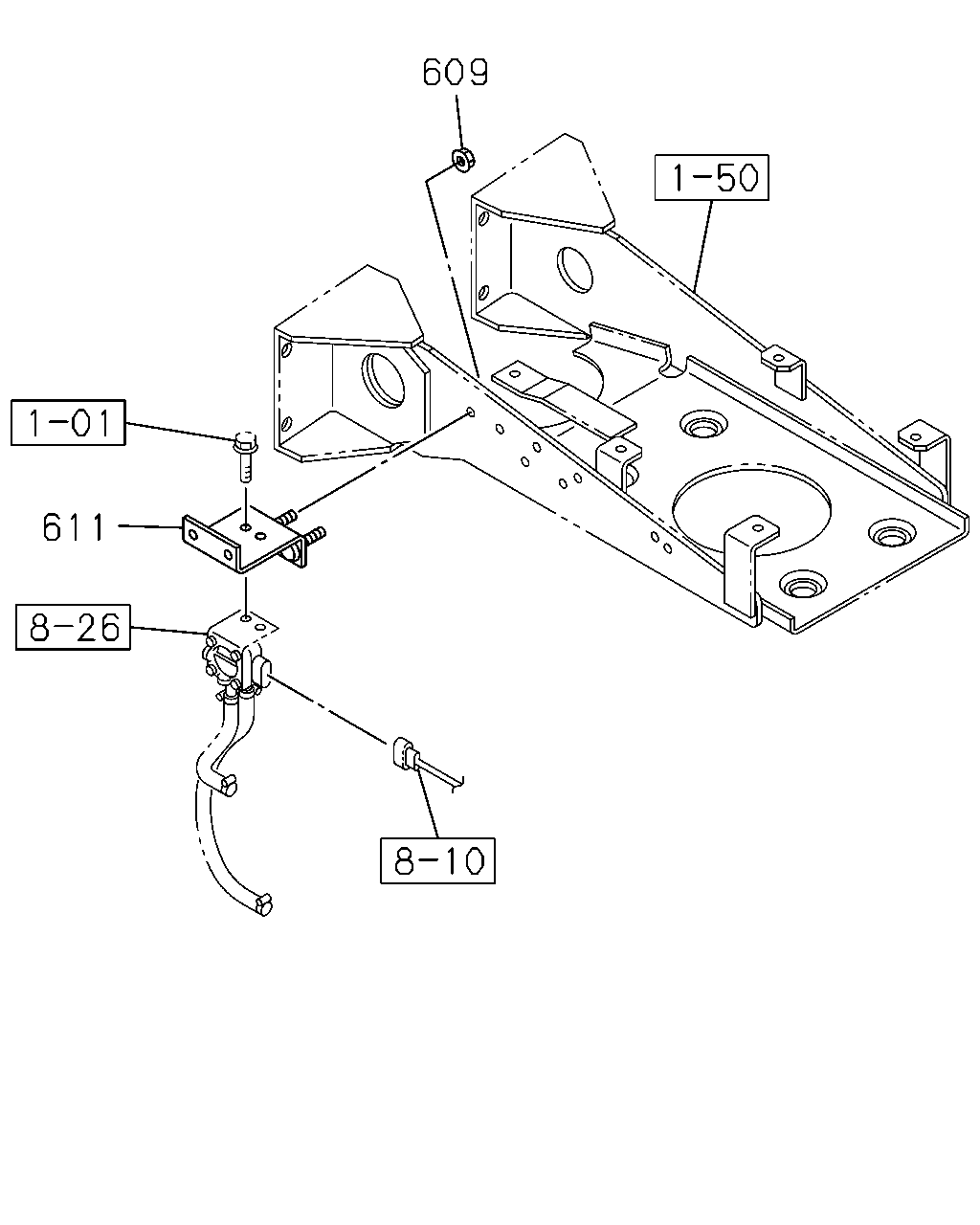

çizim 129827
609 611
BalonParca AdiParca NoAdetTipApplied Date
609 NUT; SENSOR
EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE 		0-91180-210-0 02 1 1009-
611 BRACKET; SENSOR
EMISSION REGULATION NEW LONG TERM<JBG> 		8-97621-447-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
