0-50 — OIL COOLER AND OIL FILTER (#19801) — 125 parça

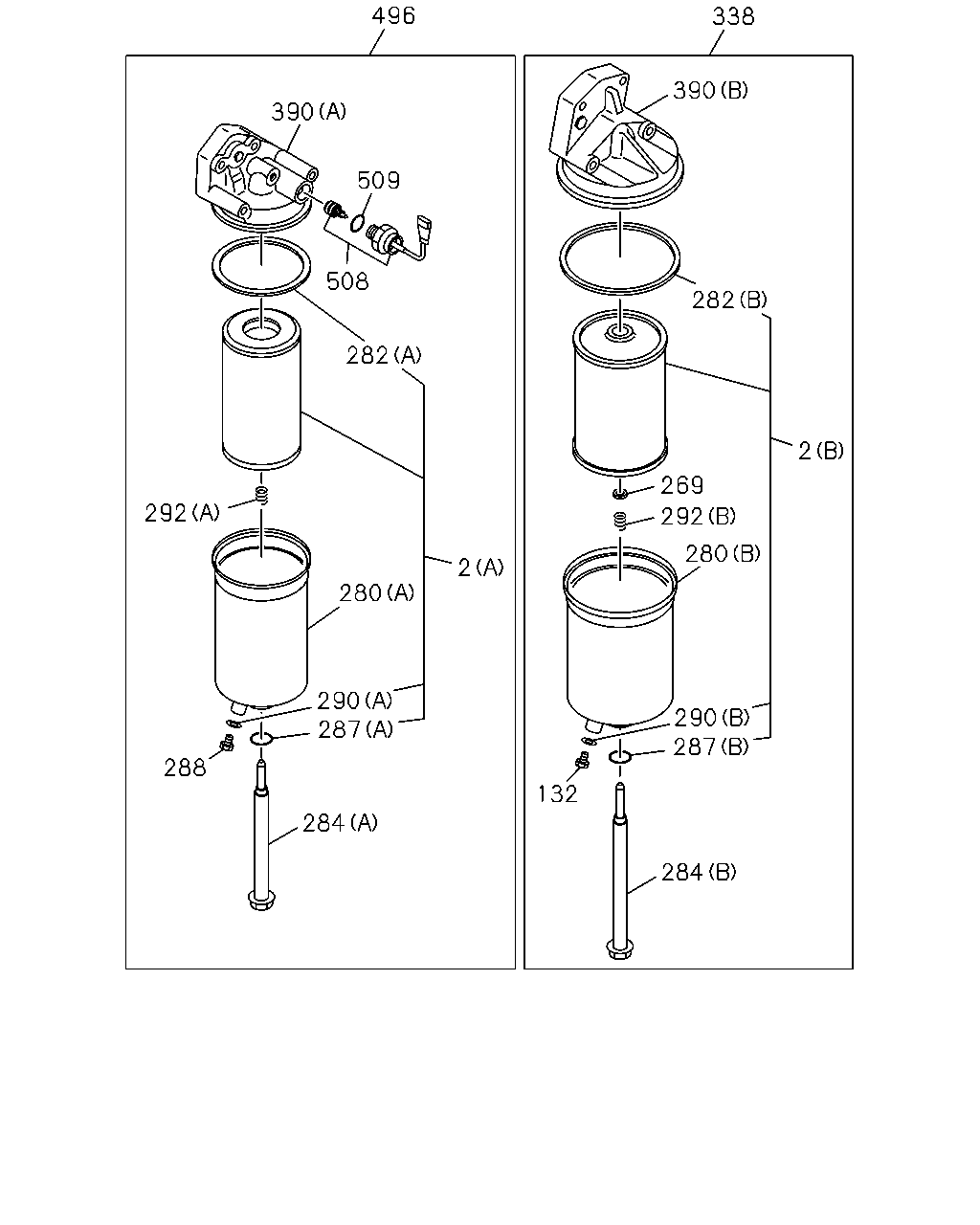

çizim 129711
496 338 390 390 509 508 282 282 2 269 292 292 280 2 280 290 287 290 287 288 132 284 284
BalonParca AdiParca NoAdetTipApplied Date A B C
2 ELEMENT; OIL FILTER
(B) PARTIAL 		1-13240-233-0 01 1 0904-1008 ●
2 ELEMENT; OIL FILTER
(B) PARTIAL 		1-13240-233-0 01 1 1009- ● ● ●
2 ELEMENT; OIL FILTER
(A) MAIN 		1-13240-241-0 01 1 0904-1008 ●
2 ELEMENT; OIL FILTER
(A) MAIN 		1-13240-241-0 01 1 1009- ● ● ●
2 ELEMENT; OIL FILTER
(A) MAIN BEST VALUE PARTS 		1-87610-167-0 01 1 0904-1008 ●
2 ELEMENT; OIL FILTER
(A) MAIN BEST VALUE PARTS 		1-87610-167-0 01 1 1009- ● ● ●
132 PLUG; PARTIAL OIL FILTER 1-13219-347-0 01 1 0904-1008 ●
132 PLUG; PARTIAL OIL FILTER 1-13219-347-0 01 1 1009- ● ● ●
269 WASHER; ELEMENT,OIL FILTER 1-13234-007-0 01 1 0904-1008 ●
269 WASHER; ELEMENT,OIL FILTER 1-13234-007-0 01 1 1009-1109 ● ● ●
280 CASE ASM; OIL FILTER
(A) 		1-13211-282-0 01 1 0904-1008 ●
280 CASE ASM; OIL FILTER
(A) 		1-13211-282-0 01 1 1009- ● ● ●
280 CASE ASM; OIL FILTER
(B) 		1-13211-283-0 01 1 0904-1008 ●
280 CASE ASM; OIL FILTER
(B) 		1-13211-283-0 01 1 1009- ● ● ●
282 GASKET; BODY TO CASE
(A) 		1-09623-643-0 01 1 0904-1008 ●
282 GASKET; BODY TO CASE
(A) 		1-09623-643-0 01 1 1009- ● ● ●
282 GASKET; BODY TO CASE
(B) 		1-09623-644-0 01 1 0904-1008 ●
282 GASKET; BODY TO CASE
(B) 		1-09623-644-0 01 1 1009- ● ● ●
284 BOLT; CENTER,OIL FILTER
(A) 		1-13219-348-0 01 1 0904-1008 ●
284 BOLT; CENTER,OIL FILTER
(A) 		1-13219-348-0 01 1 1009-1108 ● ● ●
284 BOLT; CENTER,OIL FILTER
(A) 		8-98193-184-0 01 1 1109- ● ● ●
284 BOLT; CENTER,OIL FILTER
(B) 		1-13219-349-0 01 1 0904-1008 ●
284 BOLT; CENTER,OIL FILTER
(B) 		1-13219-349-0 01 1 1009- ● ● ●
287 GASKET; CENTER BOLT
(A) 		1-09623-647-0 01 1 0904-1008 ●
287 GASKET; CENTER BOLT
(A) 		1-09623-647-0 01 1 1009- ● ● ●
287 GASKET; CENTER BOLT
(B) 		1-09623-648-0 01 1 0904-1008 ●
287 GASKET; CENTER BOLT
(B) 		1-09623-648-0 01 1 1009- ● ● ●
288 PLUG; OIL DRAIN 1-13219-346-0 01 1 0904-1008 ●
288 PLUG; OIL DRAIN 1-13219-346-0 01 1 1009- ● ● ●
290 GASKET; PLUG,OIL DRAIN
(A) 		1-09623-645-0 01 1 0904-1008 ●
290 GASKET; PLUG,OIL DRAIN
(A) 		1-09623-645-0 01 1 1009- ● ● ●
290 GASKET; PLUG,OIL DRAIN
(B) 		1-09623-646-0 01 1 0904-1008 ●
290 GASKET; PLUG,OIL DRAIN
(B) 		1-09623-646-0 01 1 1009- ● ● ●
292 SPRING; ELEMENT
(A) 		1-09580-562-0 01 1 0904-1008 ●
292 SPRING; ELEMENT
(A) 		1-09580-562-0 01 1 1009- ● ● ●
292 SPRING; ELEMENT
(B) 		1-09580-563-0 01 1 0904-1008 ●
292 SPRING; ELEMENT
(B) 		1-09580-563-0 01 1 1009- ● ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-990-1 01 1 0904-1008 ●
338 FILTER ASM; OIL PARTIAL 1-13200-990-3 01 1 1009- ● ● ●
390 BODY; OIL FILTER,PARTIAL
(A) 		1-13211-284-2 01 1 0904-1008 ●
390 BODY; OIL FILTER,PARTIAL
(A) 		1-13211-284-3 01 1 1009- ● ● ●
390 BODY; OIL FILTER,PARTIAL
(B) 		1-13211-285-0 01 1 0904-1008 ●
390 BODY; OIL FILTER,PARTIAL
(B) 		1-13211-285-0 01 1 1009- ● ● ●
496 FILTER ASM; OIL 1-13200-989-4 01 1 0904-1008 ●
496 FILTER ASM; OIL 1-13200-989-4 01 1 1009-1108 ● ● ●
496 FILTER ASM; OIL 8-98193-182-2 01 1 1109- ● ● ●
508 CHAMBER ASM; SW,FILTER 1-13260-117-0 01 1 0904-1008 ●
508 CHAMBER ASM; SW,FILTER 1-13260-117-0 01 1 1009- ● ● ●
509 GASKET; SW 8-98013-480-0 01 1 0904-1008 ●
509 GASKET; SW 8-98013-480-0 01 1 1009- ● ● ●

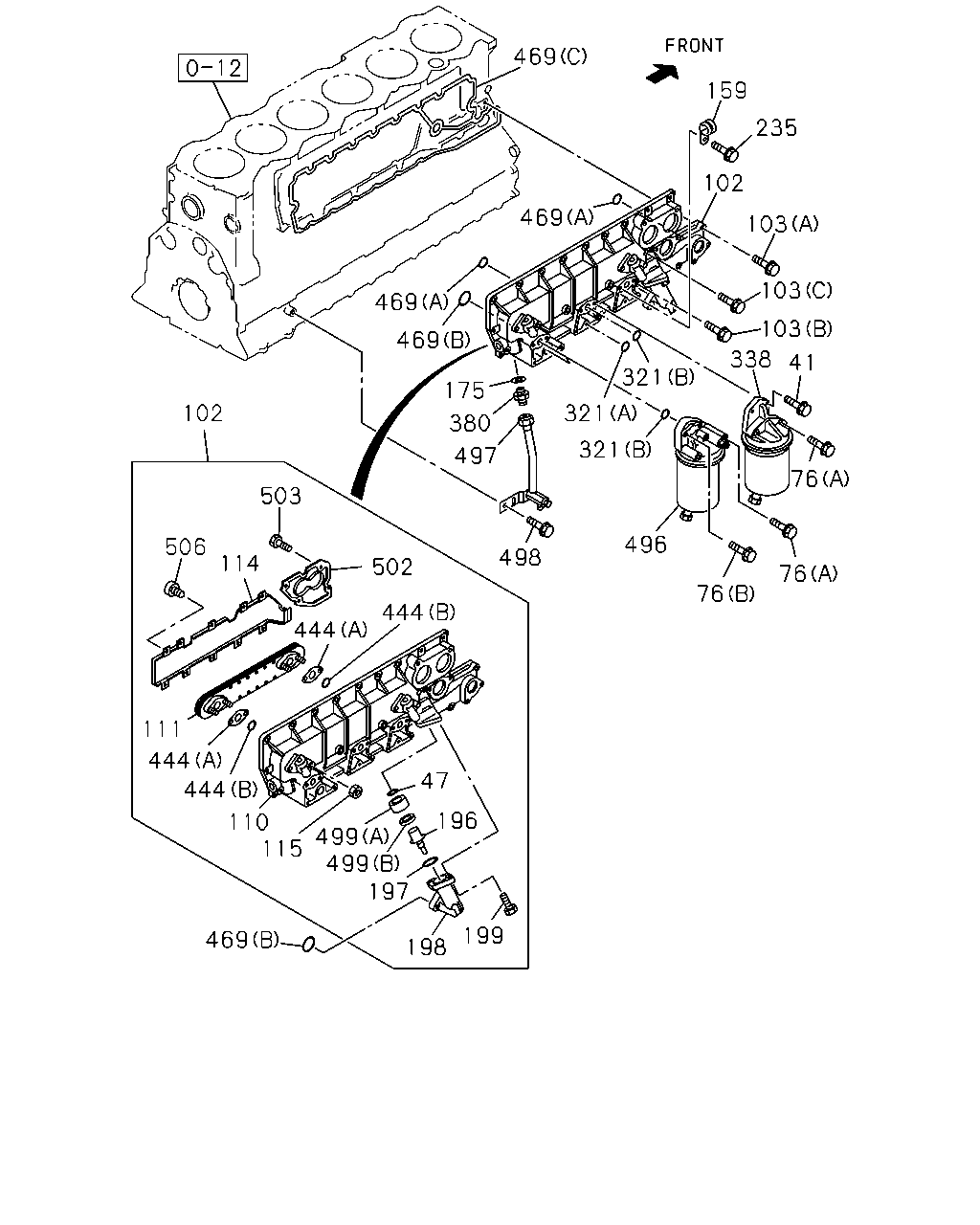

çizim 129719
102 503 502 444 444 114 506 111 444 444 110 115 499 499 47 196 199 198 469 469 469 175 380 497 498 496 76 76 76 41 338 321 321 321 103 103 103 102 235 159 469 469 197
BalonParca AdiParca NoAdetTipApplied Date A B C
41 BOLT; COVER FIX
M10X77 FLANGE 		8-98038-705-0 02 1 0904-1008 ●
41 BOLT; COVER FIX
M10X77 FLANGE 		8-98038-705-0 02 1 1009- ● ● ●
47 RING; SEAL,THERMO VLV 1-21779-001-0 01 1 0904-1008 ●
47 RING; SEAL,THERMO VLV 1-21779-001-0 01 1 1009- ● ● ●
76 BOLT; OIL FILTER
(A) M10X100 FLANGE 		0-28151-000-0 04 1 0904-1008 ●
76 BOLT; OIL FILTER
(A) M10X100 FLANGE 		0-28151-000-0 04 1 1009- ● ● ●
76 BOLT; OIL FILTER
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0904-1008 ●
76 BOLT; OIL FILTER
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1009- ● ● ●
102 COOLER ASM; OIL 8-97604-715-3 01 1 0904-1008 ●
102 COOLER ASM; OIL 8-97604-715-5 01 1 1009- ● ● ●
103 BOLT; OIL COOLER
(A) M10X30 FLANGE 		0-28151-030-0 17 1 0904-1008 ●
103 BOLT; OIL COOLER
(A) M10X30 FLANGE 		0-28151-030-0 17 1 1009- ● ● ●
103 BOLT; OIL COOLER
(B) M10X110 FLANGE 		0-28156-011-0 01 1 0904-1008 ●
103 BOLT; OIL COOLER
(B) M10X110 FLANGE 		0-28156-011-0 01 1 1009- ● ● ●
103 BOLT; OIL COOLER
(C) M10X65 FLANGE 		8-94344-540-1 08 1 0904-1008 ●
103 BOLT; OIL COOLER
(C) M10X65 FLANGE 		8-94344-540-1 08 1 1009- ● ● ●
110 BODY; CASE,OIL COOLER 1-21721-091-5 01 1 0904-1008 ●
110 BODY; CASE,OIL COOLER 1-21721-091-7 01 1 1009- ● ● ●
111 CORE; OIL COOLER 8-97606-643-0 01 1 0904-1008 ●
111 CORE; OIL COOLER 8-97606-643-1 01 1 1009- ● ● ●
114 PLATE; BAFFLE,OIL COOLER 1-21729-086-1 01 1 0904-1008 ●
114 PLATE; BAFFLE,OIL COOLER 1-21729-086-1 01 1 1009- ● ● ●
115 NUT; ELEMENT
M10 FLANGE 		0-91180-110-0 04 1 0904-1008 ●
115 NUT; ELEMENT
M10 FLANGE 		0-91180-110-0 04 1 1009- ● ● ●
159 CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31 		1-09700-770-0 01 1 0904-1008 ●
159 CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31 		1-09700-770-0 01 1 1009- ● ● ●
175 GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 01 1 0904-1008 ●
175 GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 01 1 1009- ● ● ●
196 THERMOSTAT; OIL COOLER 1-21770-010-0 01 1 0904-1008 ●
196 THERMOSTAT; OIL COOLER 1-21770-010-0 01 1 1009- ● ● ●
197 GASKET; THERMOSTAT 1-09623-419-0 01 1 0904-1008 ●
197 GASKET; THERMOSTAT 1-09623-419-0 01 1 1009- ● ● ●
198 JOINT; THERMOSTAT 1-21726-053-2 01 1 0904-1008 ●
198 JOINT; THERMOSTAT 1-21726-053-2 01 1 1009- ● ● ●
199 BOLT; JOINT,THERMOSTAT
M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0904-1008 ●
199 BOLT; JOINT,THERMOSTAT
M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1009- ● ● ●
235 BOLT; CLIP TO OIL COOLER
M10X20 FLANGE 		0-28151-020-0 01 1 0904-1008 ●
235 BOLT; CLIP TO OIL COOLER
M10X20 FLANGE 		0-28151-020-0 01 1 1009- ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 01 1 0904-1008 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 01 1 1009- ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 03 1 0904-1008 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 03 1 1009- ● ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-990-1 01 1 0904-1008 ●
338 FILTER ASM; OIL PARTIAL 1-13200-990-3 01 1 1009- ● ● ●
380 CONNECTOR; WATER 1-09660-011-1 01 1 0904-1008 ●
380 CONNECTOR; WATER 1-09660-011-1 01 1 1009- ● ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-97606-640-0 02 1 0904-1008 ●
444 GASKET; ELEMENT TO BODY
(B) 		8-97606-640-0 02 1 1009- ● ● ●
444 GASKET; ELEMENT TO BODY
(A) 		8-97606-641-0 02 1 0904-1008 ●
444 GASKET; ELEMENT TO BODY
(A) 		8-97606-641-0 02 1 1009- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 02 1 0904-1008 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 02 1 1009- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 02 1 0904-1008 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 02 1 1009- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-205-0 01 1 0904-1008 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-205-0 01 1 1009- ● ● ●
496 FILTER ASM; OIL 1-13200-989-4 01 1 0904-1008 ●
496 FILTER ASM; OIL 1-13200-989-4 01 1 1009-1108 ● ● ●
496 FILTER ASM; OIL 8-98193-182-2 01 1 1109- ● ● ●
497 PIPE; WATER DRAIN
W/COCK 		1-13721-496-3 01 1 0904-1008 ●
497 PIPE; WATER DRAIN
W/COCK 		1-13721-496-3 01 1 1009- ● ● ●
498 BOLT; WATER PIPE
M10X20 FLANGE 		0-28151-020-0 01 1 0904-1008 ●
498 BOLT; WATER PIPE
M10X20 FLANGE 		0-28151-020-0 01 1 1009- ● ● ●
499 SUPPORT; THERMOSTAT
(A) 		1-21729-085-4 01 1 0904-1008 ●
499 SUPPORT; THERMOSTAT
(A) 		1-21729-085-4 01 1 1009- ● ● ●
499 SUPPORT; THERMOSTAT
(B) 		1-21729-094-1 01 1 0904-1008 ●
499 SUPPORT; THERMOSTAT
(B) 		1-21729-094-1 01 1 1009- ● ● ●
502 COVER; THERMOSTAT 1-21722-040-0 01 1 0904-1008 ●
502 COVER; THERMOSTAT 1-21722-040-0 01 1 1009- ● ● ●
503 BOLT; COVER 8-98014-763-0 04 1 0904-1008 ●
503 BOLT; COVER 8-98014-763-0 04 1 1009-1112 ● ● ●
503 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 1201- ● ● ●
506 SCREW; BAFFLE 1-09030-036-0 10 1 0904-1008 ●
506 SCREW; BAFFLE 1-09030-036-0 10 1 1009-1112 ● ● ●
506 SCREW; BAFFLE 8-98197-829-0 10 1 1201- ● ● ●
