◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#1980) — 14 parça

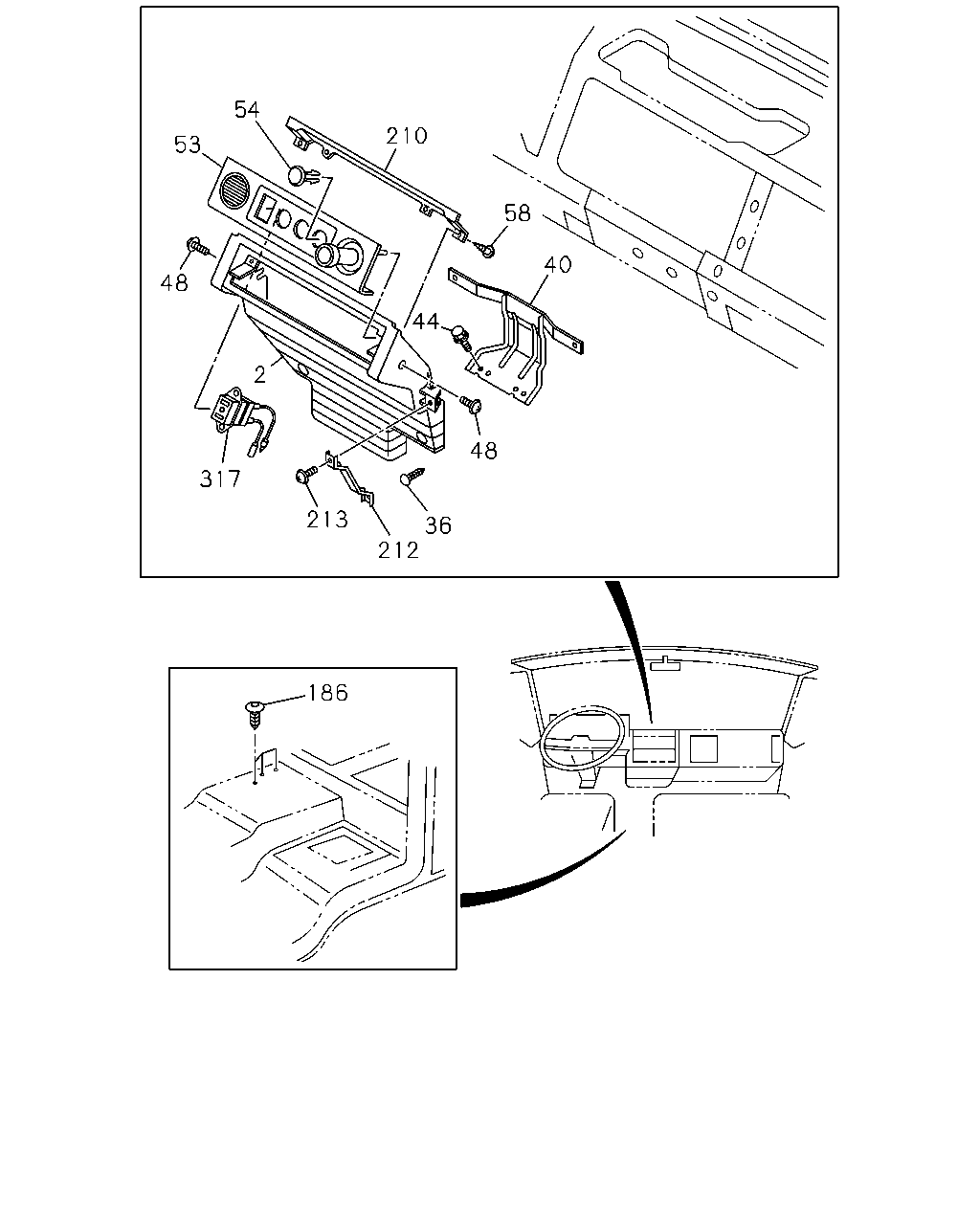

çizim 93707
54 210 53 58 40 48 44 2 48 317 213 36 212 186
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CONSOLE; CENTER
DARK GRAY 		1-72448-289-0 01 1 9207- ● ● ● ●
36 FASTENER; CENTER CONSOLE
BLACK 		8-94104-935-0 01 1 9407- ● ● ● ●
40 BRACKET; SUPPORT,CENTER CONSOLE 1-65680-424-1 01 1 9207- ● ● ● ●
44 BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9207-9307 ● ● ● ●
44 BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9308- ● ● ● ●
48 SCREW; BRKT,CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-367-0 02 1 9207- ● ● ● ●
53 PANEL; SW,CENTER CONSOLE 1-72448-242-2 01 1 9207- ● ● ● ●
54 BUTTON; CLIP,CTR CONSOLE 1-72447-390-0 02 1 9207- ● ● ● ●
58 SCREW; SW PNL
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9207- ● ● ● ●
186 PLUG; HOLE,PARCEL BOX
D4.7X11 		1-76378-154-0 04 1 9207- ● ● ● ●
210 REINFORCEMENT; CTR CONSOLE 1-72448-243-2 01 1 9207- ● ● ● ●
212 SUPPORT; CONSOLE TO COMPT 1-65680-588-0 01 1 9207- ● ● ● ●
213 SCREW; CONSOLE TO COMPT 1-09981-388-1 01 1 9207- ● ● ● ●
317 CONSENT
24V 10A 		1-82523-012-2 01 1 9207- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
