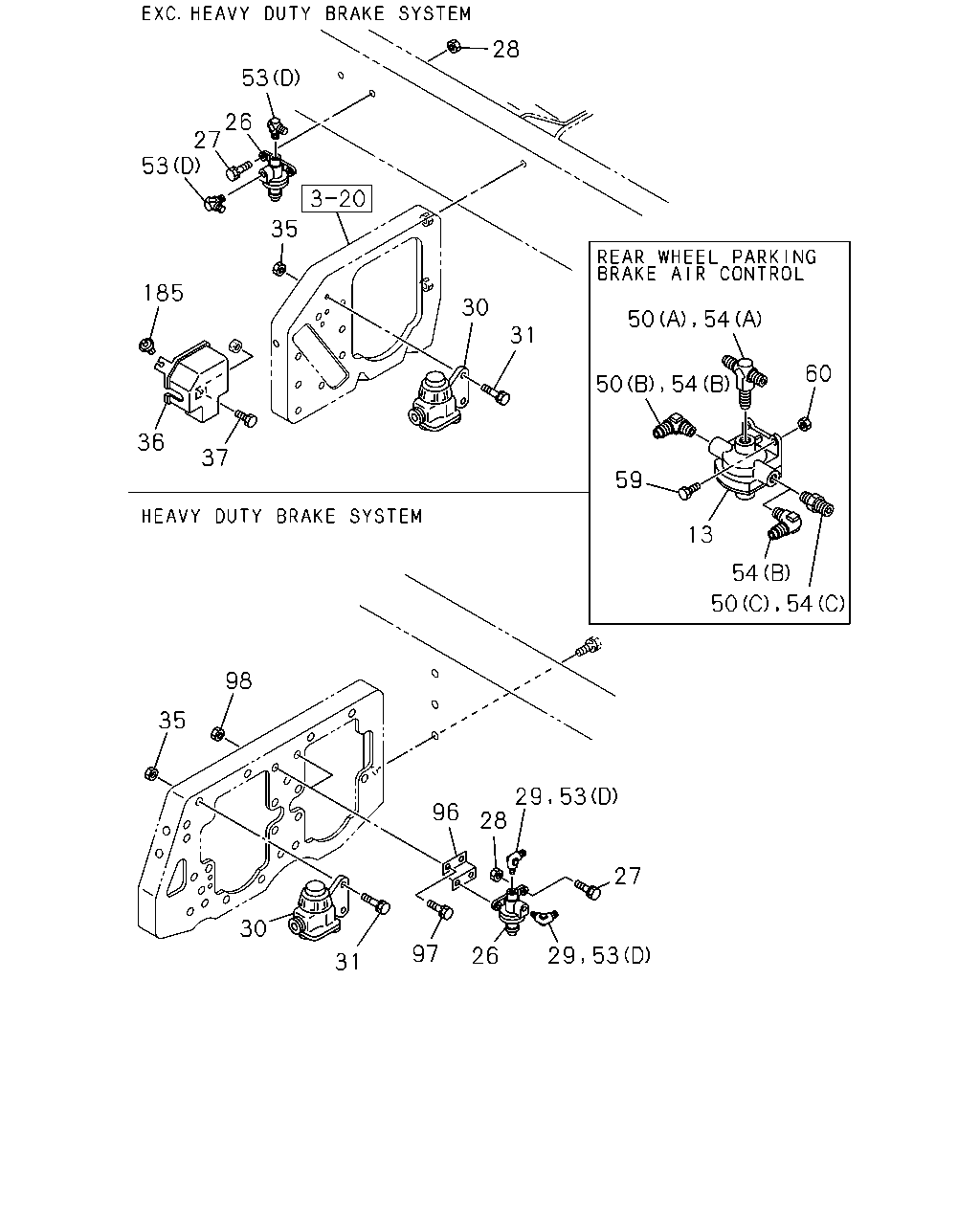

3-22 — AIR CONTROL PARTS (#198) — 36 parça

28 53 26 27 53 35 185 30 50 54 31 60 36 37 59 13 54 98 35 28 96 27 30 97 26 31 29 53 29 53 50 54 50 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-052-1	01	1	9212-9307
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9308-
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9212-
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9212-
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9212-
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9212-
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9212-9302
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-9407
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9212-9409
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9212-
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9212-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9212-
36	COVER; GOV EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48359-043-2	01	1	9212-
37	BOLT; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09030-048-0	01	1	9212-
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9212-
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	1-09650-092-1	01	1	9212-9302
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09656-056-1	01	1	9212-9302
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9303-
53	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9212-9302
53	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-9407
53	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9408-
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9212-
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	1-09650-092-1	01	1	9212-9302
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	1-09650-092-1	02	1	9212-9302
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	9303-
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09656-056-1	01	1	9212-9302
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9303-
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9212-
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9212-
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48495-053-1	01	1	9212-
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9212-
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
185	FASTENER; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09470-006-0	01	1	9212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
