0-28 — VENTILATION SYSTEM (#19790) — 81 parça

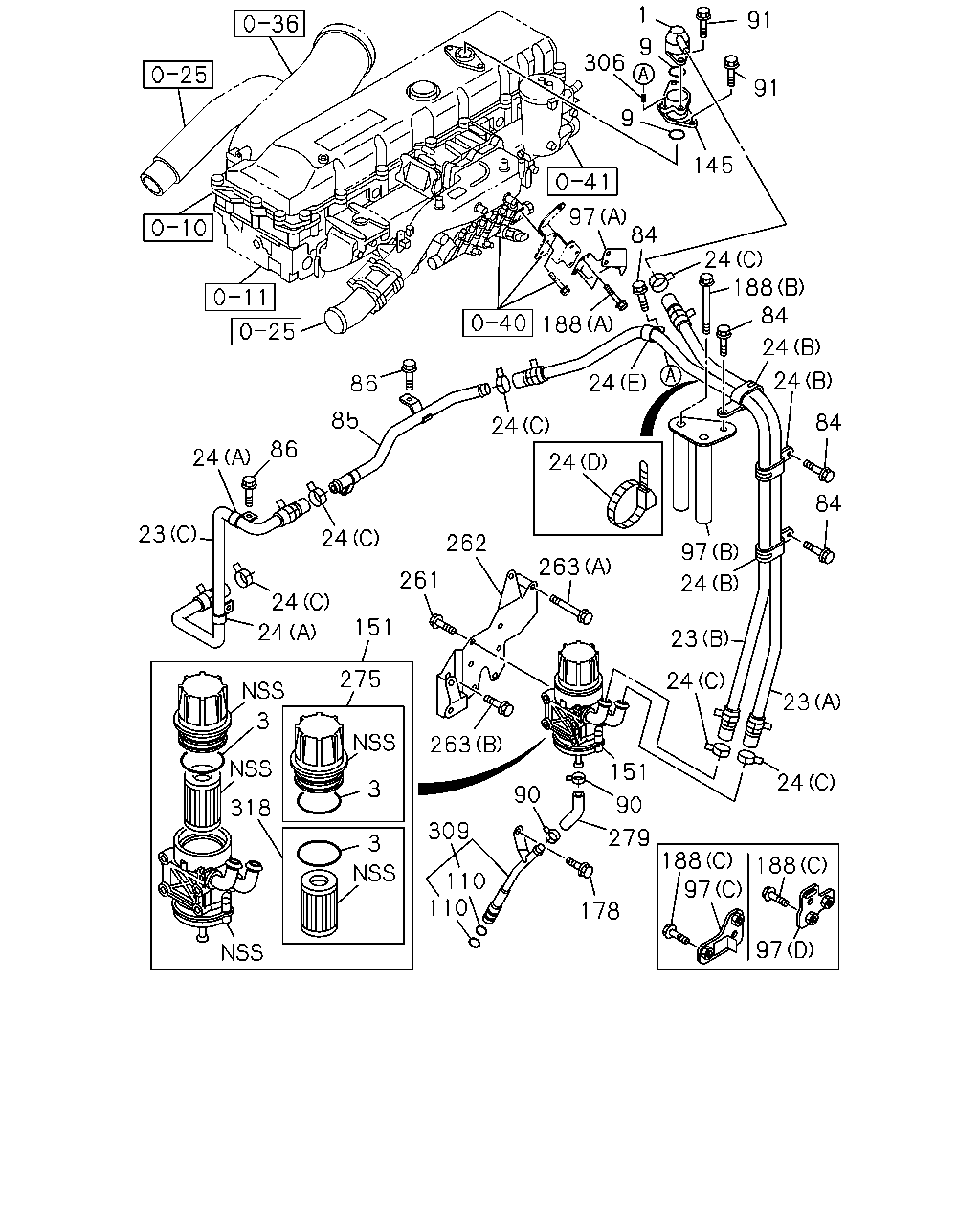

çizim 129663
91 1 91 9 306 145 9 97 24 84 24 24 84 24 188 84 84 97 24 23 24 23 24 188 97 97 188 279 178 151 90 188 86 85 86 24 23 24 24 24 151 275 3 318 3 3 90 309 110 110 263 261 262 263 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BREATHER; AIR 1-11740-181-1 01 1 0904-1008 ●
1 BREATHER; AIR 1-11740-181-1 01 1 1009- ● ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0904-1008 ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1009- ● ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 0904-1008 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 1009- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-2 01 1 0904-1008 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-3 01 1 1009-1210 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-98122-989-0 01 1 1211-1309 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-98254-532-0 01 1 1310- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-1 01 1 0904-1008 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-2 01 1 1009-1210 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-98227-927-0 01 1 1211- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-2 01 1 0904-1008 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-3 01 1 1009-1210 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-98227-928-0 01 1 1211- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 0904-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 1009-1210 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=29 L=30 		8-98225-679-0 01 1 1211-1212 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=29 L=30 		8-98225-679-0 08 1 1301- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 0904-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1009-1210 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=29 L=30 		8-98225-679-0 08 1 1211-1212 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 0904-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 1009- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 0904-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 1009-1205 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		8-98216-430-0 01 1 1206- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 0904-1008 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 1009-1210 ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE 		0-28050-816-0 05 1 0904-1008 ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE 		0-28050-816-0 05 1 1009-1210 ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE 		0-28050-816-0 07 1 1211- ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X50 FLANGE 		0-28050-850-0 01 1 0904-1008 ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X50 FLANGE 		0-28050-850-0 01 1 1009- ● ● ●
85 PIPE; BREATHER 8-97611-021-1 01 1 0904-1008 ●
85 PIPE; BREATHER 8-97611-021-1 01 1 1009- ● ● ●
86 BOLT; BREATHER PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0904-1008 ●
86 BOLT; BREATHER PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0904-1008 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1009- ● ● ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 04 1 0904-1008 ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 04 1 1009- ● ● ●
97 BRACKET; HOSE
(C) 		8-98227-930-0 01 1 1211- ● ● ●
97 BRACKET; HOSE
(D) 		8-98227-931-0 01 1 1211- ● ● ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 0904-1008 ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 1009- ● ● ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 0904-1008 ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 1009-1210 ● ● ●
97 BRACKET; HOSE
(B) 		8-98227-929-0 01 1 1211- ● ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 0904-1008 ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 1009- ● ● ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 0904-1008 ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 1009- ● ● ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 0904-1008 ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 1009- ● ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0904-1008 ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1009- ● ● ●
188 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1211- ● ● ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 0904-1008 ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 1009- ● ● ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-1008 ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 0904-1008 ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1009- ● ● ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 0904-1008 ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 1009- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 0904-1008 ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1009- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 0904-1008 ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 1009- ● ● ●
275 CAP; PCV 8-97385-918-0 01 1 0904-1008 ●
275 CAP; PCV 8-97385-918-0 01 1 1009- ● ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 0904-1008 ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 1009- ● ● ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 0904-1008 ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 1009- ● ● ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 0904-1008 ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 1009- ● ● ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 0904-1008 ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 1009- ● ● ●
