0-11 — CYLINDER HEAD (#19781) — 121 parça

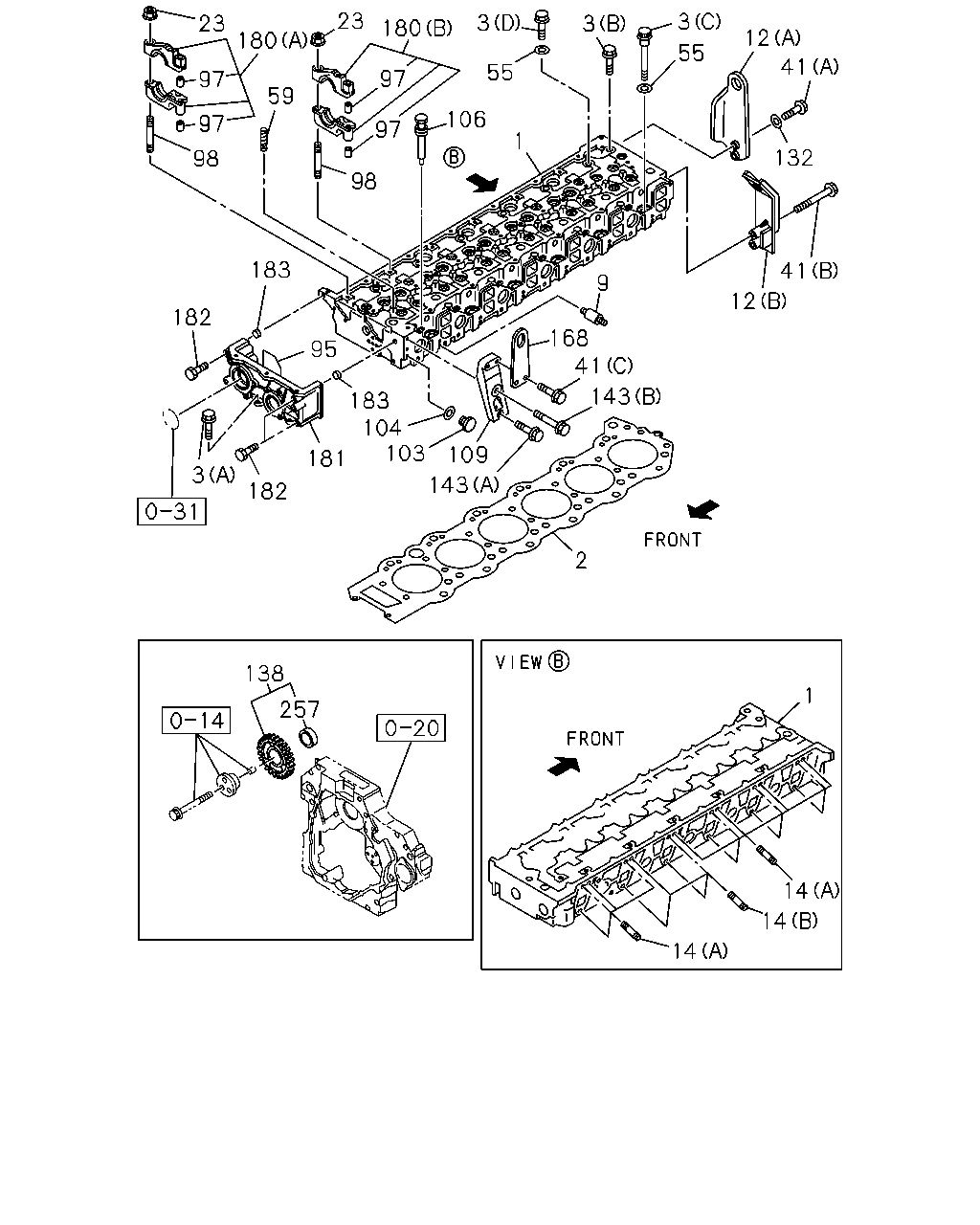

çizim 129618
23 97 98 97 180 59 23 97 97 98 1 106 180 3 3 3 41 132 41 12 55 12 9 168 143 41 2 143 109 103 104 183 95 183 182 182 181 3 55 138 257 14 1 14 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 1-11110-939-6 01 1 1001- ●
1 HEAD ASM; CYL 1-11110-941-5 01 1 1009- ● ●
1 HEAD ASM; CYL 1-11110-939-4 01 1 0904-0910 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-4 01 1 0904-1008 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-265-4 01 1 1009- ● ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28151-035-0 02 1 0904-1008 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE 		0-28151-035-0 02 1 1009- ● ● ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28156-212-0 01 1 0904-1008 ●
3 BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE 		0-28156-212-0 01 1 1009- ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 0904-1008 ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		1-09070-141-0 06 1 1009-1308 ● ● ●
3 BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE 		8-98245-540-0 06 1 1309- ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 0904-1008 ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 		1-09070-142-0 20 1 1009-1308 ● ● ●
3 BOLT; CYL HD TO BLOCK
(D) M18X159 FLANGE 		8-98245-541-0 20 1 1309- ● ● ●
9 STUD; INL MANIF
M10X70 L=85 		0-44011-070-0 01 1 0904-1008 ●
9 STUD; INL MANIF
M10X70 L=85 		0-44011-070-0 01 1 1009- ● ● ●
9 STUD; INL MANIF
M10X110 L=125 		1-09302-001-0 06 1 0904-1008 ●
9 STUD; INL MANIF
M10X110 L=125 		1-09302-001-0 06 1 1009- ● ● ●
9 STUD; INL MANIF
M10X50 L=65 		1-09302-105-0 05 1 0904-1008 ●
9 STUD; INL MANIF
M10X50 L=65 		1-09302-105-0 05 1 1009- ● ● ●
12 HANGER; ENG,RR
(A) 		1-11777-272-0 01 1 0904-1008 ●
12 HANGER; ENG,RR
(A) 		1-11777-272-0 01 1 1009- ● ● ●
12 HANGER; ENG,RR
(B) 		8-97614-276-0 01 1 0904-1008 ●
12 HANGER; ENG,RR
(B) 		8-97614-276-0 01 1 1009- ● ● ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 04 1 0904-1008 ●
14 STUD; EXH MANIF
(B) M10X130 L=145 		1-09302-107-0 04 1 1009- ● ● ●
14 STUD; EXH MANIF
(A) M10X77 L=92 		1-09302-176-0 14 1 0904-1008 ●
14 STUD; EXH MANIF
(A) M10X77 L=92 		1-09302-176-0 14 1 1009- ● ● ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 0904-1008 ●
23 NUT; CAM BRKT
M4 FLANGE 		1-09440-004-0 14 1 1009- ● ● ●
41 BOLT; ENG HANGER
(B) M12X90 FLANGE 		0-28161-290-0 02 1 0904-1008 ●
41 BOLT; ENG HANGER
(B) M12X90 FLANGE 		0-28161-290-0 02 1 1009- ● ● ●
41 BOLT; ENG HANGER
(C) M14X35 FLANGE 		0-28851-435-0 02 1 0904-1008 ●
41 BOLT; ENG HANGER
(C) M14X35 FLANGE 		0-28851-435-0 02 1 1009- ● ● ●
41 BOLT; ENG HANGER
(A) M12X37 		8-94440-908-0 02 1 0904-1008 ●
41 BOLT; ENG HANGER
(A) M12X37 		8-94440-908-0 02 1 1009- ● ● ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 0904-1008 ●
55 WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29 		1-09503-032-0 26 1 1009- ● ● ●
59 GUIDE; BRIDGE 8-97378-021-0 12 1 0904-1008 ●
59 GUIDE; BRIDGE 8-97378-021-1 12 1 1009- ● ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 1001-1008 ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 1009- ● ● ●
95 GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-403-0 01 1 0904-0910 ●
97 DOWEL; CAM BRKT SET
OD=16 		1-13119-005-0 28 1 0904-0907 ●
97 DOWEL; CAM BRKT SET
OD=16 		8-98143-037-0 28 1 0908-1008 ●
97 DOWEL; CAM BRKT SET
OD=16 		8-98143-037-0 28 1 1009- ● ● ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 0904-1008 ●
98 STUD; CAM BRKT
M12X100 L=120 		8-94397-322-0 14 1 1009- ● ● ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 0904-1008 ●
103 PLUG; HD
M10X7 		1-09604-094-0 01 1 1009- ● ● ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0904-1008 ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009- ● ● ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 0904-1008 ●
106 PLUG; GLOW PLUG HOLE 1-11119-018-0 06 1 1009- ● ● ●
109 BRACKET; ENG HANGER 8-97611-125-2 01 1 0904-1008 ●
109 BRACKET; ENG HANGER 8-97611-125-2 01 1 1009- ● ● ●
132 WASHER; PL,ENG HANGER
ID=12.5 OD=26 		9-09164-612-0 02 1 0904-1008 ●
132 WASHER; PL,ENG HANGER
ID=12.5 OD=26 		9-09164-612-0 02 1 1009- ● ● ●
138 GEAR; IDLE 1-12523-371-1 01 1 0904-1008 ●
138 GEAR; IDLE 1-12523-371-1 01 1 1009- ● ● ●
143 BOLT; FIX
(A) M12X25 FLANGE 		0-28161-225-0 01 1 0904-1008 ●
143 BOLT; FIX
(A) M12X25 FLANGE 		0-28161-225-0 01 1 1009- ● ● ●
143 BOLT; FIX
(B) M12X50 FLANGE 		0-28161-250-0 01 1 0904-1008 ●
143 BOLT; FIX
(B) M12X50 FLANGE 		0-28161-250-0 01 1 1009- ● ● ●
168 HANGER; ENG,FRT 8-97615-471-0 01 1 0904-1008 ●
168 HANGER; ENG,FRT 8-97615-471-0 01 1 1009- ● ● ●
180 BRACKET SET; CAM,CYL HD
(A) 		8-97608-785-3 01 1 0904-1008 ●
180 BRACKET SET; CAM,CYL HD
(A) 		8-97608-785-3 01 1 1009- ● ● ●
180 BRACKET SET; CAM,CYL HD
(B) 		8-97608-791-3 06 1 0904-1008 ●
180 BRACKET SET; CAM,CYL HD
(B) 		8-97608-791-3 06 1 1009- ● ● ●
181 CASE; HEAD GEAR 1-11310-055-1 01 1 1001-1008 ●
181 CASE; HEAD GEAR 1-11310-055-1 01 1 1009- ● ● ●
181 CASE; HEAD GEAR 1-11310-055-0 01 1 0904-0910 ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 1001-1008 ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 1009- ● ● ●
182 BOLT; CASE
M10X80 		9-05921-080-0 07 1 0904-0910 ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 1001-1008 ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 1009- ● ● ●
183 DOWEL; CYL HEAD 1-13119-004-0 02 1 0904-0910 ●
257 BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT. 		8-98081-168-0 01 1 0904-1008 ●
257 BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT. 		8-98081-168-0 01 1 1009- ● ● ●

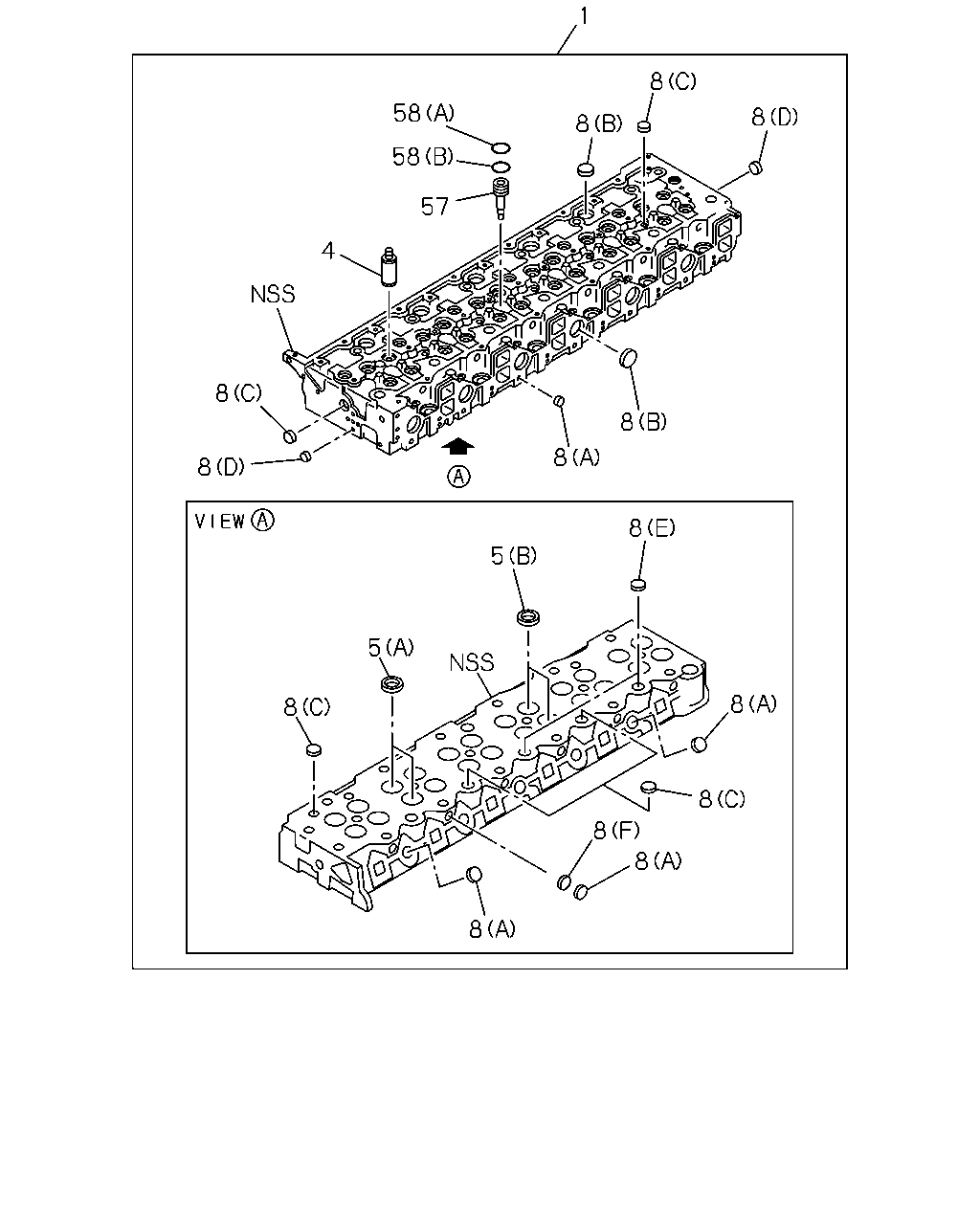

çizim 129656
1 8 58 8 8 58 57 4 8 8 8 8 8 5 5 8 8 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 1-11110-939-6 01 1 1001- ●
1 HEAD ASM; CYL 1-11110-941-5 01 1 1009- ● ●
1 HEAD ASM; CYL 1-11110-939-4 01 1 0904-0910 ●
4 GUIDE; VLV 1-11721-012-0 24 1 1001-1008 ●
4 GUIDE; VLV 1-11721-012-1 24 1 1009- ● ● ●
4 GUIDE; VLV 1-11721-012-0 24 1 0904-0910 ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-1 12 1 1001-1008 ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-1 12 1 1009- ● ● ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-1 12 1 1001-1008 ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-1 12 1 1009- ● ● ●
5 SEAT; VLV INSERT
(A) EXHAUST 		1-11711-074-0 12 1 0904-0910 ●
5 SEAT; VLV INSERT
(B) INLET 		1-11715-109-0 12 1 0904-0910 ●
8 CUP; SEALING,WATER JACKET
(E) OD=32 		1-09600-012-2 02 1 1001-1008 ●
8 CUP; SEALING,WATER JACKET
(E) OD=32 		1-09600-012-2 02 1 1009- ● ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 1001-1008 ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 1009- ● ● ●
8 CUP; SEALING,WATER JACKET
(D) OD=12.3 		5-09600-013-0 02 1 1001-1008 ●
8 CUP; SEALING,WATER JACKET
(D) OD=12.3 		5-09600-013-0 02 1 1009- ● ● ●
8 CUP; SEALING,WATER JACKET
(F) OD=16 		5-11129-006-0 06 1 1001-1008 ●
8 CUP; SEALING,WATER JACKET
(F) OD=16 		5-11129-006-0 06 1 1009- ● ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=18 		5-11219-008-0 12 1 1001-1008 ●
8 CUP; SEALING,WATER JACKET
(A) OD=18 		5-11219-008-0 12 1 1009- ● ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=40 		8-94241-637-0 18 1 1001-1008 ●
8 CUP; SEALING,WATER JACKET
(B) OD=40 		8-94241-637-0 18 1 1009- ● ● ●
8 CUP; SEALING,WATER JACKET
(E) OD=32 		1-09600-012-2 02 1 0904-0910 ●
8 CUP; SEALING,WATER JACKET
(C) OD=25 		1-09600-016-0 10 1 0904-0910 ●
8 CUP; SEALING,WATER JACKET
(D) OD=12.3 		5-09600-013-0 02 1 0904-0910 ●
8 CUP; SEALING,WATER JACKET
(F) OD=16 		5-11129-006-0 06 1 0904-0910 ●
8 CUP; SEALING,WATER JACKET
(A) OD=18 		5-11219-008-0 12 1 0904-0910 ●
8 CUP; SEALING,WATER JACKET
(B) OD=40 		8-94241-637-0 18 1 0904-0910 ●
57 SLEEVE; NOZZLE HOLDER 1-11129-064-1 06 1 1001-1008 ●
57 SLEEVE; NOZZLE HOLDER 1-11129-064-1 06 1 1009- ● ● ●
57 SLEEVE; NOZZLE HOLDER 1-11129-064-1 06 1 0904-0910 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK 		8-97233-126-0 06 1 1001-1008 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK 		8-97233-126-0 06 1 1009- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED 		8-97233-127-0 06 1 1001-1008 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED 		8-97233-127-0 06 1 1009- ● ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK 		8-97233-126-0 06 1 0904-0910 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED 		8-97233-127-0 06 1 0904-0910 ●
