2-75 — TRANSFER CONTROL
(#19773) — 70 parça
Tümü
A - FTS6MC
B - FTS6MF
◀

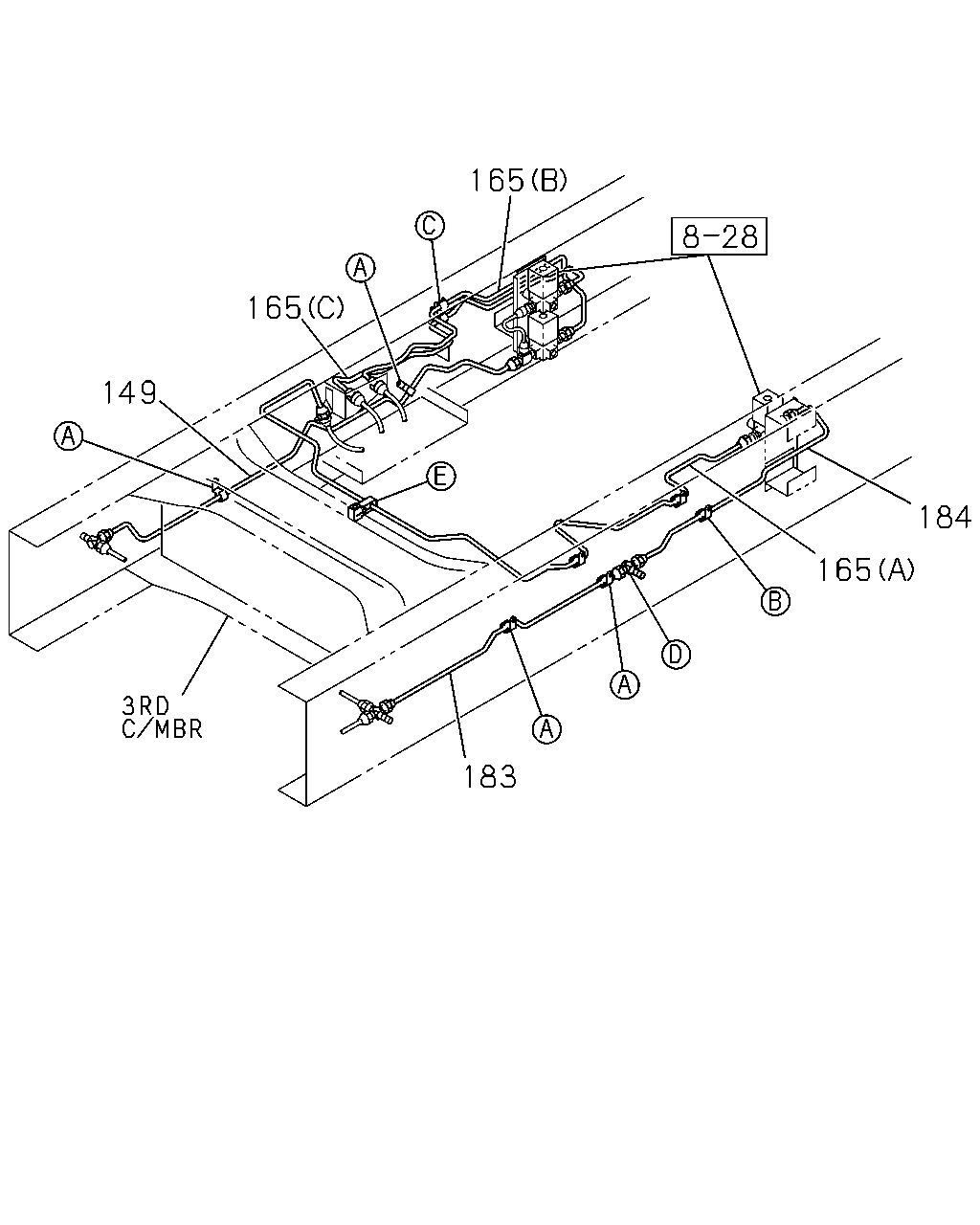

[275A] NO.1 (6 parça)
[275A] NO.3 (28 parça)

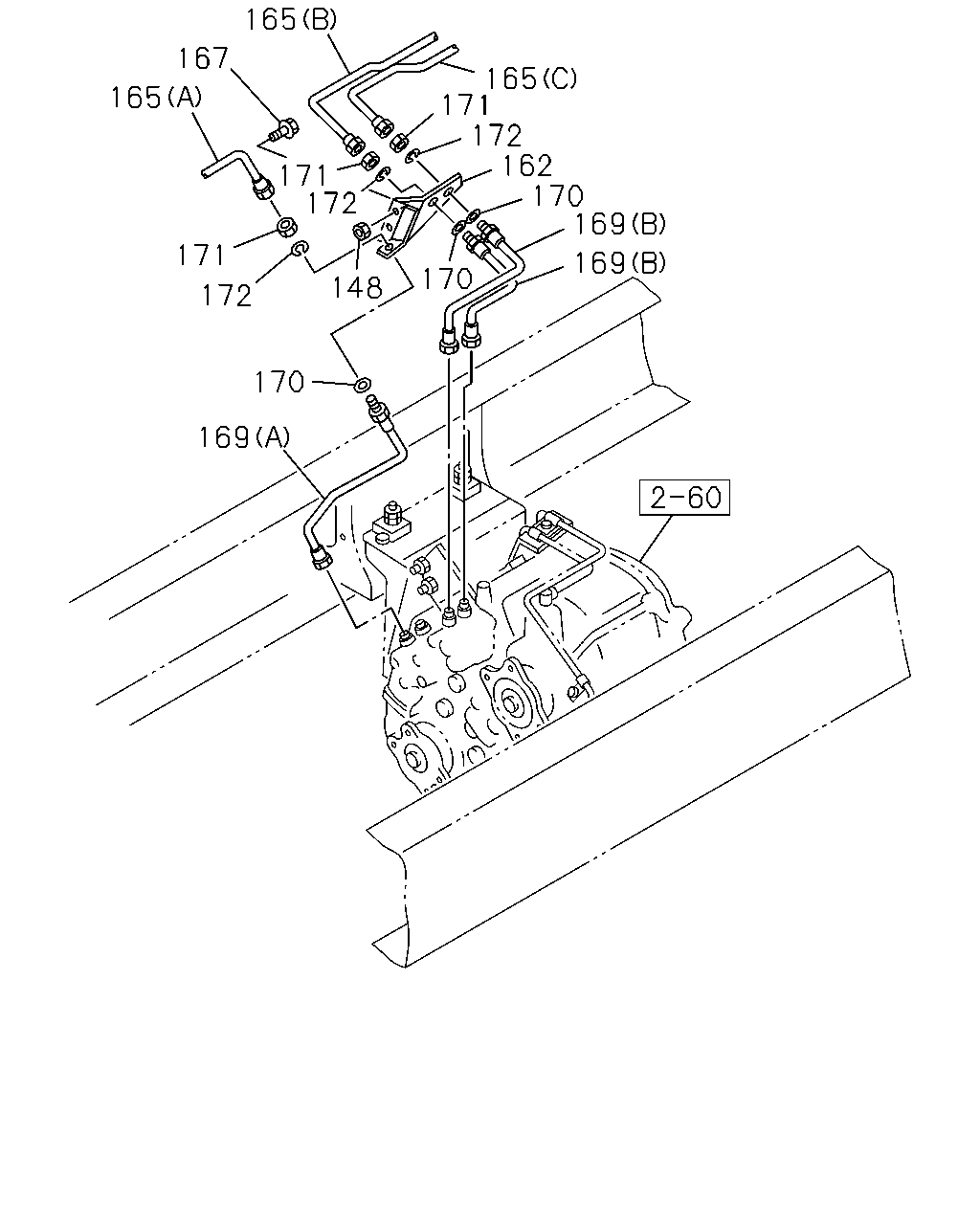

[275A] NO.2 (36 parça)
▶
165
165
149
184
165
183
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
149
PIPE; AIR,MAG VLV TO UNION
L=1125 SERVICED BY L=1200
1-47426-352-0
01
1
9905-
●
●
165
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000
1-47426-359-0
01
1
9905-
●
●
165
PIPE; AIR,MAG VLV TO FLEX HOSE
(B)
1-49115-609-0
01
1
9905-
●
●
165
PIPE; AIR,MAG VLV TO FLEX HOSE
(C)
1-49115-610-0
01
1
9905-
●
●
183
PIPE; AIR,UNION TO UNION
1-49116-712-0
01
1
9905-
●
●
184
PIPE; AIR,UNION TO MAG VALVE
1-49116-713-0
01
1
9905-
●
●
165
167
165
171
172
162
170
169
165
171
172
171
169
170
148
172
170
169
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
148
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
9905-0602
●
●
148
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
9905-0602
●
●
148
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
148
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
148
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
9905-0602
●
●
148
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
148
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
9905-0602
●
●
148
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
162
BRACKET; FLEX HOSE,TRANSFER
1-47476-553-1
01
1
9905-
●
●
165
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1859 SERVICED BY L=2000
1-47426-359-0
01
1
9905-
●
●
165
PIPE; AIR,MAG VLV TO FLEX HOSE
(B)
1-49115-609-0
01
1
9905-
●
●
165
PIPE; AIR,MAG VLV TO FLEX HOSE
(C)
1-49115-610-0
01
1
9905-
●
●
167
BOLT; CLIP,AIR PIPE
M8X50 FLANGE
0-28080-850-0
01
1
9905-0512
●
●
167
BOLT; CLIP,AIR PIPE
M8X50 FLANGE
0-28050-850-0
01
1
0601-
●
●
167
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28680-825-0
02
1
9905-0512
●
●
167
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28680-825-0
02
1
9905-0512
●
●
167
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
167
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
167
BOLT; CLIP,AIR PIPE
M8X40 FLANGE
0-28680-840-0
01
1
9905-0512
●
●
167
BOLT; CLIP,AIR PIPE
M8X40 FLANGE
0-28650-840-0
01
1
0601-
●
●
169
HOSE; FLEX,TRANSFER CONT
(A) L=300
0-07120-300-0
01
1
9905-0204
●
●
169
HOSE; FLEX,TRANSFER CONT
(A) L=300
1-09363-608-0
01
1
0205-
●
●
169
HOSE; FLEX,TRANSFER CONT
(B) L=340
0-07120-340-0
02
1
9905-0204
●
●
169
HOSE; FLEX,TRANSFER CONT
(B) L=340
1-09363-622-0
02
1
0205-
●
●
170
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
03
1
9905-0204
●
●
171
NUT; FLEX HOSE
M12
9-09840-280-0
03
1
9905-
●
●
172
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
03
1
9905-0603
●
●
172
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
03
1
0604-
●
●
147
148
136
148
122
150
166
136
167
167
205
207
207
206
148
147
167
182
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
122
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
9905-0602
●
●
122
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
136
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
02
1
9905-
●
●
136
CLIP; AIR PIPE
(A) ID=6 H=20 L=20
1-09700-603-0
02
1
9905-
●
●
136
CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
9905-
●
●
147
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
01
1
9905-0512
●
●
147
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
●
147
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
02
1
9905-0512
●
●
147
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
148
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
9905-0602
●
●
148
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
9905-0602
●
●
148
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
148
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
148
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
9905-0602
●
●
148
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
148
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
9905-0602
●
●
148
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
150
UNION; AIR PIPE
M12 2WAY
1-09654-234-2
01
1
9905-
●
●
150
UNION; AIR PIPE
M12 2WAY
1-09654-234-2
01
1
9905-
●
●
166
BRACKET; CLIP,AIR PIPE
1-47475-427-1
01
1
9905-
●
●
167
BOLT; CLIP,AIR PIPE
M8X50 FLANGE
0-28080-850-0
01
1
9905-0512
●
●
167
BOLT; CLIP,AIR PIPE
M8X50 FLANGE
0-28050-850-0
01
1
0601-
●
●
167
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28680-825-0
02
1
9905-0512
●
●
167
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28680-825-0
02
1
9905-0512
●
●
167
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
167
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
167
BOLT; CLIP,AIR PIPE
M8X40 FLANGE
0-28680-840-0
01
1
9905-0512
●
●
167
BOLT; CLIP,AIR PIPE
M8X40 FLANGE
0-28650-840-0
01
1
0601-
●
●
182
NUT
M12 FLANGE
0-91150-212-0
01
1
9905-0602
●
●
182
NUT
M12 FLANGE
0-91180-212-0
01
1
0603-
●
●
197
NUT; UNION
M12
9-99111-412-0
01
1
9905-0512
●
●
197
NUT; UNION
M12
0-91111-512-0
01
1
0601-
●
●
205
CLIP; UPR
ID=10 & 10
1-09709-241-0
02
1
9905-
●
●
206
CLIP; LWR
ID=10 & 10
1-09709-243-0
02
1
9905-
●
●
207
COLLAR
ID=6
1-47459-010-0
02
1
9905-
●
●
207
COLLAR
ID=8
1-47459-011-0
02
1
9905-
●
●
