◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11311 - FTS(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#19770) — 95 parça

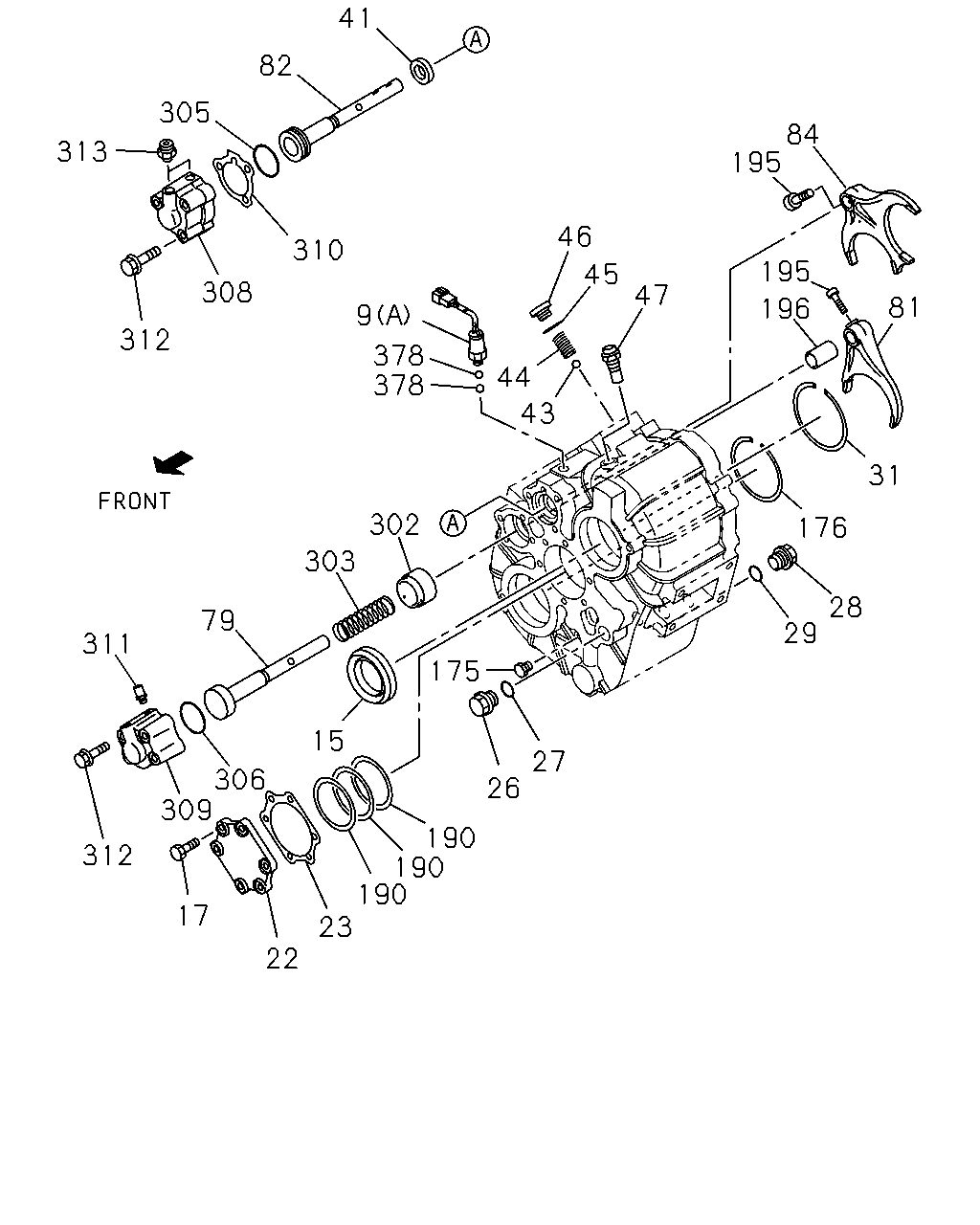

çizim 15942
41 82 305 84 195 313 46 310 195 45 308 47 81 196 9 312 378 378 44 43 31 302 176 303 28 29 79 311 175 15 27 26 306 309 190 190 190 23 312 17 22
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 9905- ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 9905- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 9905- ● ●
17 BOLT; BRG COVER
M10X28 		0-50051-028-0 06 1 9905-0906 ● ●
17 BOLT; BRG COVER
M10X28 		0-50551-028-0 06 1 0907- ● ●
22 COVER; BRG,IDLE SHAFT 1-36151-006-1 01 1 9905- ● ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36152-003-0 01 1 9905- ● ●
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-064-1 01 1 9905-0201 ● ●
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0202- ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9905- ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9905- ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9905- ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 9905- ● ●
41 SEAL; OIL,SHIFT ROD 1-09625-377-0 02 1 9905- ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 9905- ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 9905- ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09571-520-0 01 1 9905-0201 ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 0202- ● ●
46 SEAT; SPR 9-09862-175-0 01 1 9905- ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 9905- ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 9905- ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 9905- ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 9905- ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 9905- ● ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 9905- ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 9905- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 9905- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 9905- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 9905- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 9905- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 9905- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 9905- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 9905- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 9905- ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 9905- ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 9905- ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 9905- ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 9905- ● ●
305 GASKET; PISTON,LOW-HIGH
ID=43.7 		9-09561-344-0 01 1 9905- ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 9905- ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 9905- ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 9905- ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 9905- ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 9905- ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 9905- ● ●
313 CONNECTOR; AIR CYL
M20 & PT1/4 		9-09902-386-0 03 1 9905-0204 ● ●
313 CONNECTOR; AIR CYL
M12 & PT1/4 STRAIGHT 		1-09650-074-1 03 1 0205- ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 9905- ● ●

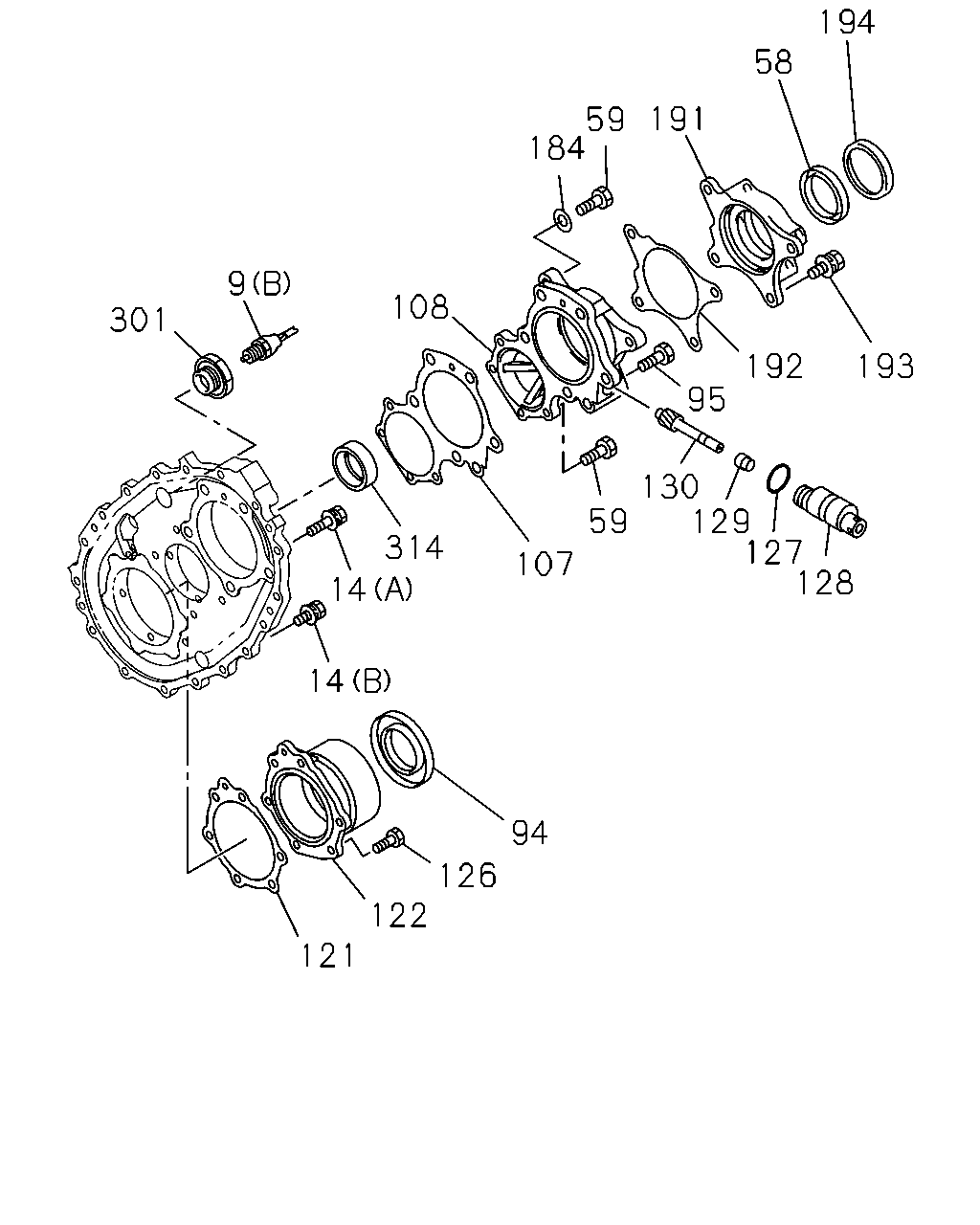

çizim 63515
194 58 191 59 184 9 108 301 192 193 95 130 129 127 128 59 314 107 14 14 94 126 122 121
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 9905- ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 02 1 9905- ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50051-030-0 11 1 9905-0906 ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 11 1 0907- ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 9905-0906 ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 0907- ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 9905- ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 9905- ● ●
59 BOLT; UPR COVER
M14X40 		0-23801-440-0 04 1 9905-0512 ● ●
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 0601- ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 9905-0906 ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 0907- ● ●
94 SEAL; OIL,RR COVER,OUTPUT
NOK 		1-09625-484-1 01 1 9905- ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9905-0805 ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806- ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 9905- ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 9905- ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 9905- ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 9905- ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 9905-0906 ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 0907- ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 9905- ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 9905- ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 9905- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 9905- ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		9-09150-514-0 05 1 9905-0603 ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 0604- ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 9905- ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 9905- ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 9905- ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 9905- ● ●
301 ADAPTER; SWITCH,TRANSFER 1-09669-101-0 01 1 9905-0205 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 9905- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 9905- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 9905- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 9905- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 9905- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 9905- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 9905- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 9905- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 9905- ● ●

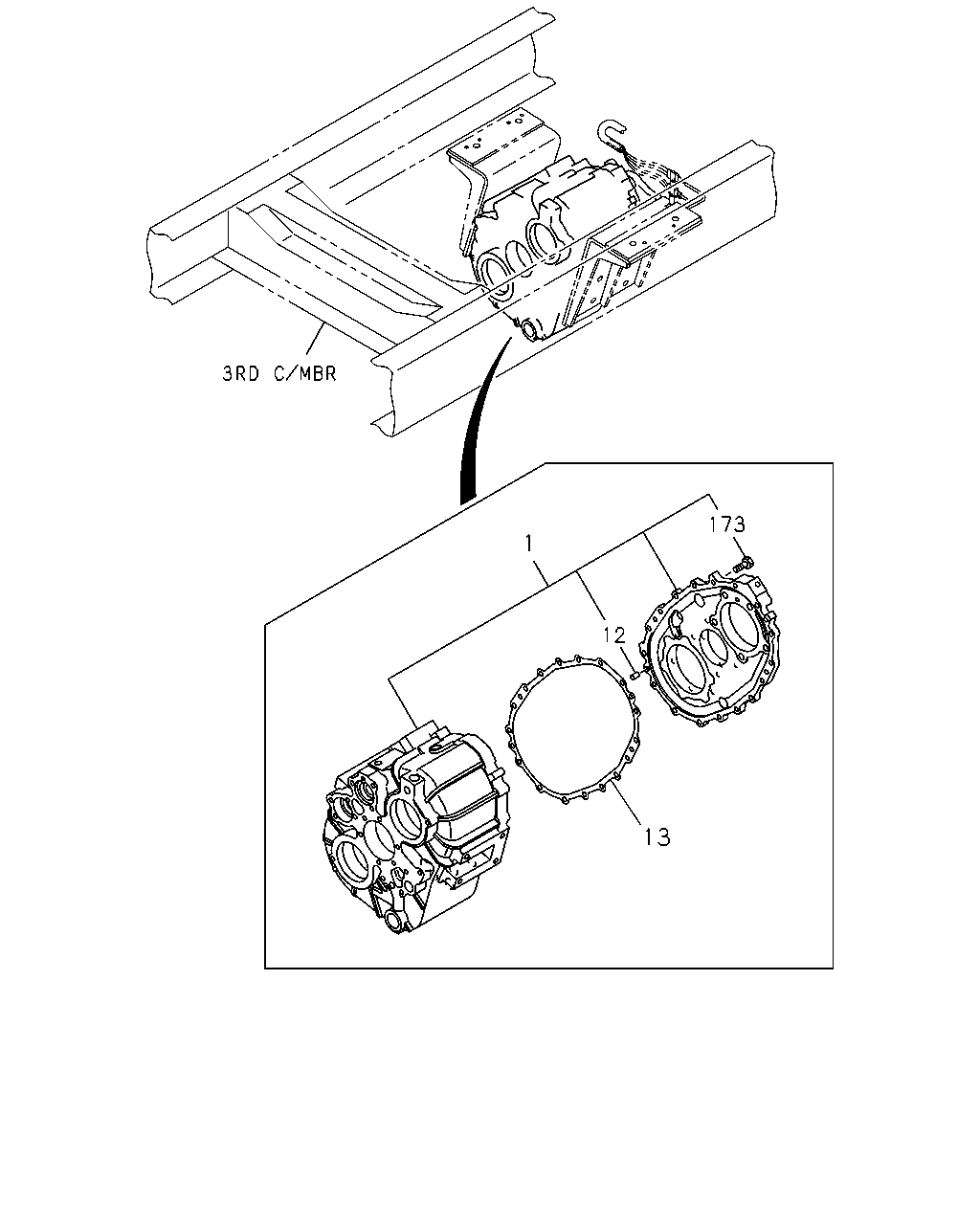

çizim 64515
173 1 12 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER 1-36110-039-0 01 1 9905-0205 ● ●
1 CASE; TRANSFER 1-36110-049-0 01 1 0206- ● ●
12 PIN; STRAIGHT,TRANSFER CASE 9-08161-016-0 02 1 9905- ● ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 9905- ● ●
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 9905-0906 ● ●
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 0907- ● ●
