7-41 — UNDER COVER; INSTRUMENT (#1977) — 7 parça

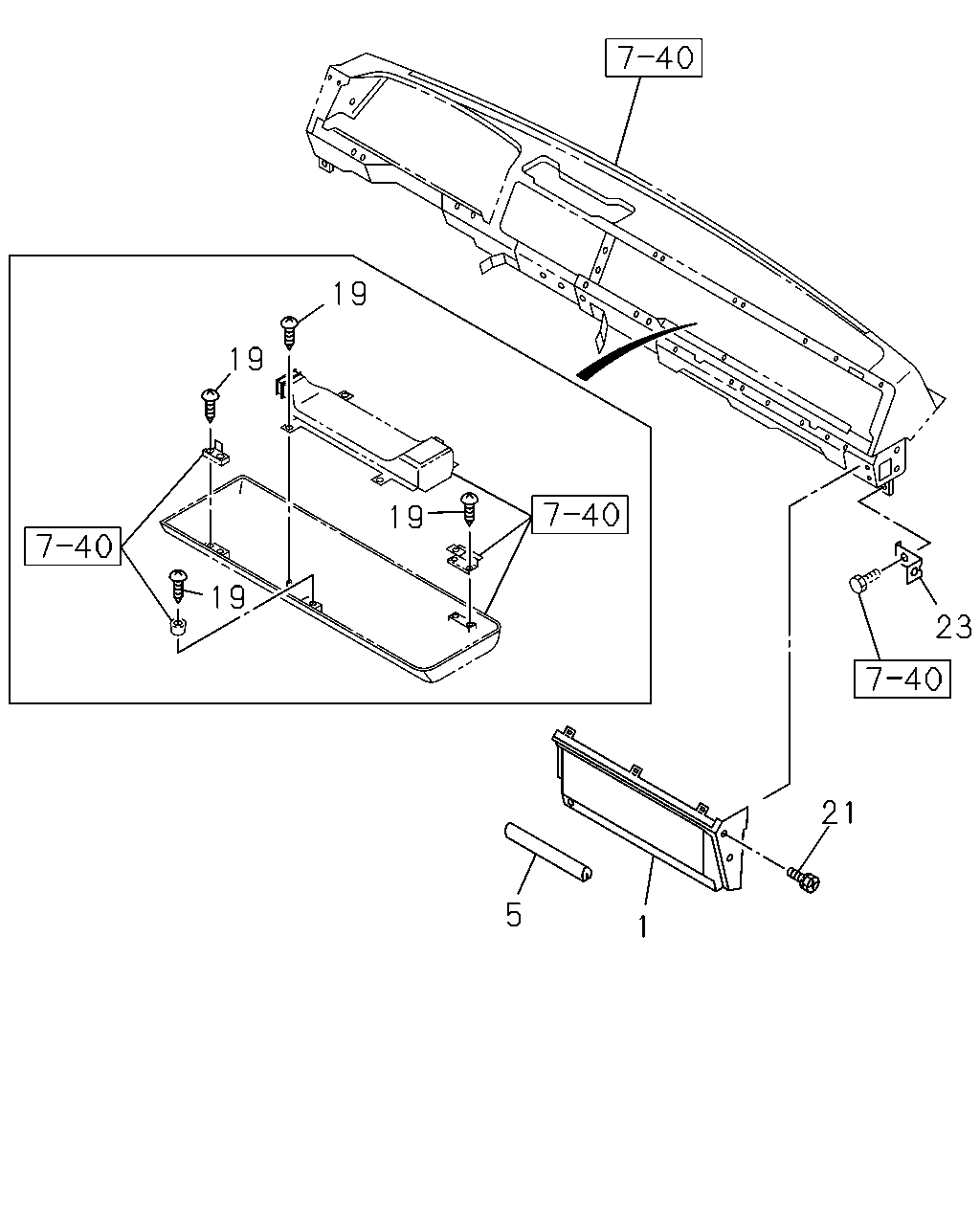

çizim 94276
19 19 19 19 23 21 5 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; COMPARTMENT,A/C UNIT
DARK GRAY 		1-65680-815-1 01 1 9207- ● ● ● ●
5 FINISHER; COMPARTMENT PANEL,A/C UNIT
L=120 SERVICED BY L=2040 		1-71997-513-1 04 1 9207- ● ● ● ●
5 FINISHER; COMPARTMENT PANEL,A/C UNIT
L=30 SERVICED BY L=190 		1-71998-300-0 01 1 9207- ● ● ● ●
5 FINISHER; COMPARTMENT PANEL,A/C UNIT
L=700 SERVICED BY L=880 		1-73948-003-0 01 1 9207- ● ● ● ●
19 SCREW; FASTENER,SIDE CLUSTER BEZEL
M5X14 TAPPING 		1-72548-072-0 13 1 9207- ● ● ● ●
21 BOLT; BLIND PANEL,A/C
M6X14 W/LK&PL WASHER 		1-09980-549-0 06 1 9207- ● ● ● ●
23 BRACKET; COMPARTMENT PANEL,A/C UNIT 1-65680-369-1 01 1 9207- ● ● ● ●
