2-60 — TRANSFER (#19769) — 22 parça

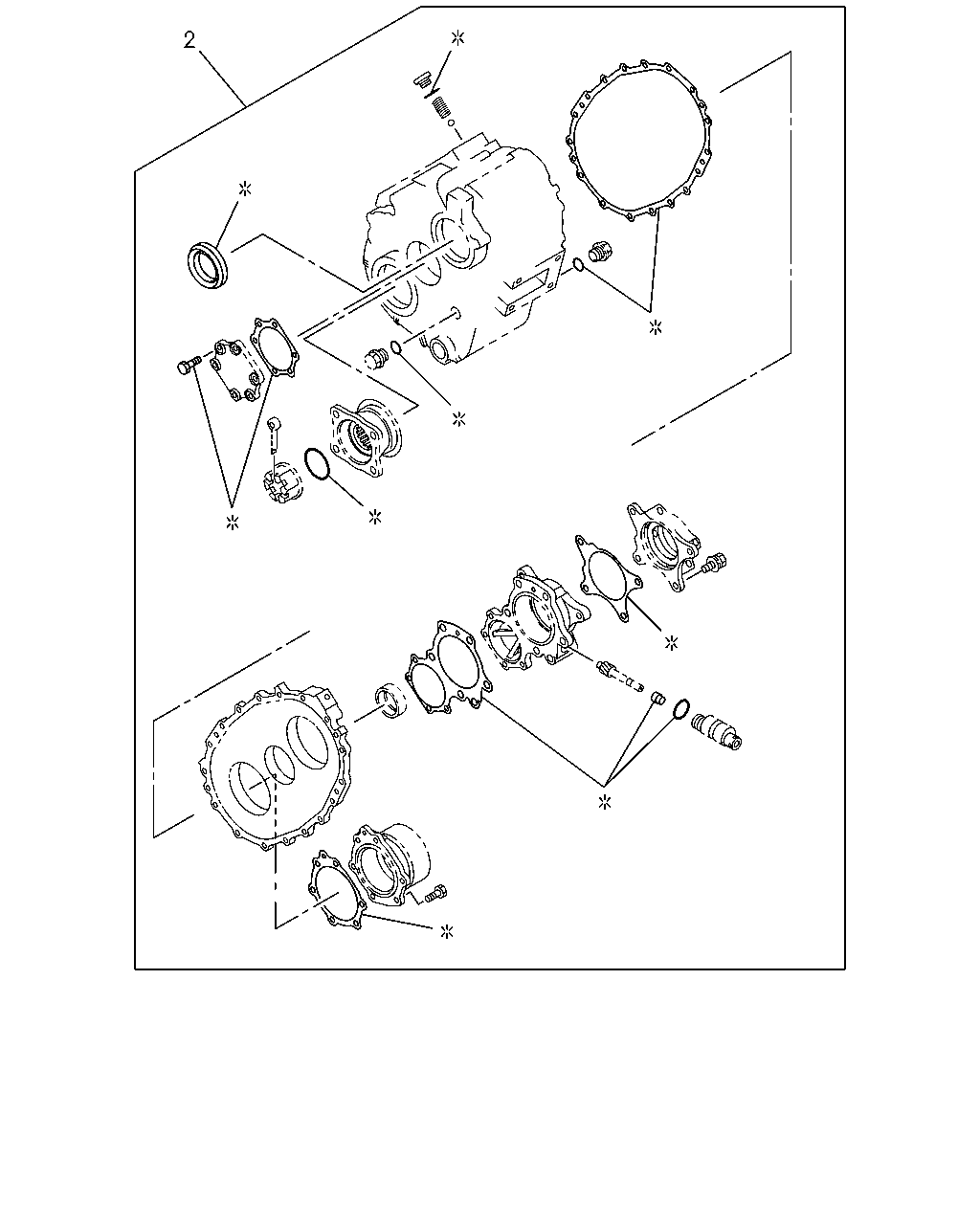

çizim 15982
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; TRANSFER OVERHAUL 1-87830-218-6 01 1 9905- ● ●

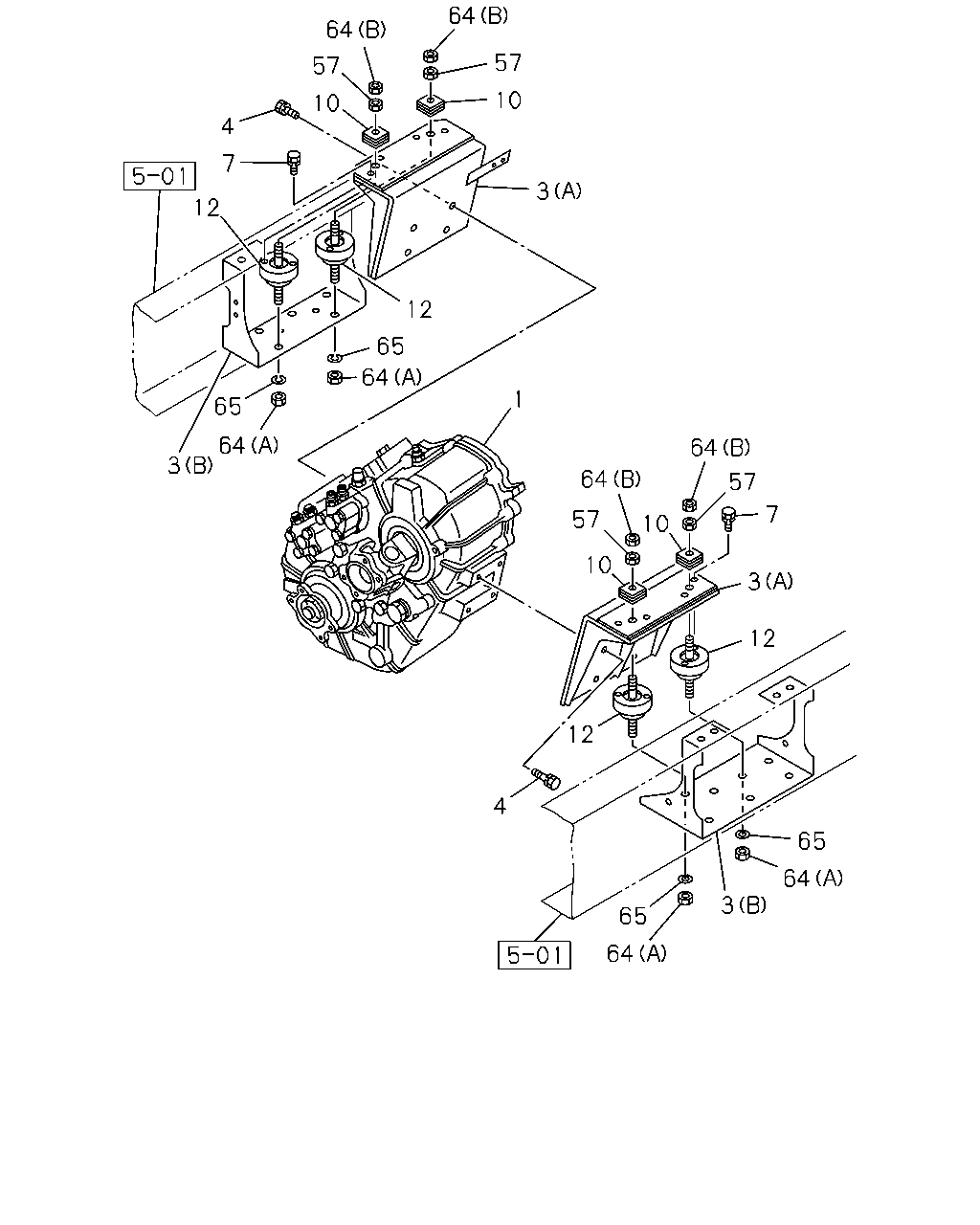

çizim 63711
64 64 57 57 10 10 4 7 3 12 12 65 64 1 65 64 3 64 64 57 7 57 10 10 3 12 12 4 65 64 3 65 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSFER ASM 1-36000-614-0 01 1 9905- ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-114-6 01 1 9905- ● ●
3 BRACKET; TRANSFER
(A) 		1-36183-180-0 01 1 9905- ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-060-3 01 1 9905- ● ●
3 BRACKET; TRANSFER
(B) 		1-53291-061-4 01 1 9905- ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28681-230-0 AR 1 9905-0512 ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28651-230-0 AR 1 0601- ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER 		0-50051-230-0 08 1 9905-0706 ● ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 0707- ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28081-025-0 08 1 9905-0512 ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 9905- ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 9905- ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		9-99110-512-0 04 1 9905-0512 ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		0-91110-512-0 04 1 0601- ● ●
64 NUT; CUSHION RUBBER,LWR
(A) M14 		9-99110-414-0 04 1 9905-0512 ● ●
64 NUT; CUSHION RUBBER,LWR
(A) M14 		0-91110-514-0 04 1 0601- ● ●
64 NUT; CUSHION RUBBER,LWR
(B) M12 		9-99111-412-0 04 1 9905-0512 ● ●
64 NUT; CUSHION RUBBER,LWR
(B) M12 		0-91111-512-0 04 1 0601- ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		9-09150-514-0 04 1 9905-0603 ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
