2-30 — GEAR SHIFTER AND QUADRANT BOX (#19765) — 78 parça

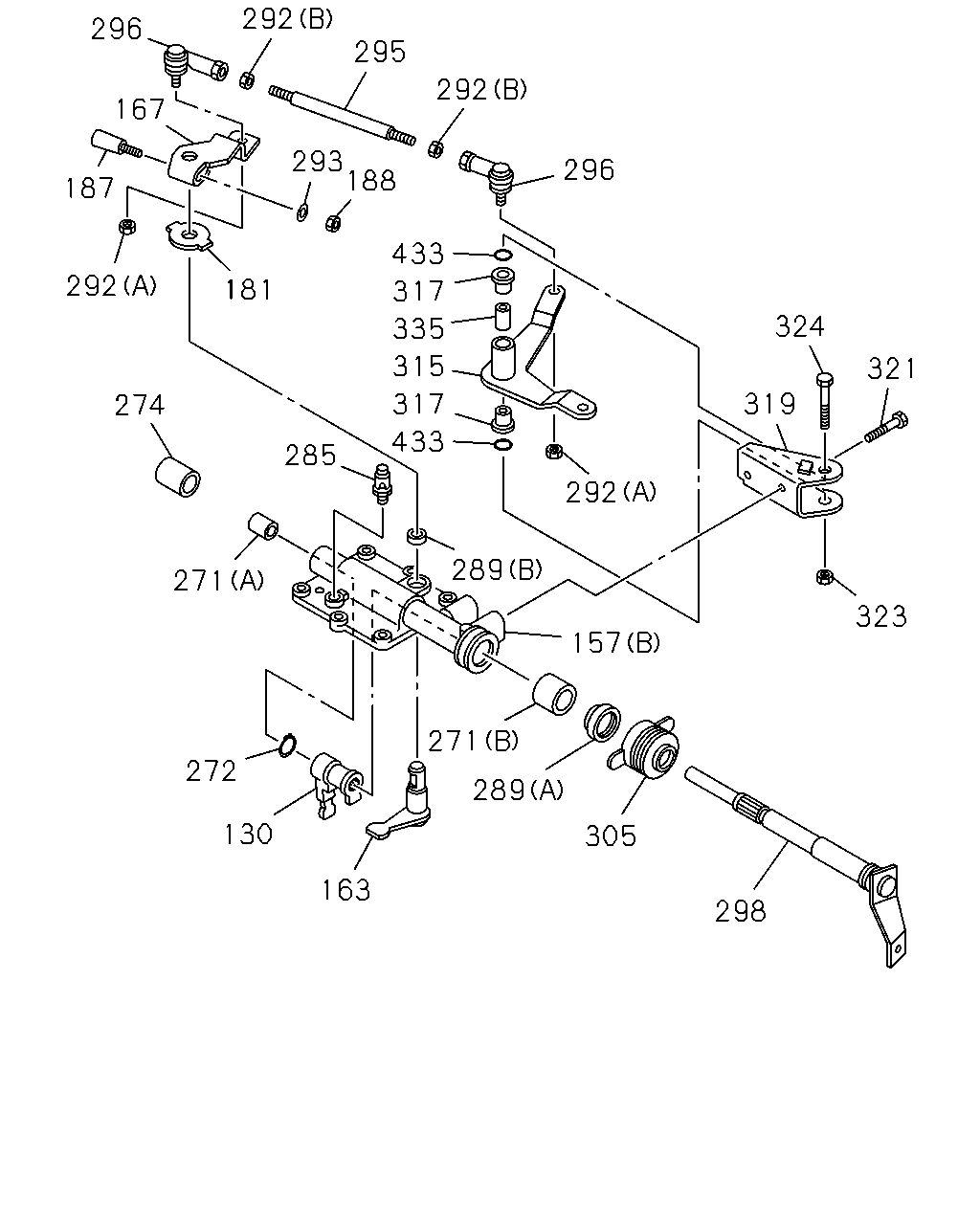

çizim 15580
292 296 295 292 167 293 188 296 187 433 292 181 317 324 335 315 321 319 317 274 433 285 292 289 271 323 157 271 272 289 130 305 163 298
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-131-1 01 1 9905-
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9905-
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9905-
163 LEVER; SELECT,INTERNAL 1-33522-130-0 01 1 9905-
167 LEVER; SELECT,EXTERNAL 1-33521-139-0 01 1 9905-
181 WASHER; PL,SELECT LEVER
OD=37 		1-09532-007-0 01 1 9905-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9905-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9905-
271 BUSHING; QUAD BOX
(B) ID=25 OD=28 		1-33549-107-0 01 1 9905-
271 BUSHING; QUAD BOX
(A) ID=17 OD=19 		1-33549-108-0 01 1 9905-
272 RING; SNAP,QUAD BOX 1-09588-174-0 01 1 9905-
274 COVER; SHAFT,QUAD BOX
OD=24 L=31 		9-33545-011-1 01 1 9905-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9905-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-269-0 01 1 9905-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-369-0 01 1 9905-
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9905-
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9905-0512
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9905-0605
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9905-
296 ROD END
L=48 		1-09760-038-1 02 1 9905-0309
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-
298 SHAFT; SHIFT LEVER 1-33522-167-0 01 1 9905-
305 BOOT; LEVER SHAFT 1-33529-051-0 01 1 9905-
315 LEVER; SELECT 1-33651-703-0 01 1 9905-
317 BUSHING; LEVER 1-09330-119-0 02 1 9905-
319 BRACKET; SELECT LEVER 1-33657-603-0 01 1 9905-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9905-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9905-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 9905-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 9905-
433 GASKET; BUSHING 1-09623-594-0 02 1 9905-

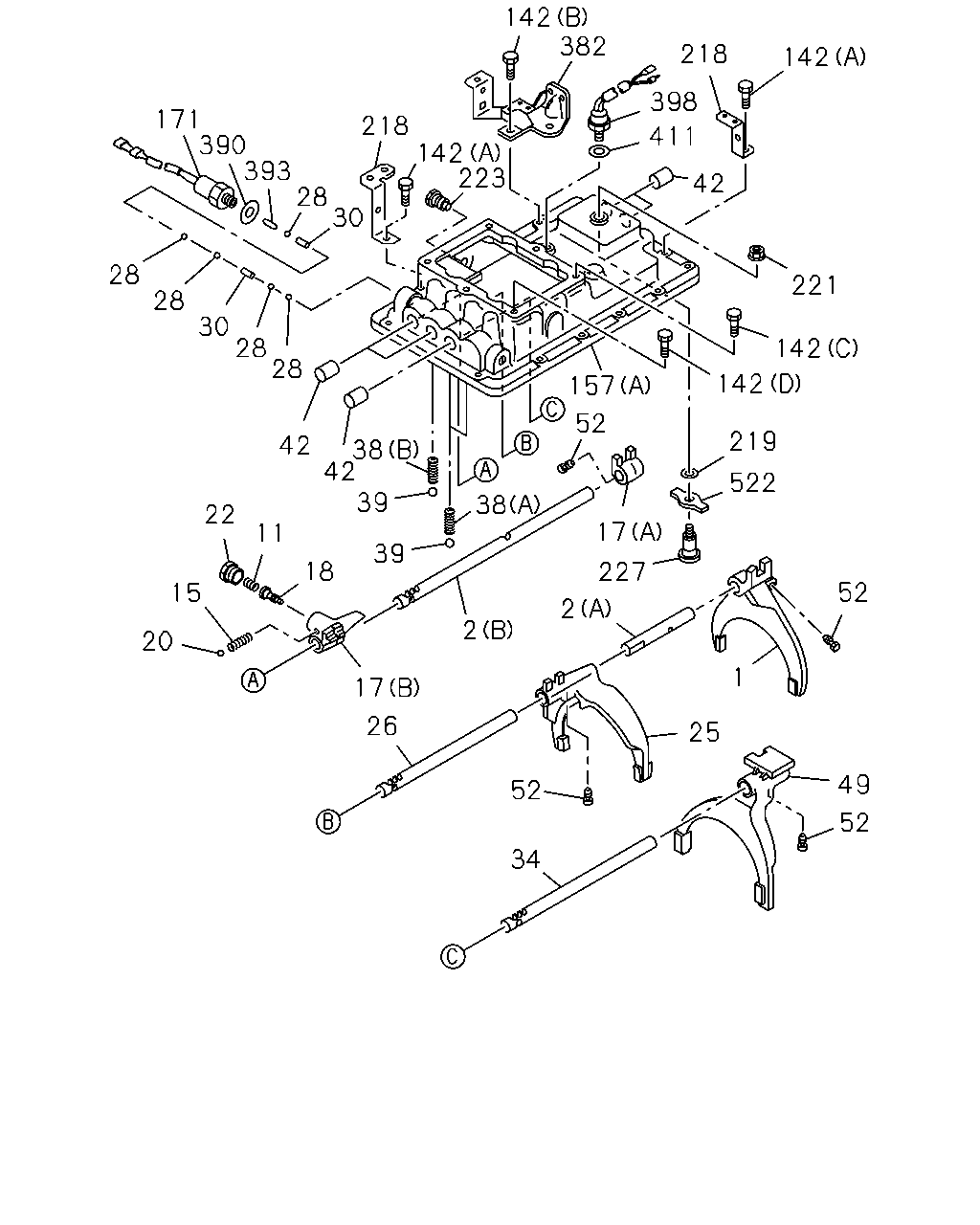

çizim 15601
142 382 218 142 398 171 390 393 28 30 218 142 223 411 42 28 221 28 30 28 28 142 142 157 52 219 42 38 42 39 522 38 22 17 11 39 18 227 52 15 2 2 20 1 17 26 25 49 52 52 34
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-502-1 01 1 9905-
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-360-1 01 1 9905-
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-361-1 01 1 9905-
11 SPRING; RETURN,SHIFT SLEEVE 1-09580-444-0 01 1 9905-
15 SPRING; LK,SHIFT SLEEVE 1-09580-445-0 01 1 9905-
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-387-2 01 1 9905-
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-432-1 01 1 9905-
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-029-0 01 1 9905-
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 9905-
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9905-
25 ARM; SHIFT,2ND & 3RD 1-33511-580-1 01 1 9905-
26 ROD; SHIFT,2ND & 3RD 1-33531-384-0 01 1 9905-
28 BALL; INTER LK 9-00097-010-0 05 1 9905-
30 PIN; INTER LK 1-33534-002-0 02 1 9905-
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-385-0 01 1 9905-
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 9905-
38 SPRING; DETENT
(A) 		1-09580-548-0 02 1 9905-
39 BALL; DETENT 9-00097-013-0 03 1 9905-
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 07 1 9905-
49 ARM; SHIFT,4TH & 5TH 1-33511-582-0 01 1 9905-
52 BOLT; SHIFT ARM 1-09052-034-2 05 1 9905-
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 13 1 9905-0805
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 13 1 0806-
142 BOLT; QUAD BOX
(B) M10X32 FLANGE 		0-28181-032-0 02 1 9905-
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9905-0805
142 BOLT; QUAD BOX
(C) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9905-0805
142 BOLT; QUAD BOX
(D) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806-
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9905-
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9905-
171 SWITCH; NEUTRAL 1-82340-534-0 01 1 9905-
218 BRACKET; HARNESS CLIP,QUAD BOX 1-82699-639-1 02 1 9905-
219 WASHER; PL,SPINDLE
ID=14 		9-09851-275-0 01 1 9905-
221 NUT; SPINDLE
M10 FLANGE 		0-91150-110-0 01 1 9905-0602
221 NUT; SPINDLE
M10 FLANGE 		0-91180-110-0 01 1 0603-
223 SCREW; SET,QUAD BOX
M8X12.5 		9-09814-533-0 01 1 9905-
227 SPINDLE; 1ST & REV 1-33519-130-0 01 1 9905-
382 BRACKET; PARKING BRK CONT CABLE 1-46147-209-3 01 1 9905-
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9905-
393 PIN; SW 1-33534-003-0 01 1 9905-
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9905-0602
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9905-
522 LEVER; SHIFT,1-REV 1-33521-135-0 01 1 9905-
