7-40 — INSTRUMENT PANEL AND BOX (#1976) — 63 parça

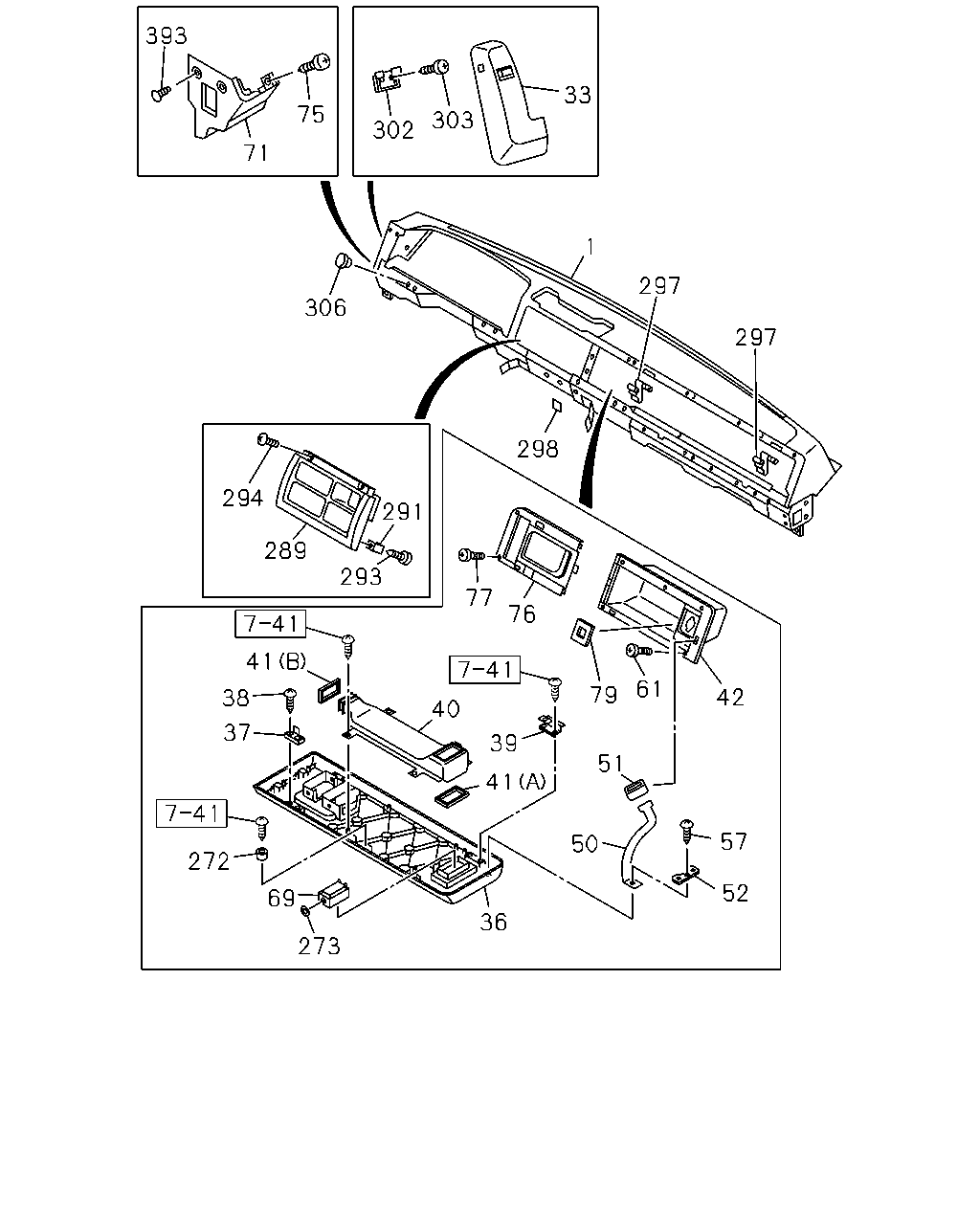

çizim 27526
393 33 75 303 302 71 1 297 306 297 298 294 291 289 293 77 76 41 61 79 42 38 40 37 39 51 41 57 50 272 52 69 36 273
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST
DARK GRAY 		1-65680-814-2 01 1 9207- ● ● ● ●
33 LID; CHECK HOLE,CLU FLUID
DARK GRAY 		1-73927-068-0 01 1 9207- ● ● ● ●
36 BEZEL; INST SIDE CLUSTER
DARK GRAY 		1-72548-108-0 01 1 9207- ● ● ● ●
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9207- ● ● ● ●
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9207- ● ● ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72558-013-2 01 1 9207- ● ● ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72558-012-2 01 1 9207- ● ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76378-215-1 01 1 9207- ● ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9207- ● ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9207- ● ● ● ●
42 BOX; GLOVE,INST PNL 1-72538-032-5 01 1 9207- ● ● ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 1-72548-056-3 02 1 9207- ● ● ● ●
51 CUSHION; STOPPER,GLOVE BOX 1-72548-069-0 02 1 9207- ● ● ● ●
52 PLATE; STOPPER,GLOVE BOX 1-72548-073-0 02 1 9207- ● ● ● ●
57 SCREW; GLOVE BOX STOPPER 1-09981-388-1 06 1 9207- ● ● ● ●
61 SCREW; GLOVE BOX
M6X16 W/PL WASHER 		1-09981-176-0 05 1 9207- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9207- ● ● ● ●
71 GARNISH; INST CLUSTER SIDE
DARK GRAY 		1-72437-039-0 01 1 9207- ● ● ● ●
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9207- ● ● ● ●
76 COVER; VENT DUCT,PASSENGER SIDE 1-73928-326-5 01 1 9207- ● ● ● ●
77 SCREW; VENT DUCT COVER
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9207- ● ● ● ●
79 SEAL; SIDE DEFROSTER
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-76377-092-0 01 1 9207- ● ● ● ●
272 CUSHION; SIDE CLUSTER BEZEL 1-72548-046-0 01 1 9207- ● ● ● ●
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9207- ● ● ● ●
289 BEZEL; CENTER,INST CLUSTER
DARK GRAY 		1-72437-037-0 01 1 9207- ● ● ● ●
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9207- ● ● ● ●
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9207- ● ● ● ●
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9207- ● ● ● ●
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72558-014-1 02 1 9207- ● ● ● ●
298 PIECE; DIST,CLUSTER BEZEL 1-72548-077-0 01 1 9207- ● ● ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9207- ● ● ● ●
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9207- ● ● ● ●
306 BUTTON; CLIP,INST CLUSTER,DRIVER SIDE
AUTO ENG SHUTOFF(KB6) 		1-72448-261-0 02 1 9207- ● ● ● ●
306 BUTTON; CLIP,INST CLUSTER,DRIVER SIDE
EXC. AUTO ENG SHUTOFF(KB6) 		1-72448-261-0 01 1 9207- ● ● ● ●
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9207- ● ● ● ●

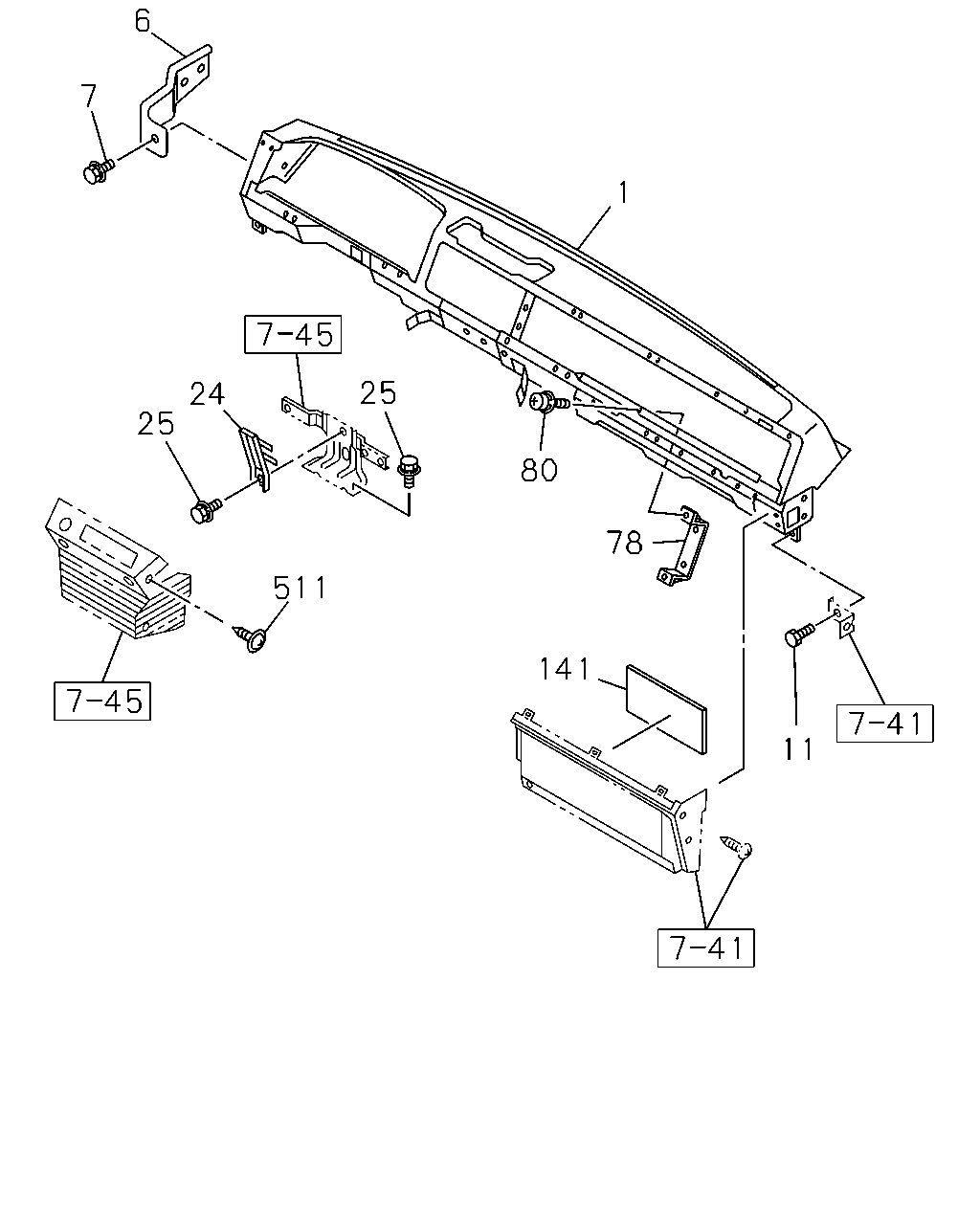

çizim 28463
6 7 1 25 24 25 80 78 511 141 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST
DARK GRAY 		1-65680-814-2 01 1 9207- ● ● ● ●
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9207- ● ● ● ●
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9207- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X16 W/LK&PL WASHER 		1-09980-440-0 04 1 9207- ● ● ● ●
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 08 1 9207- ● ● ● ●
24 STAY; INST CLUSTER 1-65680-448-2 01 1 9207- ● ● ● ●
25 BOLT; STAY,INST CLUSTER
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9207- ● ● ● ●
78 SUPPORT; VENT DUCT,PASSENGER SIDE 1-65680-372-3 01 1 9207- ● ● ● ●
80 SCREW; SUPPORT,VENT DUCT
M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9207- ● ● ● ●
141 PROTECTOR; EDGE 1-72378-025-0 01 1 9207- ● ● ● ●
511 SCREW; CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-431-0 02 1 9207- ● ● ● ●

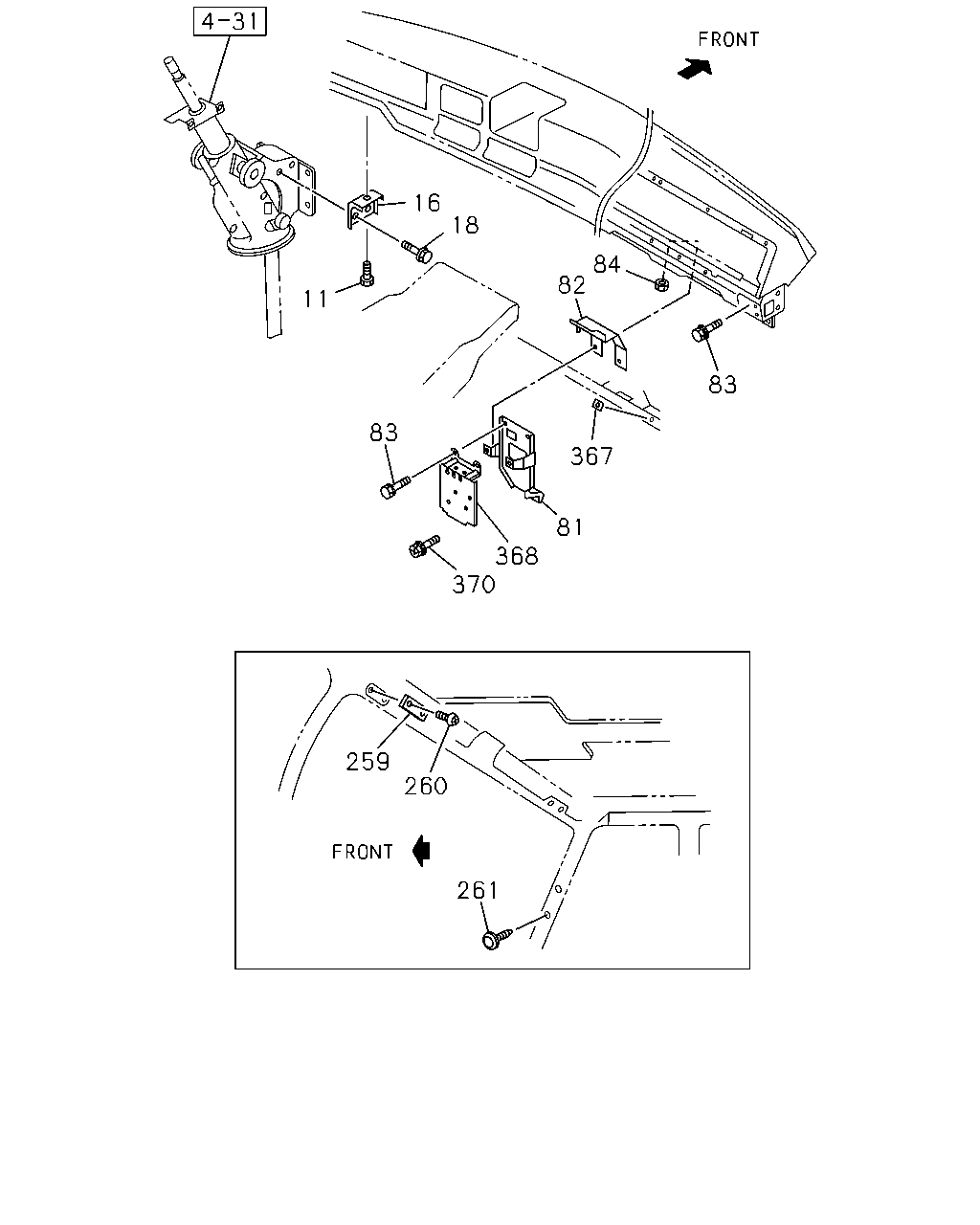

çizim 94051
16 18 84 82 11 83 83 367 81 368 370 259 260 261
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 08 1 9207- ● ● ● ●
16 BRACKET; INST PNL 1-65680-836-0 01 1 9207- ● ● ● ●
18 BOLT; BRKT
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9207- ● ● ● ●
81 BRACKET; ELEC CONT UNIT 1-73998-477-8 01 1 9207- ● ● ● ●
82 BRACKET; CONT UNIT,ELEC 1-73998-434-5 01 1 9207- ● ● ● ●
83 BOLT; BRKT,CONT UNIT
W/O PAINT M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9207- ● ● ● ●
83 BOLT; BRKT,CONT UNIT
W/ PAINT M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9207-9304 ● ● ● ●
83 BOLT; BRKT,CONT UNIT
M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9305- ● ● ● ●
83 BOLT; BRKT,CONT UNIT
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9207- ● ● ● ●
83 BOLT; BRKT,CONT UNIT
EXC. HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9207- ● ● ● ●
84 NUT; CONT UNIT BRKT
M6 FLANGE 		5-09440-004-0 01 1 9207- ● ● ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-61480-566-0 01 1 9207-9312 ● ● ● ●
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X12 W/LK WASHER 		9-03910-612-0 02 1 9207-9312 ● ● ● ●
261 PLUG; ASSIST GRIP HOLE
WHITE 		1-76378-213-0 04 1 9207- ● ● ● ●
367 SEAL; CONT UNIT BRKT
25X25 		8-94272-533-0 01 1 9207- ● ● ● ●
368 BRACKET; SUB,ELEC CONT UNIT 1-73998-479-7 01 1 9207- ● ● ● ●
370 SCREW; BRKT,ELEC CONT UNIT
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9207- ● ● ● ●
