2-05 — CLUTCH PIPING (#19758) — 66 parça

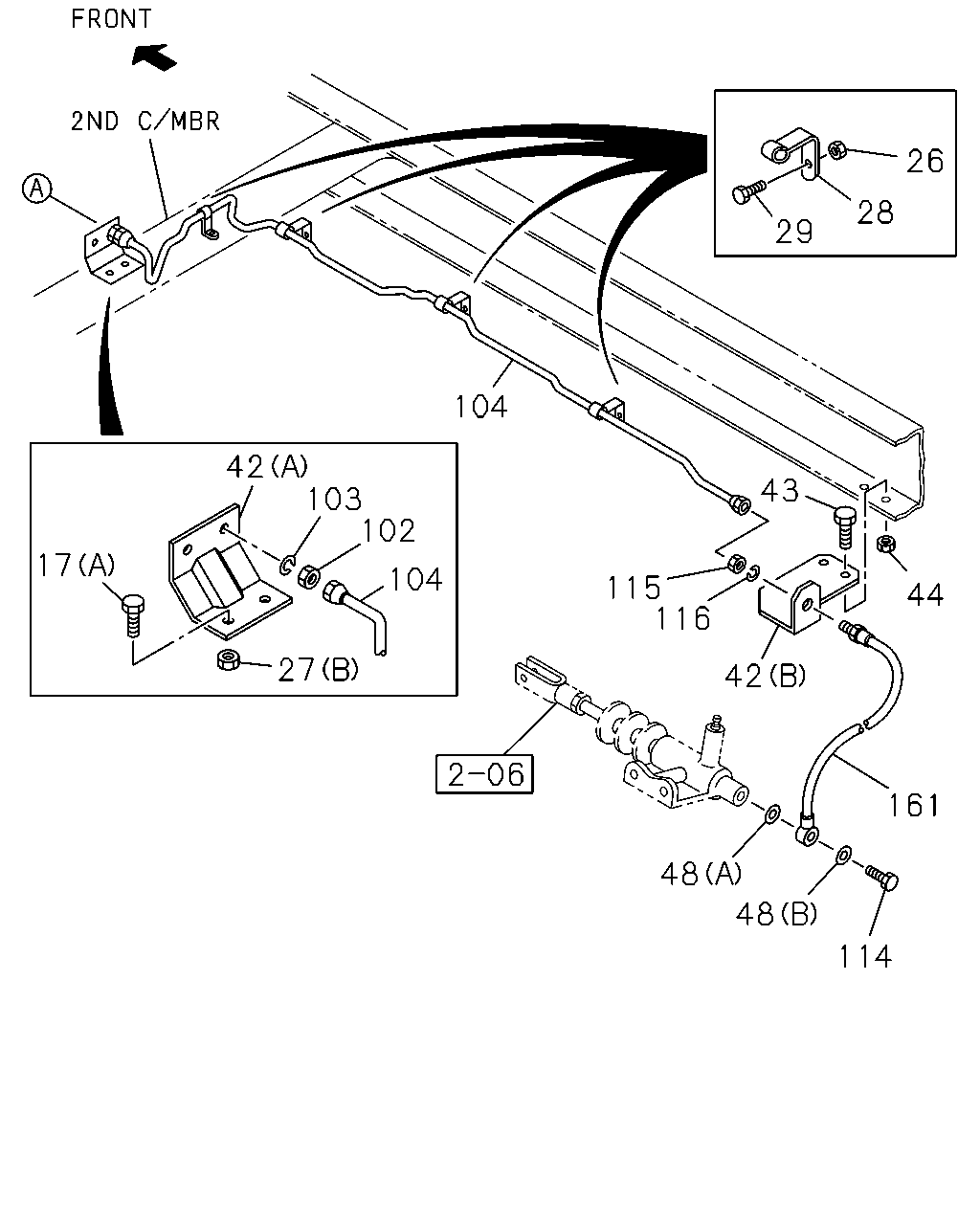

çizim 63464
26 28 29 104 42 103 102 43 17 104 115 116 44 27 42 161 48 48 114
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0512 ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 04 1 9905-0004 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9905- ● ●
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 04 1 9905-0004 ● ●
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 0005- ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9905-0004 ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 0005-0512 ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9905- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47477-640-0 01 1 9905- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9905-0512 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
48 GASKET; FLEX HOSE,CLU CONT
(B) ID=10.5 		1-09630-074-1 01 1 9905- ● ●
48 GASKET; FLEX HOSE,CLU CONT
(A) ID=14.2 		9-09851-004-0 01 1 9905- ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9905-0512 ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601- ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9905-0603 ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=2498 SERVICED BY L=2700 		1-47426-396-0 01 1 9905- ● ●
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 9905- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9905-0512 ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9905-0603 ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
161 HOSE; FLEX,SLAVE CYL
L=380 		0-05567-380-0 01 1 9905-0004 ● ●
161 HOSE; FLEX,SLAVE CYL
L=310 		0-05567-310-0 01 1 0005- ● ●

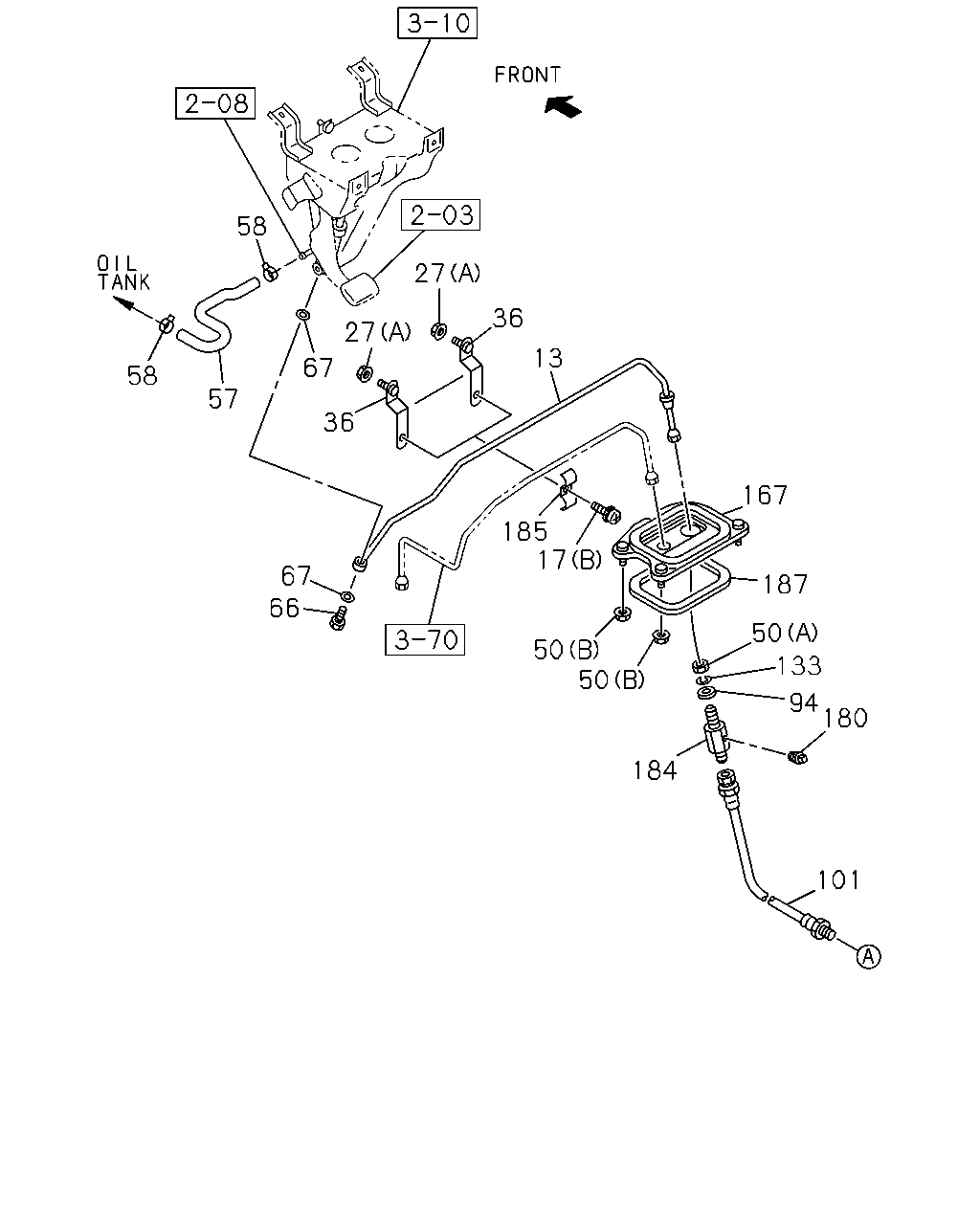

çizim 63574
58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 50 50 50 133 94 180 184 101
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47429-143-0 01 1 9905-0004 ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47423-750-4 01 1 0005-0105 ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47429-143-0 01 1 0106- ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0512 ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9905-0602 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9905- ● ●
36 BRACKET; CLIP 1-79738-186-1 02 1 9905- ● ●
50 NUT; UNION
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 9905- ● ●
50 NUT; UNION
(A) M14 		9-99111-414-0 01 1 9905-0512 ● ●
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 0601- ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47427-312-0 01 1 9905- ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9905- ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9905-0805 ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806- ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905-1312 ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 9905-0605 ● ●
94 WASHER; PL,UNION
ID=15 		0-91610-514-0 01 1 0606- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 9905-0703 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704- ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9905-0603 ● ●
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
167 BRACKET; UNION 1-79738-204-2 01 1 9905-9911 ● ●
167 BRACKET; UNION 1-79738-845-1 01 1 9912- ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9905-0804 ● ●
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 9905-0804 ● ●
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805- ● ●
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 9905- ● ●
187 SEAL; BRKT 1-79738-190-0 01 1 9905- ● ●
