Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

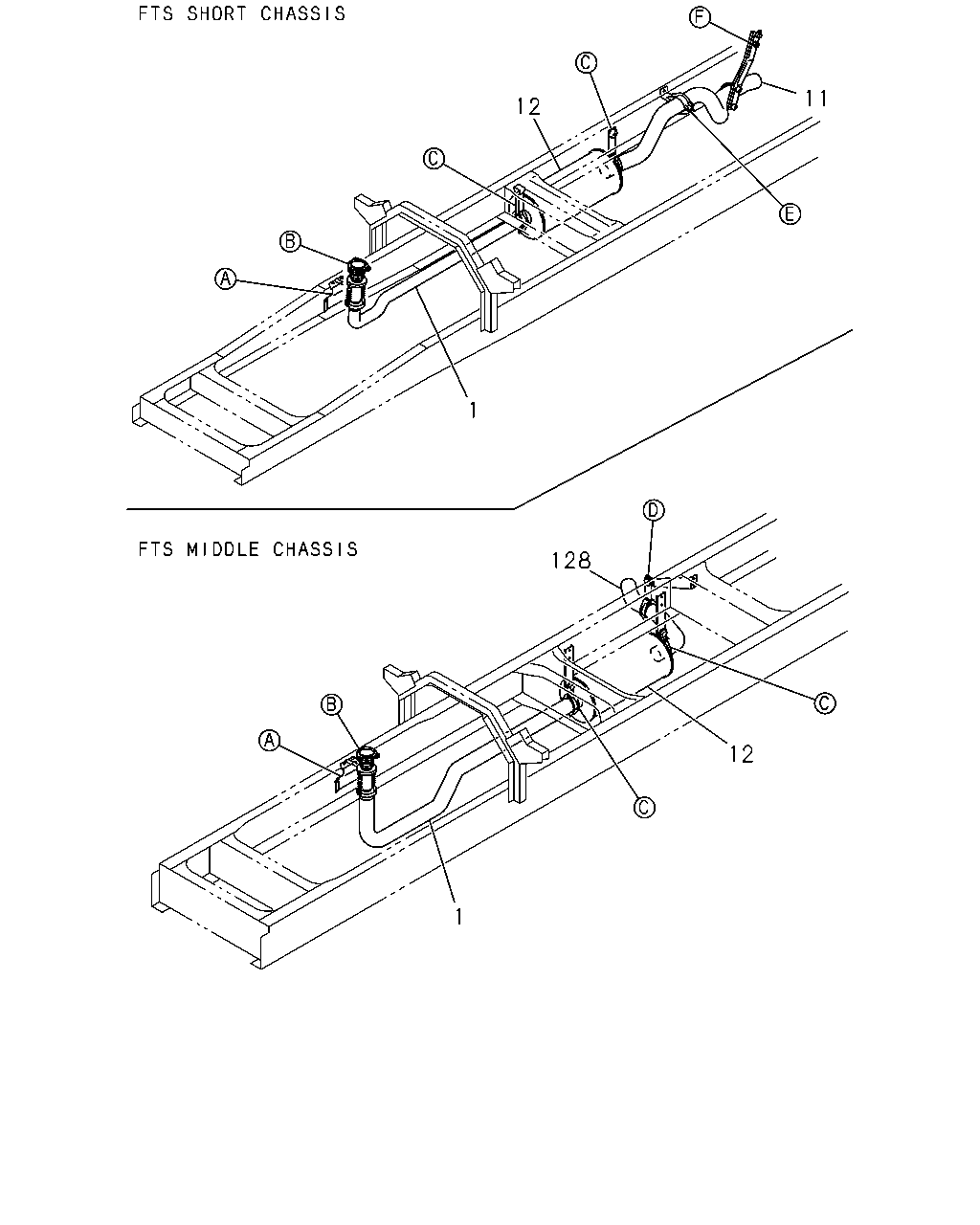

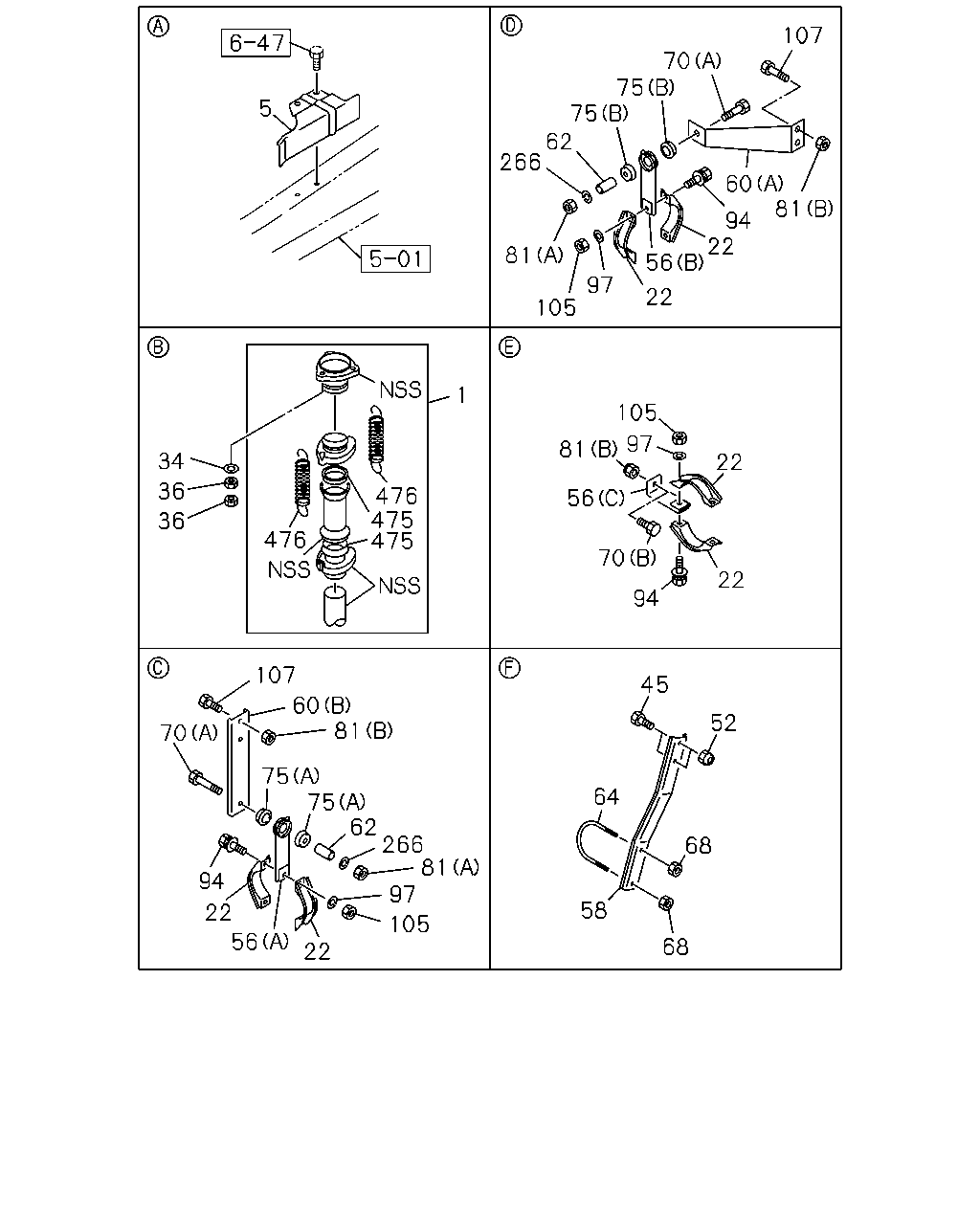

1-50 - EXHAUST PIPE AND SILENCER
▶
1-50 — EXHAUST PIPE AND SILENCER
(#19753) — 75 parça
Tümü
A - FTS6MC
B - FTS6MF
◀
[150A] FIXING PARTS (69 parça)
[150A] PIPE;EXHAUST AND SILENCER ASM (6 parça)
▶
107
70
75
75
62
266
5
60
81
94
22
56
81
97
22
105
1
105
97
81
34
22
36
476
475
475
56
36
476
70
22
94
107
45
60
81
52
70
75
75
62
266
81
97
64
68
94
58
22
105
56
68
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; EXH
1-22122-839-0
01
1
9905-0004
●
●
1
PIPE; EXH
1-22122-839-1
01
1
0005-
●
●
5
PROTECTOR; HEAT
1-33659-182-1
01
1
9905-
●
●
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
02
1
9905-
●
●
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
04
1
9905-
●
●
34
WASHER; EXH PIPE
ID=13 OD=26 DISH
1-09556-002-0
03
1
9905-0410
●
●
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
0411-
●
●
36
NUT; EXH PIPE
M12
1-09400-010-0
06
1
9905-
●
●
45
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
9905-0512
●
45
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0601-
●
52
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
9905-0602
●
52
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
56
BRACKET; CLAMP,EXH PIPE
(C)
1-22131-695-0
01
1
9905-
●
56
BRACKET; CLAMP,EXH PIPE
(A) L=94
1-22131-575-0
02
1
9905-
●
●
56
BRACKET; CLAMP,EXH PIPE
(B) L=204
1-22131-520-1
01
1
9905-
●
58
BRACKET; EXH PIPE,RR
1-22131-663-2
01
1
9905-1309
●
58
BRACKET; EXH PIPE,RR
8-98245-519-0
01
1
1310-
●
60
BRACKET; FRAME TO BRKT
(B)
1-22151-689-0
02
1
9905-
●
●
60
BRACKET; FRAME TO BRKT
(A)
1-22131-741-0
01
1
9905-
●
62
TUBE; DIST,BRKT
L=22
9-22159-024-0
02
1
9905-
●
●
62
TUBE; DIST,BRKT
L=22
9-22159-024-0
01
1
9905-
●
64
U-BOLT; EXH PIPE,RR
1-22139-033-1
01
1
9905-1105
●
64
U-BOLT; EXH PIPE,RR
1-22113-101-0
01
1
1106-
●
68
NUT; U BOLT
M8 FLANGE
0-91150-108-0
02
1
9905-0602
●
68
NUT; U BOLT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
70
BOLT; BRKT
(B) M10X30 FLANGE
0-28681-030-0
01
1
9905-0512
●
70
BOLT; BRKT
(B) M10X30 FLANGE
0-28651-030-0
01
1
0601-
●
70
BOLT; BRKT
(A) M10X55
0-10806-055-0
02
1
9905-0204
●
●
70
BOLT; BRKT
(A) M10X50
0-10806-050-0
02
1
0205-0512
●
●
70
BOLT; BRKT
(A) M10X50
0-10856-050-0
02
1
0601-
●
●
70
BOLT; BRKT
(A) M10X55
0-10806-055-0
01
1
9905-0204
●
70
BOLT; BRKT
(A) M10X50
0-10806-050-0
01
1
0205-0512
●
70
BOLT; BRKT
(A) M10X50
0-10856-050-0
01
1
0601-
●
75
RUBBER; SUPPORT,BRKT
(A) OD=40
1-22159-193-0
04
1
9905-
●
●
75
RUBBER; SUPPORT,BRKT
(B) OD=40
1-22159-094-0
02
1
9905-
●
81
NUT; BRKT
(A) M10 FLANGE
0-91150-210-0
01
1
9905-0204
●
81
NUT; BRKT
(A) M10 FLANGE
0-91150-210-0
02
1
9905-0204
●
●
81
NUT; BRKT
(A) M10 FLANGE
0-91150-210-0
01
1
0205-0602
●
●
81
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
01
1
0603-0608
●
●
81
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
01
1
0609-0609
●
●
81
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
01
1
0609-0609
●
81
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
01
1
0610-
●
●
81
NUT; BRKT
(A) M10
9-09110-510-0
02
1
9905-0204
●
●
81
NUT; BRKT
(A) M10 FLANGE
0-91150-210-0
04
1
0205-0602
●
●
81
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
04
1
0603-
●
●
81
NUT; BRKT
(A) M10
9-09110-510-0
01
1
9905-0204
●
81
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
0610-
●
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
0-50141-045-0
02
1
9905-0805
●
●
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
8-98055-085-0
02
1
0806-
●
●
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
0-50141-045-0
04
1
9905-0805
●
●
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
8-98055-085-0
04
1
0806-
●
●
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
02
1
9905-
●
●
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
04
1
9905-
●
●
105
NUT; CLAMP
M10
9-09110-510-0
02
1
9905-0512
●
●
105
NUT; CLAMP
M10
0-91110-510-0
02
1
0601-
●
●
105
NUT; CLAMP
M10
9-09110-510-0
04
1
9905-0512
●
●
105
NUT; CLAMP
M10
0-91110-510-0
04
1
0601-
●
●
107
BOLT; BRKT
M10X25 FLANGE
0-28681-025-0
02
1
9905-0512
●
●
107
BOLT; BRKT
M10X25 FLANGE
0-28681-025-0
02
1
9905-0512
●
●
107
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
02
1
0601-
●
●
107
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
02
1
0601-
●
●
107
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
01
1
0609-0609
●
107
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0610-
●
266
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
02
1
9905-0204
●
●
266
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
01
1
9905-0204
●
475
BEARING; SEAL,VIBNON,EXH PIPE
1-22119-277-0
02
1
9911-0004
●
●
475
BEARING; SEAL,VIBNON,EXH PIPE
1-22119-277-1
02
1
0005-
●
●
476
SPRING; VIBNON,EXH PIPE
1-09583-298-0
02
1
9911-0004
●
●
476
SPRING; VIBNON,EXH PIPE
1-09583-298-0
02
1
0005-
●
●
11
12
1
128
12
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; EXH
1-22122-839-0
01
1
9905-0004
●
●
1
PIPE; EXH
1-22122-839-1
01
1
0005-
●
●
11
PIPE; EXH,RR
1-22126-138-0
01
1
9905-
●
12
SILENCER ASM; EXH
1-22140-873-0
01
1
9905-0205
●
●
12
SILENCER ASM; EXH
1-22140-880-0
01
1
0206-
●
●
128
PIPE; EXH,RR
1-22126-175-0
01
1
9905-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
