Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

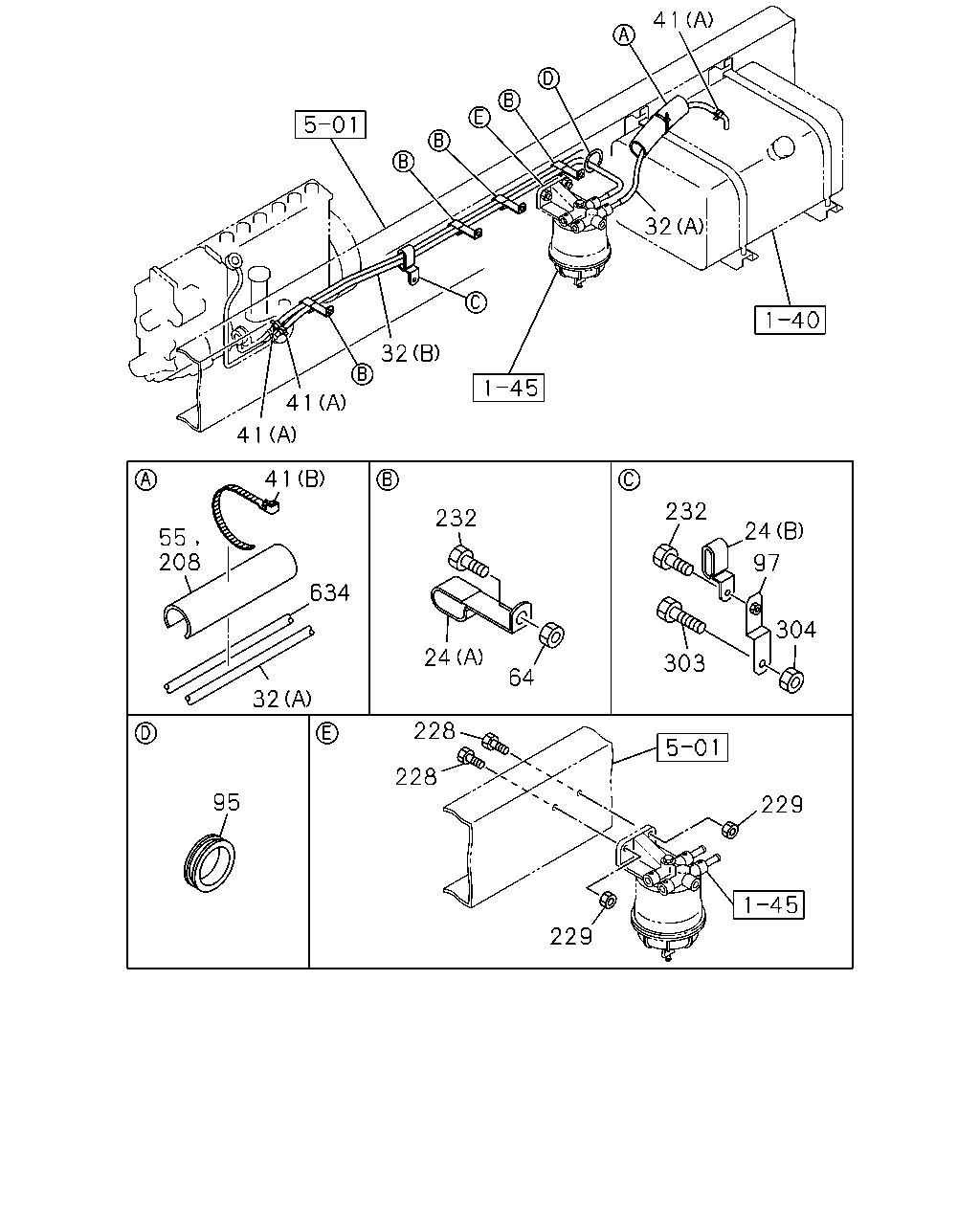

1-41 — FUEL PIPING; CHASSIS
(#19751) — 30 parça
Tümü
A - FTS6MC
B - FTS6MF
41
32
32
41
41
41
232
232
24
55
208
97
634
304
24
303
64
32
228
228
95
229
229
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
CLIP; FUEL HOSE
(A) ID=13X2 H=25 L=50
1-09700-777-0
01
1
9905-9907
●
●
24
CLIP; FUEL HOSE
(A) M13X2 H=20 L=60
1-09701-280-0
01
1
9908-
●
●
24
CLIP; FUEL HOSE
(B) ID=13 & 13 L=20 H=21.5
1-09700-975-0
01
1
9905-
●
●
24
CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25
1-09701-101-0
01
1
9905-
●
●
32
PIPE; DELIVERY,FUEL TANK
(A) L=700 SERVICED BY L=3000
0-01260-300-0
01
1
9905-
●
●
32
PIPE; DELIVERY,FUEL TANK
(B) L=1250 SERVICED BY L=3000
0-01260-300-0
01
1
9905-
●
●
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
06
1
9905-
●
●
41
CLIP; FUEL PIPE,FUEL TANK
(B) L=250
5-09707-030-1
01
1
9905-0101
●
●
41
CLIP; FUEL PIPE,FUEL TANK
(B) L=250
5-09707-030-1
02
1
0102-0409
●
●
41
CLIP; FUEL PIPE,FUEL TANK
(B) L=250
5-09707-030-1
03
1
0410-
●
●
55
COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300
1-09360-677-1
01
1
0102-
●
●
64
NUT; CLIP
M8 FLANGE
0-91150-108-0
05
1
9905-0403
●
●
64
NUT; CLIP
M8 FLANGE
0-91150-108-0
03
1
0404-0602
●
●
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
95
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17
9-09956-256-2
01
1
9905-
●
●
97
BRACKET; CLIP
1-53458-641-0
01
1
9905-
●
●
208
COVER; RUBBER
L=350
1-09360-460-1
01
1
9905-
●
●
228
BOLT; BRKT,SEDIMENTER
M10X35 FLANGE
0-28681-035-0
02
1
9905-0512
●
●
228
BOLT; BRKT,SEDIMENTER
M10X35 FLANGE
0-28651-035-0
02
1
0601-
●
●
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
9905-0602
●
●
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
232
BOLT; CLIP,PIPE
M8X16 FLANGE
0-28080-816-0
01
1
9905-0512
●
●
232
BOLT; CLIP,PIPE
M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
232
BOLT; CLIP,PIPE
M8X25 FLANGE
0-28680-825-0
02
1
9905-0512
●
●
232
BOLT; CLIP,PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
303
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
01
1
9905-0512
●
●
303
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
●
304
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
9905-0602
●
●
304
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
634
HOSE; RUBBER RETURN
L=1700 SERVICED BY L=3000
0-01260-300-0
01
1
9905-
●
●
