7-20 — MIRROR AND MIRROR STAY (#1974) — 152 parça

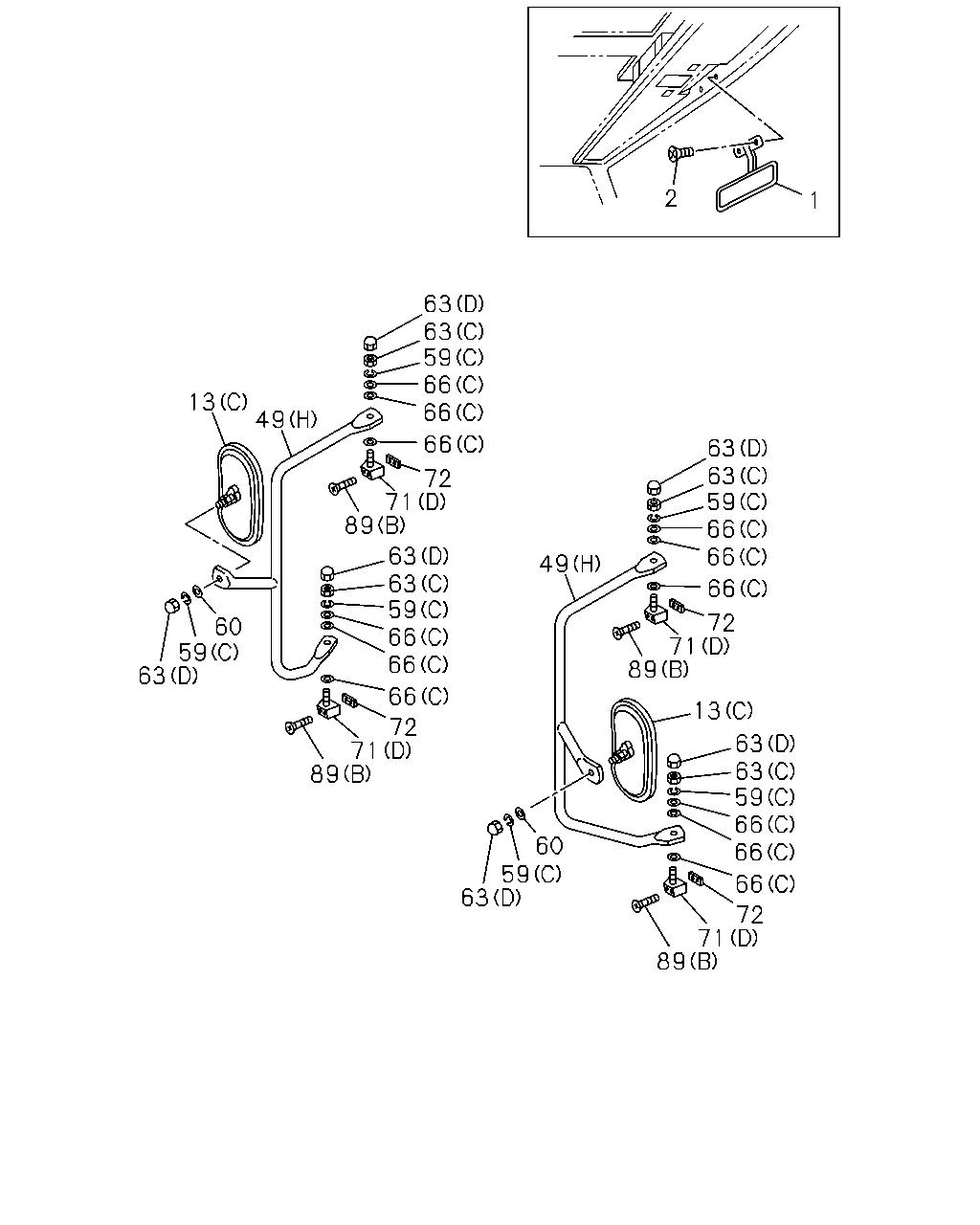

2 1 63 63 59 66 66 13 49 66 63 63 59 66 66 72 71 89 63 63 59 66 66 49 66 72 71 89 60 59 63 66 13 72 71 89 63 63 59 66 66 60 59 63 66 72 71 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MIRROR; ROOM	1-73117-026-1	01	1	9207-	●	●	●	●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9207-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR(D32) (A)	1-71737-487-3	02	1	9207-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (C)	1-71736-265-0	02	1	9207-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW WIDE MIRROR(WU4) (B)	1-71737-918-1	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (E)	1-71736-562-1	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (F)	1-71736-564-0	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (G)	1-71736-624-0	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-561-2	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-563-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-566-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-568-1	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-560-2	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-565-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-567-1	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-658-1	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71736-710-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71736-709-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (I)	1-71736-478-2	01	1	9207-9304	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (I)	1-71797-052-0	01	1	9305-	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (I)	1-71798-244-0	01	1	9207-	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) (A)	1-09985-177-0	04	1	9207-	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) (B) ID=10	1-09985-180-0	06	1	9207-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32) (C) ID=10	1-09985-180-0	04	1	9207-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (C) ID=10	1-09985-180-0	02	1	9207-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR(D32) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	9207-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9207-	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (A) M10	1-09984-134-0	06	1	9207-	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (B) M10 H=8.3	1-09984-146-0	04	1	9207-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (C) M10	1-09984-120-0	04	1	9207-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (D) M10	1-09984-145-0	04	1	9207-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (D) M10	1-09984-145-0	02	1	9207-	●	●	●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9207-	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) (A) ID=8.4 OD=16	1-09985-174-0	04	1	9207-	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) (B) OD=18 T=2.0	1-09985-182-0	04	1	9207-	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (B)	1-71736-224-3	04	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (A)	1-71736-404-1	04	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (C)	1-71737-441-4	06	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (D)	1-71736-419-2	04	1	9207-	●	●	●	●
72	SHEET DOOR MIRROR(D32)	1-71737-428-0	06	1	9207-	●	●	●	●
72	SHEET EXC. DOOR MIRROR(D32)	1-71737-428-0	04	1	9207-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (B) M6X20	1-09981-494-0	12	1	9207-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (B) M6X20	1-09981-494-0	08	1	9207-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9207-	●	●	●	●

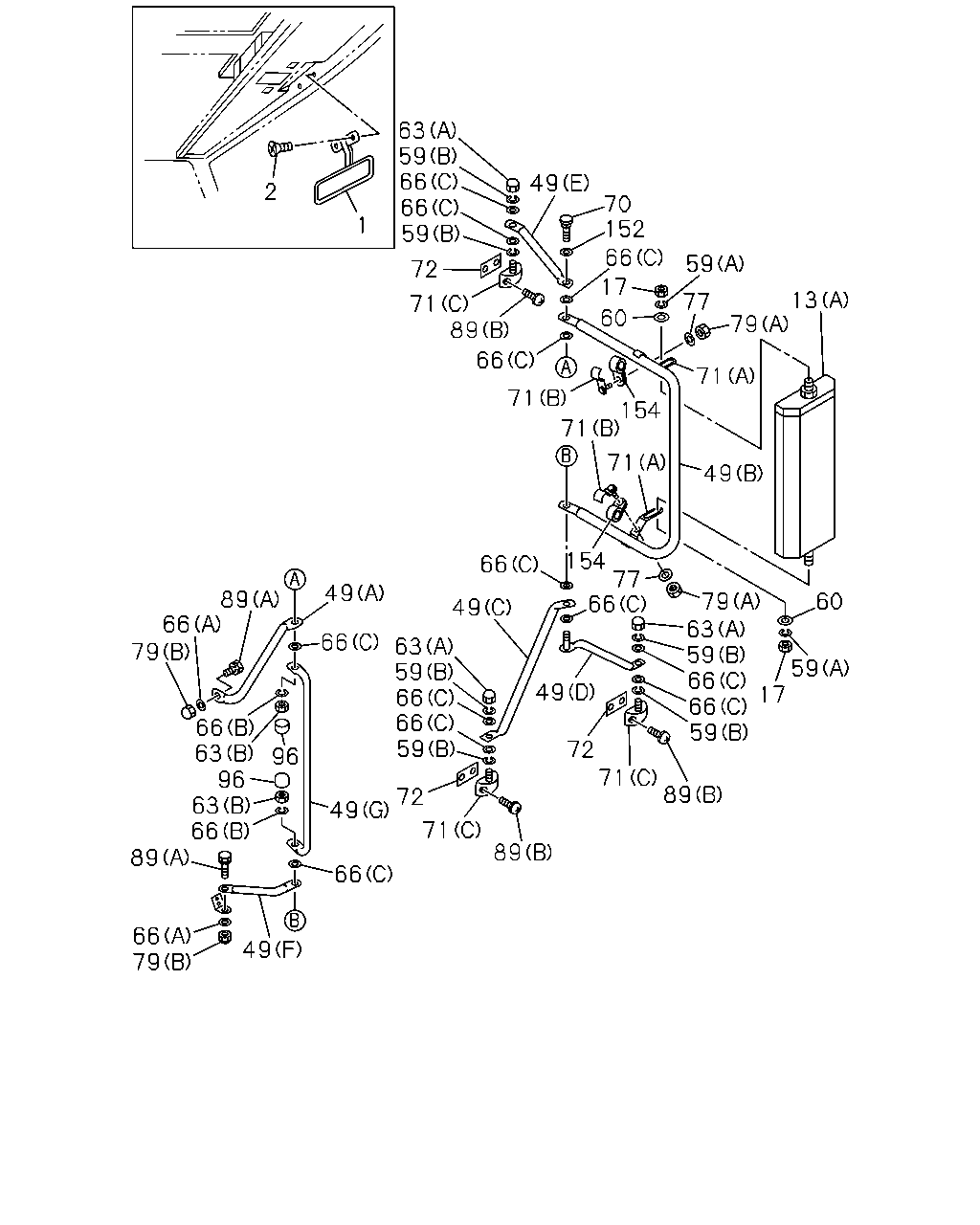

63 59 66 66 59 49 2 70 152 1 66 59 72 17 13 77 71 89 60 79 66 71 154 71 71 71 49 154 77 66 66 49 89 79 63 59 66 66 59 60 49 66 79 66 63 59 66 66 59 59 17 49 66 63 96 63 66 72 71 89 96 72 49 71 89 89 66 66 79 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MIRROR; ROOM	1-73117-026-1	01	1	9207-	●	●	●	●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9207-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR(D32) (A)	1-71737-487-3	02	1	9207-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (C)	1-71736-265-0	02	1	9207-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW WIDE MIRROR(WU4) (B)	1-71737-918-1	02	1	9207-	●	●	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR(D32) M8 FLANGE	1-09984-122-0	04	1	9207-	●	●	●	●
17	NUT; CAP,MIRROR STAY WIDE MIRROR(WU4) M5	1-09984-124-0	04	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (E)	1-71736-562-1	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (F)	1-71736-564-0	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (G)	1-71736-624-0	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-561-2	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-563-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-566-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-568-1	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-560-2	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-565-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-567-1	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-658-1	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71736-710-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71736-709-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (I)	1-71736-478-2	01	1	9207-9304	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (I)	1-71797-052-0	01	1	9305-	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (I)	1-71798-244-0	01	1	9207-	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) (A)	1-09985-177-0	04	1	9207-	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) (B) ID=10	1-09985-180-0	06	1	9207-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32) (C) ID=10	1-09985-180-0	04	1	9207-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (C) ID=10	1-09985-180-0	02	1	9207-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR(D32) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	9207-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9207-	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (A) M10	1-09984-134-0	06	1	9207-	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (B) M10 H=8.3	1-09984-146-0	04	1	9207-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (C) M10	1-09984-120-0	04	1	9207-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (D) M10	1-09984-145-0	04	1	9207-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (D) M10	1-09984-145-0	02	1	9207-	●	●	●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9207-	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) (A) ID=8.4 OD=16	1-09985-174-0	04	1	9207-	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) (B) OD=18 T=2.0	1-09985-182-0	04	1	9207-	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9207-	●	●	●	●
70	BOLT; STAY TO BRKT DOOR MIRROR(D32) M10X52	1-71736-634-0	02	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (B)	1-71736-224-3	04	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (A)	1-71736-404-1	04	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (C)	1-71737-441-4	06	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (D)	1-71736-419-2	04	1	9207-	●	●	●	●
72	SHEET DOOR MIRROR(D32)	1-71737-428-0	06	1	9207-	●	●	●	●
72	SHEET EXC. DOOR MIRROR(D32)	1-71737-428-0	04	1	9207-	●	●	●	●
77	WASHER; PL,BRKT,STAY DOOR MIRROR(D32) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9207-	●	●	●	●
79	NUT; BRKT,STAY DOOR MIRROR(D32) (A) M8 FLANGE	1-09984-122-0	04	1	9207-	●	●	●	●
79	NUT; BRKT,STAY DOOR MIRROR(D32) (B) M8 FLANGE	1-09984-126-0	04	1	9207-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (B) M6X20	1-09981-494-0	12	1	9207-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (B) M6X20	1-09981-494-0	08	1	9207-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9207-	●	●	●	●
96	CAP; MIRROR STAY DOOR MIRROR(D32)	1-71736-199-0	04	1	9207-	●	●	●	●
152	SHEET; MIRROR STAY DOOR MIRROR(D32)	1-71736-357-0	02	1	9207-	●	●	●	●
154	SEAT; BRKT DOOR MIRROR(D32)	1-71736-479-0	04	1	9207-	●	●	●	●

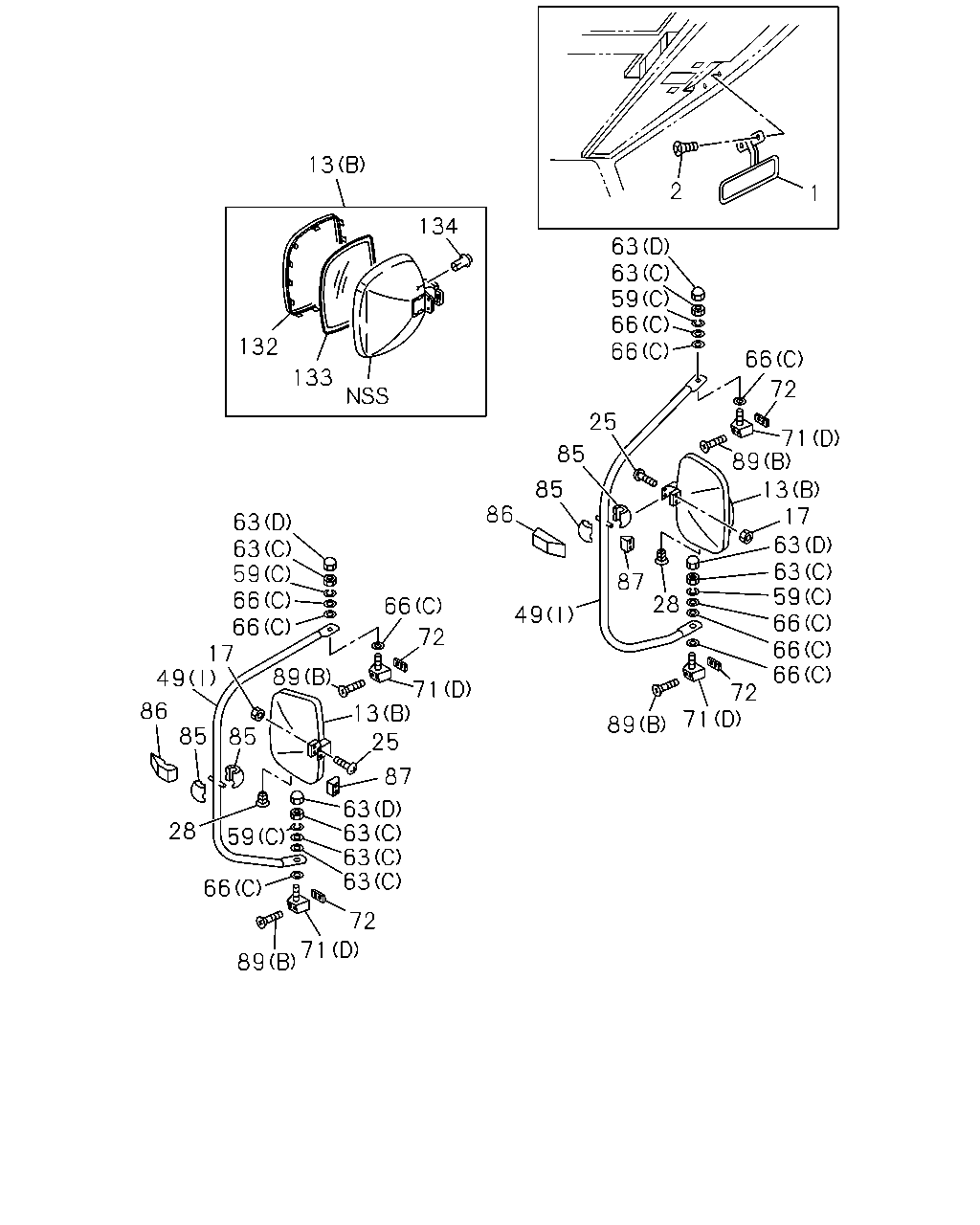

13 2 1 134 63 63 59 66 66 132 66 133 72 25 71 89 13 17 85 85 86 63 63 59 66 66 17 49 63 63 59 66 66 66 87 28 66 49 72 89 71 13 25 72 71 86 85 89 85 87 63 63 63 63 28 59 66 72 71 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MIRROR; ROOM	1-73117-026-1	01	1	9207-	●	●	●	●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9207-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR(D32) (A)	1-71737-487-3	02	1	9207-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (C)	1-71736-265-0	02	1	9207-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW WIDE MIRROR(WU4) (B)	1-71737-918-1	02	1	9207-	●	●	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR(D32) M8 FLANGE	1-09984-122-0	04	1	9207-	●	●	●	●
17	NUT; CAP,MIRROR STAY WIDE MIRROR(WU4) M5	1-09984-124-0	04	1	9207-	●	●	●	●
25	SCREW; OUTSIDE MIRROR WIDE MIRROR(WU4) M5X50	1-09981-444-0	04	1	9207-	●	●	●	●
28	GROMMET; UNDER MIRROR WIDE MIRROR(WU4) BLACK	1-71737-678-0	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (E)	1-71736-562-1	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (F)	1-71736-564-0	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (G)	1-71736-624-0	02	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-561-2	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-563-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-566-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-568-1	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (A)	1-71736-560-2	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (C)	1-71736-565-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (D)	1-71736-567-1	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR(D32) (B)	1-71736-658-1	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71736-710-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (H)	1-71736-709-0	01	1	9207-	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (I)	1-71736-478-2	01	1	9207-9304	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (I)	1-71797-052-0	01	1	9305-	●	●	●	●
49	STAY; MIRROR SIDE WIDE MIRROR(WU4) (I)	1-71798-244-0	01	1	9207-	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) (A)	1-09985-177-0	04	1	9207-	●	●	●	●
59	WASHER; LK DOOR MIRROR(D32) (B) ID=10	1-09985-180-0	06	1	9207-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32) (C) ID=10	1-09985-180-0	04	1	9207-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (C) ID=10	1-09985-180-0	02	1	9207-	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (A) M10	1-09984-134-0	06	1	9207-	●	●	●	●
63	NUT; STAY DOOR MIRROR(D32) (B) M10 H=8.3	1-09984-146-0	04	1	9207-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (C) M10	1-09984-120-0	04	1	9207-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32) (D) M10	1-09984-145-0	04	1	9207-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR(D32),WIDE MIRROR(WU4) (D) M10	1-09984-145-0	02	1	9207-	●	●	●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9207-	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) (A) ID=8.4 OD=16	1-09985-174-0	04	1	9207-	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) (B) OD=18 T=2.0	1-09985-182-0	04	1	9207-	●	●	●	●
66	WASHER; PL DOOR MIRROR(D32) (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (B)	1-71736-224-3	04	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (A)	1-71736-404-1	04	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR(D32) (C)	1-71737-441-4	06	1	9207-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (D)	1-71736-419-2	04	1	9207-	●	●	●	●
72	SHEET DOOR MIRROR(D32)	1-71737-428-0	06	1	9207-	●	●	●	●
72	SHEET EXC. DOOR MIRROR(D32)	1-71737-428-0	04	1	9207-	●	●	●	●
85	PIVOT; MAIN MIRROR WIDE MIRROR(WU4) ID=22.2	1-71736-489-2	04	1	9207-	●	●	●	●
86	COVER; STAY,OUTSIDE MIRROR WIDE MIRROR(WU4) BLACK	1-71737-760-0	02	1	9207-	●	●	●	●
87	SPACER WIDE MIRROR(WU4)	1-71737-704-0	02	1	9207-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (B) M6X20	1-09981-494-0	12	1	9207-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR(D32) (B) M6X20	1-09981-494-0	08	1	9207-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR(D32) (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9207-	●	●	●	●
132	RING; MIRROR WIDE MIRROR(WU4)	1-71737-934-0	02	1	9207-	●	●	●	●
133	LENS; MIRROR,OUTSIDE WIDE MIRROR(WU4)	1-71737-927-0	02	1	9207-	●	●	●	●
134	CLIP; MIRROR LENS WIDE MIRROR(WU4)	1-71737-936-0	02	1	9207-	●	●	●	●
