Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#19726) — 21 parça
◀

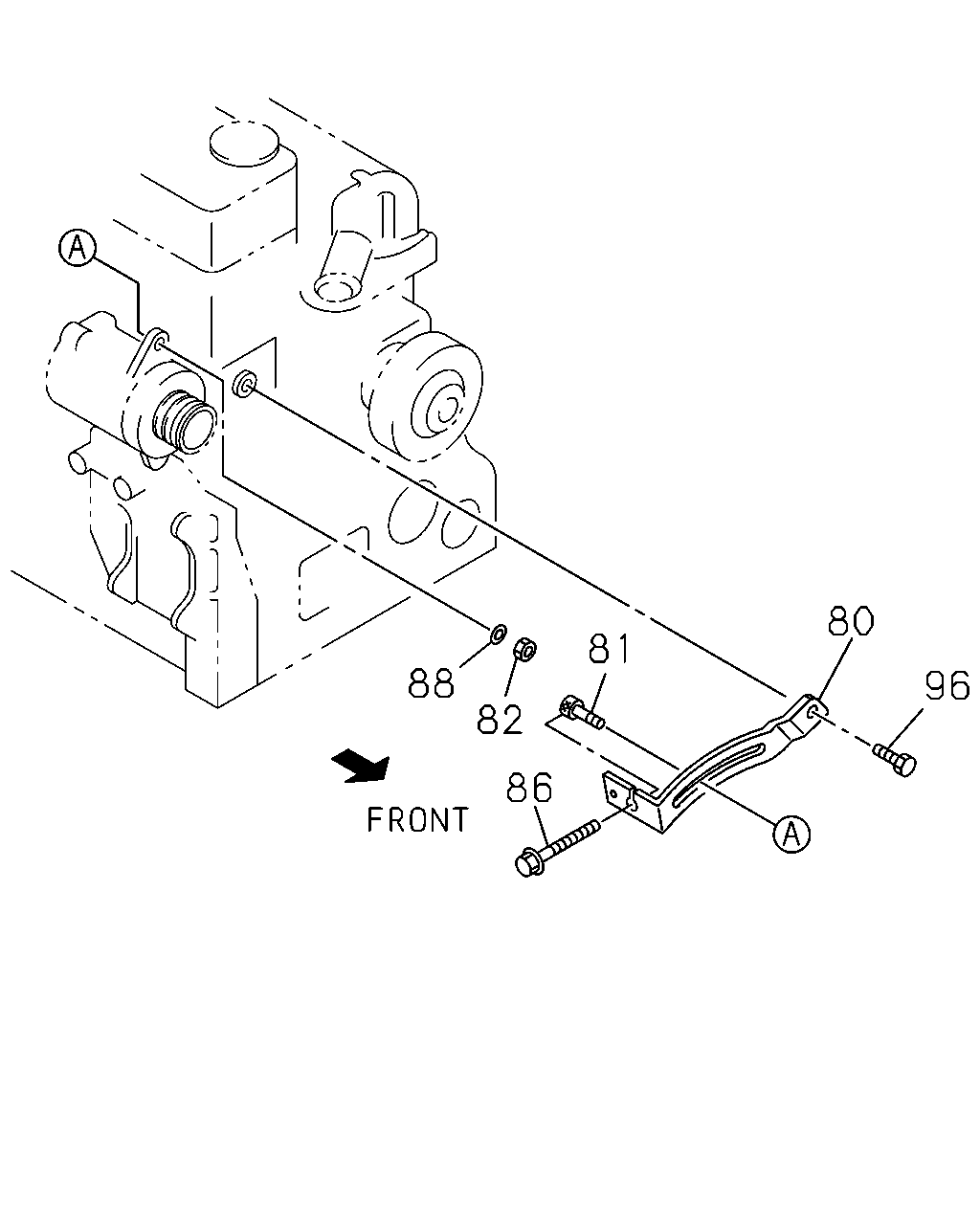

[033A] FIXING;ADJ PLATE (10 parça)

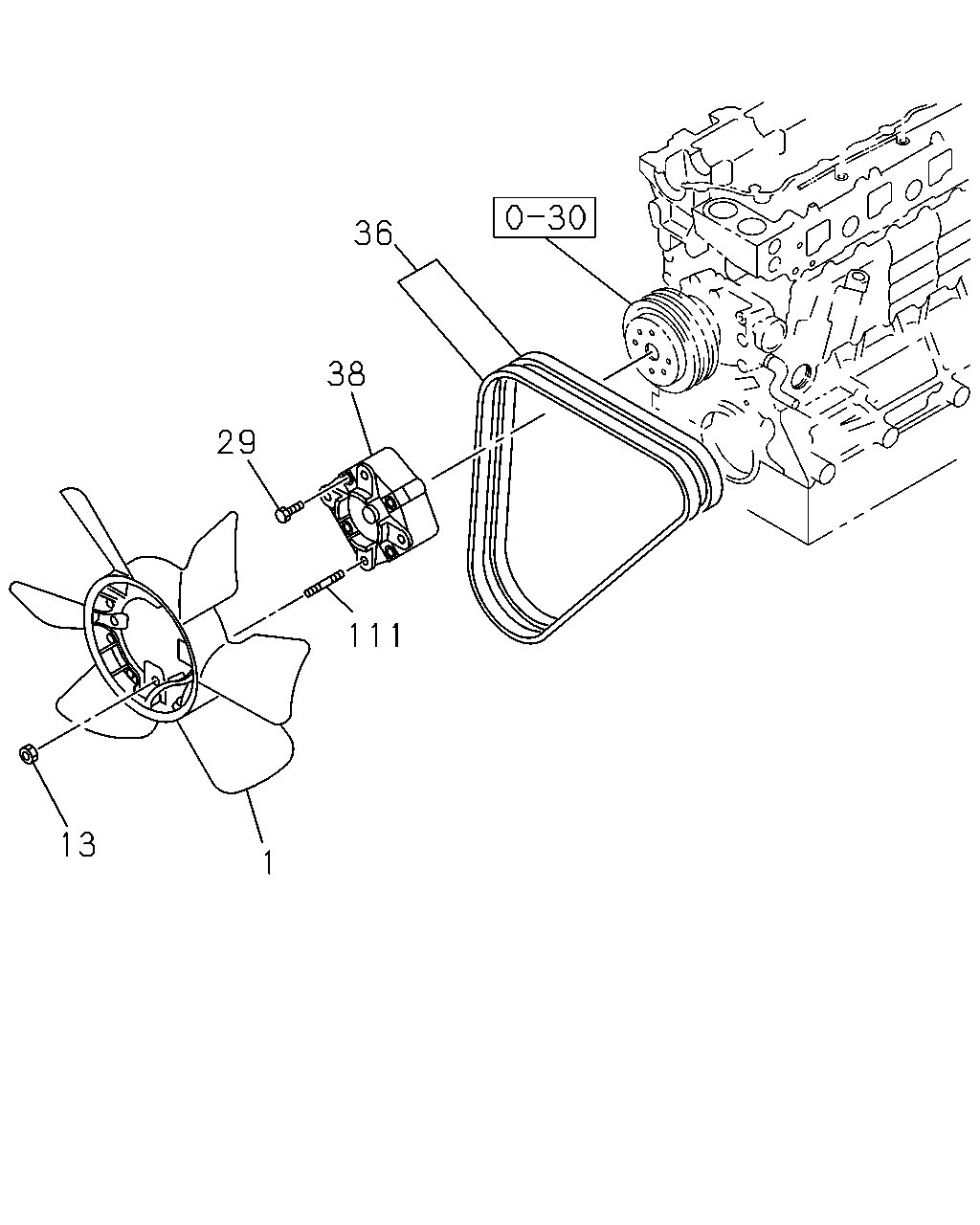

[033A] FIXING;COOLING FAN (11 parça)
▶
80
81
88
96
82
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
PLATE; ADJ
8-94390-021-1
01
1
9905-0001
80
PLATE; ADJ
8-97601-021-0
01
1
0002-
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
9905-
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
01
1
9905-0602
82
NUT; ADJ PLATE
M12 FLANGE
0-91180-112-0
01
1
0603-
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
9905-
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09164-712-0
01
1
9905-0605
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
0-91614-712-0
01
1
0606-
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28181-045-0
01
1
9905-0512
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28151-045-0
01
1
0601-
36
38
29
111
13
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
OD=500
8-94399-286-1
01
1
9905-
13
NUT; COOLING FAN
M6 FLANGE
0-91150-106-0
04
1
9905-0602
13
NUT; COOLING FAN
M6 FLANGE
0-91180-106-0
04
1
0603-
29
BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE
0-28080-870-0
04
1
9905-0512
29
BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE
0-28050-870-0
04
1
0601-
36
BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI
1-13671-194-0
01
1
9905-1402
36
BELT; COOLING FAN
1 SET=2 PIECE(8982534550) MITSUBOSHI
8-98253-275-0
01
1
1403-
38
SPACER; FAN
8-94393-896-0
01
1
9905-1104
38
SPACER; FAN
8-98167-649-0
01
1
1105-
111
STUD; FAN DRIVE
M6X12 L=21
9-04110-612-0
04
1
9905-0604
111
STUD; FAN DRIVE
M6X12 L=21
0-41010-612-0
04
1
0605-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
