Sayfa 0-25 - Isuzu EPC

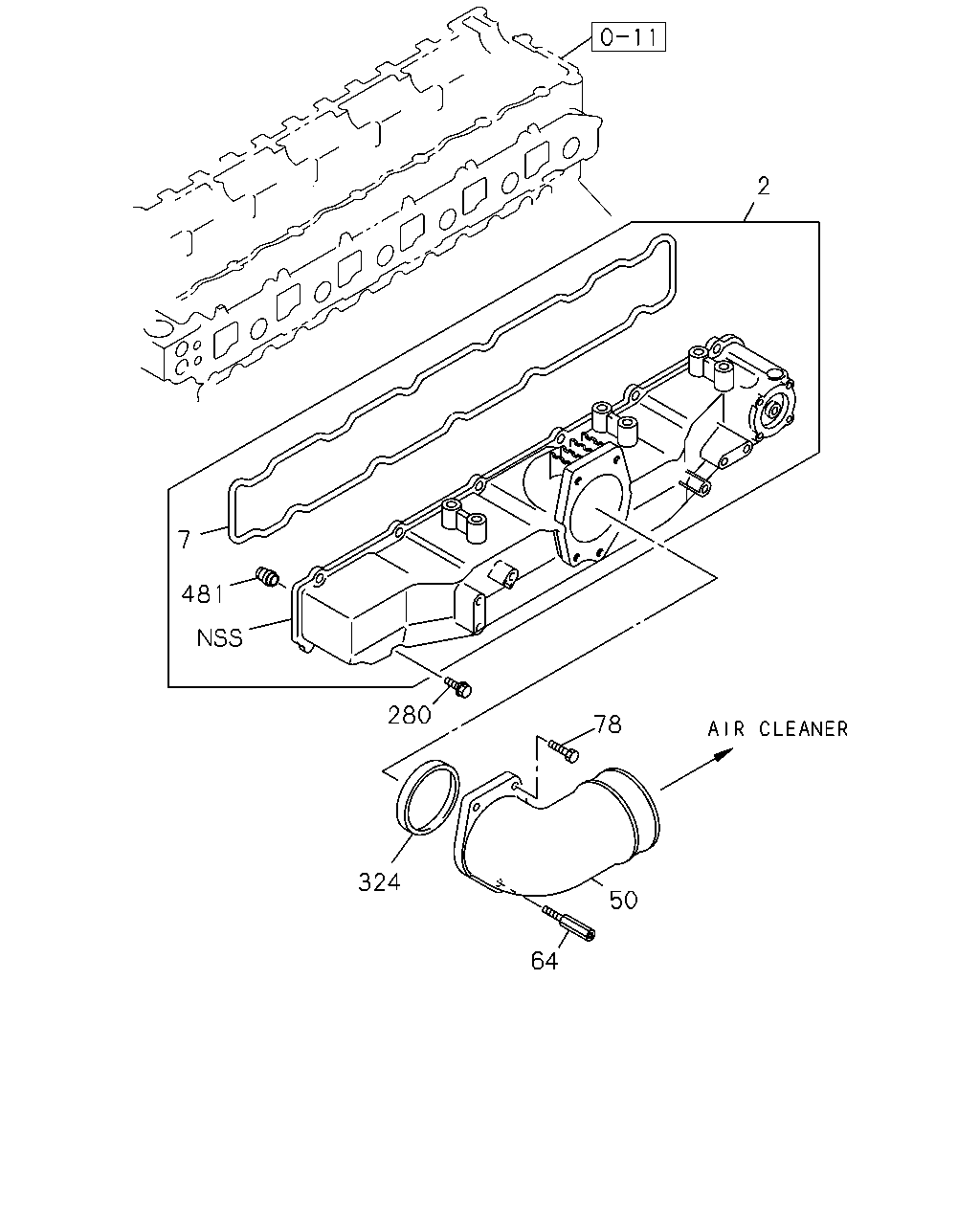

0-25 — INLET MANIFOLD (#19720) — 9 parça

2 7 481 280 78 324 50 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; INL	8-94395-960-0	01	1	9905-
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9905-
50	PIPE; INL	8-94397-063-2	01	1	9905-
64	STUD; INL PIPE M10X25 L=75	8-94397-086-0	01	1	9905-
78	BOLT; INL PIPE TO INL MANIF M10X30 FLANGE	0-28181-030-0	02	1	9905-0512
78	BOLT; INL PIPE TO INL MANIF M10X30 FLANGE	0-28151-030-0	02	1	0601-
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9905-
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94399-417-0	01	1	9905-
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
