Isuzu WW
▶
TRUCKS
▶
FTS
▶
11311 - FTS(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

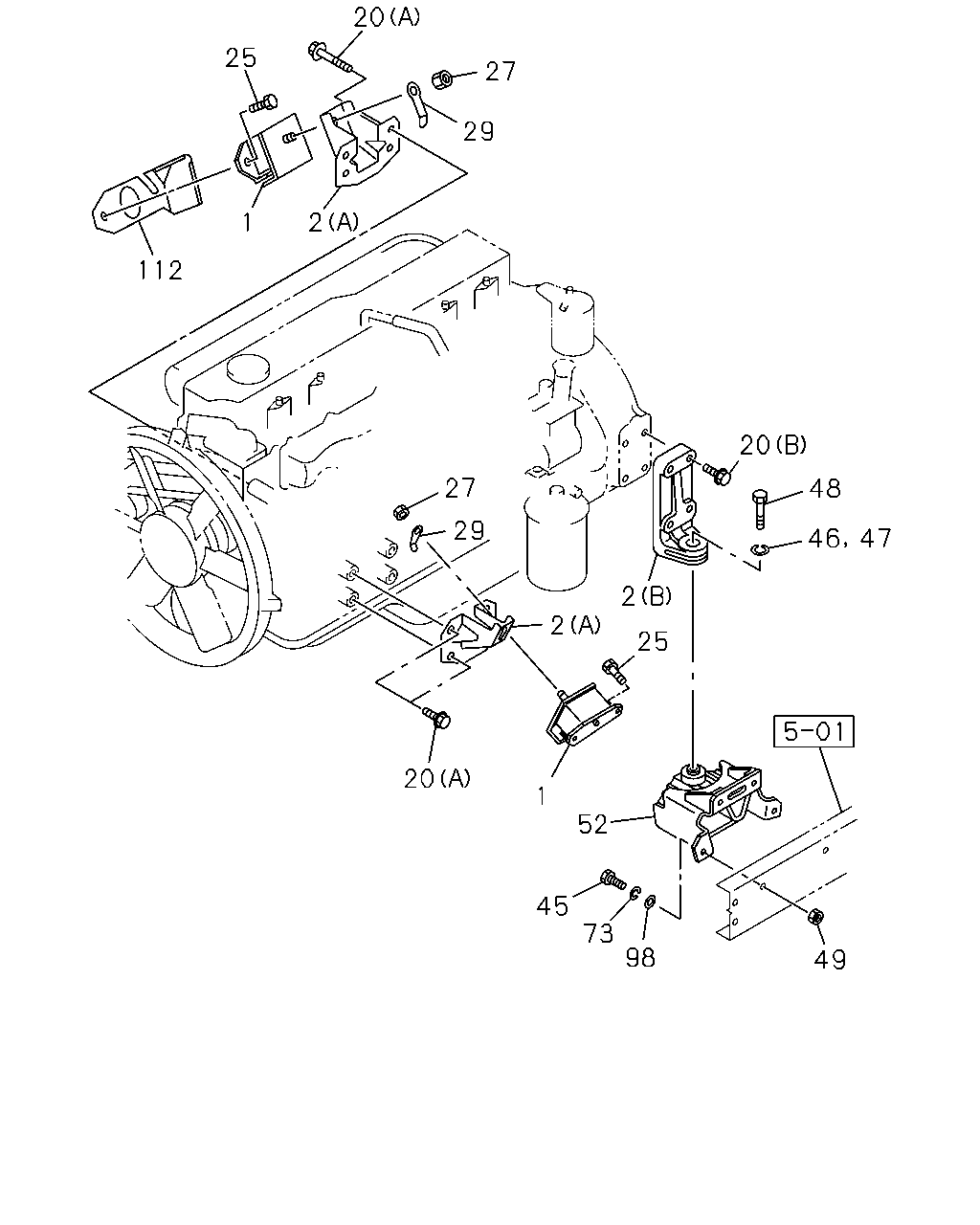

0-22 — ENGINE MOUNTING
(#19719) — 26 parça
20
25
27
29
2
1
112
20
27
29
2
2
25
20
1
52
45
73
98
49
48
46
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-173-0
02
1
9905-
2
FOOT; ENG
(A)
8-94393-491-1
02
1
9905-
2
FOOT; ENG
(B)
8-94399-490-0
02
1
9905-9905
2
FOOT; ENG
(B)
8-94395-872-0
01
1
9906-
2
FOOT; ENG
(B)
8-94395-873-0
01
1
9906-
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
9905-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
9905-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28681-235-0
04
1
9905-0512
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0601-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91150-212-0
02
1
9905-0602
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
0603-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-052-1
02
1
9905-
45
BOLT; CUSHION RUBBER TO FRAME
M14X45
9-92061-445-0
08
1
9905-
46
WASHER; PL,CUSHION TO ENG,RR
ID=23
9-09164-522-0
02
1
0010-0605
46
WASHER; PL,CUSHION TO ENG,RR
ID=23
0-91614-522-0
02
1
0606-
47
WASHER; LK,CUSHION RUBBER
ID=22.5
9-09150-622-0
02
1
9905-0009
48
BOLT; CUSHION RUBBER TO ENG
M22X75
1-09020-087-2
02
1
9905-
49
NUT; CUSHION RUBBER TO FRAME
M14
9-99110-514-0
08
1
9905-0512
49
NUT; CUSHION RUBBER TO FRAME
M14
0-91110-514-0
08
1
0601-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-193-1
02
1
9905-
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
9-09150-614-0
08
1
9905-0202
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
9-09150-814-0
08
1
0203-0603
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
0-91510-814-0
08
1
0604-
98
WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15
9-09651-069-0
16
1
9905-1201
98
WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15
8-98010-627-1
16
1
1202-
112
PROTECTOR; HEAT
1-53219-629-4
01
1
9905-
