6-90 — REAR BUMPER (#1971) — 104 parça

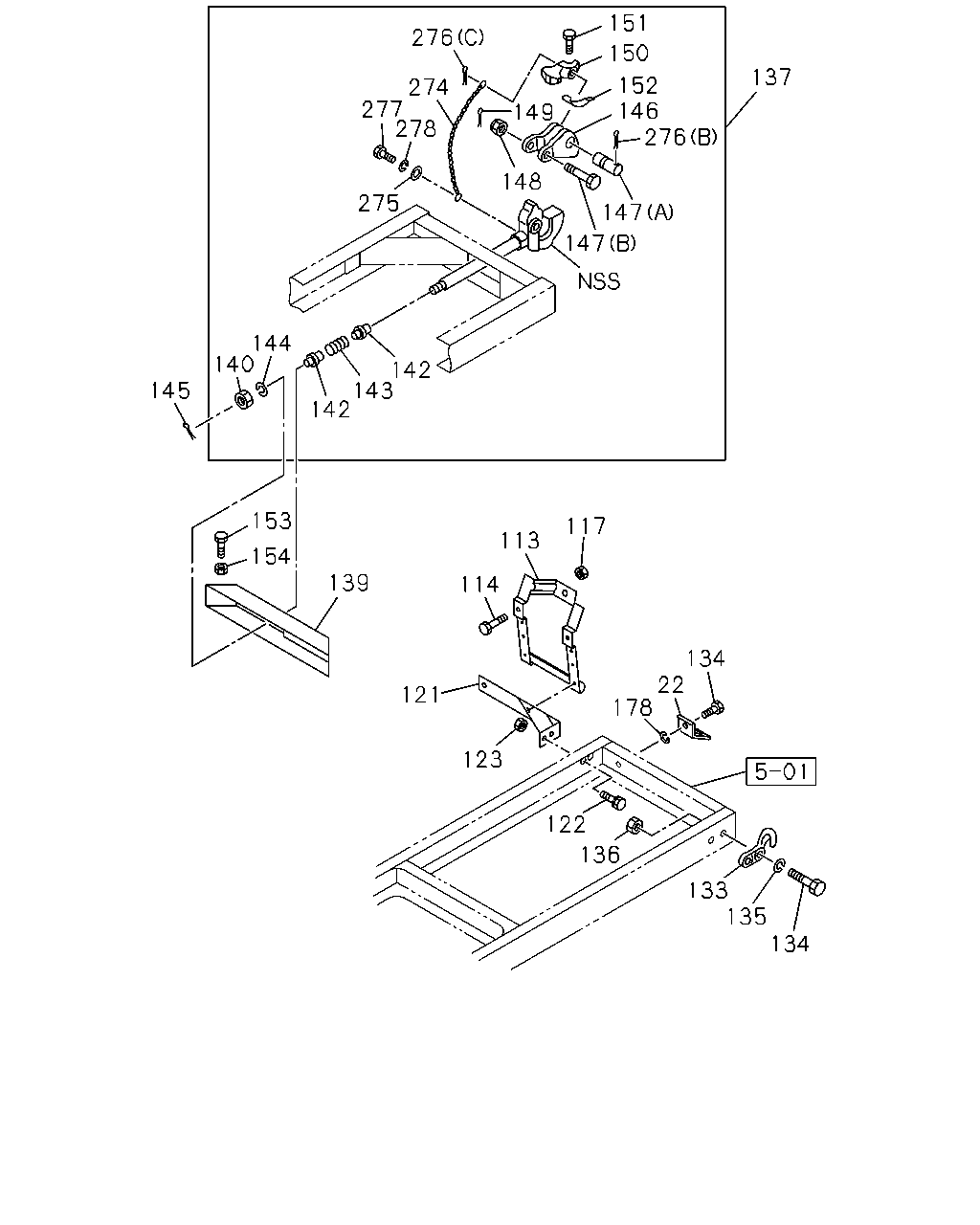

151 276 150 137 152 146 276 274 277 278 149 148 275 147 147 144 140 142 143 142 145 153 117 113 154 139 114 134 22 178 121 123 122 136 133 135 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	BRACKET; TRAILER SAFETY CHAIN TOW EYE REAR<VR7>	1-57184-001-0	02	1	9207-	●	●
113	BRACKET; LICENSE PLATE	1-53485-048-2	01	1	9207-	●	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X20 FLANGE	0-28080-820-0	02	1	9207-	●	●	●	●
117	NUT; BRKT M8	9-09110-408-0	02	1	9207-	●	●	●	●
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	1-53485-002-1	01	1	9207-	●	●	●	●
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 W/LK WASHER	0-50041-230-0	02	1	9207-	●	●	●	●
123	NUT; STAY PINTLE HOOK<PP7> M12	9-99110-512-0	02	1	9207-	●	●	●	●
133	HOOK M14X50	1-57181-003-5	01	1	9207-	●	●
133	HOOK REAR DOUBLE HOOK<PM1> M14X50	1-57181-003-5	01	1	9207-	●	●
133	HOOK	1-57181-027-1	01	1	9207-			●	●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-027-1	01	1	9207-			●	●
134	BOLT; HOOK M14X50	0-10811-450-0	02	1	9207-	●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M14X50	0-10811-450-0	02	1	9207-	●	●
134	BOLT; HOOK M16X65	0-10811-665-0	01	1	9207-			●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M16X65	0-10811-665-0	01	1	9207-			●	●
134	BOLT; HOOK M16X50	0-20801-650-0	01	1	9207-			●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M16X50	0-20801-650-0	01	1	9207-			●	●
135	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	9207-	●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=14.2	9-09150-514-0	02	1	9207-	●	●
135	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9207-			●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=16.2	9-09150-516-0	02	1	9207-			●	●
136	NUT; HOOK M14	9-99110-414-0	02	1	9207-	●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M14	9-99110-414-0	02	1	9207-	●	●
136	NUT; HOOK M16	9-99110-416-0	02	1	9207-			●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M16	9-99110-416-0	02	1	9207-			●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-015-0	01	1	9207-	●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	9207-			●	●
139	BRACKET; PINTLE HOOK PINTLE HOOK<PP7>	9-53521-026-0	01	1	9207-	●	●
140	NUT; PINTLE HOOK PINTLE HOOK<PP7>	9-09842-503-0	01	1	9207-9405	●	●	●	●
140	NUT; PINTLE HOOK PINTLE HOOK<PP7>	1-09420-006-0	01	1	9406-	●	●	●	●
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	9207-	●	●	●	●
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7>	9-09940-078-0	01	1	9207-	●	●	●	●
144	WASHER; PL,PINTLE HOOK PINTLE HOOK<PP7>	9-09851-464-0	01	1	9207-	●	●	●	●
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	9-08116-065-0	01	1	9207-	●	●	●	●
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	9207-	●	●	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	9207-	●	●	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	9207-	●	●	●	●
148	NUT; LK PIN PINTLE HOOK<PP7>	9-99117-424-0	01	1	9207-9303	●	●	●	●
148	NUT; LK PIN PINTLE HOOK<PP7> M24 SLOTTED	1-09442-020-0	01	1	9304-	●	●	●	●
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	9-08113-045-0	01	1	9207-	●	●	●	●
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	9207-	●	●	●	●
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50040-832-0	01	1	9207-	●	●	●	●
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	9207-	●	●	●	●
153	BOLT; BRKT PINTLE HOOK<PP7> M10X30 W/LK WASHER	0-50041-030-0	08	1	9207-	●	●
154	NUT; BRKT PINTLE HOOK<PP7> M10	9-09110-510-0	08	1	9207-	●	●
178	WASHER; LK TOW EYE REAR<VR7> ID=16.2	9-09150-516-0	02	1	9207-	●	●
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	9207-	●	●	●	●
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4 OD=14	9-09160-606-0	01	1	9207-	●	●	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08116-075-0	01	1	9207-	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	9207-			●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (C)	9-08113-015-0	01	1	9207-			●	●
277	SCREW; CHAIN PINTLE HOOK<PP7>	9-03440-612-0	01	1	9207-9304	●	●	●	●
277	SCREW; CHAIN PINTLE HOOK<PP7> M6X12	9-03490-612-0	01	1	9305-	●	●	●	●
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	9-09150-506-0	01	1	9207-	●	●	●	●

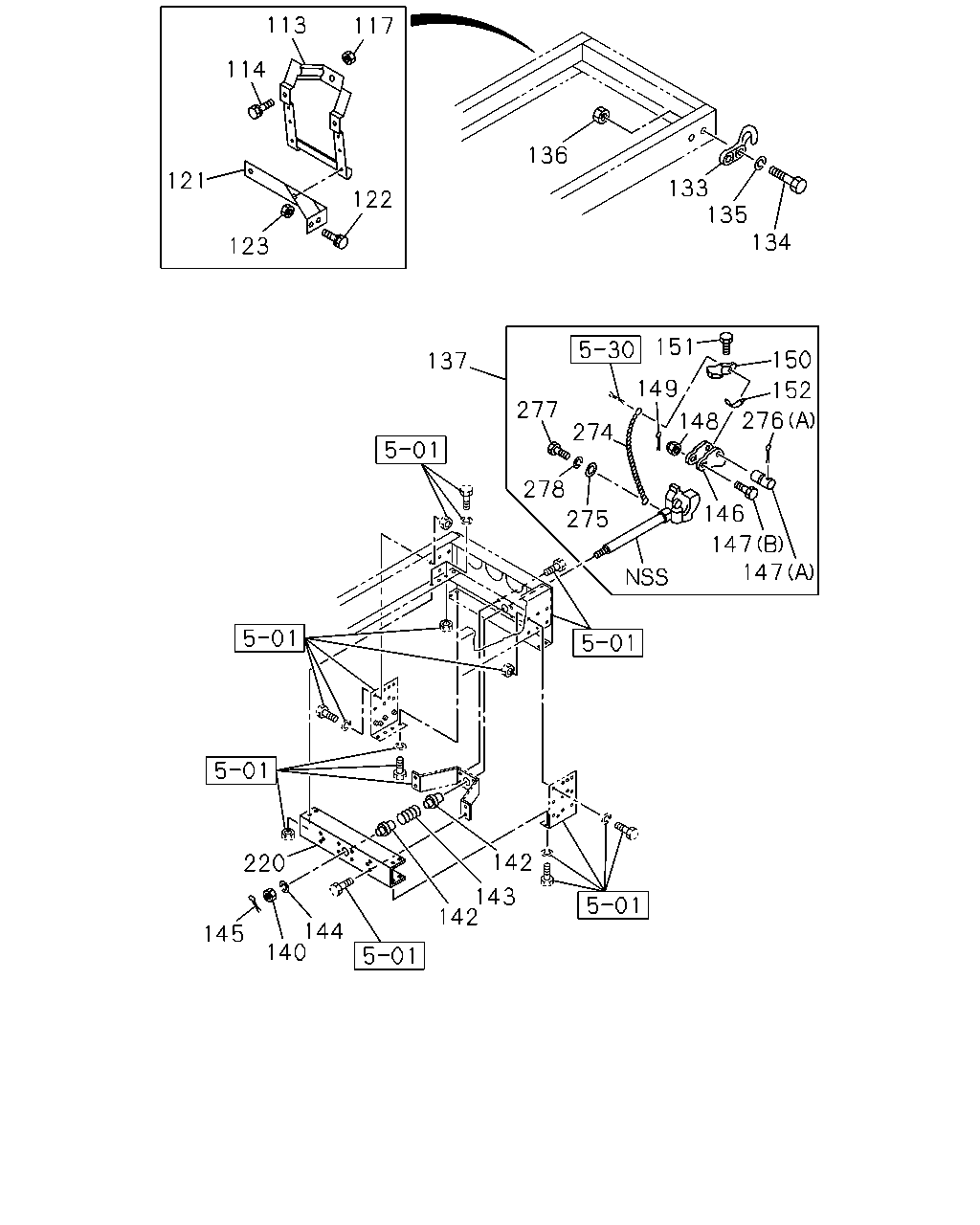

113 117 114 136 121 133 135 134 122 123 151 150 137 149 152 277 276 148 274 278 146 275 147 147 142 220 143 142 144 140 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
113	BRACKET; LICENSE PLATE	1-53485-048-2	01	1	9207-	●	●	●	●
114	BOLT; BRKT,LICENSE PLATE M8X20 FLANGE	0-28080-820-0	02	1	9207-	●	●	●	●
117	NUT; BRKT M8	9-09110-408-0	02	1	9207-	●	●	●	●
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	1-53485-002-1	01	1	9207-	●	●	●	●
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 W/LK WASHER	0-50041-230-0	02	1	9207-	●	●	●	●
123	NUT; STAY PINTLE HOOK<PP7> M12	9-99110-512-0	02	1	9207-	●	●	●	●
133	HOOK M14X50	1-57181-003-5	01	1	9207-	●	●
133	HOOK REAR DOUBLE HOOK<PM1> M14X50	1-57181-003-5	01	1	9207-	●	●
133	HOOK	1-57181-027-1	01	1	9207-			●	●
133	HOOK REAR DOUBLE HOOK<PM1>	1-57181-027-1	01	1	9207-			●	●
134	BOLT; HOOK M14X50	0-10811-450-0	02	1	9207-	●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M14X50	0-10811-450-0	02	1	9207-	●	●
134	BOLT; HOOK M16X65	0-10811-665-0	01	1	9207-			●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M16X65	0-10811-665-0	01	1	9207-			●	●
134	BOLT; HOOK M16X50	0-20801-650-0	01	1	9207-			●	●
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> M16X50	0-20801-650-0	01	1	9207-			●	●
135	WASHER; LK,HOOK ID=14.2	9-09150-514-0	02	1	9207-	●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=14.2	9-09150-514-0	02	1	9207-	●	●
135	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9207-			●	●
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> ID=16.2	9-09150-516-0	02	1	9207-			●	●
136	NUT; HOOK M14	9-99110-414-0	02	1	9207-	●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M14	9-99110-414-0	02	1	9207-	●	●
136	NUT; HOOK M16	9-99110-416-0	02	1	9207-			●	●
136	NUT; HOOK REAR DOUBLE HOOK<PM1> M16	9-99110-416-0	02	1	9207-			●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-015-0	01	1	9207-	●	●
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	9207-			●	●
140	NUT; PINTLE HOOK PINTLE HOOK<PP7>	9-09842-503-0	01	1	9207-9405	●	●	●	●
140	NUT; PINTLE HOOK PINTLE HOOK<PP7>	1-09420-006-0	01	1	9406-	●	●	●	●
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	9207-	●	●	●	●
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7>	9-09940-078-0	01	1	9207-	●	●	●	●
144	WASHER; PL,PINTLE HOOK PINTLE HOOK<PP7>	9-09851-464-0	01	1	9207-	●	●	●	●
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	9-08116-065-0	01	1	9207-	●	●	●	●
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	9207-	●	●	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	9207-	●	●	●	●
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	9207-	●	●	●	●
148	NUT; LK PIN PINTLE HOOK<PP7>	9-99117-424-0	01	1	9207-9303	●	●	●	●
148	NUT; LK PIN PINTLE HOOK<PP7> M24 SLOTTED	1-09442-020-0	01	1	9304-	●	●	●	●
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	9-08113-045-0	01	1	9207-	●	●	●	●
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	9207-	●	●	●	●
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50040-832-0	01	1	9207-	●	●	●	●
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	9207-	●	●	●	●
220	MEMBER; PINTLE HOOK PINTLE HOOK<PP7>	1-57189-182-0	01	1	9207-			●	●
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	9207-	●	●	●	●
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4 OD=14	9-09160-606-0	01	1	9207-	●	●	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08116-075-0	01	1	9207-	●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	9207-			●	●
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (C)	9-08113-015-0	01	1	9207-			●	●
277	SCREW; CHAIN PINTLE HOOK<PP7>	9-03440-612-0	01	1	9207-9304	●	●	●	●
277	SCREW; CHAIN PINTLE HOOK<PP7> M6X12	9-03490-612-0	01	1	9305-	●	●	●	●
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	9-09150-506-0	01	1	9207-	●	●	●	●
