Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

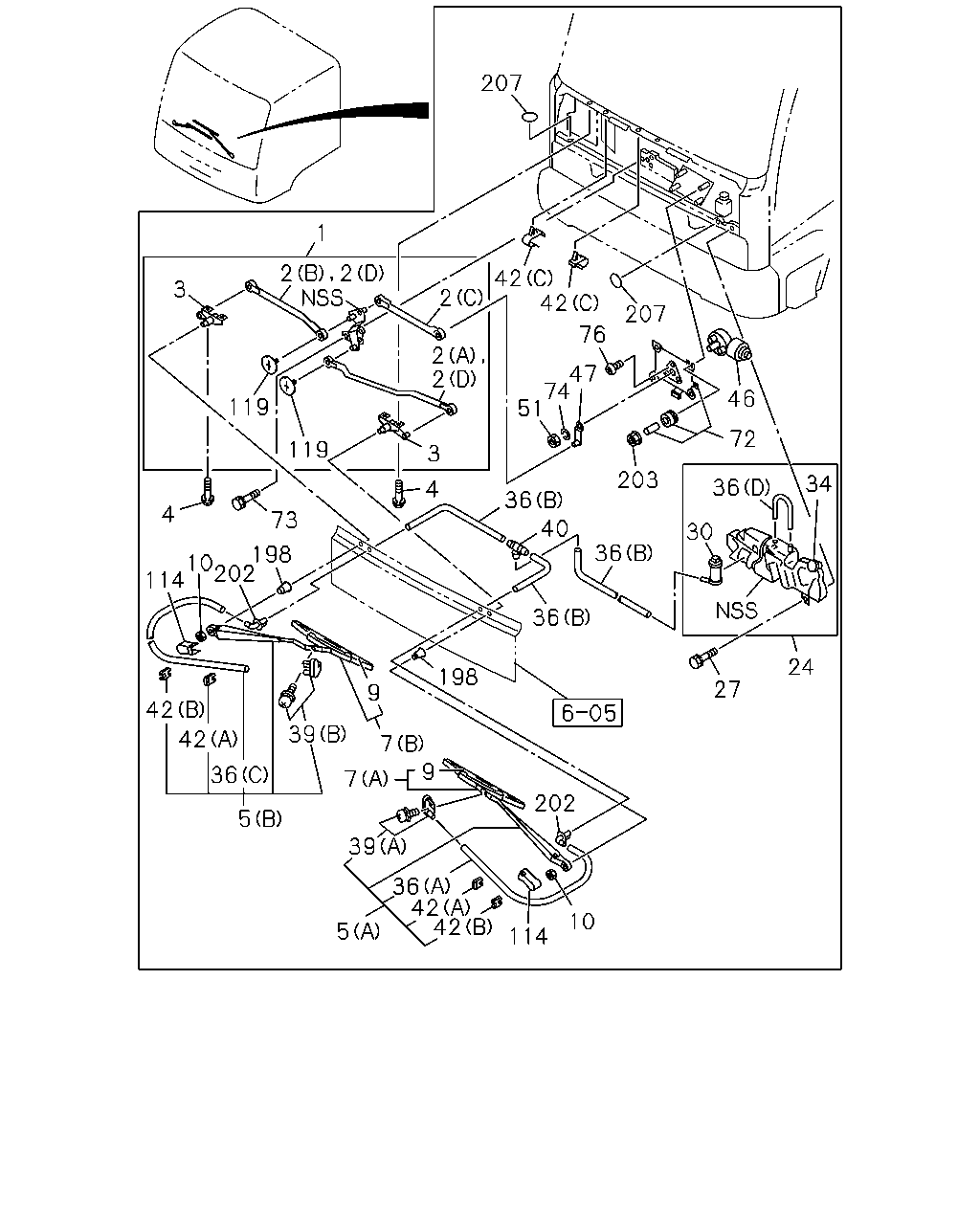

8-80 — WINDSHIELD WIPER AND WASHER
(#19707) — 53 parça
207
1
42
42
2
3
207
76
2
2
47
74
51
46
119
72
119
3
203
34
36
4
36
40
4
73
30
36
198
10
202
114
36
24
198
27
9
42
39
42
7
9
36
7
202
5
39
36
42
42
10
5
114
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINK ASM; FRT WIPER
1-86810-081-1
01
1
9510-9705
1
LINK ASM; FRT WIPER
1-83312-138-1
01
1
9706-0210
2
LINK; FRT WIPER
(C)
1-86810-135-1
01
1
9510-0210
2
LINK; FRT WIPER
(A)
1-86810-136-0
01
1
9510-9512
2
LINK; FRT WIPER
(B)
1-86810-137-0
01
1
9510-9512
2
LINK; FRT WIPER
(D)
1-86810-137-0
02
1
9601-9705
2
LINK; FRT WIPER
(A)
1-83312-147-1
01
1
9706-0210
2
LINK; FRT WIPER
(B)
1-83312-148-1
01
1
9706-0210
3
PIVOT ASM; FRT WIPER
1-86810-067-1
02
1
9510-0210
4
BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9510-0210
5
ARM; WIPER
(A)
1-86810-138-0
01
1
9510-0205
5
ARM; WIPER
(A)
1-83315-088-0
01
1
0206-0210
5
ARM; WIPER
(B)
1-86810-139-0
01
1
9510-0205
5
ARM; WIPER
(B)
1-83315-090-0
01
1
0206-0210
7
BLADE; WIPER
(B)
1-86810-019-0
01
1
9510-9703
7
BLADE; WIPER
(B)
1-83315-045-2
01
1
9704-0210
7
BLADE; WIPER
(A)
1-86810-020-0
01
1
9510-9703
7
BLADE; WIPER
(A)
1-83315-046-2
01
1
9704-0210
9
RUBBER; FRT WIPER BLADE
L=550
1-86810-033-0
02
1
9510-9703
9
RUBBER; FRT WIPER BLADE
L=550
1-83355-014-0
02
1
9704-0210
10
NUT; WIPER ARM TO WIPER PIVOT
M10
1-09984-120-0
02
1
9510-0210
24
TANK ASM; WASHER
1-86815-023-3
01
1
9510-0210
27
BOLT; WASHER TANK
M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
9510-0210
30
MOTOR ASM; FRT WASHER TANK
1-86815-016-1
01
1
9510-0210
34
CAP; WASHER TANK
1-86815-018-0
01
1
9510-0210
36
HOSE; WASHER
(A) L=680
1-86810-036-0
01
1
9510-0011
36
HOSE; WASHER
(A) L=670
1-86810-147-0
01
1
0012-0210
36
HOSE; WASHER
(C) L=660
1-86810-037-0
01
1
9510-0210
36
HOSE; WASHER
(D) L=260
1-86815-019-0
01
1
9510-0210
36
HOSE; WASHER
(B) SERVICED BY L=10000
8-94389-303-0
01
1
9510-0210
39
NOZZLE; WINDSHIELD WASHER
(B)
1-86810-040-0
01
1
9510-0205
39
NOZZLE; WINDSHIELD WASHER
(B)
1-83315-085-0
01
1
0206-0210
39
NOZZLE; WINDSHIELD WASHER
(A)
1-86810-041-0
01
1
9510-0205
39
NOZZLE; WINDSHIELD WASHER
(A)
1-83315-086-0
01
1
0206-0210
40
JOINT; WASHER HOSE
3WAY
1-83338-005-0
01
1
9510-0210
42
CLIP; WASHER HOSE
(C)
1-09987-247-0
05
1
9510-0210
42
CLIP; WASHER HOSE
(A)
1-86810-044-0
02
1
9510-0210
42
CLIP; WASHER HOSE
(B)
1-86810-045-0
02
1
9510-0210
46
MOTOR ASM; FRT WINDSHIELD WIPER
1-86810-133-2
01
1
9510-0210
47
ARM; CRANK,WIPER MOTOR
1-86810-060-0
01
1
9510-0210
51
NUT; WIPER MOTOR LINK
1-83319-012-0
01
1
9510-0210
72
BRACKET; WIPER MOTOR
1-86810-131-0
01
1
9510-0210
73
BOLT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
9510-0210
74
WASHER; ARM TO MOTOR
1-83319-011-0
01
1
9510-0210
76
SCREW; BRKT TO WIPER MOTOR
1-86810-062-0
03
1
9510-0012
76
SCREW; BRKT TO WIPER MOTOR
1-83319-043-0
03
1
0101-0210
114
COVER; FRT WIPER ARM
1-86810-144-0
02
1
9510-0210
119
STOPPER; WIPER LINK
1-86810-074-0
02
1
9706-0210
198
COVER; PIVOT,WIPER
1-86810-016-3
02
1
9510-0210
202
GROMMET; WIPER
1-86815-003-1
02
1
9510-0210
203
NUT; WIPER MOTOR
M8 FLANGE
8-94279-517-0
04
1
9510-9611
203
NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
9612-0210
207
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
02
1
9510-0210
