8-52 — PIPING; AIR CONDITIONING (#19702) — 69 parça

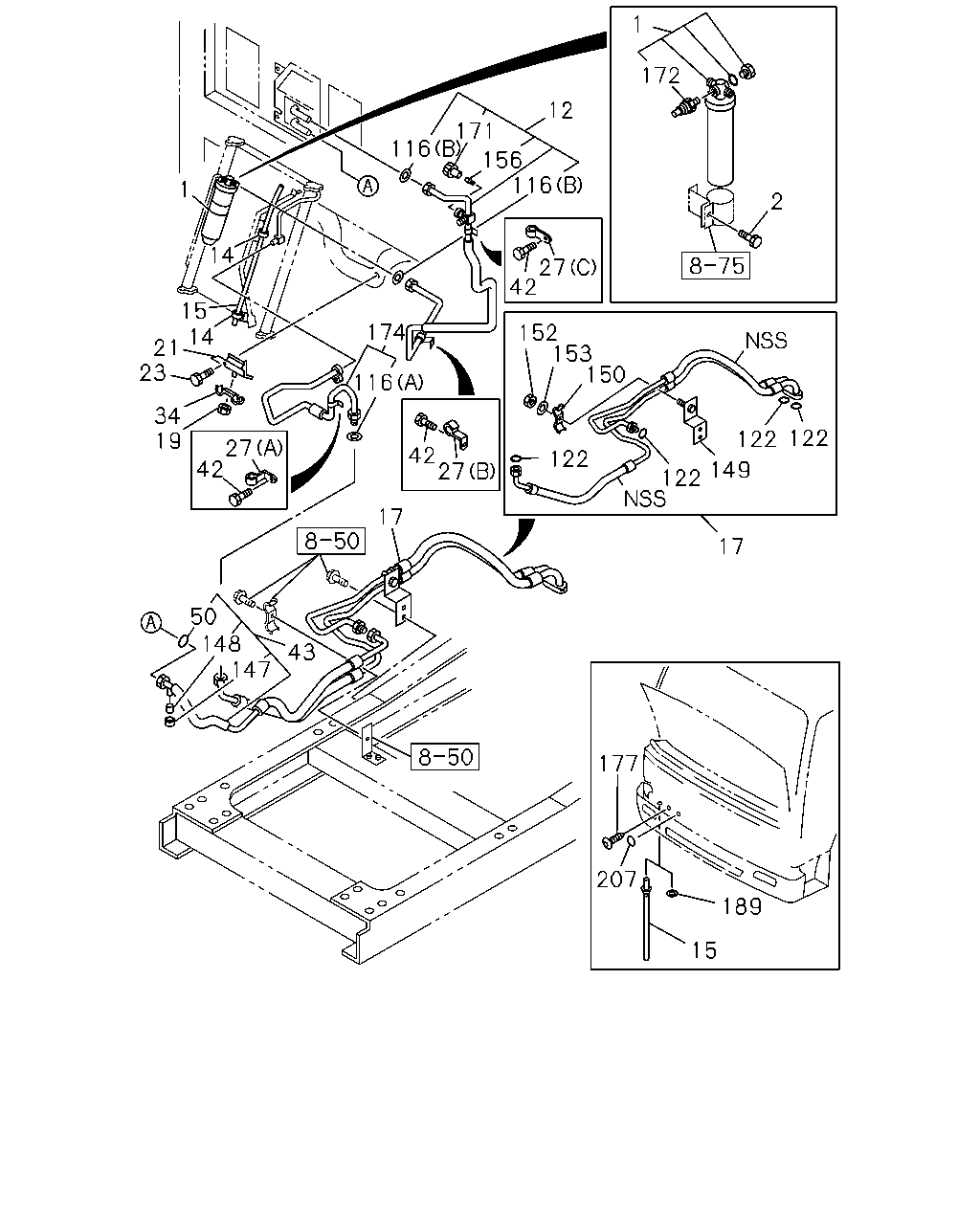

çizim 16752
1 172 12 171 116 156 116 1 2 14 27 42 15 14 174 152 153 150 21 23 116 34 19 122 122 27 42 42 27 122 149 122 17 17 50 148 147 43 177 207 189 15
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-078-0 01 1 9510-9603
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-088-0 01 1 0011-0210
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-9603
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0011-0210
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-544-0 01 1 9510-9603
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-684-0 01 1 0011-0210
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 9510-9603
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0011-0210
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83566-903-3 01 1 9510-9603
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-635-0 01 1 0011-0210
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83566-904-2 01 1 9510-9702
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83572-412-0 01 1 9703-0210
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-266-0 01 1 9510-9603
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-669-1 01 1 0011-0210
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9510-9603
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0011-0210
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-928-1 01 1 9510-9603
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-928-2 01 1 0011-0210
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9603
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 0011-0210
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 9510-9603
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9510-9603
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20 		9-09525-235-0 01 1 9510-9603
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 0011-0210
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0011-0210
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20 		9-09525-235-0 01 1 0011-0210
34 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2 		1-83574-190-0 01 1 9510-9603
34 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2 		1-83574-190-0 01 1 0011-0210
42 SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-9603
42 SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0011-0210
43 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-083-1 01 1 9510-9603
43 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-666-2 01 1 0011-0210
50 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9 		8-94113-330-0 02 1 9510-9603
50 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3 		8-97161-778-0 02 1 0011-0210
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=6 		8-94481-700-0 02 1 9510-9603
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97161-776-0 02 1 0011-0210
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 01 1 0011-0210
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=10.8 		8-94113-331-0 01 1 9510-9603
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.0 		8-94461-900-0 01 1 9510-9603
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.8 		8-94461-901-0 01 1 9510-9603
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5 		8-97161-777-0 02 1 0011-0210
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3 		8-97161-778-0 01 1 0011-0210
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9510-9603
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 0011-0210
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9510-9603
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 0011-0109
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-892-0 01 1 0110-0209
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 0210-0210
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-878-0 01 1 9510-9603
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-165-0 01 1 9510-9603
152 NUT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9510-9603
153 WASHER
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.1 		9-09150-506-0 01 1 9510-9603
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9510-9603
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 0011-0210
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9510-9603
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 0011-0210
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-047-0 01 1 9510-9603
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-047-0 01 1 0011-0210
174 PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-543-0 01 1 9510-9603
174 PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-683-0 01 1 0011-0210
177 PLUG; CLIP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK 		8-94279-804-0 01 1 9510-9603
177 PLUG; CLIP
OD=15 BLACK 		8-94279-804-0 01 1 9604-9711
177 PLUG; CLIP
OD=15 BLACK 		8-94279-804-0 02 1 9712-9803
177 PLUG; CLIP
OD=25 BLACK 		1-76798-019-0 02 1 9804-9804
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 9510-9603
189 GROMMET
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		9-09575-397-0 01 1 9604-0010
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 0011-0210
207 SEAL; FLEX HOSE
OD=25 BLACK 		1-76798-019-0 01 1 9902-0010
207 SEAL; FLEX HOSE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0011-0210
