8-45 — HEATER PIPING (#19700) — 70 parça

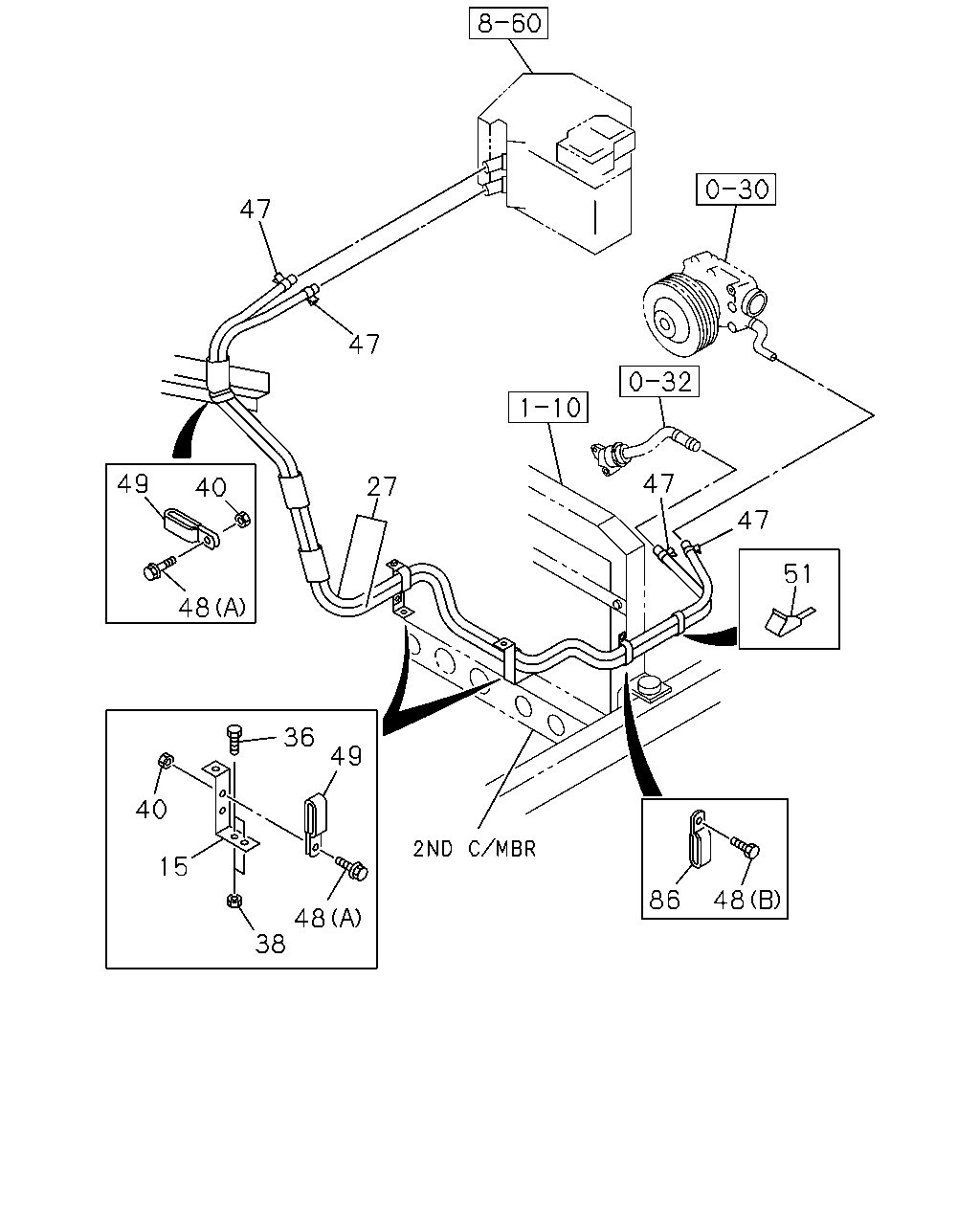

çizim 63665
47 47 47 49 27 40 47 51 48 36 49 40 15 48 86 48 38
BalonParca AdiParca NoAdetTipApplied Date
15 BRACKET; WATER HOSE 1-83571-927-1 01 1 9510-9603
15 BRACKET; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-927-1 01 1 9510-9603
15 BRACKET; WATER HOSE 1-83571-927-1 01 1 9604-9702
15 BRACKET; WATER HOSE
HEATER & DEFROSTER(C41) 		1-83571-927-1 01 1 9604-9702
15 BRACKET; WATER HOSE 1-83571-927-1 02 1 9703-0210
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-630-0 01 1 9510-9603
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41) 		1-83565-630-2 01 1 9604-0010
27 HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83565-630-2 01 1 0011-0210
36 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603
36 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603
36 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
36 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
36 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9703
36 BOLT; BRKT
HEATER & DEFROSTER(C41) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9703
36 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9704-9801
36 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9704-9801
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0210
36 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0210
38 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9603
38 NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9510-9603
38 NUT; BRKT
M8 		9-09110-408-0 02 1 9604-9606
38 NUT; BRKT
HEATER & DEFROSTER(C41) M8 		9-09110-408-0 02 1 9604-9606
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9703
38 NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 02 1 9607-9703
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9704-0210
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9704-0210
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9510-9603
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 		9-09110-408-0 01 1 9604-9606
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 01 1 9607-9807
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9510-9603
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 		9-09110-408-0 02 1 9604-9606
40 NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE 		0-91150-108-0 02 1 9607-0010
40 NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0011-0210
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 04 1 9510-9603
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=22 		8-94382-401-0 04 1 9604-0010
47 CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22 		8-94382-401-0 04 1 0011-0210
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9801
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9808-9901
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9603
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9801
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9802-9807
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9802-9807
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9808-9901
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-0010
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-0010
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0210
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0210
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9510-9603
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9604-0010
48 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0011-0210
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9808-9901
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 9510-9603
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 9510-9603
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9604-9807
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9604-9807
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 01 1 9808-9901
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9902-0010
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25 		1-09700-710-0 02 1 9902-0010
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 0011-0210
49 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25 		1-09700-710-0 02 1 0011-0210
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 9510-9603
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) L=170 		1-83574-139-0 01 1 9604-0010
51 CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170 		1-83574-139-0 01 1 0011-0210
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-049-1 01 1 9510-9603
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) 		1-83571-049-1 01 1 9604-0010
86 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-049-1 01 1 0011-0210
