Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#197) — 285 parça

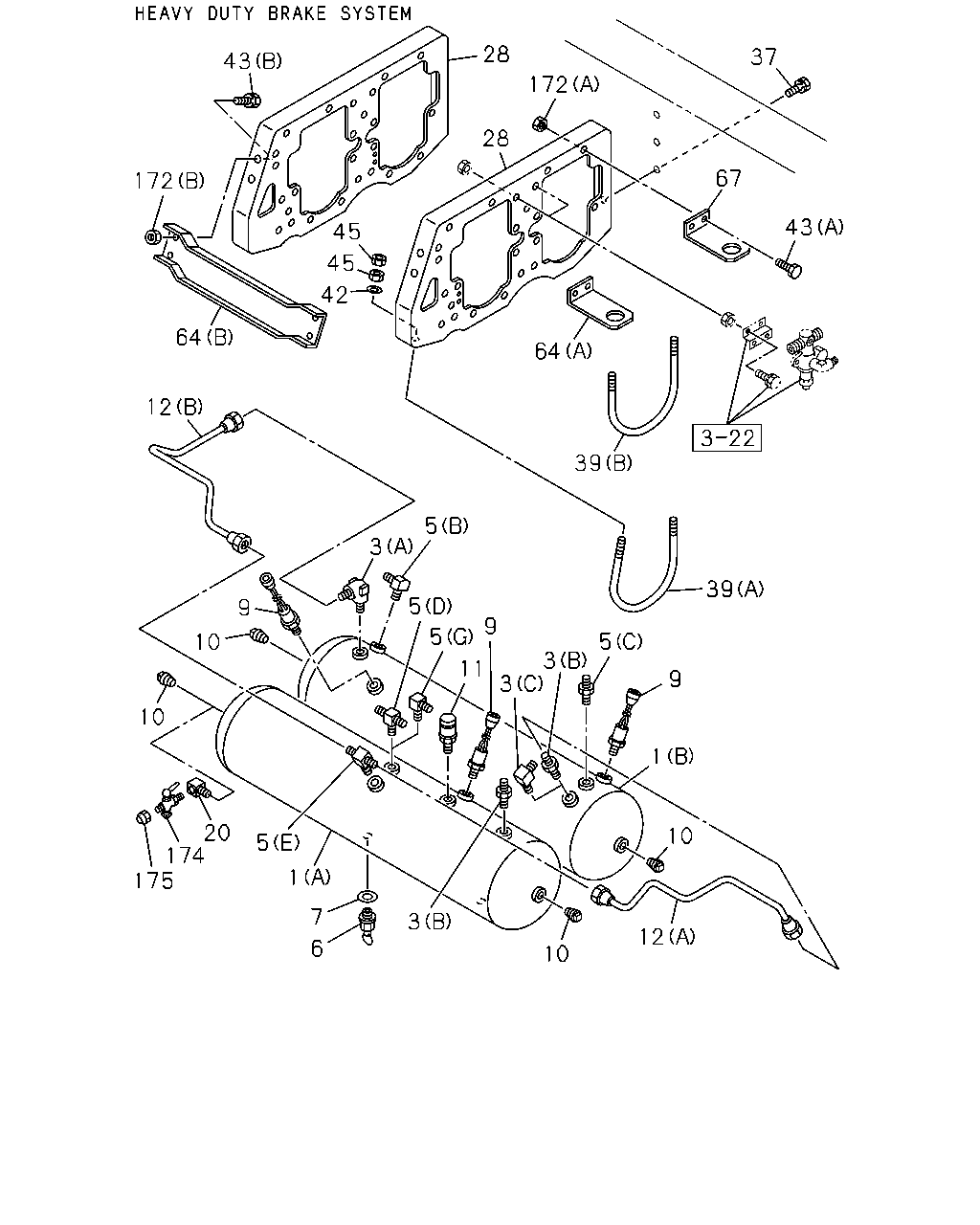

28 37 43 172 28 67 172 43 45 45 42 64 64 12 39 5 3 39 5 9 9 5 5 10 3 3 11 9 10 1 10 20 174 175 5 1 7 3 12 6 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) SUB	1-48330-206-1	01	1	9212-
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) MAIN	1-48330-598-0	01	1	9212-
1	TANK ASM; AIR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-686-1	01	1	9212-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C)	1-48330-150-2	01	1	9212-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> (B)	1-48410-182-2	02	1	9212-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E)	1-48410-133-2	03	1	9212-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E)	1-48410-133-2	02	1	9212-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9212-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48410-133-2	01	1	9212-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) M22 & PT3/4	1-48410-136-2	01	1	9212-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (C)	1-48410-182-2	01	1	9212-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48410-132-2	01	1	9212-
5	UNION; AIR TANK (G) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9212-9302
5	UNION; AIR TANK (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-
5	UNION; AIR TANK (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9212-
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9212-9302
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9212-
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09650-221-1	01	1	9212-9302
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16	1-09650-245-1	01	1	9212-
5	UNION; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9212-
5	UNION; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9212-9302
5	UNION; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9212-9302
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	04	1	9212-
6	COCK; DRAIN,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	03	1	9212-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	01	1	9212-
7	GASKET; DRAIN COCK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=19.2	1-09630-085-0	04	1	9212-
7	GASKET; DRAIN COCK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=19.2	1-09630-085-0	03	1	9212-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=19.2	1-09630-085-0	01	1	9212-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	03	1	9212-9411
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	03	1	9412-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	01	1	9212-9411
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	01	1	9412-
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	04	1	9212-
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT3/8	9-09204-517-0	01	1	9212-
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	01	1	9212-
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	02	1	9212-
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	03	1	9212-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9212-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47497-011-0	01	1	9212-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47497-012-0	01	1	9212-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47497-008-0	01	1	9212-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47497-009-0	01	1	9212-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> PT1/4	1-09660-501-0	01	1	9212-
28	BRACKET; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53318-232-9	02	1	9212-
28	BRACKET; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48317-375-5	02	1	9212-
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-48317-430-0	02	1	9212-
37	BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X45	1-09030-052-1	06	1	9212-
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 W/LK WASHER	0-50041-035-0	04	1	9212-9503
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 FLANGE	0-28681-035-0	04	1	9504-
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=97.5	1-48317-323-1	02	1	9212-
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=195	1-48317-367-2	02	1	9212-
39	U-BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9212-9501
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9502-
39	U-BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9502-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=245	1-48317-004-0	02	1	9212-9501
42	WASHER; PL BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.4 OD=18	9-09160-608-0	04	1	9212-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8X20 FLANGE	0-28080-820-0	04	1	9212-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9212-
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X14 FLANGE	0-28080-814-0	02	1	9212-9301
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	02	1	9302-
45	NUT; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	16	1	9212-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53318-293-1	01	1	9212-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	8-94301-490-0	01	1	9212-
64	STAY; AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48317-307-2	01	1	9212-
67	STAY; SUB TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48317-349-0	01	1	9212-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M8	9-09110-408-0	04	1	9212-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10	9-09110-510-0	04	1	9212-
172	NUT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>	1-09680-036-0	01	1	9212-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>	9-48319-102-0	01	1	9212-

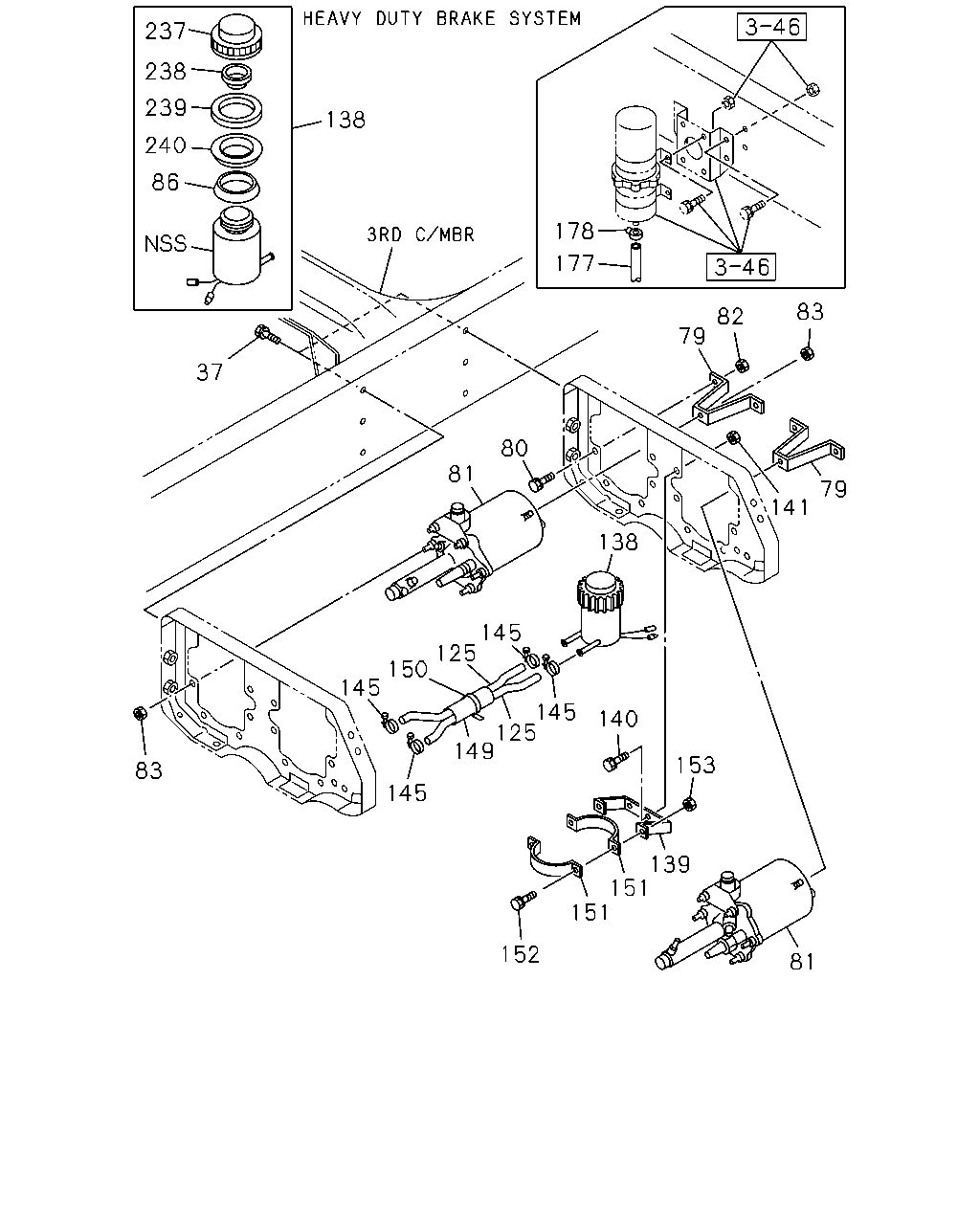

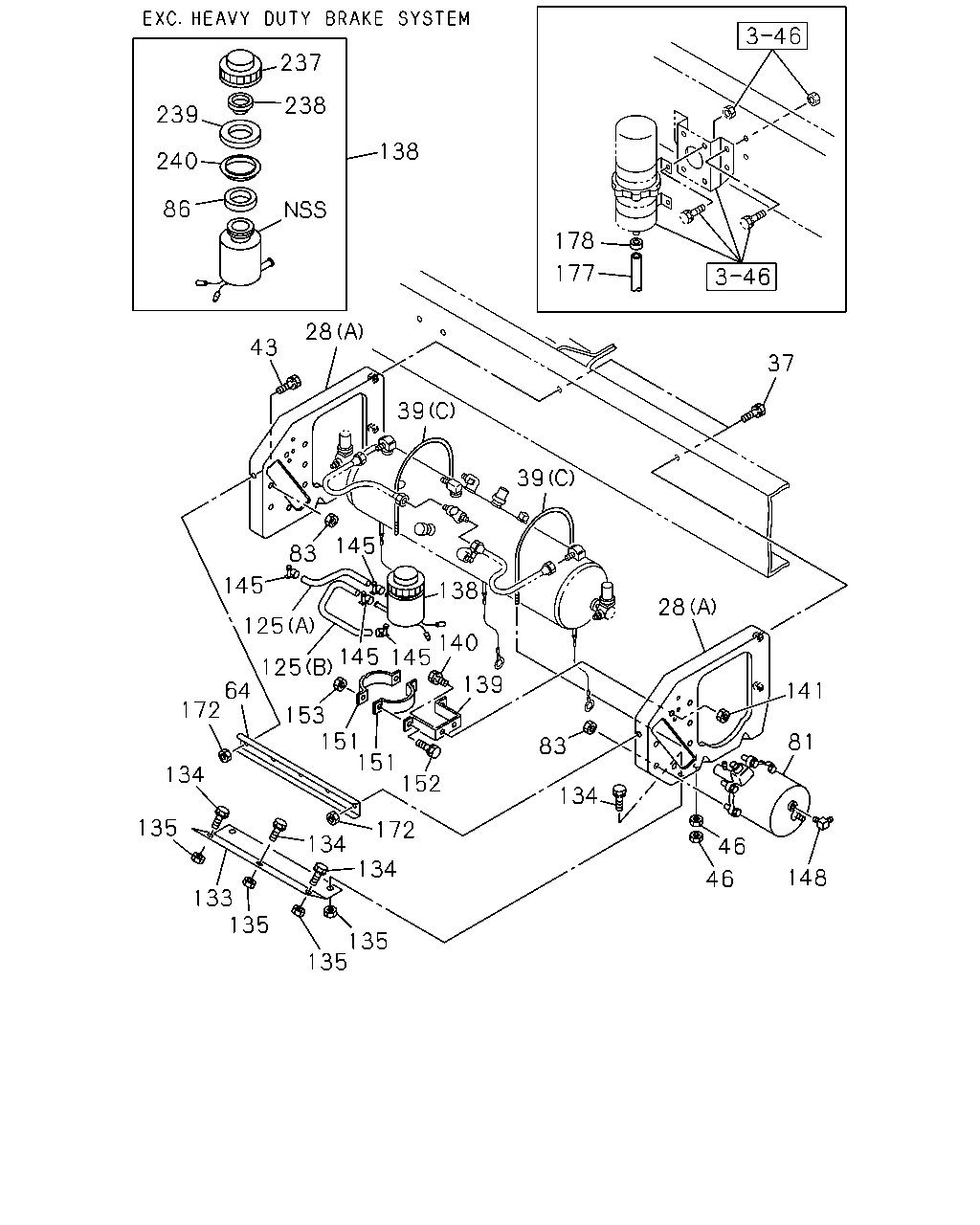

237 238 239 138 240 86 178 177 28 43 37 39 39 145 83 145 138 28 125 145 125 140 145 139 64 172 141 153 151 151 81 83 134 152 134 172 135 134 46 134 148 46 133 135 135 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BRACKET; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53318-232-9	02	1	9212-
28	BRACKET; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48317-375-5	02	1	9212-
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-48317-430-0	02	1	9212-
37	BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X45	1-09030-052-1	06	1	9212-
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 W/LK WASHER	0-50041-035-0	04	1	9212-9503
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 FLANGE	0-28681-035-0	04	1	9504-
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=97.5	1-48317-323-1	02	1	9212-
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=195	1-48317-367-2	02	1	9212-
39	U-BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9212-9501
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9502-
39	U-BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9502-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=245	1-48317-004-0	02	1	9212-9501
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8X20 FLANGE	0-28080-820-0	04	1	9212-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9212-
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X14 FLANGE	0-28080-814-0	02	1	9212-9301
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	02	1	9302-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9212-
46	NUT; U-BOLT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9212-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-510-0	04	1	9212-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53318-293-1	01	1	9212-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	8-94301-490-0	01	1	9212-
64	STAY; AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48317-307-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-404-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-406-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-410-1	02	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-382-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PRIMARY	1-47800-397-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) SECONDARY	1-47800-395-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PRIMARY	1-47800-396-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-398-1	02	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),BRAKE SYSTEM HEAVY DUTY VAR2(WG3),CHINA EQUIPMENT(YT2)	1-47800-413-0	02	1	9212-
83	NUT; AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE	0-91150-110-0	10	1	9212-
83	NUT; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 FLANGE	0-91150-108-0	08	1	9212-
86	SEAL; DUST	1-47529-019-0	01	1	9212-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9212-
125	HOSE; OIL TANK TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9212-
125	HOSE; OIL TANK TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=335	1-47469-045-0	01	1	9212-
133	COVER; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48317-306-3	01	1	9212-
134	BOLT; COVER FIX EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	13	1	9212-
135	NUT; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	06	1	9212-
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9212-
139	BRACKET; OIL TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-081-1	01	1	9212-
139	BRACKET; OIL TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-123-0	01	1	9212-
140	BOLT; OIL TANK TO BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9212-9403
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9404-
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9212-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9212-
148	CONNECTOR; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	9212-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9212-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9212-
152	BOLT; OIL TANK TO BAND M8X20 W/WASHER	0-50080-820-0	02	1	9212-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9212-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M8	9-09110-408-0	04	1	9212-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10	9-09110-510-0	04	1	9212-
172	NUT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=250 SERVICED BY L=3000	0-02165-300-0	01	1	9212-9310
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9311-
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9212-9406
237	CAP; OIL TANK	1-47525-026-1	01	1	9212-
238	PLATE; BAFFLE	1-47529-022-0	01	1	9212-
239	FILTER; DUST	1-47529-017-0	01	1	9212-
240	HOLDER; FILTER	1-47529-018-0	01	1	9212-

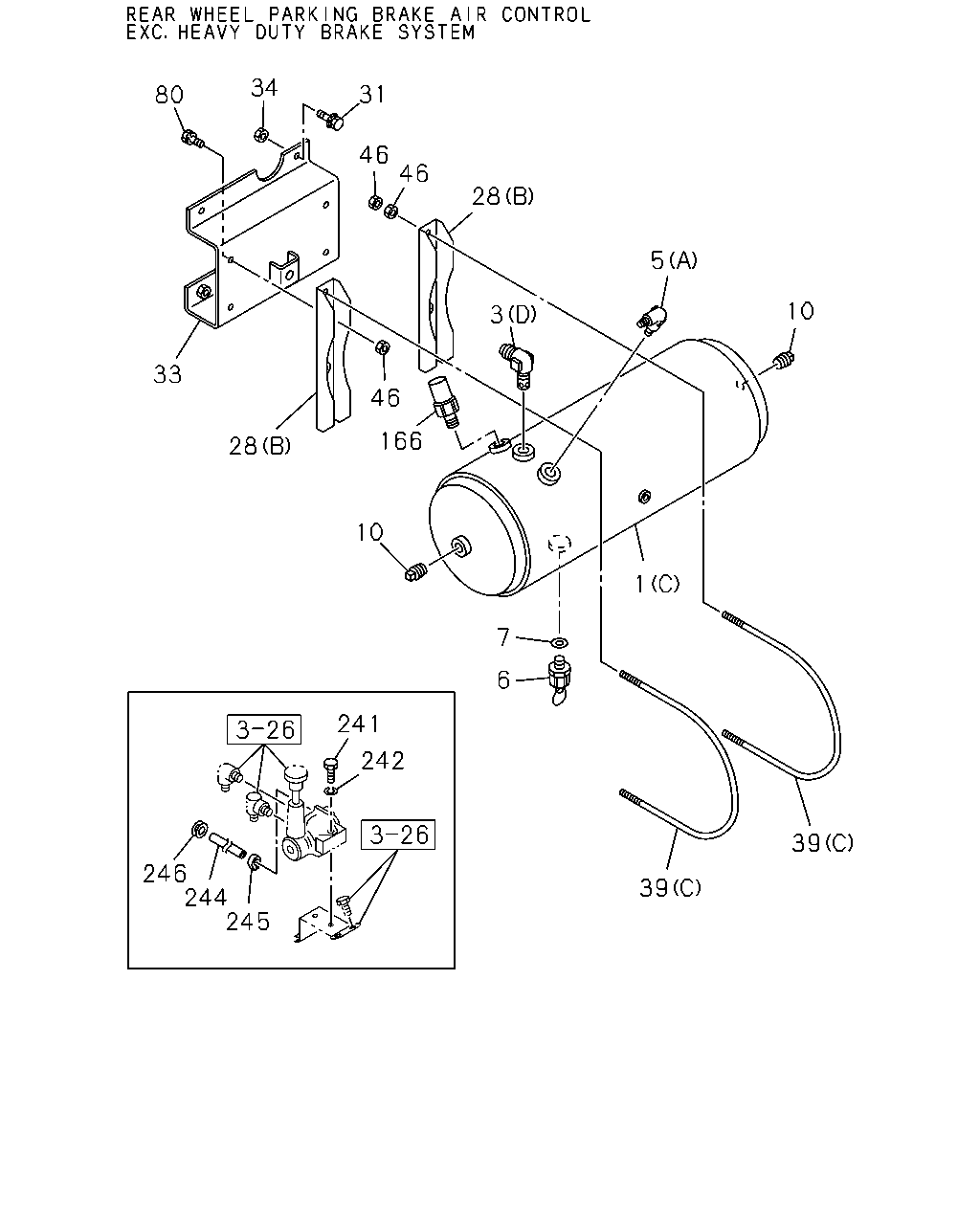

34 31 80 46 46 28 5 3 10 33 46 166 28 10 1 7 6 241 242 39 246 244 245 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) SUB	1-48330-206-1	01	1	9212-
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) MAIN	1-48330-598-0	01	1	9212-
1	TANK ASM; AIR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-686-1	01	1	9212-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C)	1-48330-150-2	01	1	9212-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> (B)	1-48410-182-2	02	1	9212-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E)	1-48410-133-2	03	1	9212-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E)	1-48410-133-2	02	1	9212-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9212-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48410-133-2	01	1	9212-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) M22 & PT3/4	1-48410-136-2	01	1	9212-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (C)	1-48410-182-2	01	1	9212-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48410-132-2	01	1	9212-
5	UNION; AIR TANK (G) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9212-9302
5	UNION; AIR TANK (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-
5	UNION; AIR TANK (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9212-
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9212-9302
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9212-
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09650-221-1	01	1	9212-9302
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16	1-09650-245-1	01	1	9212-
5	UNION; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9212-
5	UNION; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9212-9302
5	UNION; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9212-9302
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	04	1	9212-
6	COCK; DRAIN,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	03	1	9212-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	01	1	9212-
7	GASKET; DRAIN COCK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=19.2	1-09630-085-0	04	1	9212-
7	GASKET; DRAIN COCK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=19.2	1-09630-085-0	03	1	9212-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=19.2	1-09630-085-0	01	1	9212-
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	04	1	9212-
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT3/8	9-09204-517-0	01	1	9212-
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	01	1	9212-
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	02	1	9212-
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	03	1	9212-
28	BRACKET; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53318-232-9	02	1	9212-
28	BRACKET; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48317-375-5	02	1	9212-
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-48317-430-0	02	1	9212-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9212-
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48317-431-2	01	1	9212-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-510-0	02	1	9212-
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=97.5	1-48317-323-1	02	1	9212-
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=195	1-48317-367-2	02	1	9212-
39	U-BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9212-9501
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9502-
39	U-BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9502-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=245	1-48317-004-0	02	1	9212-9501
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9212-
46	NUT; U-BOLT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9212-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-510-0	04	1	9212-
80	BOLT; BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X25 W/LK WASHER	0-50041-025-0	04	1	9212-
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X20 W/LK WASHER	0-50041-020-0	04	1	9212-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	01	1	9212-9411
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	01	1	9412-
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9212-
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9212-
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9212-
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=15	9-09715-098-0	01	1	9212-
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9212-

237 238 239 138 240 86 178 177 83 82 79 37 80 81 79 141 138 145 125 150 145 145 125 149 140 153 83 145 139 151 151 152 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X45	1-09030-052-1	06	1	9212-
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 W/LK WASHER	0-50041-035-0	04	1	9212-9503
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 FLANGE	0-28681-035-0	04	1	9504-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53318-217-0	02	1	9212-
80	BOLT; BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X25 W/LK WASHER	0-50041-025-0	04	1	9212-
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X20 W/LK WASHER	0-50041-020-0	04	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-404-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-406-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-410-1	02	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-382-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PRIMARY	1-47800-397-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) SECONDARY	1-47800-395-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PRIMARY	1-47800-396-2	01	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-398-1	02	1	9212-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),BRAKE SYSTEM HEAVY DUTY VAR2(WG3),CHINA EQUIPMENT(YT2)	1-47800-413-0	02	1	9212-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE	0-91150-110-0	04	1	9212-
83	NUT; AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE	0-91150-110-0	10	1	9212-
83	NUT; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 FLANGE	0-91150-108-0	08	1	9212-
86	SEAL; DUST	1-47529-019-0	01	1	9212-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9212-
125	HOSE; OIL TANK TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9212-
125	HOSE; OIL TANK TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=335	1-47469-045-0	01	1	9212-
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9212-
139	BRACKET; OIL TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-081-1	01	1	9212-
139	BRACKET; OIL TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-123-0	01	1	9212-
140	BOLT; OIL TANK TO BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9212-9403
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9404-
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9212-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9212-
149	SLEEVE; RUBBER,HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=23 OD=27 L=40	1-09337-015-0	01	1	9212-
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=140	5-09707-031-0	01	1	9212-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9212-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9212-
152	BOLT; OIL TANK TO BAND M8X20 W/WASHER	0-50080-820-0	02	1	9212-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9212-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=250 SERVICED BY L=3000	0-02165-300-0	01	1	9212-9310
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9311-
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9212-9406
237	CAP; OIL TANK	1-47525-026-1	01	1	9212-
238	PLATE; BAFFLE	1-47529-022-0	01	1	9212-
239	FILTER; DUST	1-47529-017-0	01	1	9212-
240	HOLDER; FILTER	1-47529-018-0	01	1	9212-

10 5 12 3 5 5 5 11 12 3 3 9 10 5 7 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

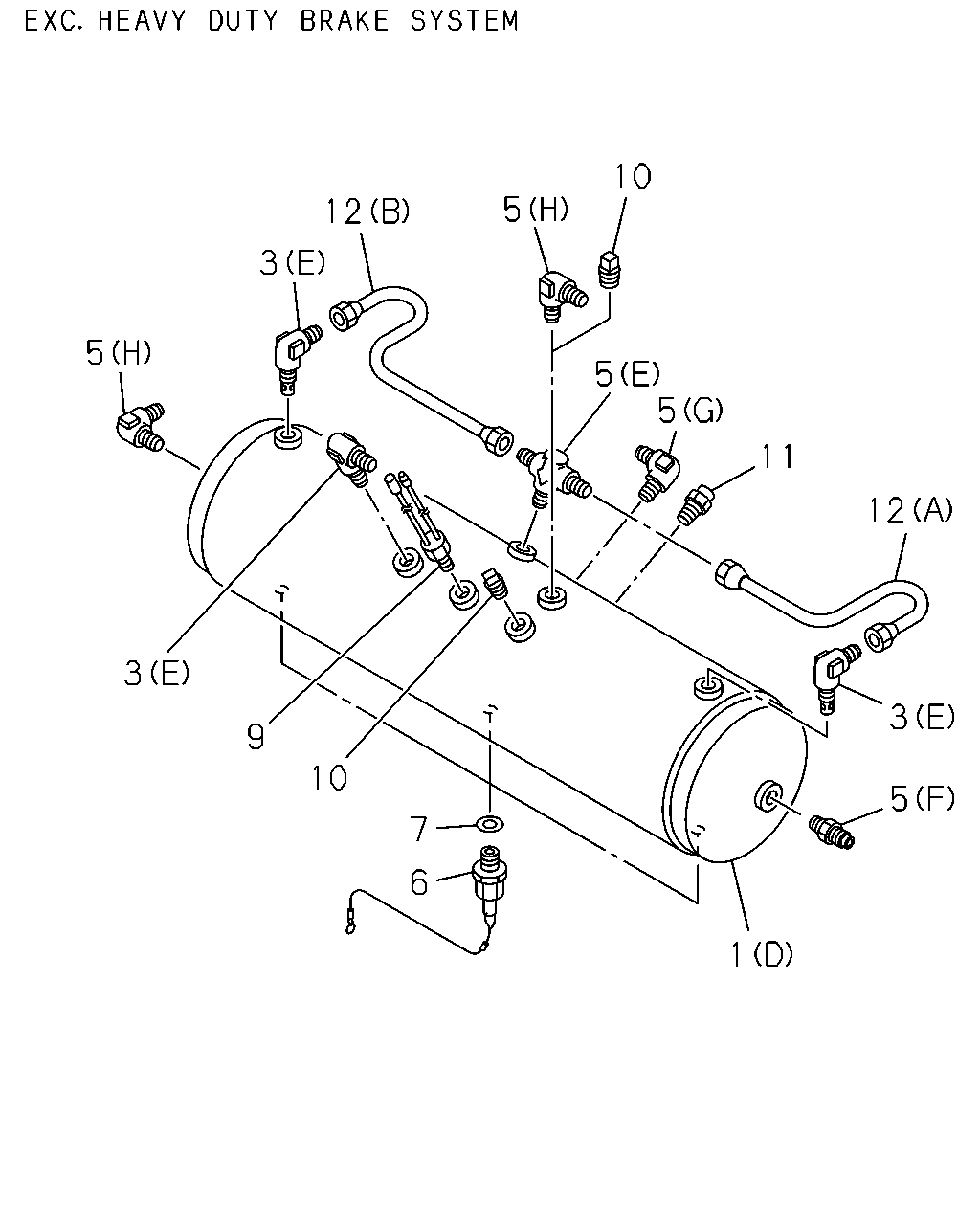

1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) SUB	1-48330-206-1	01	1	9212-
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) MAIN	1-48330-598-0	01	1	9212-
1	TANK ASM; AIR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-686-1	01	1	9212-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C)	1-48330-150-2	01	1	9212-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> (B)	1-48410-182-2	02	1	9212-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E)	1-48410-133-2	03	1	9212-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E)	1-48410-133-2	02	1	9212-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9212-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48410-133-2	01	1	9212-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) M22 & PT3/4	1-48410-136-2	01	1	9212-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (C)	1-48410-182-2	01	1	9212-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48410-132-2	01	1	9212-
5	UNION; AIR TANK (G) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9212-9302
5	UNION; AIR TANK (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-
5	UNION; AIR TANK (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9212-
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9212-9302
5	UNION; AIR TANK DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9212-
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09650-221-1	01	1	9212-9302
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16	1-09650-245-1	01	1	9212-
5	UNION; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9212-
5	UNION; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9212-9302
5	UNION; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9212-9302
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	04	1	9212-
6	COCK; DRAIN,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	03	1	9212-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	01	1	9212-
7	GASKET; DRAIN COCK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=19.2	1-09630-085-0	04	1	9212-
7	GASKET; DRAIN COCK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=19.2	1-09630-085-0	03	1	9212-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=19.2	1-09630-085-0	01	1	9212-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	03	1	9212-9411
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	03	1	9412-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	01	1	9212-9411
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	01	1	9412-
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	04	1	9212-
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT3/8	9-09204-517-0	01	1	9212-
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	01	1	9212-
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	02	1	9212-
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	03	1	9212-
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9212-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47497-011-0	01	1	9212-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47497-012-0	01	1	9212-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47497-008-0	01	1	9212-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47497-009-0	01	1	9212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
