Isuzu WW
▶
TRUCKS
▶
FRR
▶
11310 - FRR(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#19696) — 35 parça
◀

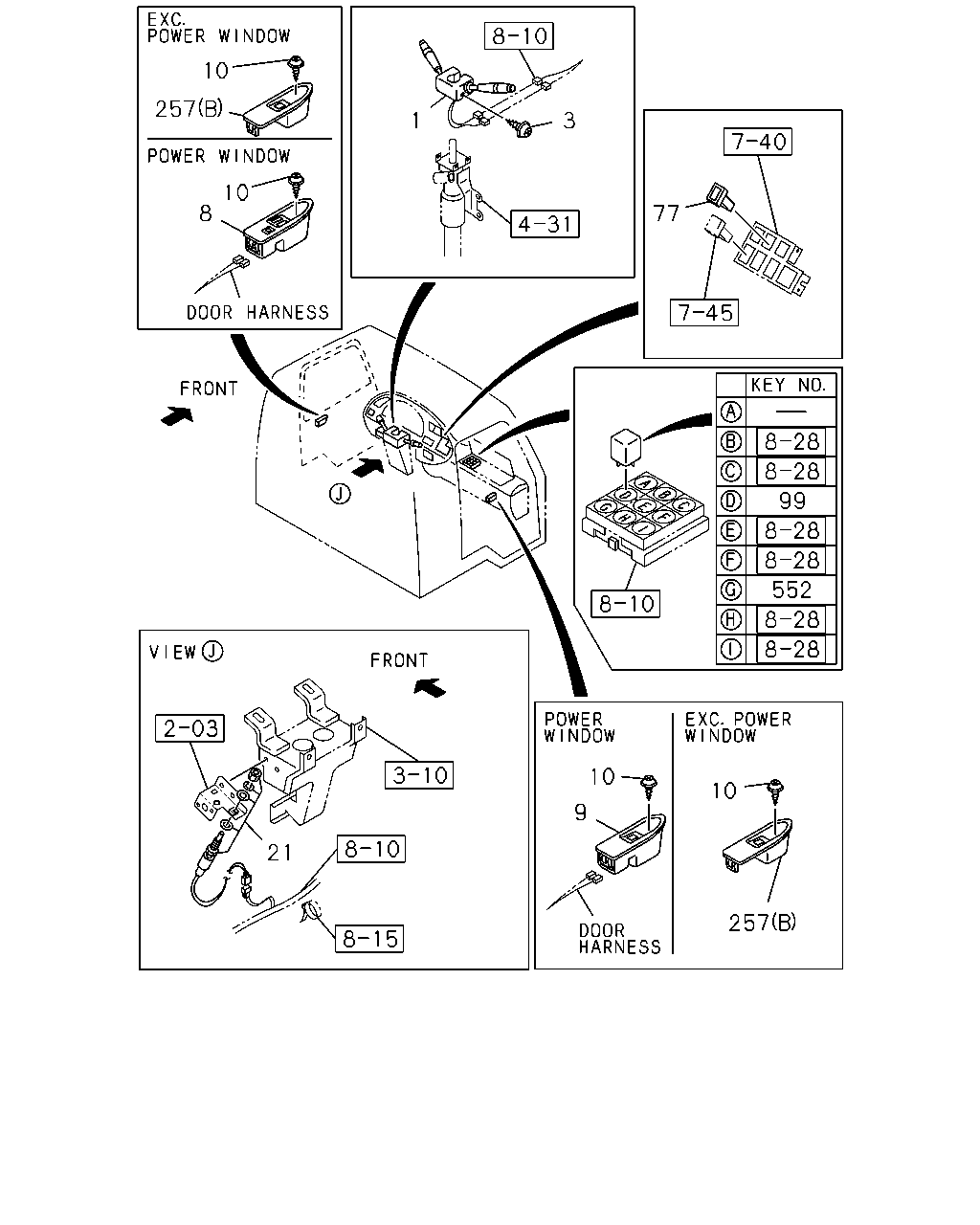

[825A] CAB SIDE (24 parça)

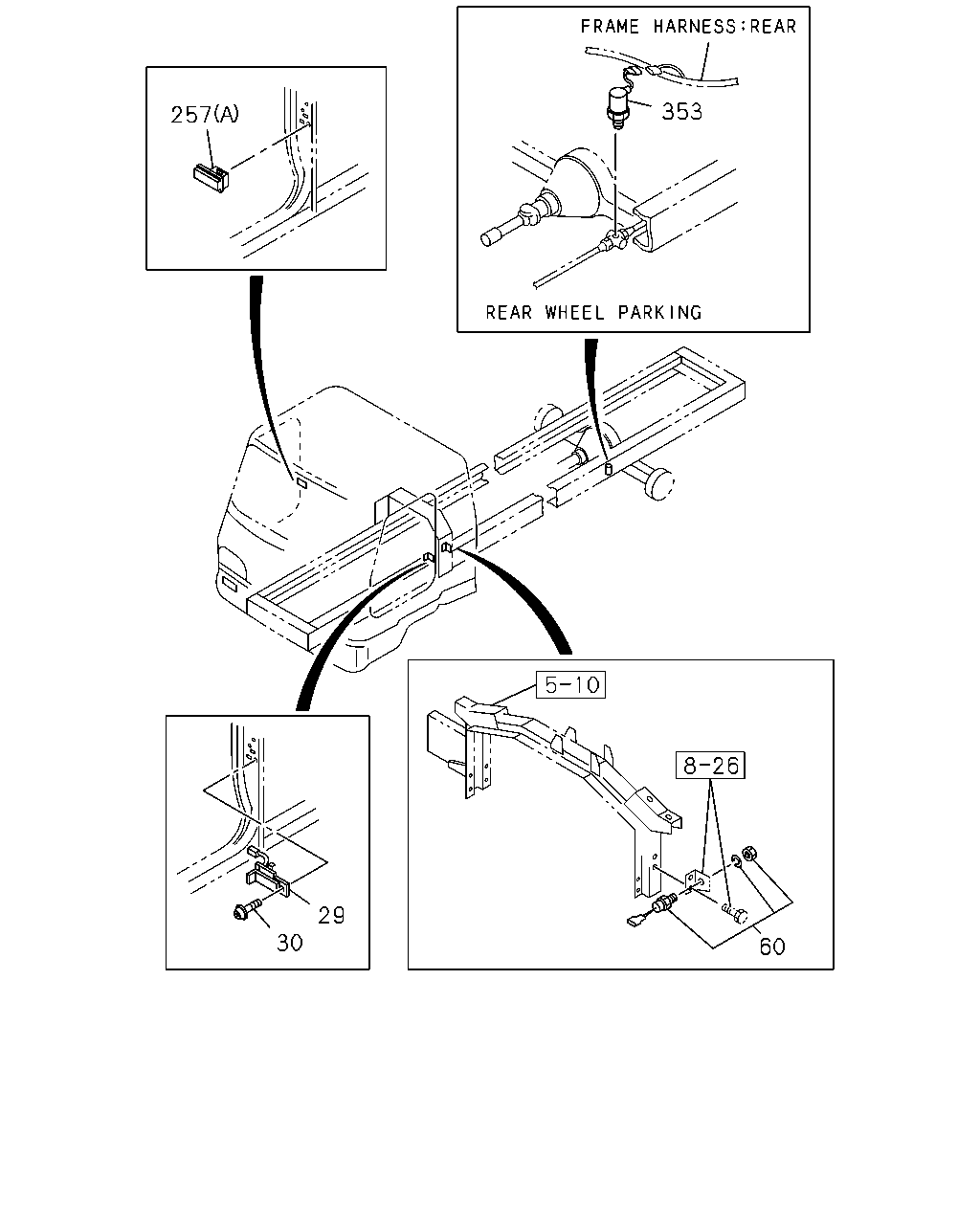

[825A] FRAME SIDE (11 parça)
▶
10
257
3
1
10
8
77
99
552
10
10
9
21
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>
1-82360-534-0
01
1
0005-0103
1
SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>
1-82360-653-0
01
1
0104-0210
1
SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82360-405-3
01
1
9510-9603
1
SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>
1-82360-371-3
01
1
9510-9603
1
SWITCH; COMB
1-82360-371-4
01
1
9604-0004
1
SWITCH; COMB
EXHAUST BRAKE<NF8>
1-82360-405-4
01
1
0005-0103
1
SWITCH; COMB
EXHAUST BRAKE<NF8>
1-82360-647-0
01
1
0104-0210
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
9510-0210
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER
1-82380-142-1
01
1
9510-9603
9
SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER
1-82380-143-0
01
1
9510-9603
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
9510-0210
21
SWITCH; CLU
1-82380-114-2
01
1
9510-0004
21
SWITCH; CLU
ISUZU M/T<X9A>
1-82380-114-2
01
1
0005-0210
77
SWITCH; PTO
PTO CONTROL<SV6>
1-82340-403-0
01
1
9510-0210
99
RELAY; FOG LAMP
24V 12.5A MITUBA
8-97062-815-1
01
1
0011-0111
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-0210
99
RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA
8-97062-815-0
01
1
9510-9603
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
9510-0210
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B)
1-82389-011-2
01
1
9510-9603
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
9604-0210
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B)
1-82389-012-2
01
1
9510-9603
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
9604-0210
552
RELAY; CIGAR LIGHTER
24V 12.5A MITUBA
8-97062-815-1
01
1
9510-0111
552
RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-0210
353
257
29
30
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
9510-0210
30
SCREW; DOOR SW
M5X16
8-94279-341-0
01
1
9510-9906
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
9907-0004
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0005-0210
60
SWITCH; STARTER SUB
1-82380-107-1
01
1
9510-0210
257
COVER; HOLE,SW
(A)
8-94229-914-1
01
1
9510-0210
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B)
1-82389-011-2
01
1
9510-9603
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
9604-0210
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B)
1-82389-012-2
01
1
9510-9603
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
9604-0210
353
SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-82410-163-0
01
1
9510-0210
