◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#19695) — 78 parça

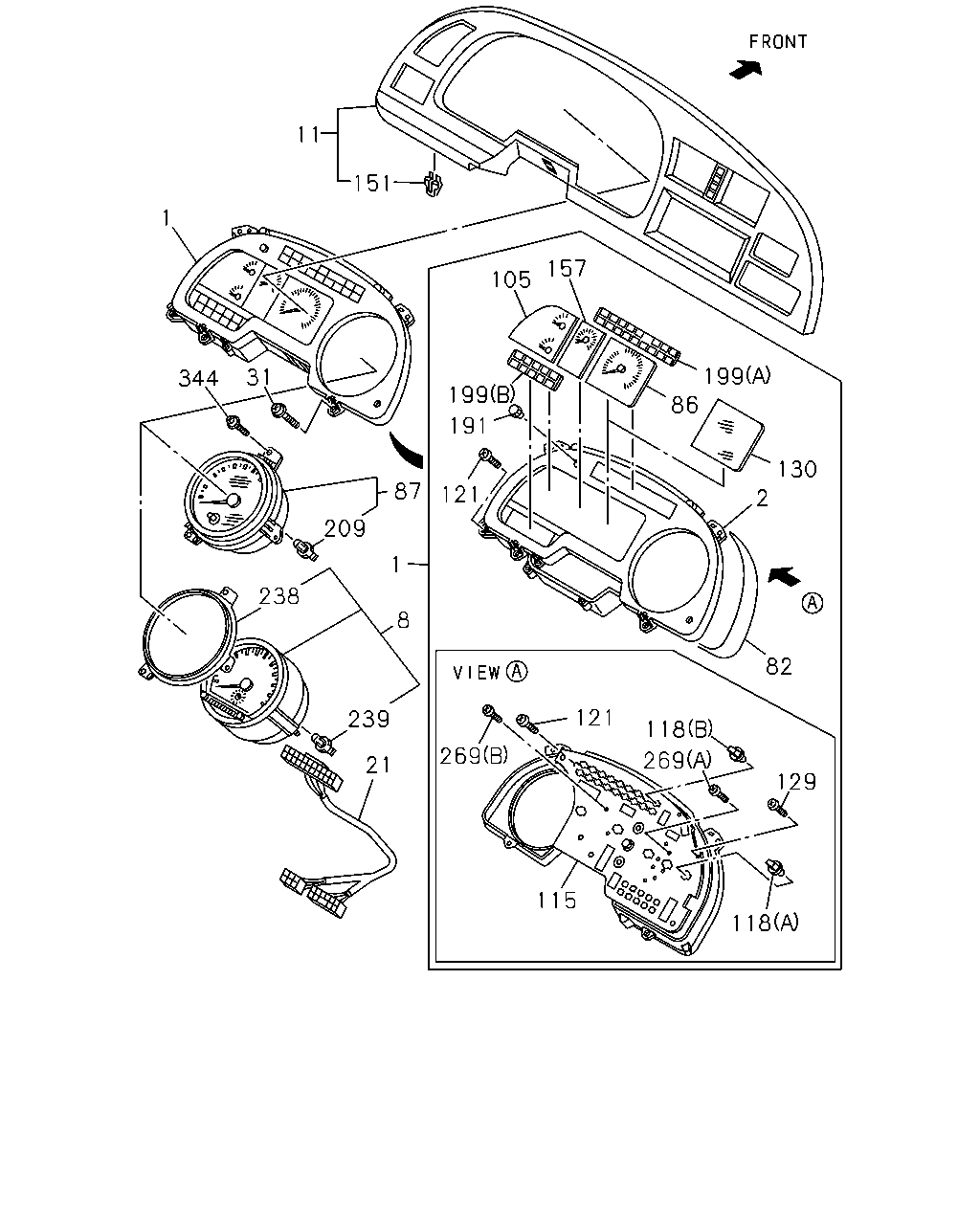

çizim 63598
11 151 1 157 105 31 199 344 199 86 191 130 87 121 2 209 1 238 8 82 121 239 118 269 269 21 129 115 118
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
A/T<X9D> EXC. TACHOMETER<UD7>,DUAL AIR GAUGE<UG2> 		1-83115-548-0 01 1 0005-0210
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> A/T<X9D> EXC. TACHOMETER<UD7> 		1-83115-547-0 01 1 0005-0210
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> INDICATOR TAIL & STOP LAMP<YD6> EXC. TACHOMETER<UD7> 		1-83114-832-0 01 1 9510-9603
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-831-0 01 1 9510-9603
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> EXC. TACHOMETER<UD7> 		1-83114-831-0 01 1 9604-9704
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> EXC. TACHOMETER<UD7> 		1-83114-992-0 01 1 9705-0004
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. TACHOMETER<UD7> 		1-83114-992-0 01 1 0005-0210
1 METER COMPL; CLUSTER
INDICATOR TAIL & STOP LAMP<YD6> EXC. TACHOMETER<UD7>,DUAL AIR GAUGE<UG2> 		1-83114-761-1 01 1 9510-9603
1 METER COMPL; CLUSTER
TACHOMETER<UD7> A/T<X9D> EXC. DUAL AIR GAUGE<UG2> 		1-83115-553-0 01 1 0005-0102
1 METER COMPL; CLUSTER
TACHOMETER<UD7> A/T<X9D> EXC. DUAL AIR GAUGE<UG2> 		1-83115-553-0 01 1 0103-0210
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> A/T<X9D> 		1-83115-551-0 01 1 0005-0102
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> A/T<X9D> 		1-83115-551-0 01 1 0103-0210
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-744-1 01 1 9510-9603
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-779-1 01 1 9510-9603
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> 		1-83114-779-1 01 1 9604-9704
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> 		1-83114-987-0 01 1 9705-0004
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> 		1-83114-987-0 01 1 0005-0102
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> 		1-83114-987-0 01 1 0103-0210
1 METER COMPL; CLUSTER
TACHOMETER<UD7> EXC. DUAL AIR GAUGE<UG2>,INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-738-1 01 1 9510-9603
1 METER COMPL; CLUSTER
TACHOMETER<UD7> EXC. DUAL AIR GAUGE<UG2> 		1-83114-738-1 01 1 9604-9704
1 METER COMPL; CLUSTER
TACHOMETER<UD7> EXC. DUAL AIR GAUGE<UG2> 		1-83114-963-0 01 1 9705-0004
1 METER COMPL; CLUSTER
TACHOMETER<UD7> ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-83114-963-0 01 1 0005-0102
1 METER COMPL; CLUSTER
TACHOMETER<UD7> ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> 		1-83114-963-0 01 1 0103-0210
1 METER COMPL; CLUSTER
TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> EXC. DUAL AIR GAUGE<UG2> 		1-83114-739-1 01 1 9510-9603
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7>,DUAL AIR GAUGE<UG2>,INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-736-1 01 1 9510-9603
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7>,DUAL AIR GAUGE<UG2> 		1-83114-736-1 01 1 9604-9704
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7>,DUAL AIR GAUGE<UG2> 		1-83114-961-0 01 1 9705-0004
1 METER COMPL; CLUSTER
ISUZU M/T<X9A> EXC. TACHOMETER<UD7>,DUAL AIR GAUGE<UG2> 		1-83114-961-0 01 1 0005-0210
2 PANEL; CLUSTER 1-83119-499-0 01 1 9510-0210
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-663-1 01 1 9510-9706
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-807-0 01 1 9707-0210
11 CLUSTER ASM; METER 1-72418-022-3 01 1 9510-0210
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-82624-665-1 01 1 9510-0210
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9510-0210
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9510-0210
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> 		1-83120-667-0 01 1 9510-9704
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> 		1-83120-566-0 01 1 9705-0210
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-490-1 01 1 9510-0210
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-209-0 01 1 9510-9704
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 9705-0210
115 CIRCUIT; PRINTED,CLUSTER METER
A/T<X9D> EXC. TACHOMETER<UD7> 		1-83189-427-0 01 1 0005-0210
115 CIRCUIT; PRINTED,CLUSTER METER
INDICATOR TAIL & STOP LAMP<YD6> EXC. TACHOMETER<UD7> 		1-83189-310-0 01 1 9510-9603
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> A/T<X9D> 		1-83189-428-0 01 1 0005-0210
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> 		1-83189-304-0 01 1 9510-9603
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83189-303-0 01 1 9510-9603
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> 		1-83189-303-0 01 1 9604-9802
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> 		1-83189-303-0 01 1 9803-0004
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> ISUZU M/T<X9A> 		1-83189-303-0 01 1 0005-0210
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP LAMP<YD6> 		1-83189-301-0 01 1 9510-9603
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-301-0 01 1 9604-9802
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-301-0 01 1 9803-0004
115 CIRCUIT; PRINTED,CLUSTER METER
ISUZU M/T<X9A> EXC. TACHOMETER<UD7> 		1-83189-301-0 01 1 0005-0210
118 BULB; CLUSTER METER
A/T<X9D> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 0005-0102
118 BULB; CLUSTER METER
TACHOMETER<UD7> A/T<X9D> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 0103-0210
118 BULB; CLUSTER METER
A/T<X9D> EXC. TACHOMETER<UD7> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 0103-0210
118 BULB; CLUSTER METER
INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 9510-9603
118 BULB; CLUSTER METER
EXC. INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9510-9603
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9604-9802
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9803-0004
118 BULB; CLUSTER METER
ISUZU M/T<X9A> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 0005-0210
118 BULB; CLUSTER METER
TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9510-0210
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 9510-0210
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 9510-0210
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 9510-0210
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-523-0 01 1 9510-0210
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9510-9812
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9901-0210
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-187-0 01 1 9510-0210
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9510-0210
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9510-0210
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 9510-0210
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 9510-0210
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9510-0210
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83129-311-0 01 1 9510-0210
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 24V 1.8W 		1-82194-076-0 03 1 9510-0210
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 9510-0210
269 SCREW; METER CLUSTER
TACHOMETER<UD7> (B) M3 TAPPING 		1-83119-439-0 03 1 9510-0210
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9510-0210
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
