◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#19693) — 229 parça

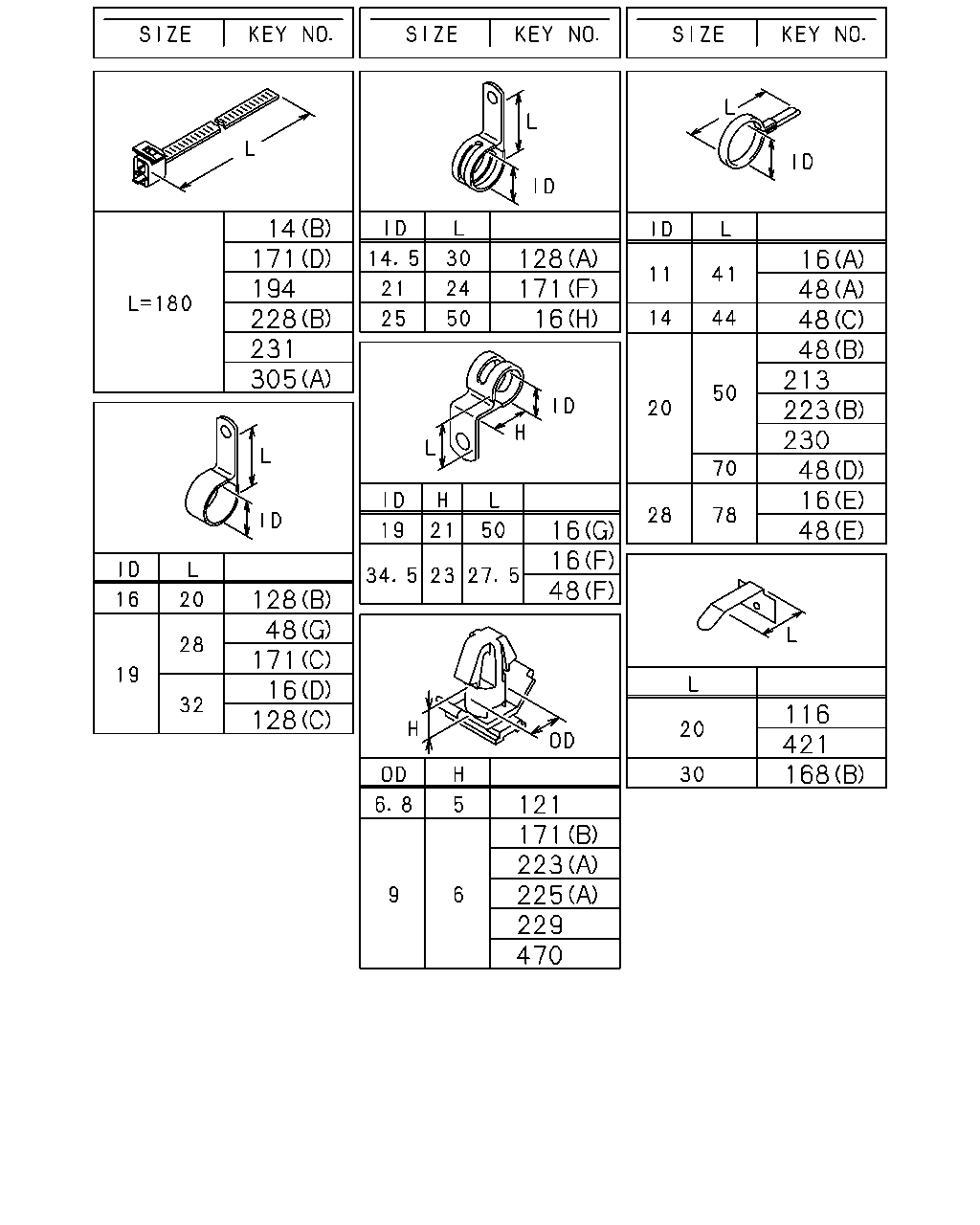

çizim 15627
14 171 194 228 231 305 128 171 16 16 48 48 48 213 223 230 48 16 48 16 16 48 128 48 171 16 128 116 421 168 121 171 223 225 229 470
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0002-0210
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=180 		1-09707-162-1 01 1 9510-0210
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9510-0210
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 9510-0210
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 9510-0210
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-0210
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9510-0210
16 CLIP; HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0210
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 9510-0210
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9510-0210
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 9510-0210
16 CLIP; HARNESS
POWER WINDOW<A30> (J) L=55 		8-94432-655-0 06 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> (K) L=175 		8-97110-167-0 04 1 9510-9603
16 CLIP; HARNESS
(K) L=175 		8-97110-167-0 02 1 9604-0210
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (K) L=175 		8-97110-167-0 02 1 9510-9603
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9510-0210
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 9510-9808
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 05 1 9510-0210
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 9510-0210
48 CLIP; FRAME HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9510-0004
48 CLIP; FRAME HARNESS
(C) ID=14 L=44 		9-09917-427-0 01 1 0005-0210
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 9510-9510
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9510-9511
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0005-0210
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9510-9510
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9510-9510
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9510-9511
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9510-9511
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9510-9511
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0005-0210
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0005-0210
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-0210
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 03 1 9512-0004
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (B) ID=20 L=50 		9-09917-430-0 12 1 9510-0210
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 15 1 9510-0210
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (B) ID=20 L=50 		9-09917-430-0 18 1 9803-0210
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-1 02 1 9510-9603
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-1 05 1 9510-9603
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-1 05 1 9510-9603
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9604-0009
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-0210
121 CLIP; FACIA HARNESS
OD=6.8 H=5 		8-97082-051-0 02 1 9510-0210
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 9510-0210
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 9510-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012-0210
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 05 1 9510-0210
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> (B) L=30 		1-09987-265-0 01 1 0102-0210
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 9510-0004
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0005-0210
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9510-0004
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0005-0210
171 CLIP; STARTER HARNESS
A/T<X9D> (D) L=180 		1-09707-162-1 01 1 0005-0210
171 CLIP; STARTER HARNESS
A/T<X9D> (E) ID=19 H=33 L=45 		1-09701-045-0 01 1 0104-0210
171 CLIP; STARTER HARNESS
A/T<X9D> (F) ID=21 L=24 		8-94176-807-1 01 1 0104-0105
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 01 1 0104-0105
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0106-0210
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (B) OD=9 H=6 		1-09709-178-0 02 1 0005-0210
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 9510-0004
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180 		1-09707-162-1 01 1 9510-0004
194 CLIP; BAND
EXC. DUAL AIR GAUGE<UG2> L=180 		1-09707-162-1 01 1 0005-0210
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180 		1-09707-162-1 01 1 0005-0210
194 CLIP; BAND
DUAL AIR GAUGE<UG2> L=180 		1-09707-162-1 02 1 0005-0210
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9510-0210
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9510-0210
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 9510-0210
225 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 9510-0210
225 CLIP; AIR TANK HARNESS
DUAL AIR GAUGE<UG2> (B) L=140 		5-09707-031-1 02 1 0005-0210
225 CLIP; AIR TANK HARNESS
EXC. DUAL AIR GAUGE<UG2> (B) L=140 		5-09707-031-1 01 1 0005-0210
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 9510-0112
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0201-0210
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 0201-0210
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9510-0210
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9510-0210
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9510-0102
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0103-0210
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9510-0210
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9510-0210
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9510-9708
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9709-0101
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0210
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9510-0210
çizim 63597
81 206 225 228 235 305 14 16 217 235 178 178 178 154 59 16 171 335 513 530 503
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0002-0210
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=180 		1-09707-162-1 01 1 9510-0210
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9510-0210
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 9510-0210
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 9510-0210
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-0210
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9510-0210
16 CLIP; HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0210
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 9510-0210
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9510-0210
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 9510-0210
16 CLIP; HARNESS
POWER WINDOW<A30> (J) L=55 		8-94432-655-0 06 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> (K) L=175 		8-97110-167-0 04 1 9510-9603
16 CLIP; HARNESS
(K) L=175 		8-97110-167-0 02 1 9604-0210
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (K) L=175 		8-97110-167-0 02 1 9510-9603
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9510-0210
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9510-0210
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9510-0210
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 9510-0004
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0005-0210
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9510-0004
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0005-0210
171 CLIP; STARTER HARNESS
A/T<X9D> (D) L=180 		1-09707-162-1 01 1 0005-0210
171 CLIP; STARTER HARNESS
A/T<X9D> (E) ID=19 H=33 L=45 		1-09701-045-0 01 1 0104-0210
171 CLIP; STARTER HARNESS
A/T<X9D> (F) ID=21 L=24 		8-94176-807-1 01 1 0104-0105
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 01 1 0104-0105
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0106-0210
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (B) OD=9 H=6 		1-09709-178-0 02 1 0005-0210
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9510-0210
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-1 02 1 9510-0210
178 GROMMET; HARNESS
LOW ROOF<6XQ> (C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9510-9603
178 GROMMET; HARNESS
(C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9604-0210
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9510-0210
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9510-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9510-0210
225 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 9510-0210
225 CLIP; AIR TANK HARNESS
DUAL AIR GAUGE<UG2> (B) L=140 		5-09707-031-1 02 1 0005-0210
225 CLIP; AIR TANK HARNESS
EXC. DUAL AIR GAUGE<UG2> (B) L=140 		5-09707-031-1 01 1 0005-0210
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 9510-0112
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0201-0210
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 0201-0210
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9510-9802
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=140 		5-09707-031-1 01 1 9510-0004
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (B) L=140 		5-09707-031-1 01 1 0005-0210
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9510-0210
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9510-0210
335 BRACKET; CONNECTOR 1-82699-517-0 01 1 9510-9910
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 9911-0210
503 CONNECTOR 1-82690-668-0 01 1 9510-9608
503 CONNECTOR 1-82690-668-0 01 1 9609-0010
503 CONNECTOR 1-82690-668-0 01 1 9609-0010
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 0011-0109
503 CONNECTOR 1-82690-668-0 01 1 0011-0109
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 0110-0210
503 CONNECTOR
EXC. AIR DRYER<PS7> 		1-82690-668-0 01 1 0110-0210
513 TAPE; SOFT,HARNESS
100X30 		1-72498-014-1 02 1 9709-9903
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 9904-0101
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0102-0210
çizim 63850
16 217 148 462 148 168 16 171 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9510-0210
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 9510-0210
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 9510-0210
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-0210
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9510-0210
16 CLIP; HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0210
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 9510-0210
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9510-0210
16 CLIP; HARNESS
(D) ID=19 L=32 		9-09525-866-0 01 1 9510-0210
16 CLIP; HARNESS
POWER WINDOW<A30> (J) L=55 		8-94432-655-0 06 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> (K) L=175 		8-97110-167-0 04 1 9510-9603
16 CLIP; HARNESS
(K) L=175 		8-97110-167-0 02 1 9604-0210
16 CLIP; HARNESS
EXC. POWER WINDOW<A30> (K) L=175 		8-97110-167-0 02 1 9510-9603
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9510-0210
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9510-0210
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 05 1 9510-0210
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> (B) L=30 		1-09987-265-0 01 1 0102-0210
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 9510-0004
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0005-0210
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 9510-0004
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (C) ID=19 L=28 		9-09525-856-0 04 1 0005-0210
171 CLIP; STARTER HARNESS
A/T<X9D> (D) L=180 		1-09707-162-1 01 1 0005-0210
171 CLIP; STARTER HARNESS
A/T<X9D> (E) ID=19 H=33 L=45 		1-09701-045-0 01 1 0104-0210
171 CLIP; STARTER HARNESS
A/T<X9D> (F) ID=21 L=24 		8-94176-807-1 01 1 0104-0105
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 01 1 0104-0105
171 CLIP; STARTER HARNESS
A/T<X9D> (C) ID=19 L=28 		9-09525-856-0 03 1 0106-0210
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (B) OD=9 H=6 		1-09709-178-0 02 1 0005-0210
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9510-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9510-0210
462 CLIP; HARNESS,HTR
A/T<X9D> ID=20 		1-09709-068-0 02 1 0005-0010
462 CLIP; HARNESS,HTR
A/T<X9D> EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0011-0210

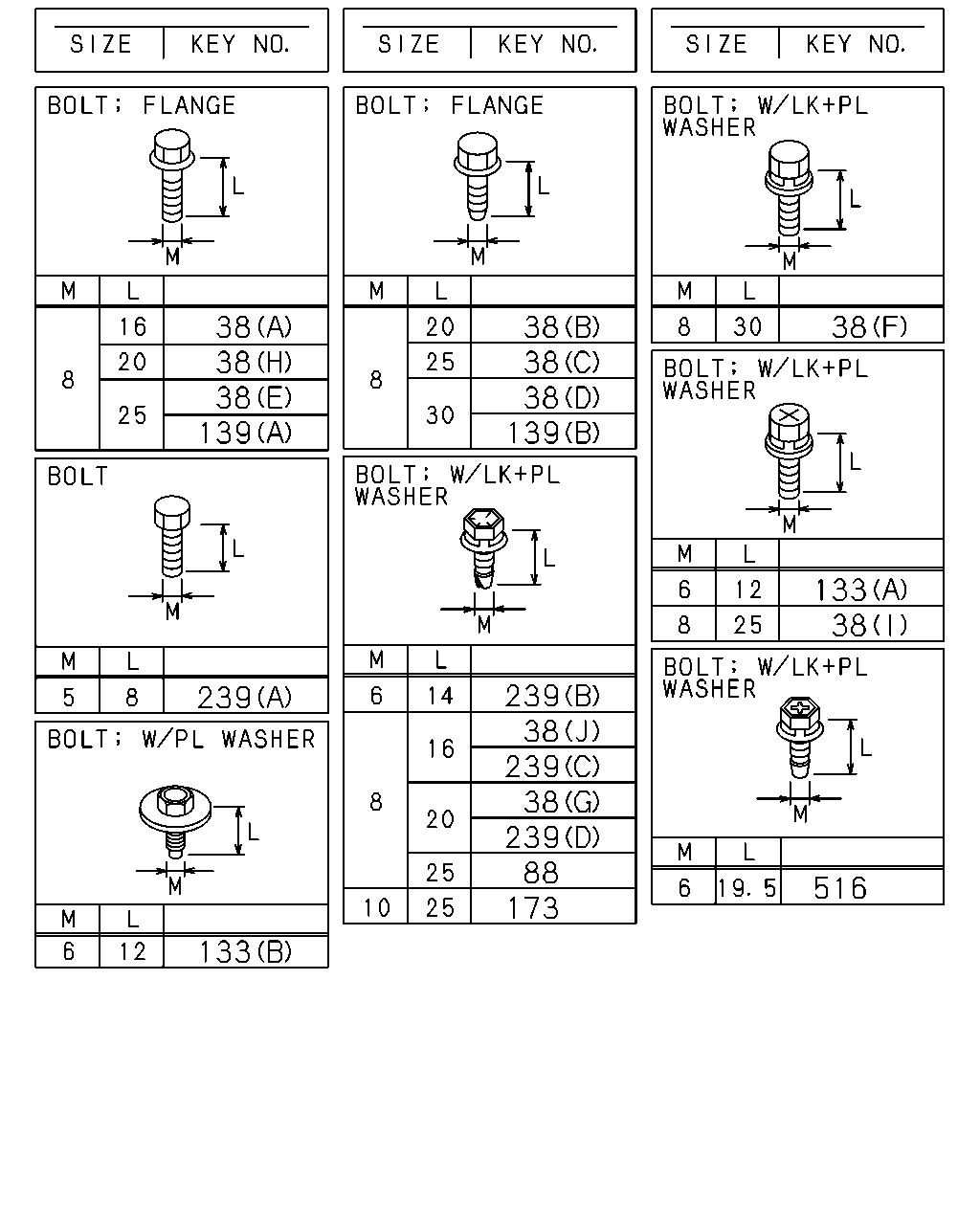

çizim 63940
38 38 38 139 38 38 38 139 38 133 38 239 38 239 38 239 88 173 239 516 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9510-0004
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0210
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28080-825-0 04 1 9510-9606
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9607-0210
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907
38 BOLT; CLIP,HARNESS
(J) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-9909
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-0210
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0210
38 BOLT; CLIP,HARNESS
(I) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9607-9702
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9703-0210
38 BOLT; CLIP,HARNESS
A/T<X9D> (A) M8X16 FLANGE 		0-28080-816-0 03 1 0104-0105
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9510-9603
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9510-9603
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9604-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9510-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0210
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9510-0210
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9510-0210
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9510-0004
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9510-0004
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0005-0210
239 BOLT; GRAND
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-0210
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-0210
çizim 64615
119 210 423 520 184 133 209 524 219 294
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9510-9603
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9510-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9908-0210
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9510-0210
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9908-0210
219 NUT
M8 		9-09110-408-0 02 1 9510-9606
219 NUT
M8 		9-09110-408-0 02 1 9607-9609
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 9610-9802
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 9803-0210
219 NUT
M8 		9-09110-408-0 04 1 9510-9606
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 9607-9609
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 9607-9609
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 9610-9802
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 9803-0210
219 NUT
A/T<X9D> M8 FLANGE 		0-91150-108-0 01 1 0104-0210
294 NUT
M8 		9-09110-408-0 02 1 9510-9606
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 9607-0210
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9908-9909
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9908-0210
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9510-0210
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
