Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#19692) — 202 parça

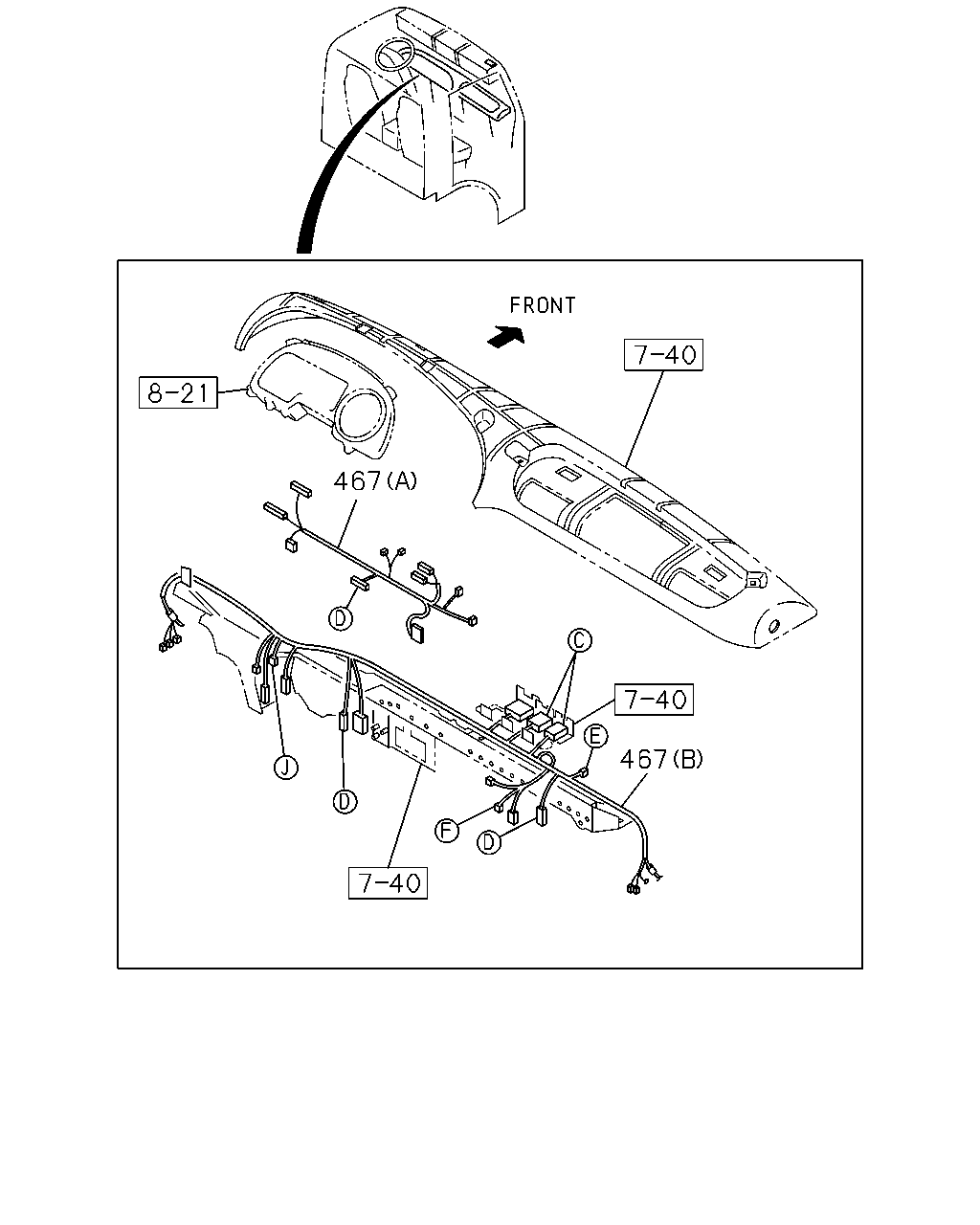

467 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-702-5	01	1	9510-9603
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> (B)	1-82629-277-2	01	1	0011-0210
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9510-9603
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82626-061-4	01	1	9604-0004
467	HARNESS; FACIA A/T<X9D> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82629-281-2	01	1	0005-0010
467	HARNESS; FACIA A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-281-2	01	1	0011-0210
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9510-9603
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82625-705-8	01	1	9604-0004
467	HARNESS; FACIA ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0005-0010
467	HARNESS; FACIA ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0011-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0010
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0011-0210
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9510-9603
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9604-0004
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0010
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0011-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82626-062-4	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> (B)	1-82629-275-2	01	1	0005-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82625-706-8	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> (B)	1-82629-282-2	01	1	0005-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-5	01	1	9510-9603
467	HARNESS; FACIA POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-703-5	01	1	9510-9603
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-5	01	1	9510-9603

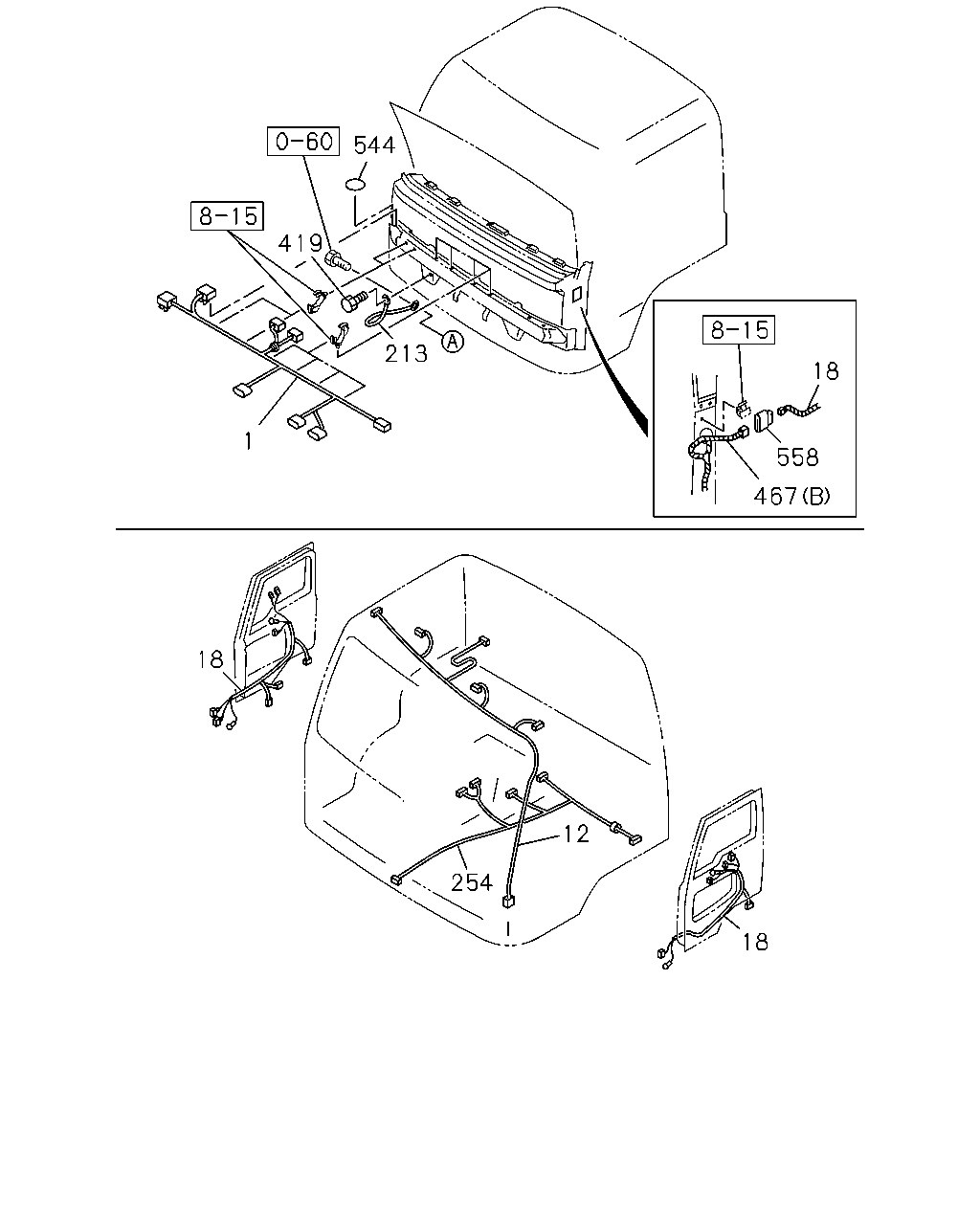

544 419 213 18 1 558 467 18 12 254 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-718-3	01	1	9510-9603
1	HARNESS; CAB EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-725-3	01	1	9510-9603
1	HARNESS; CAB	1-82625-725-3	01	1	9604-0004
1	HARNESS; CAB ISUZU M/T<X9A>	1-82625-725-3	01	1	0005-0010
1	HARNESS; CAB A/T<X9D> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ)	1-82625-725-3	01	1	0005-0010
1	HARNESS; CAB ISUZU M/T<X9A> EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82625-725-3	01	1	0011-0210
1	HARNESS; CAB A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82625-725-3	01	1	0011-0210
1	HARNESS; CAB HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D>	1-82625-718-3	01	1	0005-0010
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D>	1-82625-718-3	01	1	0011-0210
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A>	1-82625-718-3	01	1	0011-0210
12	HARNESS; ROOF HIGH ROOF<S2F>	1-82625-714-3	01	1	9510-9603
12	HARNESS; ROOF LOW ROOF<6XQ>	1-82625-713-2	01	1	9510-9603
12	HARNESS; ROOF	1-82625-713-3	01	1	9604-0210
18	HARNESS; DOOR POWER WINDOW<A30>	1-82625-720-0	01	1	9510-9603
18	HARNESS; DOOR POWER WINDOW<A30>	1-82625-722-0	01	1	9510-9603
18	HARNESS; DOOR EXC. POWER WINDOW<A30>	1-82625-719-2	02	1	9510-9603
18	HARNESS; DOOR	1-82625-719-2	02	1	9604-9610
18	HARNESS; DOOR	1-82626-785-0	02	1	9611-9904
18	HARNESS; DOOR	1-82628-581-0	02	1	9905-0210
213	CABLE; EARTH,CAB TO FRAME	1-82657-055-1	01	1	9510-0210
254	HARNESS; CAB FLOOR	1-82625-711-4	01	1	9510-0004
254	HARNESS; CAB FLOOR ISUZU M/T<X9A>	1-82629-307-2	01	1	0005-0210
254	HARNESS; CAB FLOOR A/T<X9D>	1-82629-308-2	01	1	0005-0210
419	BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-0210
419	BOLT; CAB EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9908-0004
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-702-5	01	1	9510-9603
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> (B)	1-82629-277-2	01	1	0011-0210
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9510-9603
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82626-061-4	01	1	9604-0004
467	HARNESS; FACIA A/T<X9D> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82629-281-2	01	1	0005-0010
467	HARNESS; FACIA A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-281-2	01	1	0011-0210
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9510-9603
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82625-705-8	01	1	9604-0004
467	HARNESS; FACIA ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0005-0010
467	HARNESS; FACIA ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0011-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0010
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0011-0210
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9510-9603
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9604-0004
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0010
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0011-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82626-062-4	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> (B)	1-82629-275-2	01	1	0005-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82625-706-8	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> (B)	1-82629-282-2	01	1	0005-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-5	01	1	9510-9603
467	HARNESS; FACIA POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-703-5	01	1	9510-9603
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-5	01	1	9510-9603
544	SEAL; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9510-9603
544	SEAL; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	01	1	9604-0010
544	SEAL; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0011-0210
558	CONNECTOR; HARNESS	1-82690-666-0	02	1	9510-0210

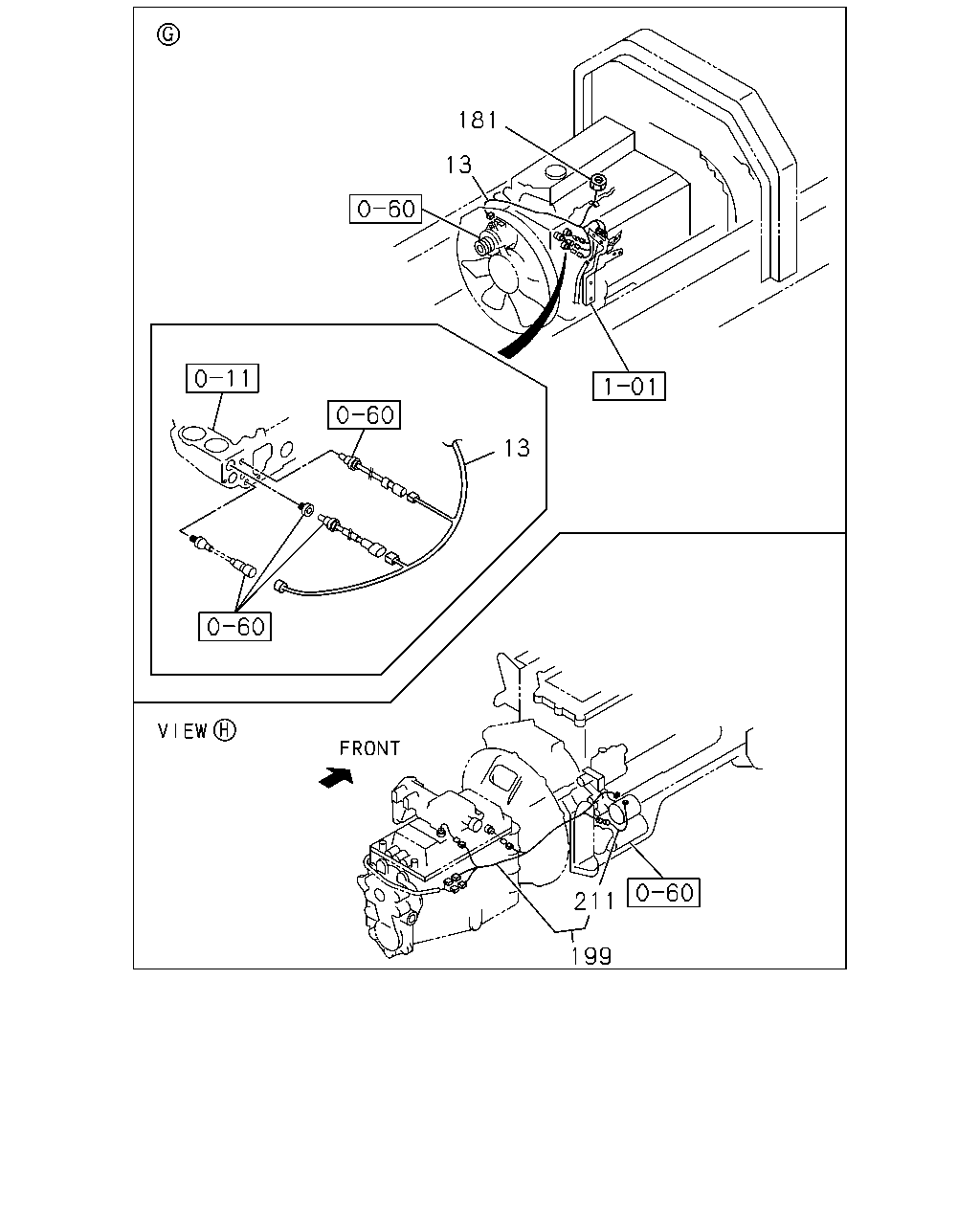

181 13 13 211 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG	1-82640-714-0	01	1	9510-0210
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	9510-9802
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	9803-0004
181	NUT; GLOW PLUG HARNESS M4 FLANGE	5-09440-007-0	01	1	0005-0210
199	HARNESS; STARTER	1-82640-667-1	01	1	9510-9711
199	HARNESS; STARTER	1-82640-966-0	01	1	9712-0004
199	HARNESS; STARTER MBJ5 M/T<Y9A>,MBJ6 M/T<Y9B>	1-82640-966-0	01	1	0005-0210
199	HARNESS; STARTER A/T<X9D>	1-82640-720-3	01	1	0104-0105
199	HARNESS; STARTER A/T<X9D>	1-82641-206-0	01	1	0106-0210
211	WIRE; FUSIBLE LINK,STARTER WHITE	1-82659-124-0	01	1	9510-0210

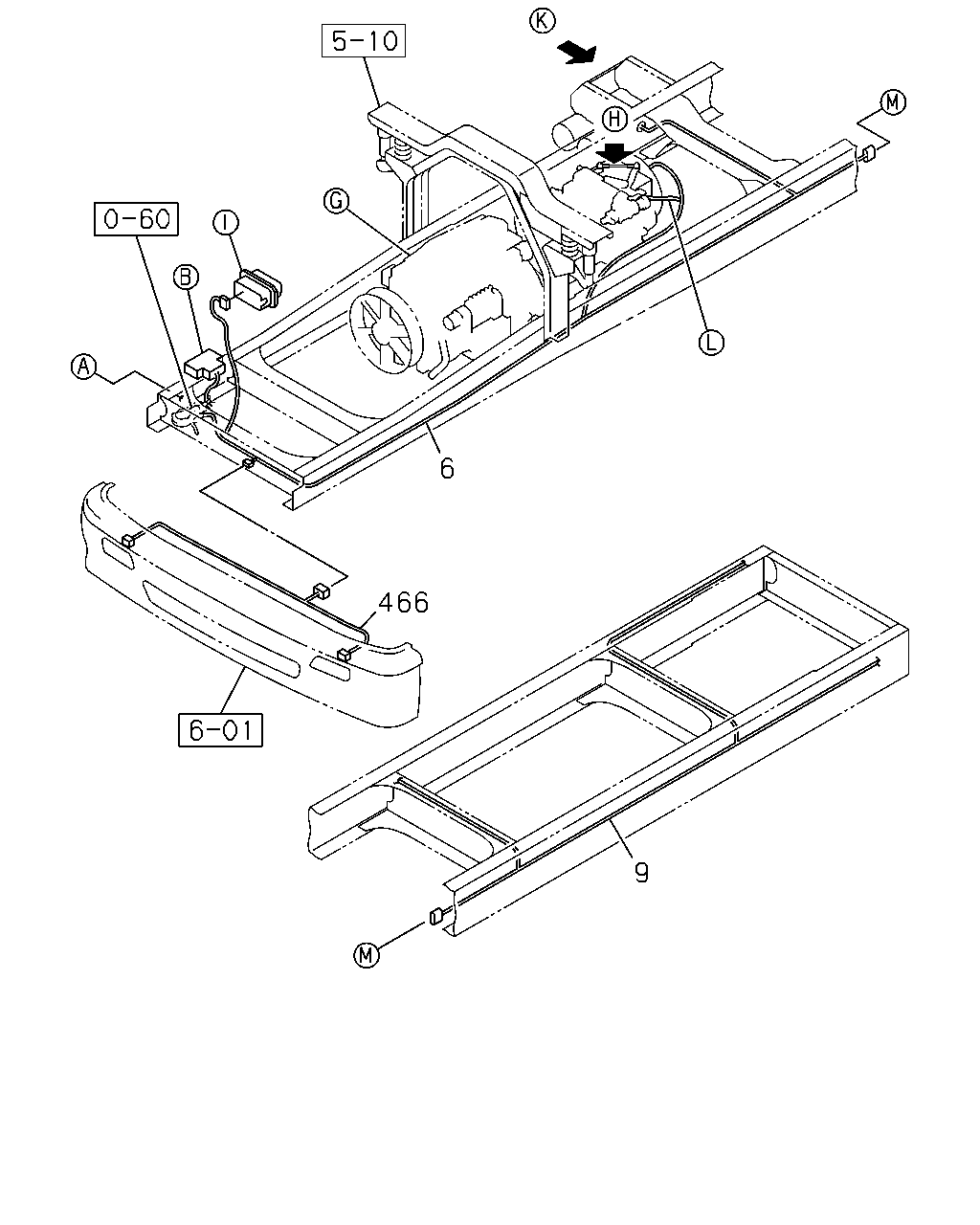

6 466 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME A/T<X9D>	1-82672-988-2	01	1	0005-0210
6	HARNESS; FRAME HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-018-2	01	1	9510-9802
6	HARNESS; FRAME	1-82639-018-2	01	1	9803-0004
6	HARNESS; FRAME ISUZU M/T<X9A>	1-82672-989-2	01	1	0005-0210
6	HARNESS; FRAME HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-017-2	01	1	9510-9603
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-023-0	01	1	9510-0210
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-028-2	01	1	9510-9802
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-486-0	01	1	9803-0210
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-024-0	01	1	9510-0210
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82670-487-0	01	1	9803-0210
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82639-025-0	01	1	9803-0210
466	HARNESS; BUMPER HEADLAMPS RECTANGULAR<TR4>	1-82638-996-0	01	1	9510-9705
466	HARNESS; BUMPER	1-82638-996-1	01	1	9706-0004
466	HARNESS; BUMPER	1-82638-758-1	01	1	0005-0210
466	HARNESS; BUMPER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82638-758-1	01	1	9510-9603

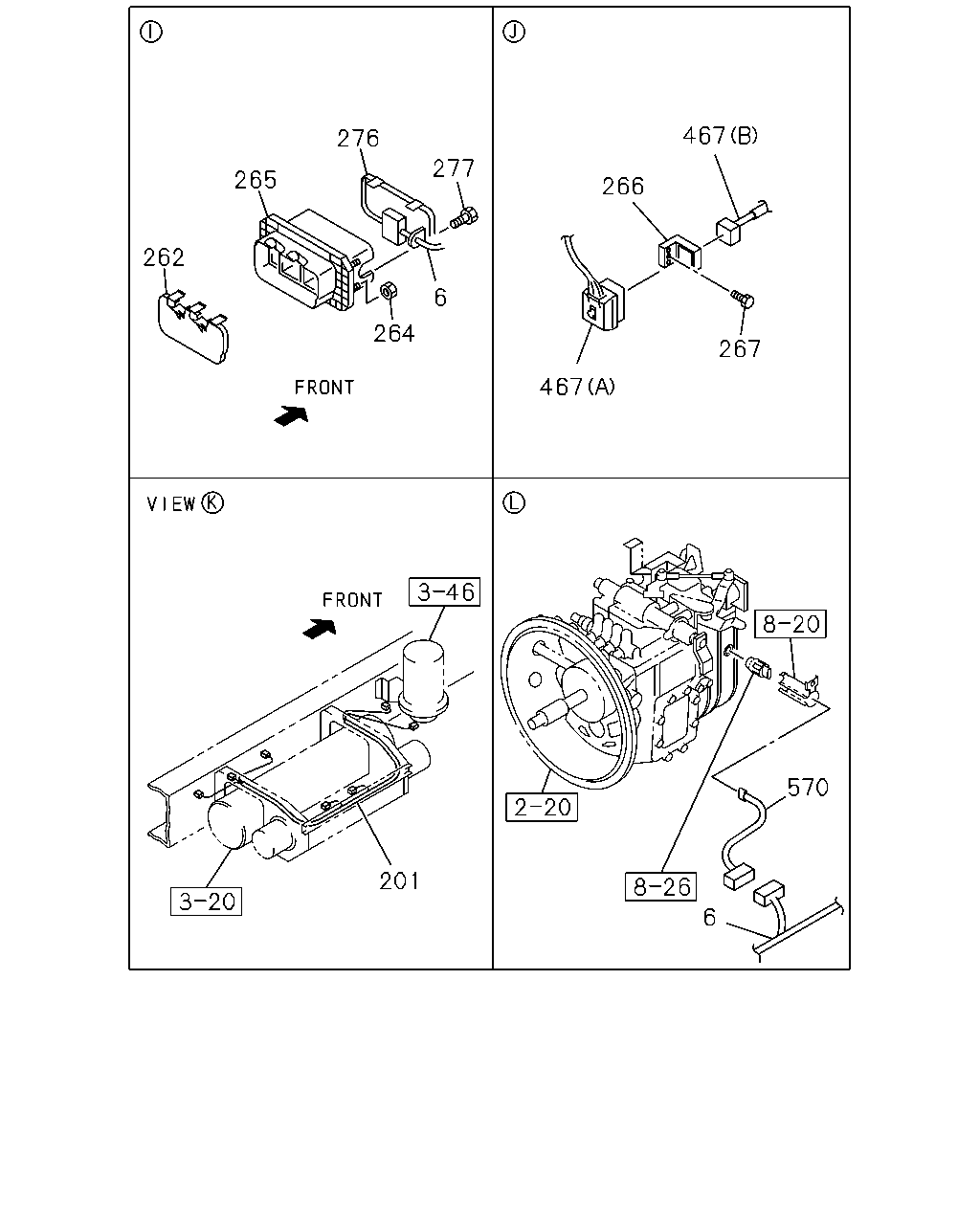

467 276 277 265 266 262 6 264 267 467 570 201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME A/T<X9D>	1-82672-988-2	01	1	0005-0210
6	HARNESS; FRAME HEADLAMPS RECTANGULAR<TR4>,AMBER HEADLAMPS<T75>	1-82639-018-2	01	1	9510-9802
6	HARNESS; FRAME	1-82639-018-2	01	1	9803-0004
6	HARNESS; FRAME ISUZU M/T<X9A>	1-82672-989-2	01	1	0005-0210
6	HARNESS; FRAME HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82639-017-2	01	1	9510-9603
201	HARNESS; AIR TANK	1-82638-997-0	01	1	9510-9802
201	HARNESS; AIR TANK EXC. DUAL AIR GAUGE<UG2>	1-82638-997-0	01	1	9803-0210
201	HARNESS; AIR TANK DUAL AIR GAUGE<UG2>	1-82670-502-0	01	1	9803-0210
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	9510-0210
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-0210
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	9510-0210
266	BRACKET; CONN BOX	1-82699-580-0	01	1	9510-0210
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	9510-0210
276	COVER; BOX,FRAME HARNESS	1-82699-558-3	01	1	9510-0210
277	BOLT; BOX ASM FIX M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	9510-0210
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-702-5	01	1	9510-9603
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> (B)	1-82629-277-2	01	1	0011-0210
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9510-9603
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82626-061-4	01	1	9604-0004
467	HARNESS; FACIA A/T<X9D> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82629-281-2	01	1	0005-0010
467	HARNESS; FACIA A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-281-2	01	1	0011-0210
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9510-9603
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82625-705-8	01	1	9604-0004
467	HARNESS; FACIA ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0005-0010
467	HARNESS; FACIA ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0011-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0010
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0011-0210
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9510-9603
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9604-0004
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0010
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0011-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82626-062-4	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> (B)	1-82629-275-2	01	1	0005-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82625-706-8	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> (B)	1-82629-282-2	01	1	0005-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-5	01	1	9510-9603
467	HARNESS; FACIA POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-703-5	01	1	9510-9603
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-5	01	1	9510-9603
570	HARNESS; SPEED SENSOR	1-82670-078-0	01	1	9803-0210

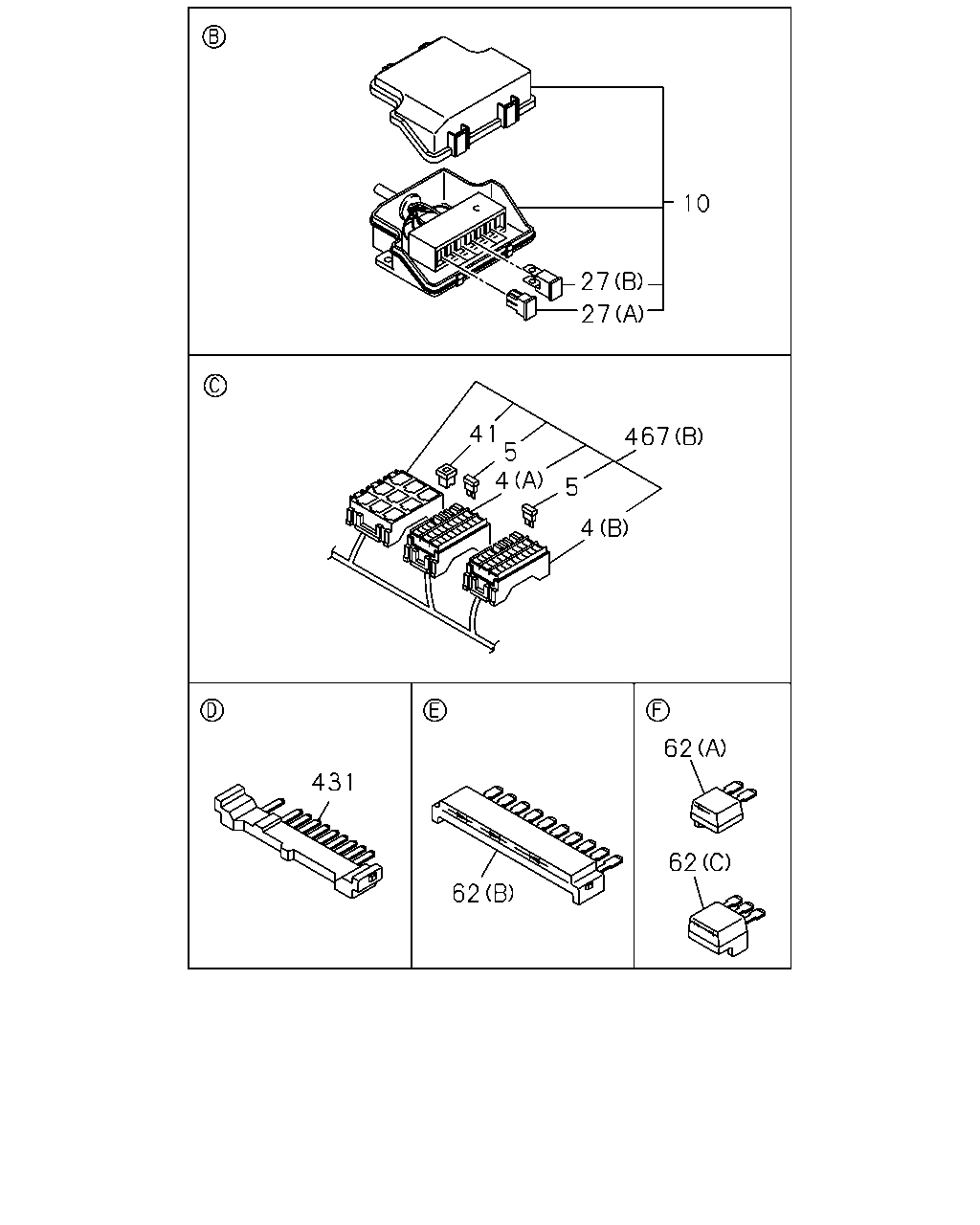

10 27 27 41 4 467 5 4 62 431 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS (A) 7.5AX13	1-82510-421-0	01	1	9510-9805
4	BOX ASM; FUSE,HARNESS (B) 15AX13	1-82510-475-0	01	1	9806-0207
4	BOX ASM; FUSE,HARNESS A/T<X9D> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 15AX13	1-82510-475-0	01	1	0208-0210
4	BOX ASM; FUSE,HARNESS (B) 15AX12	1-82510-432-0	01	1	9510-9805
4	BOX ASM; FUSE,HARNESS (A) 7.5AX14	1-82510-486-0	01	1	9806-0210
4	BOX ASM; FUSE,HARNESS ISUZU M/T<X9A> (B) 15AX14	1-82510-472-0	01	1	0208-0210
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	12	1	9510-9805
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	13	1	9806-0207
5	FUSE; FACIA HARNESS ISUZU M/T<X9A> 15A BLUE	5-82516-003-0	14	1	0208-0210
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	13	1	9510-9805
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	14	1	9806-0210
5	FUSE; FACIA HARNESS A/T<X9D> EXC. AIR CONDITIONER MANUAL CONTROL(C60) 15A BLUE	5-82516-003-0	13	1	0208-0210
10	BOX; FUSE,HARNESS	1-82510-409-0	01	1	9510-0210
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	03	1	9510-0210
27	FUSE UNIT (B) 60A YELLOW	8-94468-669-0	01	1	9510-0210
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	9510-0210
62	DIODE; HARNESS (B) BLACK 10P	1-82699-703-0	02	1	9510-0210
62	DIODE; HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	02	1	0005-0210
62	DIODE; HARNESS ISUZU M/T<X9A> (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0208-0210
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9510-9805
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	01	1	9510-9805
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9806-0004
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	9806-0004
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	0005-0210
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-702-5	01	1	9510-9603
467	HARNESS; FACIA AIR CONDITIONER MANUAL CONTROL(C60) ISUZU M/T<X9A> (B)	1-82629-277-2	01	1	0011-0210
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82626-061-2	01	1	9510-9603
467	HARNESS; FACIA AMBER HEADLAMPS<T75> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82626-061-4	01	1	9604-0004
467	HARNESS; FACIA A/T<X9D> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82629-281-2	01	1	0005-0010
467	HARNESS; FACIA A/T<X9D> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-281-2	01	1	0011-0210
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30>,HEATER & DEFROSTER(C41), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82625-705-6	01	1	9510-9603
467	HARNESS; FACIA HEADLAMPS RECTANGULAR<TR4> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82625-705-8	01	1	9604-0004
467	HARNESS; FACIA ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0005-0010
467	HARNESS; FACIA ISUZU M/T<X9A> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82629-273-2	01	1	0011-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-710-4	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0005-0010
467	HARNESS; FACIA HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-296-1	01	1	0011-0210
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9510-9603
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A)	1-82625-709-4	01	1	9604-0004
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0005-0010
467	HARNESS; FACIA EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-82629-295-1	01	1	0011-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> EXC. POWER WINDOW<A30> (B)	1-82626-062-2	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) AMBER HEADLAMPS<T75> (B)	1-82626-062-4	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ISUZU M/T<X9A> (B)	1-82629-275-2	01	1	0005-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> EXC. POWER WINDOW<A30> (B)	1-82625-706-6	01	1	9510-9603
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS RECTANGULAR<TR4> (B)	1-82625-706-8	01	1	9604-0004
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) A/T<X9D> (B)	1-82629-282-2	01	1	0005-0210
467	HARNESS; FACIA HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. POWER WINDOW<A30> (B)	1-82625-700-5	01	1	9510-9603
467	HARNESS; FACIA POWER WINDOW<A30> AIR CONDITIONER MANUAL CONTROL(C60) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-703-5	01	1	9510-9603
467	HARNESS; FACIA POWER WINDOW<A30> HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82625-701-5	01	1	9510-9603

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
