3-26 — TRAILER CONTROL (#19689) — 35 parça

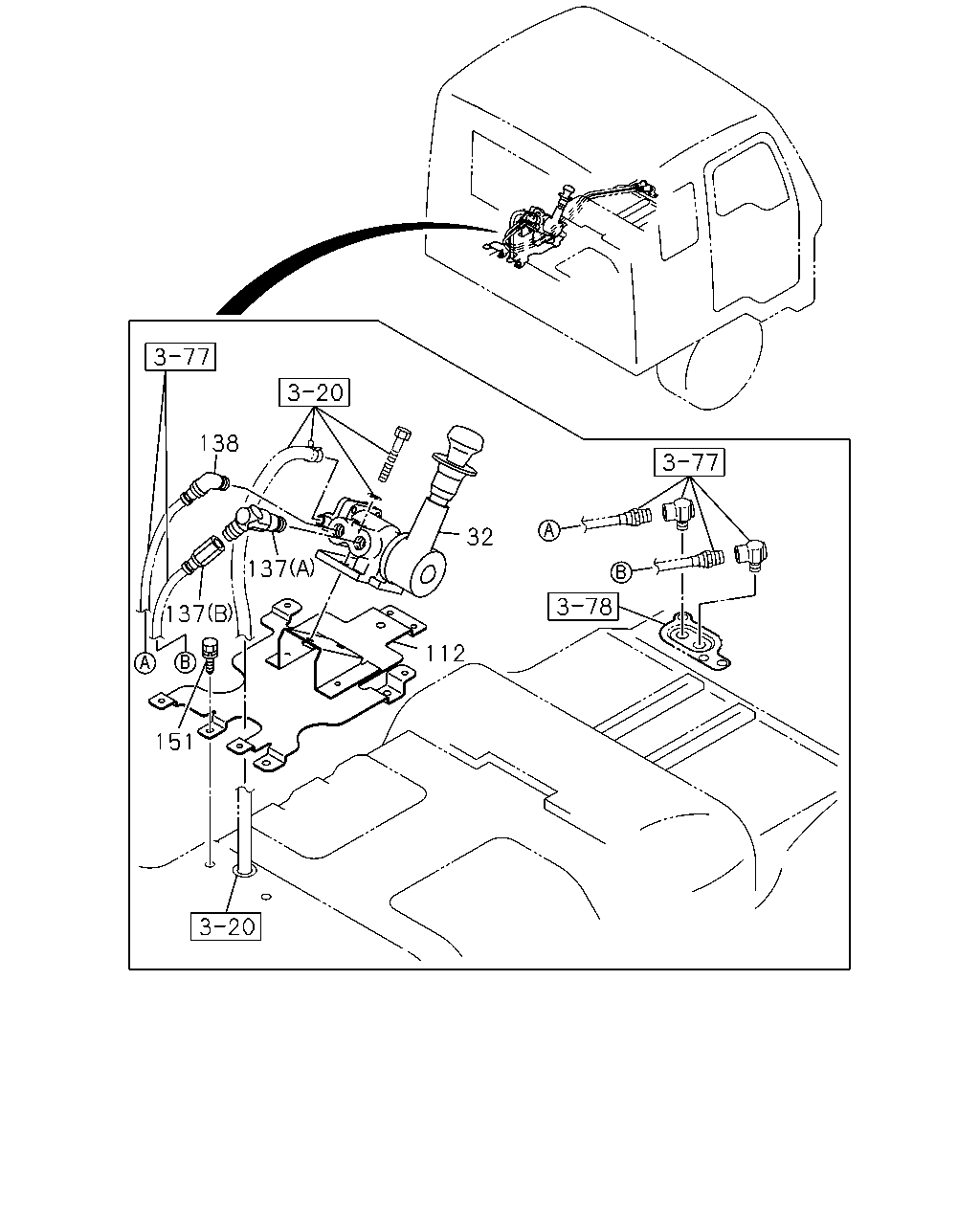

138 32 137 137 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	9510-
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73908-072-4	01	1	9510-0710
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98098-703-0	01	1	0711-
137	CONNECTOR; SUPPLY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	9510-
137	CONNECTOR; SUPPLY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9510-9811
137	CONNECTOR; SUPPLY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9812-0007
137	CONNECTOR; SUPPLY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9510-9811
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9812-
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9510-

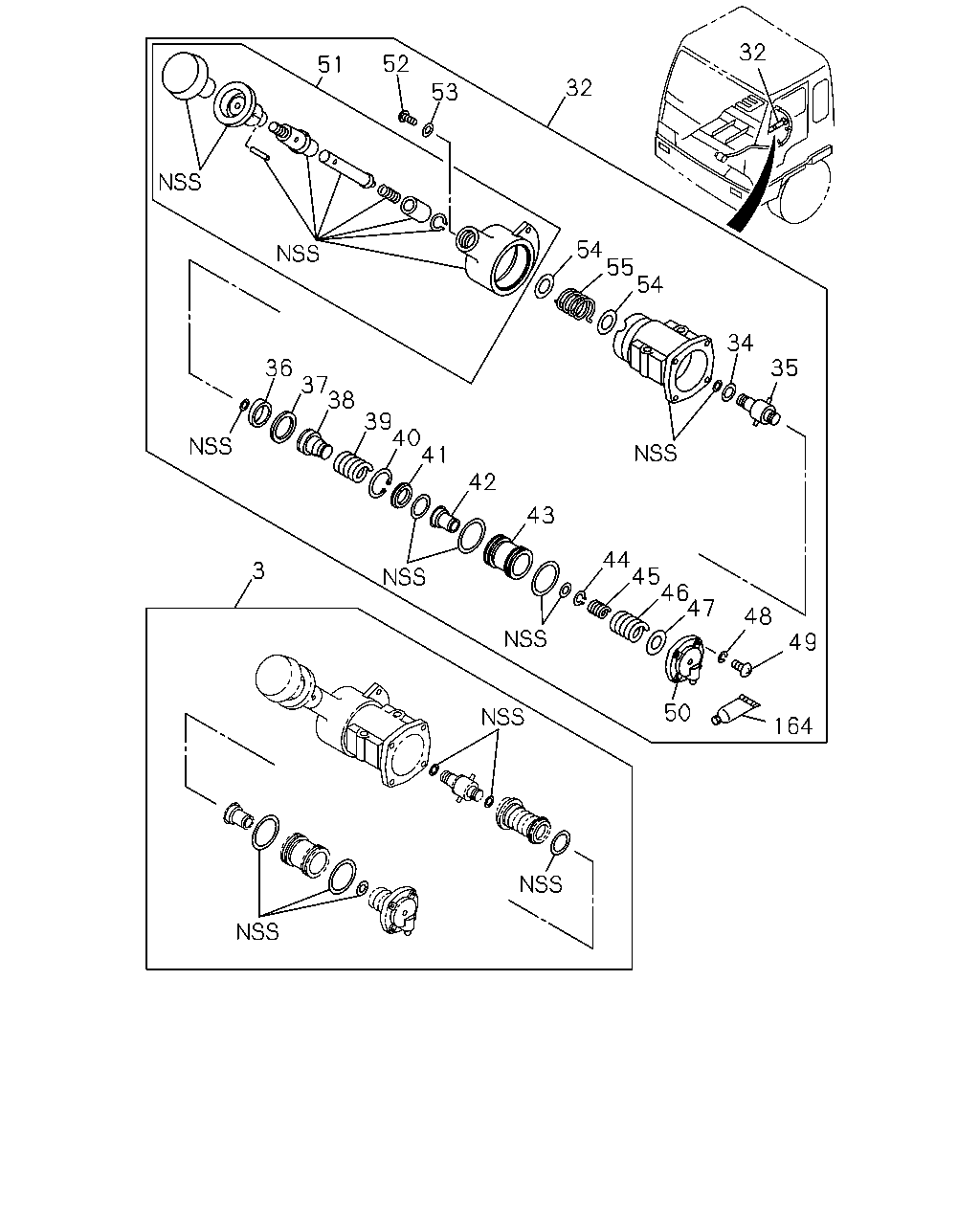

32 52 51 32 53 54 55 54 34 35 36 37 38 39 40 41 42 43 44 45 46 47 3 48 49 50 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-096-0	01	1	9510-
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	9510-
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	9510-
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	9510-
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	9510-
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	9510-
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	9510-
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	9510-
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	9510-
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	9510-
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	9510-
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	9510-
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	9510-
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	9510-
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	9510-
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	9510-
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	9510-
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	9510-
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	9510-
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	9510-
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	9510-
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	9510-
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	9510-
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	9510-
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	9510-
