◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#19688) — 88 parça
çizim 16943
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-466-0 01 1 9510-9910
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 9911-

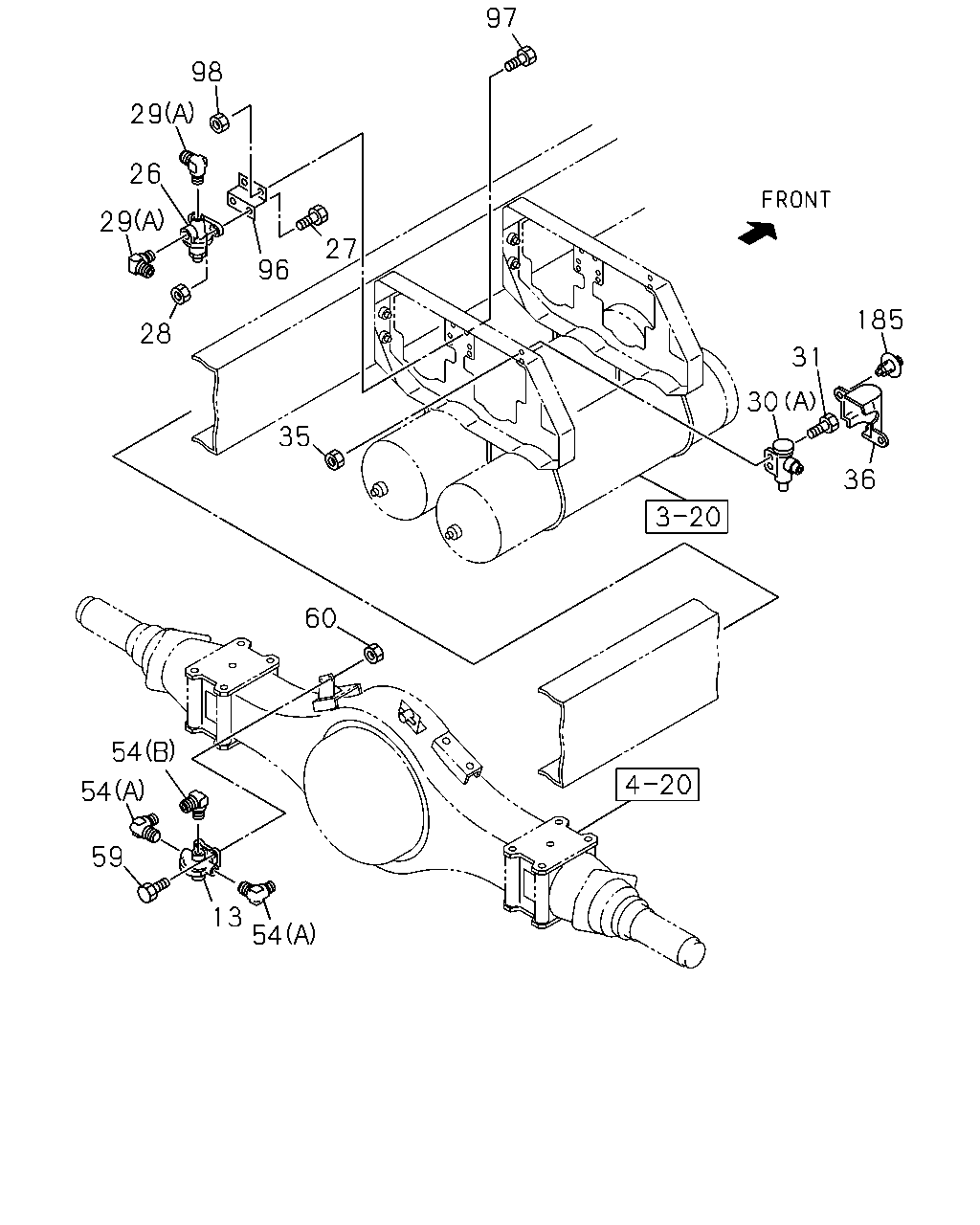

çizim 65183
97 98 29 26 29 27 96 185 28 31 30 35 36 60 54 54 59 13 54
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-320-0 01 1 9510-0109
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-659-0 01 1 0110-
26 VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48110-006-1 01 1 9510-
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9510-9510
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE 		0-28680-830-0 04 1 9803-0512
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9510-9606
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 02 1 9607-9802
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 04 1 9803-0602
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 0603-
29 CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 9510-9802
29 CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 9803-
30 GOVERNOR; AIR CONT
(A) 		1-48350-059-0 01 1 9510-9910
30 GOVERNOR; AIR CONT
(B) 		1-48350-063-2 01 1 9911-
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9702
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9703-9802
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 9803-0004
31 BOLT; GOV TO FRAME
M8X35 FLANGE 		0-28680-835-0 02 1 0005-0512
31 BOLT; GOV TO FRAME
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
35 NUT; GOV TO FRAME
M8 		9-09110-408-0 02 1 9510-9609
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 9610-0602
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
36 COVER; GOV 1-48359-077-1 01 1 9510-9510
36 COVER; GOV 1-48359-081-0 01 1 9510-9802
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 9510-
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9510-
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9510-0906
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50540-820-0 02 1 0907-
60 NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9510-0512
60 NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 02 1 0601-
96 BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48495-053-1 01 1 9510-9802
96 BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48495-201-0 01 1 9803-0001
96 BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48495-224-0 01 1 0002-
97 BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
97 BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
97 BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
98 NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9510-9606
98 NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
98 NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0603-
185 FASTENER; COVER 1-09470-006-0 02 1 9510-9802

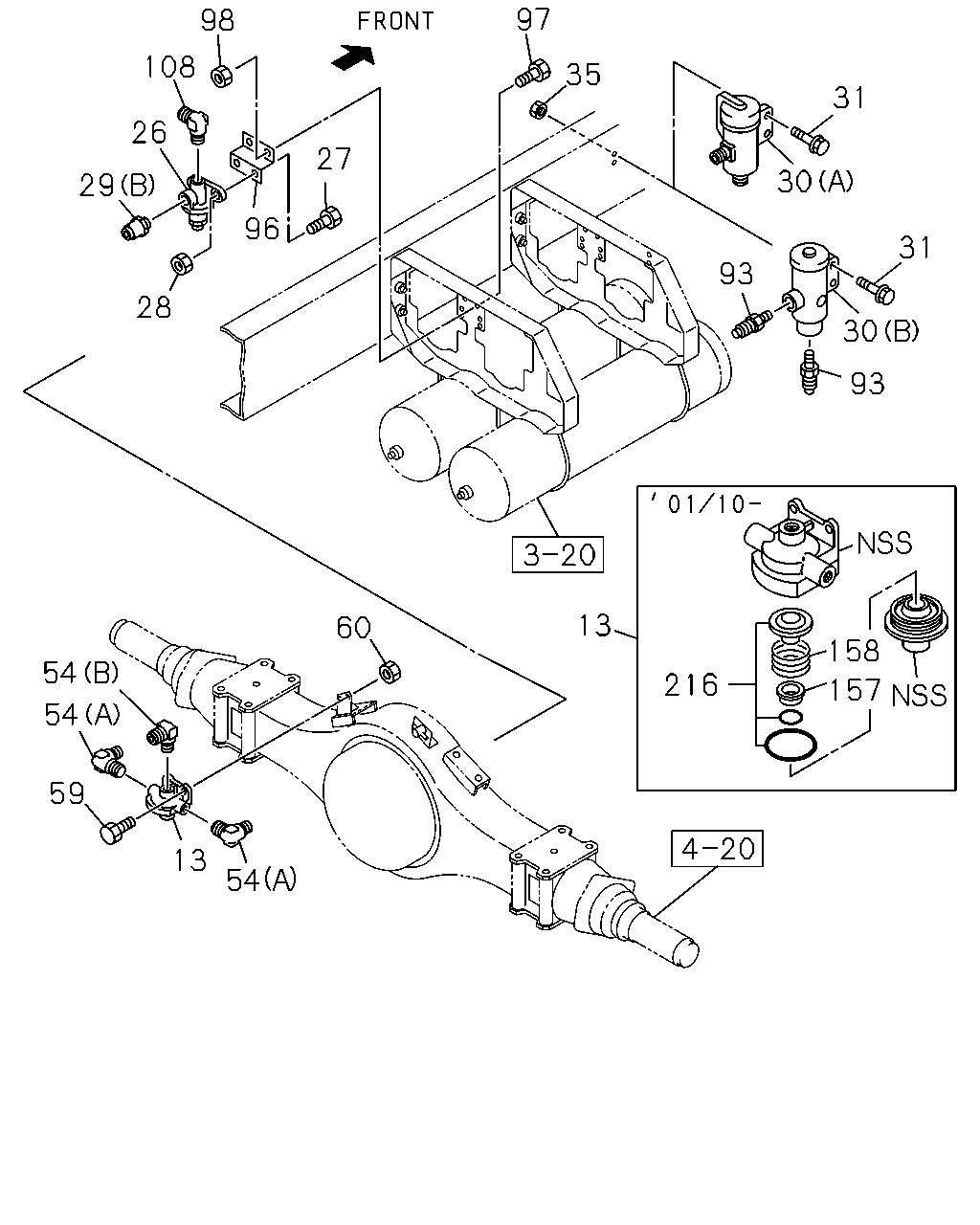

çizim 65330
97 98 108 35 31 26 27 30 29 96 31 93 28 30 93 13 60 158 54 216 157 54 59 13 54
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-320-0 01 1 9510-0109
13 VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48410-659-0 01 1 0110-
26 VALVE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48110-006-1 01 1 9510-
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9510-9510
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE 		0-28680-830-0 04 1 9803-0512
27 BOLT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9510-9606
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 02 1 9607-9802
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 04 1 9803-0602
28 NUT; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 0603-
29 CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 9510-9802
29 CONNECTOR; AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 9803-
30 GOVERNOR; AIR CONT
(A) 		1-48350-059-0 01 1 9510-9910
30 GOVERNOR; AIR CONT
(B) 		1-48350-063-2 01 1 9911-
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9702
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9703-9802
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 9803-0004
31 BOLT; GOV TO FRAME
M8X35 FLANGE 		0-28680-835-0 02 1 0005-0512
31 BOLT; GOV TO FRAME
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
35 NUT; GOV TO FRAME
M8 		9-09110-408-0 02 1 9510-9609
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 9610-0602
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 9510-
54 CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 9510-
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9510-0906
59 BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER 		0-50540-820-0 02 1 0907-
60 NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9510-0512
60 NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		0-91110-508-0 02 1 0601-
93 CONNECTOR; GOV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 9911-
96 BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48495-053-1 01 1 9510-9802
96 BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48495-201-0 01 1 9803-0001
96 BRACKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48495-224-0 01 1 0002-
97 BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
97 BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
97 BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
98 NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9510-9606
98 NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
98 NUT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0603-
108 CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 9803-
157 RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48419-020-0 01 1 0110-
158 SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		9-48419-003-0 01 1 0110-
216 REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85576-235-0 01 1 0110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
