Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#19687) — 217 parça

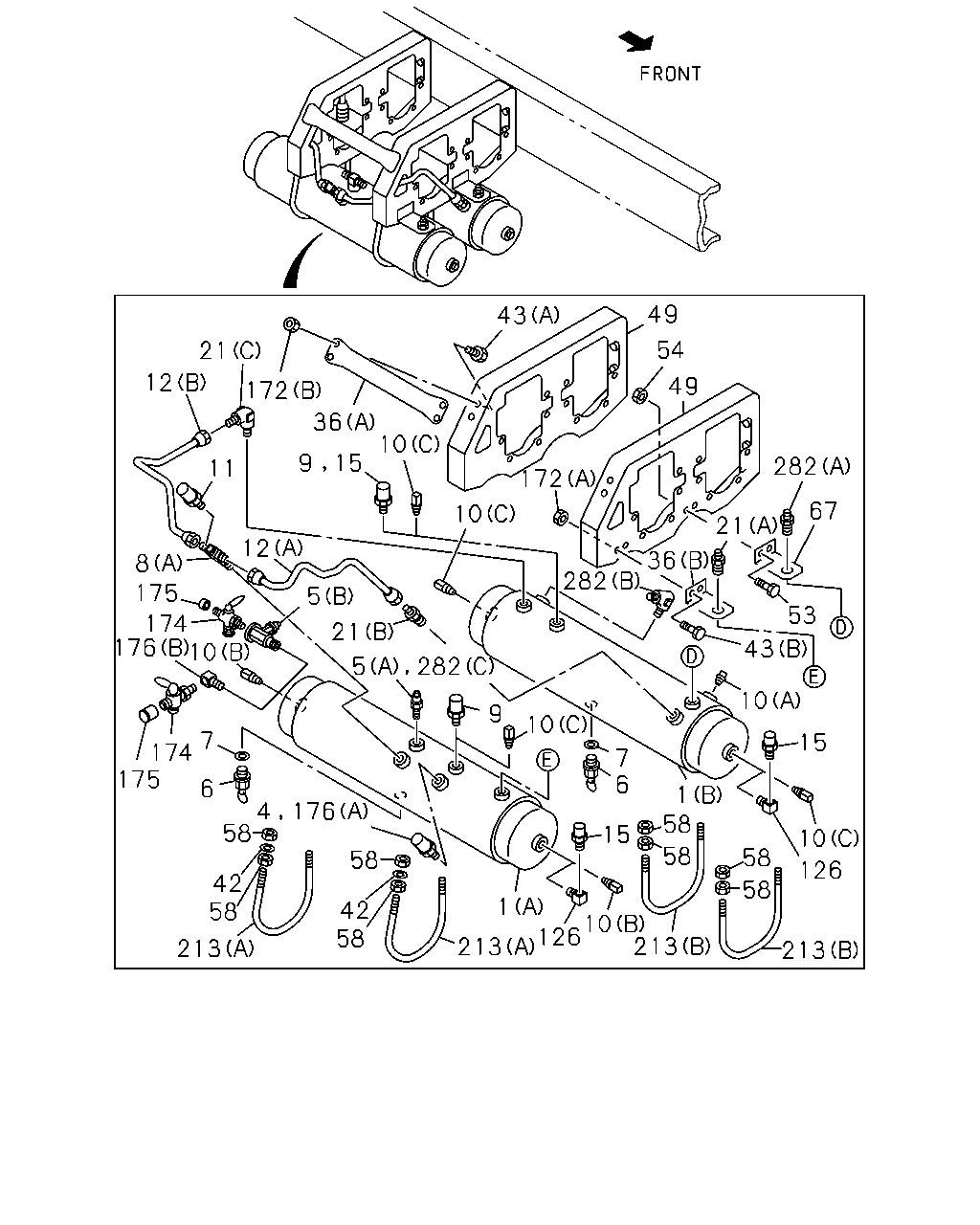

49 43 54 21 12 49 172 36 10 172 9 15 282 11 67 10 36 282 21 8 175 12 5 53 174 176 10 21 43 5 10 10 9 7 174 175 15 7 6 6 1 58 176 4 58 15 10 58 58 58 126 42 58 58 1 10 126 213 42 58 213 213 213 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9510-9802
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	9803-
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9510-9802
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	9803-0212
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0301-
4	CONNECTOR; FLARE	1-09650-283-1	01	1	9510-9802
4	CONNECTOR; FLARE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4>	1-09650-283-1	01	1	9803-
4	CONNECTOR; FLARE EXC. TIRE INFLATOR DEVICE<SG4>	1-09650-283-1	01	1	9803-
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9510-9802
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	9803-0212
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9510-9802
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9803-0212
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0301-
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9802
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	04	1	9510-9510
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9510-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9609-
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	9510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9510-9802
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	01	1	9510-9802
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	9803-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9803-
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	9803-0212
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	05	1	0301-
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	05	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4	9-99204-513-0	02	1	9803-0212
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	02	1	0301-
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	9803-0212
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	9803-0212
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4	9-99204-513-0	04	1	0301-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	06	1	9510-9802
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4	9-99204-513-0	03	1	9803-0212
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	03	1	0301-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9510-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9510-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9510-
15	SWITCH; LOW PRESS,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	02	1	9803-
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	9803-
21	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9803-
21	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9803-
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	9803-
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	9803-
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9510-0605
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28080-820-0	04	1	9510-9702
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9802
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	02	1	9803-0512
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN (A) M10X20 FLANGE	0-28081-020-0	04	1	9510-9702
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0512
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
49	BRACKET; AIR TANK	1-53318-338-6	02	1	9803-
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28680-820-0	02	1	9803-0512
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	02	1	0601-
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	9803-0602
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0603-
58	NUT; BAND,AIR TANK M8	9-09110-408-0	16	1	9803-0512
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0601-
67	STAY; SUB TANK	1-48317-349-0	01	1	9510-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09660-363-0	01	1	9803-9806
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/4 2WAY	1-09660-693-0	01	1	9807-0212
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> PT1/4 2WAY	1-09660-693-0	02	1	0301-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 2WAY	1-09660-693-0	01	1	0301-
172	NUT; STAY,AIR TANK,MAIN (A) M8	9-09110-408-0	04	1	9510-9702
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9703-9802
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	9803-0602
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-
172	NUT; STAY,AIR TANK,MAIN (B) M10	9-09110-510-0	04	1	9510-9702
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9703-0602
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9510-0010
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9510-
176	ADAPTER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09650-283-1	01	1	9803-
176	ADAPTER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0212
176	ADAPTER TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 2WAY	1-09660-693-0	01	1	0301-
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	9803-
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	9803-
282	UNION; 2 WAY (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9803-
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0212
282	UNION; 2 WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0212
282	UNION; 2 WAY (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0301-
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9803-0212
282	UNION; 2 WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0301-
282	UNION; 2 WAY EXC. TIRE INFLATOR DEVICE<SG4> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9803-0212
282	UNION; 2 WAY EXC. TIRE INFLATOR DEVICE<SG4> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0301-

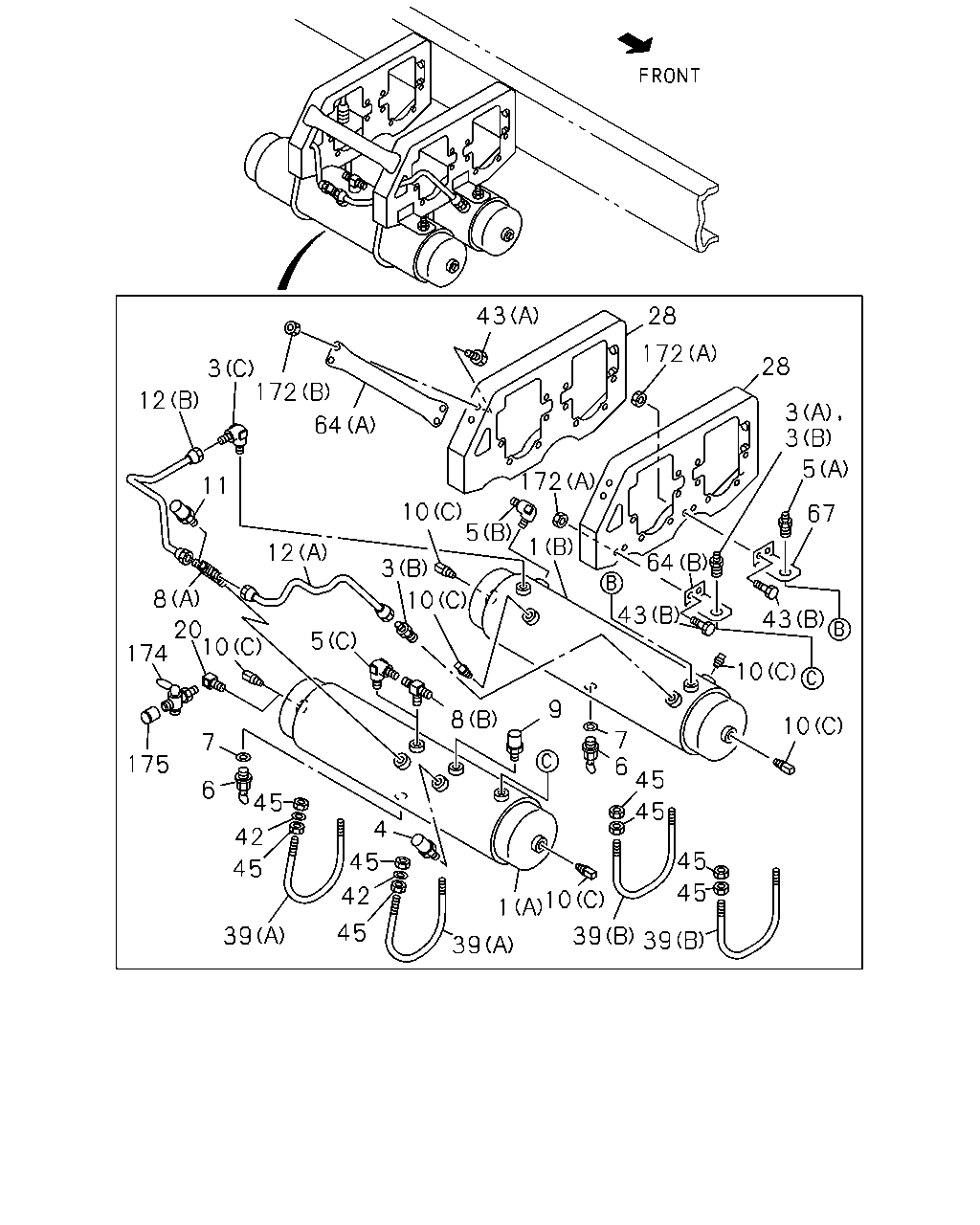

43 28 172 28 3 172 12 3 3 64 172 5 11 10 5 67 64 1 12 3 43 8 10 43 20 10 174 5 10 9 8 10 7 6 45 7 175 6 45 45 4 42 45 45 45 45 42 10 1 45 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	9510-9802
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	9803-
1	TANK ASM; AIR (B)	1-48370-299-0	01	1	9510-9802
1	TANK ASM; AIR (A)	1-48370-513-0	01	1	9803-0212
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0301-
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-2	01	1	9510-9606
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-9802
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	9510-9802
3	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	9510-9802
4	CONNECTOR; FLARE	1-09650-283-1	01	1	9510-9802
4	CONNECTOR; FLARE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4>	1-09650-283-1	01	1	9803-
4	CONNECTOR; FLARE EXC. TIRE INFLATOR DEVICE<SG4>	1-09650-283-1	01	1	9803-
5	UNION; AIR TANK (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9510-9802
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	9803-0212
5	UNION; AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9510-9802
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9803-0212
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0301-
5	UNION; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9510-9802
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	04	1	9510-9510
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9510-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9609-
8	CONNECTOR; AIR TANK (A)	1-09656-699-0	01	1	9510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9510-9802
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-0	01	1	9510-9802
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-1	01	1	9803-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9803-
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	9803-0212
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	05	1	0301-
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	05	1	9510-9802
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4	9-99204-513-0	02	1	9803-0212
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	02	1	0301-
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	9803-0212
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	01	1	9803-0212
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4	9-99204-513-0	04	1	0301-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	06	1	9510-9802
10	PLUG; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4	9-99204-513-0	03	1	9803-0212
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	03	1	0301-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9510-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	9510-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	9510-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<SG4> PT1/4 2WAY	1-09660-693-0	01	1	9510-9802
28	BRACKET; AIR TANK	1-53318-338-5	02	1	9510-9802
39	U-BOLT; AIR TANK (A) L=97.5	1-48317-323-1	02	1	9510-9802
39	U-BOLT; AIR TANK (B) L=195	1-48317-367-2	02	1	9510-9802
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	9510-0605
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28080-820-0	04	1	9510-9702
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	04	1	9703-9802
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	02	1	9803-0512
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN (A) M10X20 FLANGE	0-28081-020-0	04	1	9510-9702
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	9703-0512
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	16	1	9510-9802
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	9510-9802
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	9510-9802
67	STAY; SUB TANK	1-48317-349-0	01	1	9510-
172	NUT; STAY,AIR TANK,MAIN (A) M8	9-09110-408-0	04	1	9510-9702
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	04	1	9703-9802
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	9803-0602
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-
172	NUT; STAY,AIR TANK,MAIN (B) M10	9-09110-510-0	04	1	9510-9702
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	9703-0602
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9510-0010
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0011-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9510-

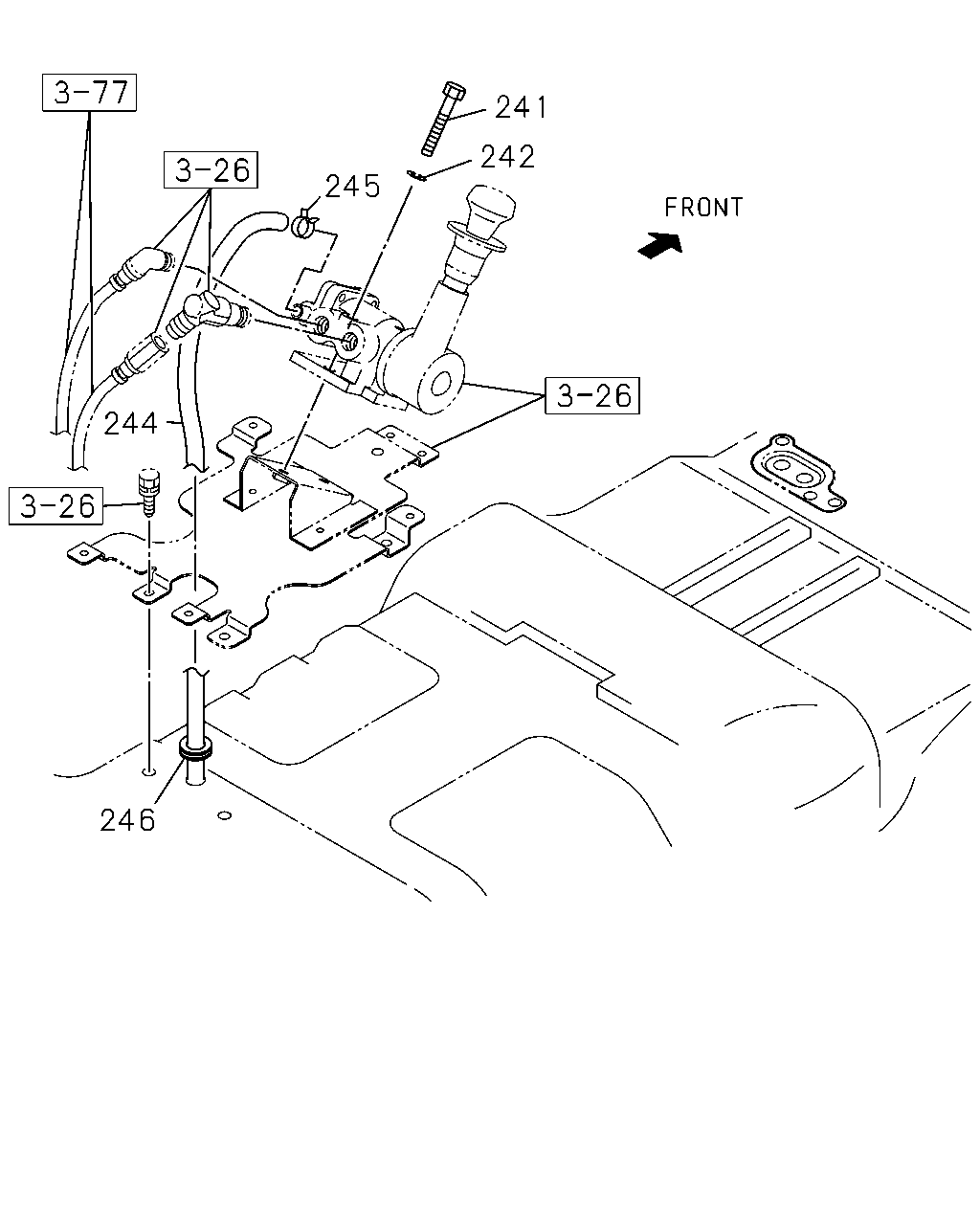

241 242 245 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9510-9704
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	9705-0512
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9510-9704
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9510-0110
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0111-
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	9510-
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9510-
246	GROMMET; VINYL PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35	8-94122-971-0	01	1	9510-

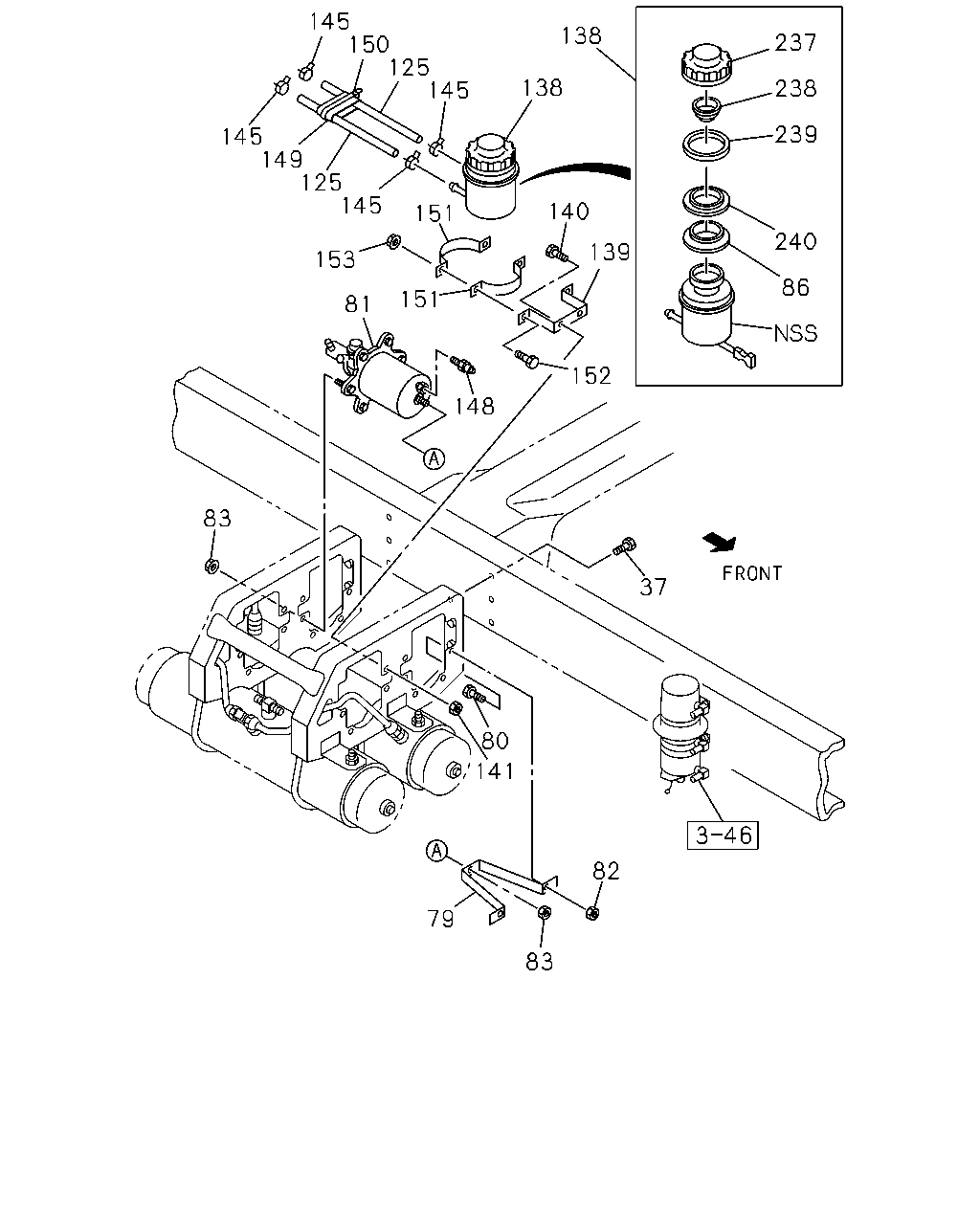

145 150 125 145 138 237 138 238 239 145 149 125 145 140 151 240 139 153 86 151 81 152 148 83 37 80 141 82 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X45	1-09030-052-1	06	1	9510-9601
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	9602-0512
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-
79	STAY; AIR MASTER TO BRKT H=203	1-53318-217-0	02	1	9510-9802
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	9803-0805
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	0806-
80	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	04	1	9510-9606
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9607-0512
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-604-0	01	1	9510-9802
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-605-0	01	1	9510-9802
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-663-1	01	1	9803-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SECONDARY	1-47800-468-1	01	1	9510-9802
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-664-2	01	1	9803-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PRIMARY	1-47800-469-1	01	1	9510-9802
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-110-0	04	1	9510-9606
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9607-0602
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
83	NUT; AIR MASTER M10 FLANGE	0-91150-110-0	10	1	9510-9606
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	9607-0602
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-
86	SEAL; DUST	1-47529-019-0	01	1	9510-
125	HOSE; OIL TANK TO AIR MASTER L=325 SERVICED BY L=1800	1-09360-320-0	02	1	9510-9802
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	9803-
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	9510-0011
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	9510-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9510-9606
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	02	1	9607-9903
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	9904-0512
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9510-9606
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	9607-0602
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9510-
148	CONNECTOR; AIR MASTER DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9803-
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9510-
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	9510-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9510-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9510-9606
152	BOLT; OIL TANK TO BAND M8X25 FLANGE	0-28680-825-0	02	1	9607-9712
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	9801-0512
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9510-0602
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-
237	CAP; OIL TANK	1-47525-024-0	01	1	9510-0011
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-
238	PLATE; BAFFLE	1-47529-022-0	01	1	9510-
239	FILTER; DUST	1-47529-017-0	01	1	9510-
240	HOLDER; FILTER	1-47529-018-0	01	1	9510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
