3-05 — REAR WHEEL BRAKE (#19683) — 199 parça

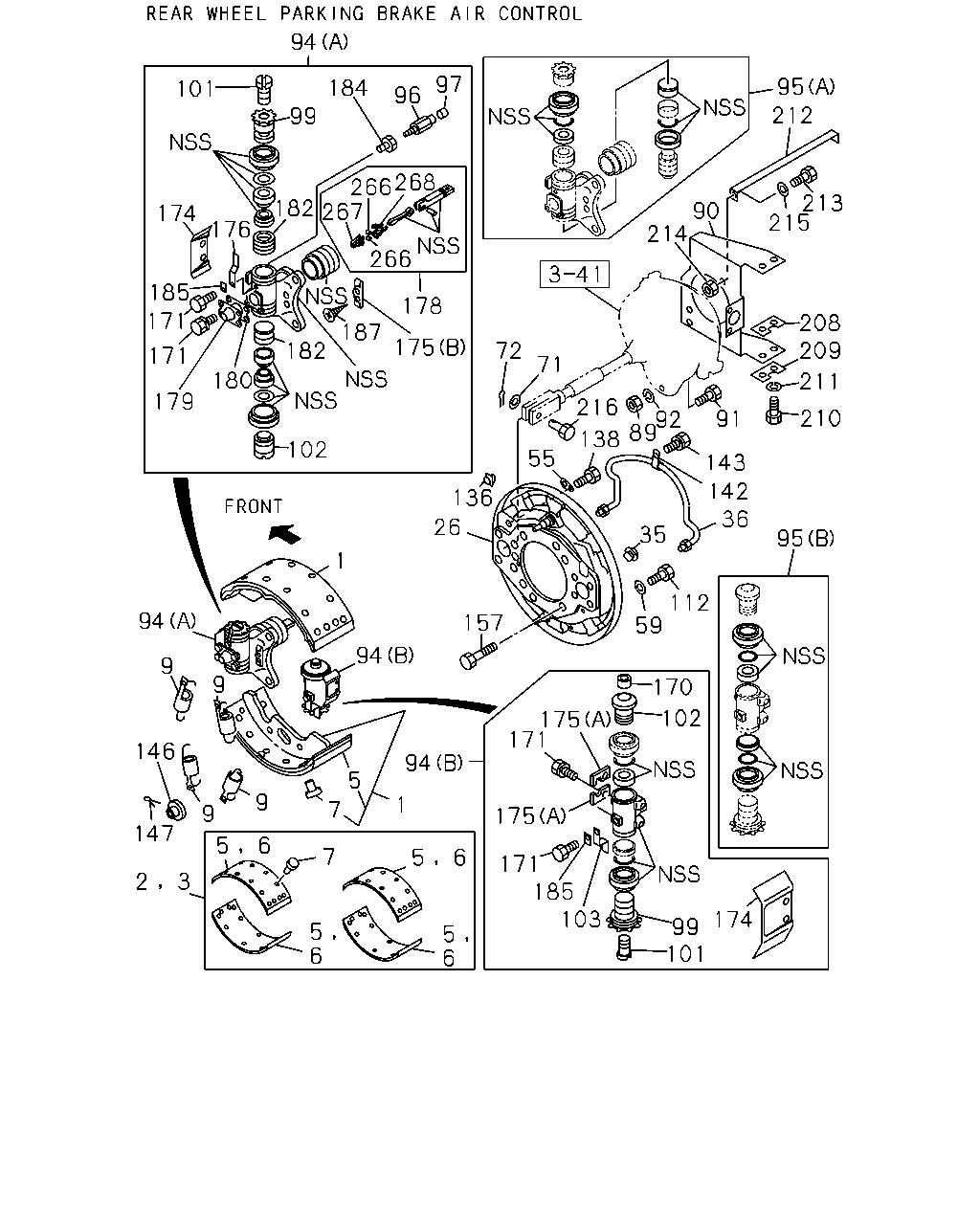

94 97 95 212 184 101 96 99 268 266 182 267 176 213 215 90 214 174 266 185 178 171 208 209 187 175 72 182 171 71 180 211 179 216 210 91 92 89 138 102 55 143 142 36 136 26 35 95 1 112 94 157 59 94 9 9 170 102 175 171 146 94 5 9 1 7 9 175 147 5 6 7 5 6 171 3 2 185 103 174 99 101 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR	1-47110-982-0	04	1	9510-9802
1	SHOE; BRK,RR	1-47120-629-0	04	1	9803-
2	LINING SET; RR BRK,STANDARD	1-88302-999-0	01	1	9510-9802
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	9803-
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-130-0	01	1	9803-
3	LINING SET; RR BRK,OVER SIZE	1-88310-042-0	01	1	9510-9802
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	9803-
5	LINING; RR BRK SHOE,STANDARD	1-47115-941-0	04	1	9510-9802
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	9803-
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-942-0	04	1	9510-9802
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	9803-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9510-
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9510-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-446-0	01	1	9510-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-447-0	01	1	9510-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-442-0	01	1	9510-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-443-0	01	1	9510-
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9510-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-138-0	01	1	9510-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-139-0	01	1	9510-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47416-356-0	02	1	9510-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	9510-
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-068-0	04	1	9510-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-614-0	12	1	9510-0603
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	12	1	0604-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-614-0	16	1	9510-0603
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	16	1	0604-
71	WASHER; PL,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.5 OD=18	9-09160-510-0	02	1	9510-0605
71	WASHER; PL,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.5	0-91610-510-0	02	1	0606-
72	PIN; SPLIT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=2.8 L=18	9-08113-018-0	02	1	9510-0606
72	PIN; SPLIT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=2.8 L=18	0-81123-018-0	02	1	0607-
89	NUT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99110-512-0	04	1	9510-0512
89	NUT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	0-91110-512-0	04	1	0601-
90	BRACKET; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-121-4	01	1	9510-
90	BRACKET; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-157-0	01	1	9510-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X30	0-20801-230-0	04	1	9510-
92	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	04	1	9510-0603
92	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	04	1	0604-
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47600-556-1	01	1	9510-
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47600-558-1	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-568-2	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-569-2	01	1	9510-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-557-1	01	1	9510-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-559-1	01	1	9510-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87830-553-0	02	1	9510-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-570-0	02	1	9510-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87830-553-0	04	1	9510-
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9510-
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-201-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-202-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-207-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-208-0	01	1	9510-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-201-0	02	1	9510-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-202-0	02	1	9510-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9510-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9510-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-203-0	02	1	9510-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-206-0	02	1	9510-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-203-0	04	1	9510-
103	SPRING; LK,RR WHEEL CYL,ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-057-0	02	1	9510-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	12	1	9510-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	16	1	9510-
136	GROMMET	1-09333-065-2	04	1	9510-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	9-03910-510-0	04	1	9510-0604
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X10 W/LK WASHER	0-36220-510-0	04	1	0605-
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9510-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9510-
146	NUT; HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-009-0	04	1	9510-
147	PIN; HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9510-0606
147	PIN; HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	04	1	0607-
147	PIN; HOLDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9510-0606
147	PIN; HOLDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	02	1	0607-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-92061-450-0	04	1	9510-0512
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	0-20951-450-0	04	1	0601-
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	12	1	9510-
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	02	1	9510-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	04	1	9510-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9510-0906
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	04	1	0907-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	20	1	9510-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X8	0-20800-608-0	04	1	9510-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	9510-0906
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	08	1	0907-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	12	1	9510-
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9510-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	04	1	9510-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-022-0	02	1	9510-
175	HANGER; RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	08	1	9510-
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	02	1	9510-
176	STOPPER; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	04	1	9510-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47640-002-0	02	1	9510-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-009-0	02	1	9510-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-017-0	02	1	9510-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-069-0	04	1	9510-
184	CONNECTOR; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09660-112-1	04	1	9510-
185	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	04	1	9510-
185	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	02	1	9510-
187	SCREW; HANGER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-03065-616-0	04	1	9510-
208	WASHER; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106	1-42129-028-3	04	1	9510-
209	SHIM; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=106	1-42129-027-4	12	1	9510-
210	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X25	0-20801-225-0	08	1	9510-
210	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X38	0-20801-238-0	08	1	9510-
211	WASHER; LK,BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	16	1	9510-0603
211	WASHER; LK,BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	0604-
212	STAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48258-156-0	01	1	9510-
213	BOLT; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X25	0-20801-225-0	02	1	9510-
214	NUT; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-512-0	02	1	9510-0512
214	NUT; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	0-91111-512-0	02	1	0601-
215	WASHER; LK,STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-612-0	02	1	9510-0603
215	WASHER; LK,STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	02	1	0604-
216	PIN; STAY FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-08234-038-0	02	1	9510-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47643-004-0	04	1	9510-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-007-0	02	1	9510-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-008-0	02	1	9510-9610
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47649-016-0	02	1	9611-

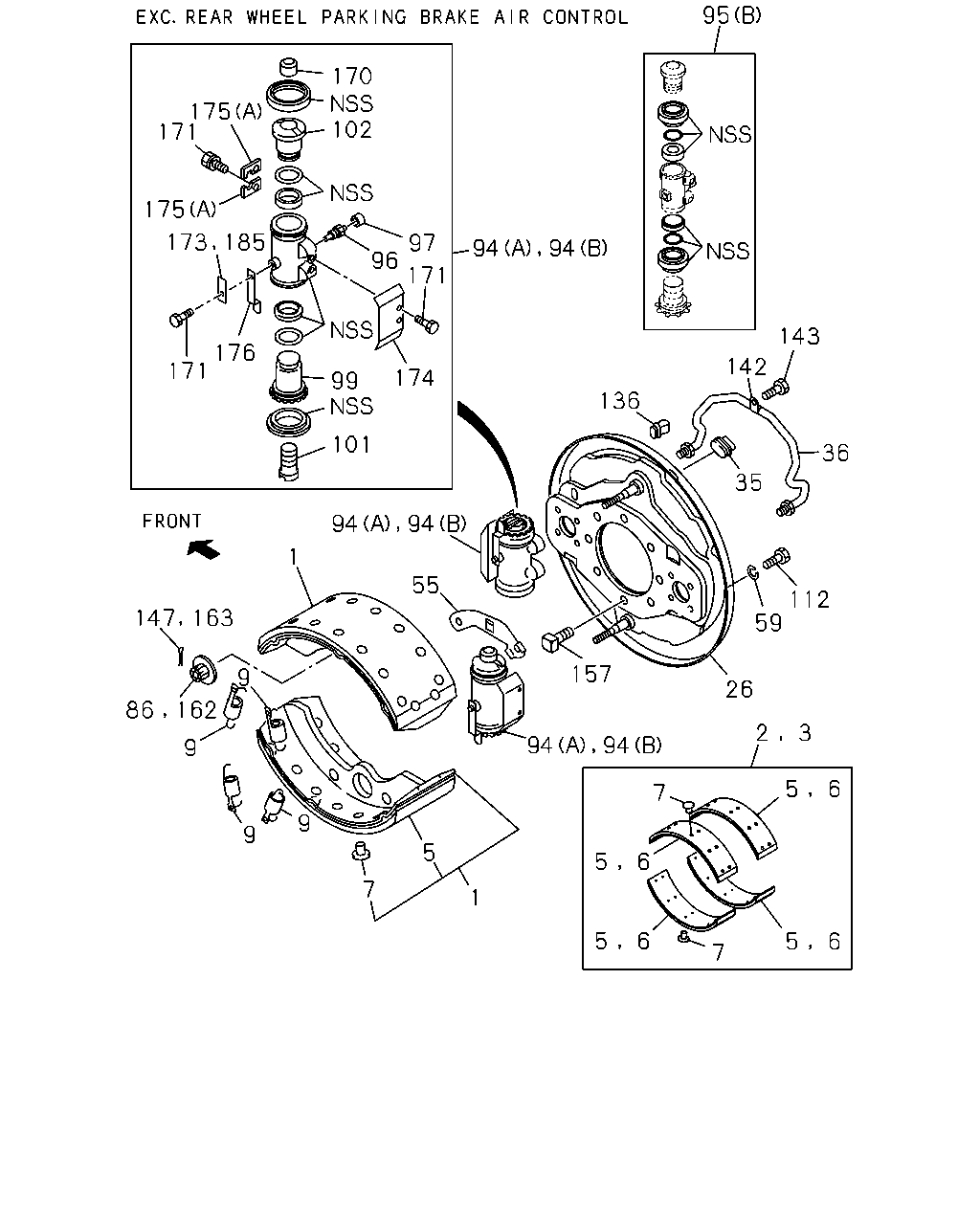

95 170 102 175 171 175 173 185 97 94 94 96 171 143 176 142 171 174 99 136 101 36 35 94 94 1 55 112 59 147 163 157 9 26 86 162 3 2 94 94 9 9 5 6 7 9 5 5 6 7 1 5 6 5 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR	1-47110-982-0	04	1	9510-9802
1	SHOE; BRK,RR	1-47120-629-0	04	1	9803-
2	LINING SET; RR BRK,STANDARD	1-88302-999-0	01	1	9510-9802
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	9803-
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-130-0	01	1	9803-
3	LINING SET; RR BRK,OVER SIZE	1-88310-042-0	01	1	9510-9802
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	9803-
5	LINING; RR BRK SHOE,STANDARD	1-47115-941-0	04	1	9510-9802
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	9803-
6	LINING; RR BRK SHOE,OVER SIZE	1-47115-942-0	04	1	9510-9802
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	9803-
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9510-
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	9510-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-446-0	01	1	9510-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-447-0	01	1	9510-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-442-0	01	1	9510-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-443-0	01	1	9510-
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9510-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-138-0	01	1	9510-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47415-139-0	01	1	9510-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47416-356-0	02	1	9510-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-032-0	04	1	9510-
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-068-0	04	1	9510-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-614-0	12	1	9510-0603
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	12	1	0604-
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-614-0	16	1	9510-0603
59	WASHER; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	16	1	0604-
86	NUT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-009-0	02	1	9510-
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47600-556-1	01	1	9510-
94	CYLINDER; WHEEL,RR BRK (B) BACKWARD	1-47600-558-1	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-568-2	01	1	9510-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-569-2	01	1	9510-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-557-1	01	1	9510-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47600-559-1	01	1	9510-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87830-553-0	02	1	9510-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-570-0	02	1	9510-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87830-553-0	04	1	9510-
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9510-
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-201-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-202-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-207-0	01	1	9510-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-208-0	01	1	9510-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-201-0	02	1	9510-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-202-0	02	1	9510-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9510-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9510-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-203-0	02	1	9510-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-206-0	02	1	9510-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-203-0	04	1	9510-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	12	1	9510-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-92361-435-0	16	1	9510-
136	GROMMET	1-09333-065-2	04	1	9510-
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9510-
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9510-
147	PIN; HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	04	1	9510-0606
147	PIN; HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	04	1	0607-
147	PIN; HOLDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9510-0606
147	PIN; HOLDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	02	1	0607-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	9-92061-450-0	04	1	9510-0512
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50	0-20951-450-0	04	1	0601-
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X56	1-09060-004-0	12	1	9510-
162	NUT; SHOE HOLD DOWN EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-009-0	02	1	9510-
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	9-08112-020-0	02	1	9510-0606
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=1.8 L=20	0-81122-020-0	02	1	0607-
170	PIECE; ANCHOR,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	02	1	9510-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-019-0	04	1	9510-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9510-0906
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	04	1	0907-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	20	1	9510-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X8	0-20800-608-0	04	1	9510-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50040-818-0	08	1	9510-0906
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X18 W/LK WASHER	0-50540-818-0	08	1	0907-
171	BOLT; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10	9-01900-610-0	12	1	9510-
173	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	02	1	9510-
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9510-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	04	1	9510-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-022-0	02	1	9510-
175	HANGER; RR WHEEL BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47118-084-0	08	1	9510-
176	STOPPER; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	02	1	9510-
176	STOPPER; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-008-0	04	1	9510-
185	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	04	1	9510-
185	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47169-009-0	02	1	9510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
