◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#19681) — 16 parça
çizim 17653
3 3 1 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 9510- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9510- ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 9510- ● ●

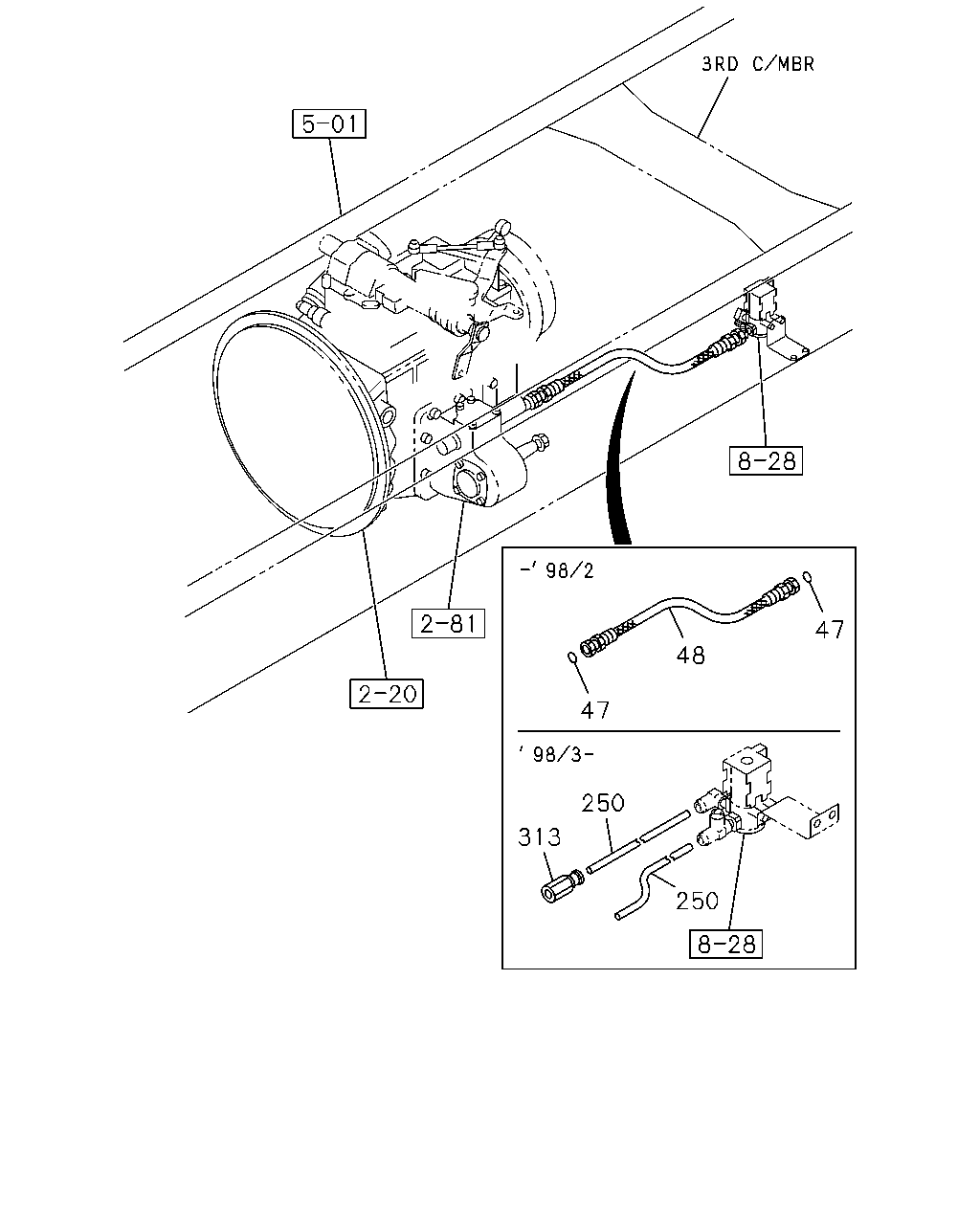

çizim 64963
47 48 47 250 313 250
BalonParca AdiParca NoAdetTipApplied Date A B
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> ID=11 OD=18 		9-09572-510-0 02 1 9510-9802 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=420 		0-07150-420-0 01 1 9510-9802 ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9804 ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ●
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-0004 ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212 ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212 ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
313 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9803-0004 ● ●
313 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0007 ● ●
313 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
