Isuzu WW
▶
TRUCKS
▶
FSR
▶
11339 - FSR(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶

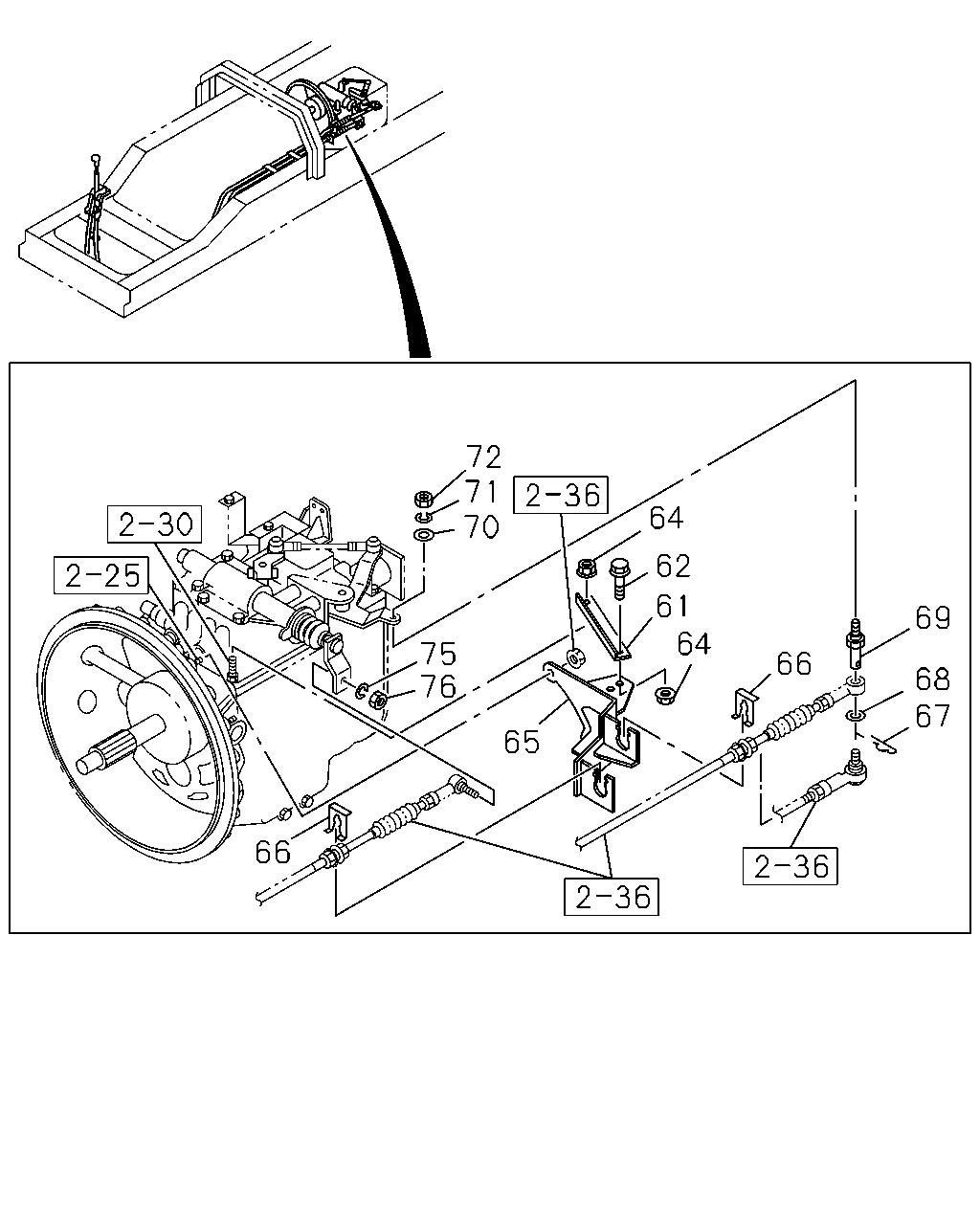

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#19679) — 21 parça
Tümü
A - MBJ5J M/T
B - MBJ6T M/T
72
71
70
64
62
61
64
69
75
76
66
68
67
65
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
61
STAY; BRKT,TRANS CONT
1-33657-267-0
01
1
9510-
●
●
62
BOLT; STAY
M10X20 FLANGE
0-28681-020-0
01
1
9510-9605
●
●
62
BOLT; STAY
M10X25 FLANGE
0-28681-025-0
01
1
9606-9804
●
●
62
BOLT; STAY
M10X30 FLANGE
0-28681-030-0
01
1
9805-0512
●
●
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
01
1
0601-
●
●
64
NUT; STAY
M10 FLANGE
0-91150-110-0
02
1
9510-9605
●
●
64
NUT; STAY
M10 FLANGE
0-91150-210-0
02
1
9606-0004
●
●
64
NUT; STAY
M10 FLANGE
0-91150-210-0
02
1
0005-0602
●
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
1-33657-619-0
01
1
9510-
●
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
9510-
●
●
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94157-841-0
01
1
9510-9802
●
●
68
WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18
9-09164-608-0
01
1
9510-9702
●
●
69
PIN; TRANS CONT,SELECT
1-33659-116-1
01
1
9510-9802
●
●
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=18
9-09164-608-0
01
1
9510-9802
●
●
71
WASHER; LK,TRANS CONT,SELECT
ID=8.2
9-09150-508-0
01
1
9510-9702
●
●
72
NUT; TRANS CONT,SELECT
M8
9-09110-408-0
01
1
9510-9609
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
9610-
●
●
75
WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2
9-09150-510-0
01
1
9510-9802
●
●
76
NUT; BALL JOINT,SELECT WIRE
M10
9-09110-510-0
01
1
9510-9802
●
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE
1-09440-049-0
01
1
9803-
●
●
