◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#19676) — 221 parça

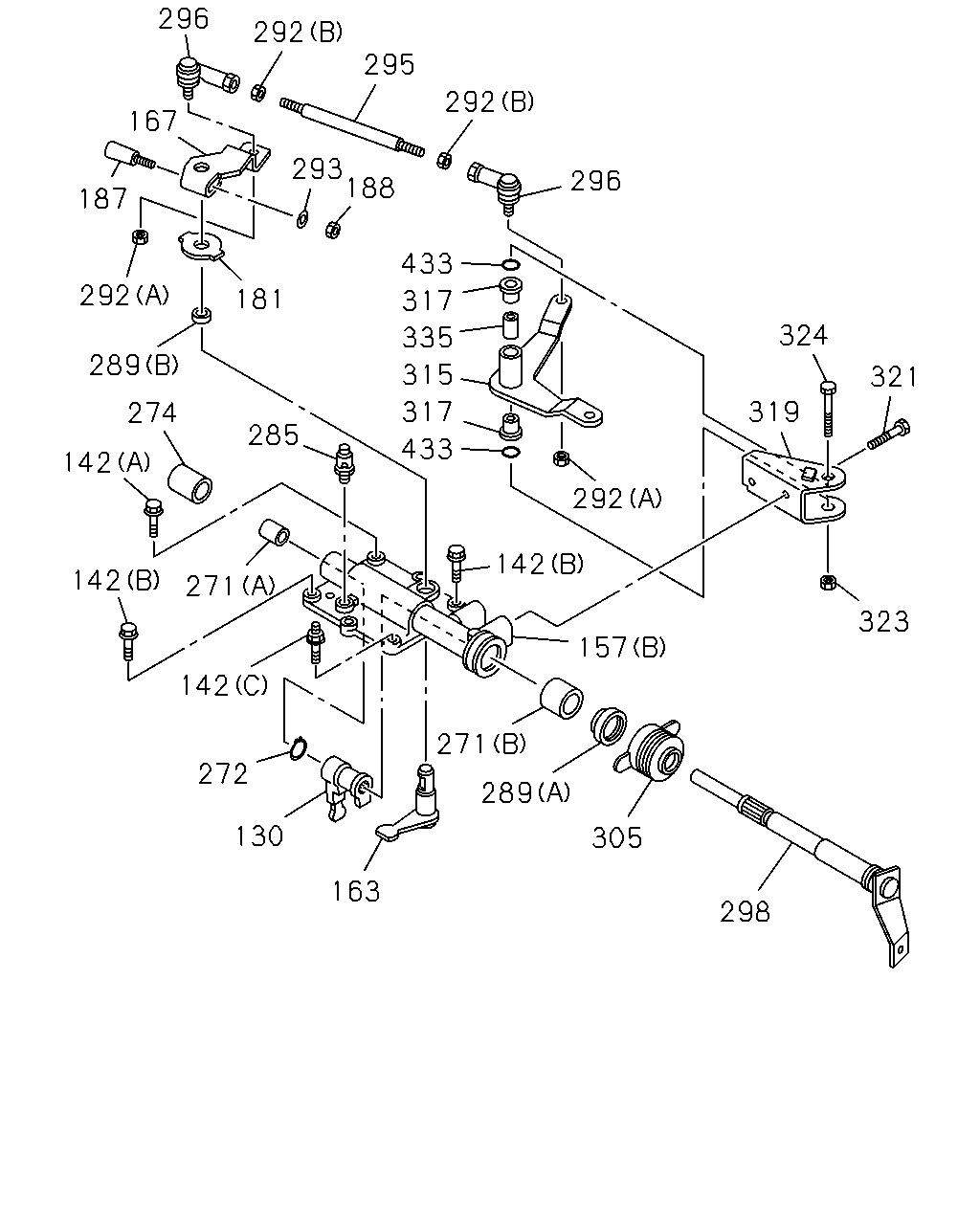

çizim 15596
296 292 295 292 167 293 188 296 187 433 292 181 317 324 335 289 315 321 319 317 274 285 433 142 292 142 142 271 323 157 142 271 272 289 130 305 163 298
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-131-1 01 1 9510- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 10 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 10 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X32 FLANGE 		0-28181-032-0 02 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 03 1 0806- ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-458-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-505-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9510- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-456-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-503-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 9904- ●
163 LEVER; SELECT,INTERNAL 1-33522-130-0 01 1 9510- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-139-0 01 1 9510- ● ●
181 WASHER; PL,SELECT LEVER
OD=37 		1-09532-007-0 01 1 9510- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9510- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9510-9804 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805- ● ●
271 BUSHING; QUAD BOX
(B) ID=25 OD=28 		1-33549-107-0 01 1 9510- ● ●
271 BUSHING; QUAD BOX
(A) ID=17 OD=19 		1-33549-108-0 01 1 9510- ● ●
272 RING; SNAP,QUAD BOX 1-09588-174-0 01 1 9510- ● ●
274 COVER; SHAFT,QUAD BOX
OD=24 L=31 		9-33545-011-1 01 1 9510- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 9510- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-269-0 01 1 9510- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-369-0 01 1 9510- ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9510-9804 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805- ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9510-0512 ● ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9510-0605 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9510- ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9510-0309 ● ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310- ● ●
298 SHAFT; SHIFT LEVER 1-33522-147-0 01 1 9510-9802 ● ●
298 SHAFT; SHIFT LEVER 1-33522-167-0 01 1 9803- ● ●
305 BOOT; LEVER SHAFT 1-33529-051-0 01 1 9510- ● ●
315 LEVER; SELECT 1-33651-652-0 01 1 9510-9802 ● ●
315 LEVER; SELECT 1-33651-703-0 01 1 9803- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9510- ● ●
319 BRACKET; SELECT LEVER 1-33657-603-0 01 1 9510- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 9510- ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9510- ● ●
324 BOLT; SHAFT
M10X60 		0-10811-060-0 01 1 9510-9802 ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 9803- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-192-0 01 1 9510-9809 ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 9810- ● ●
433 GASKET; BUSHING 1-09623-594-0 02 1 9510- ● ●
çizim 15860
382 383
BalonParca AdiParca NoAdetTipApplied Date A B
382 BRACKET; PARKING BRK CONT CABLE
(A) 		1-46147-209-3 01 1 9510- ●
382 BRACKET; PARKING BRK CONT CABLE
PARKING BRAKE DRUM 8.5"(B1S) (B) 		1-46147-187-2 01 1 9510- ●
383 BOLT; BRKT,PARK BRAKE
PARKING BRAKE DRUM 8.5"(B1S) M10X16 FLANGE 		0-28181-016-0 01 1 9510-0512 ●
383 BOLT; BRKT,PARK BRAKE
PARKING BRAKE DRUM 8.5"(B1S) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●

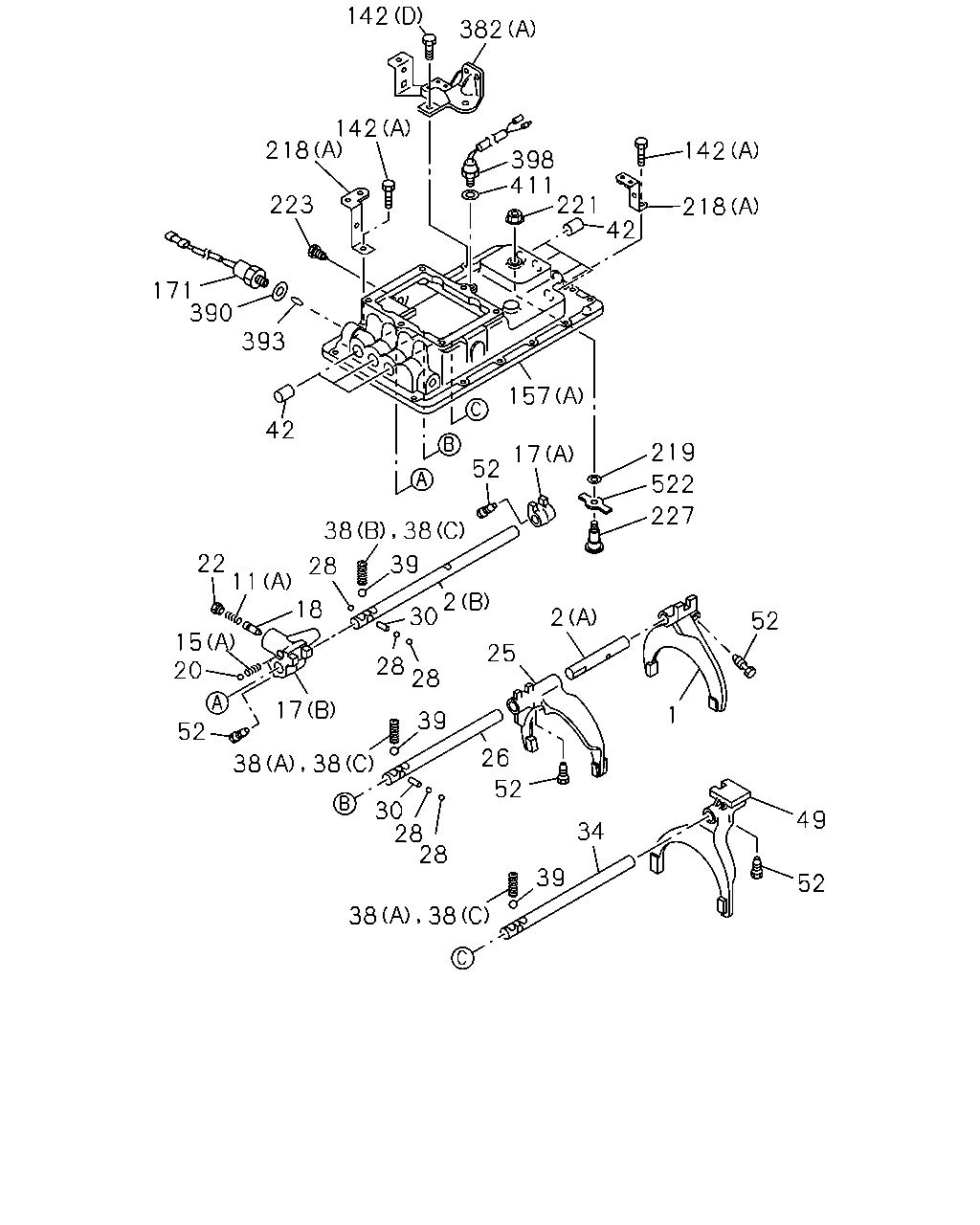

çizim 16629
142 382 142 218 142 398 411 221 42 223 218 171 390 393 157 42 219 17 52 522 227 22 11 39 28 18 2 30 28 28 2 52 15 20 25 17 1 39 52 26 38 38 30 28 28 52 49 34 39 52 38 38 38 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 1-33511-502-1 01 1 9510- ● ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-360-1 01 1 9510- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-361-1 01 1 9510- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		1-09580-444-0 01 1 9510- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 9510- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-445-0 01 1 9510- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-526-0 01 1 9510- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-387-2 01 1 9510- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-432-1 01 1 9510- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-029-0 01 1 9510- ● ●
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 9510- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9510- ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-430-0 01 1 9510-9807 ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-580-1 01 1 9808- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-362-1 01 1 9510-9606 ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-384-0 01 1 9607- ● ●
28 BALL; INTER LK 9-00097-010-0 05 1 9510- ●
28 BALL; INTER LK 9-00097-010-0 07 1 9510- ●
30 PIN; INTER LK 1-33534-002-0 02 1 9510- ●
30 PIN; INTER LK 1-33534-002-0 03 1 9510- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-363-1 01 1 9510-9606 ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-385-0 01 1 9607- ● ●
38 SPRING; DETENT
(C) 		1-09580-374-0 03 1 9510-9606 ●
38 SPRING; DETENT
(C) 		1-09580-548-0 03 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 02 1 9707- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 9707- ● ●
38 SPRING; DETENT
(C) 		1-09580-374-0 04 1 9510-9606 ●
38 SPRING; DETENT
(C) 		1-09580-548-0 04 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 03 1 9707- ●
39 BALL; DETENT 9-00097-013-0 03 1 9510- ●
39 BALL; DETENT 9-00097-013-0 04 1 9510- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 07 1 9510- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 08 1 9510- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-460-0 01 1 9510-9807 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-582-0 01 1 9808- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-463-0 01 1 9510-9807 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-581-1 01 1 9808- ●
52 BOLT; SHIFT ARM 1-09052-034-2 05 1 9510- ●
52 BOLT; SHIFT ARM 1-09052-034-2 07 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 10 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 10 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X32 FLANGE 		0-28181-032-0 02 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 03 1 0806- ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-458-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-505-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9510- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-456-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-503-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 9904- ●
171 SWITCH; NEUTRAL 1-82340-534-0 01 1 9510- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 02 1 9510- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-792-2 01 1 9510- ●
219 WASHER; PL,SPINDLE
ID=14 		9-09851-275-0 01 1 9510- ● ●
221 NUT; SPINDLE
M10 FLANGE 		0-91150-110-0 01 1 9510-0602 ● ●
221 NUT; SPINDLE
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
223 SCREW; SET,QUAD BOX
M8X12.5 		9-09814-533-0 01 1 9510- ● ●
227 SPINDLE; 1ST & REV 1-33519-043-0 01 1 9510-9810 ● ●
227 SPINDLE; 1ST & REV 1-33519-130-0 01 1 9811- ● ●
382 BRACKET; PARKING BRK CONT CABLE
(A) 		1-46147-209-3 01 1 9510- ●
382 BRACKET; PARKING BRK CONT CABLE
PARKING BRAKE DRUM 8.5"(B1S) (B) 		1-46147-187-2 01 1 9510- ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9510- ● ●
393 PIN; SW 1-33534-003-0 01 1 9510- ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9510-0602 ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209 ● ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9510- ● ●
522 LEVER; SHIFT,1-REV 1-33521-135-0 01 1 9510- ● ●

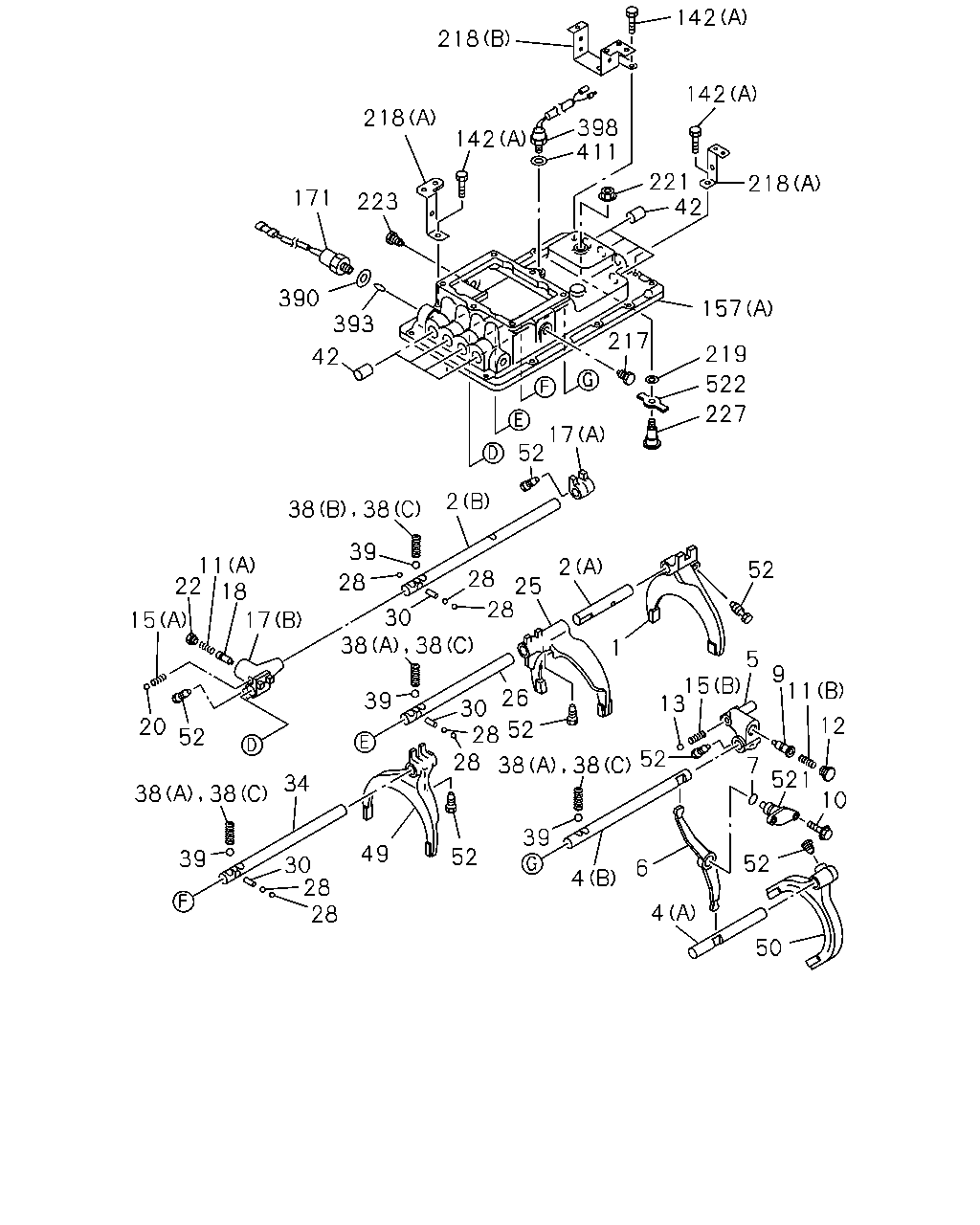

çizim 17652
142 218 142 218 398 411 142 221 42 218 171 223 390 157 393 217 219 42 522 227 17 52 2 39 11 22 18 2 52 28 28 25 28 30 15 17 1 5 15 13 9 11 26 39 30 52 28 28 12 20 7 52 521 2 38 38 34 38 38 10 39 49 52 39 52 30 28 28 6 4 4 50 38 38 38 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 1-33511-502-1 01 1 9510- ● ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-360-1 01 1 9510- ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-361-1 01 1 9510- ● ●
4 ROD; SHIFT,6TH
(B) 		1-33531-340-1 01 1 9510-9606 ●
4 ROD; SHIFT,6TH
(B) 		1-33531-387-0 01 1 9607- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-341-1 01 1 9510- ●
5 BLOCK; SHIFT,6TH 1-33511-326-1 01 1 9510- ●
6 LEVER; RELAY 1-33511-462-0 01 1 9510-0005 ●
6 LEVER; RELAY 1-33511-574-1 01 1 0006- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9510- ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-029-0 01 1 9510- ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 9510- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		1-09580-444-0 01 1 9510- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 9510- ●
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9510- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-009-0 01 1 9510- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-445-0 01 1 9510- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-526-0 01 1 9510- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-387-2 01 1 9510- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-432-1 01 1 9510- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-029-0 01 1 9510- ● ●
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 9510- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 9510- ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-430-0 01 1 9510-9807 ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-580-1 01 1 9808- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-362-1 01 1 9510-9606 ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-384-0 01 1 9607- ● ●
28 BALL; INTER LK 9-00097-010-0 05 1 9510- ●
28 BALL; INTER LK 9-00097-010-0 07 1 9510- ●
30 PIN; INTER LK 1-33534-002-0 02 1 9510- ●
30 PIN; INTER LK 1-33534-002-0 03 1 9510- ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-363-1 01 1 9510-9606 ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-385-0 01 1 9607- ● ●
38 SPRING; DETENT
(C) 		1-09580-374-0 03 1 9510-9606 ●
38 SPRING; DETENT
(C) 		1-09580-548-0 03 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 02 1 9707- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 9707- ● ●
38 SPRING; DETENT
(C) 		1-09580-374-0 04 1 9510-9606 ●
38 SPRING; DETENT
(C) 		1-09580-548-0 04 1 9607-9706 ●
38 SPRING; DETENT
(A) 		1-09580-548-0 03 1 9707- ●
39 BALL; DETENT 9-00097-013-0 03 1 9510- ●
39 BALL; DETENT 9-00097-013-0 04 1 9510- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 07 1 9510- ●
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 08 1 9510- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-460-0 01 1 9510-9807 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-582-0 01 1 9808- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-463-0 01 1 9510-9807 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-581-1 01 1 9808- ●
50 ARM; SHIFT,6TH 1-33511-477-0 01 1 9510- ●
52 BOLT; SHIFT ARM 1-09052-034-2 05 1 9510- ●
52 BOLT; SHIFT ARM 1-09052-034-2 07 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 10 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 10 1 0806- ●
142 BOLT; QUAD BOX
(D) M10X32 FLANGE 		0-28181-032-0 02 1 9510- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 03 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 03 1 0806- ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806- ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 9510-0805 ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806- ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9510-0805 ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 12 1 0806- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-458-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-505-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-514-0 01 1 9904- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 9510- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-456-1 01 1 9510-9709 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-503-0 01 1 9710-9903 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 9904- ●
171 SWITCH; NEUTRAL 1-82340-534-0 01 1 9510- ● ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 9510- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 02 1 9510- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-792-2 01 1 9510- ●
219 WASHER; PL,SPINDLE
ID=14 		9-09851-275-0 01 1 9510- ● ●
221 NUT; SPINDLE
M10 FLANGE 		0-91150-110-0 01 1 9510-0602 ● ●
221 NUT; SPINDLE
M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
223 SCREW; SET,QUAD BOX
M8X12.5 		9-09814-533-0 01 1 9510- ● ●
227 SPINDLE; 1ST & REV 1-33519-043-0 01 1 9510-9810 ● ●
227 SPINDLE; 1ST & REV 1-33519-130-0 01 1 9811- ● ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9510- ● ●
393 PIN; SW 1-33534-003-0 01 1 9510- ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 9510-0602 ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209 ● ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9510- ● ●
521 SPINDLE; 6TH 1-33519-008-1 01 1 9510- ●
522 LEVER; SHIFT,1-REV 1-33521-135-0 01 1 9510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
