2-20 — MANUAL TRANSMISSION ASM AND CASE (#19673) — 74 parça

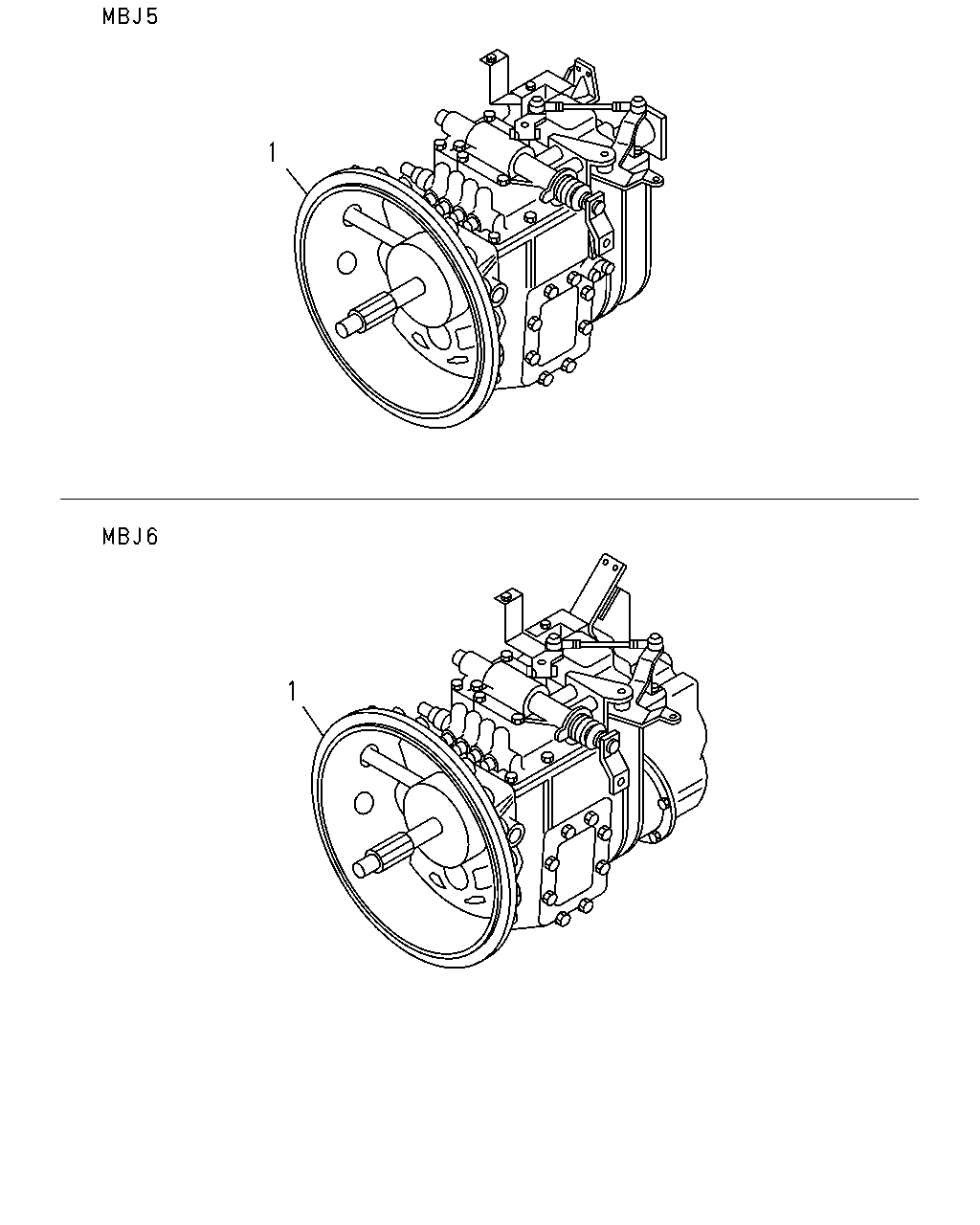

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-407-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-524-0	01	1	9803-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-407-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-524-0	01	1	9803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-409-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-526-0	01	1	9803-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-409-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-526-0	01	1	9803-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-415-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-544-0	01	1	9803-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-415-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-544-0	01	1	9803-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-417-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-546-0	01	1	9803-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-417-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-546-0	01	1	9803-		●

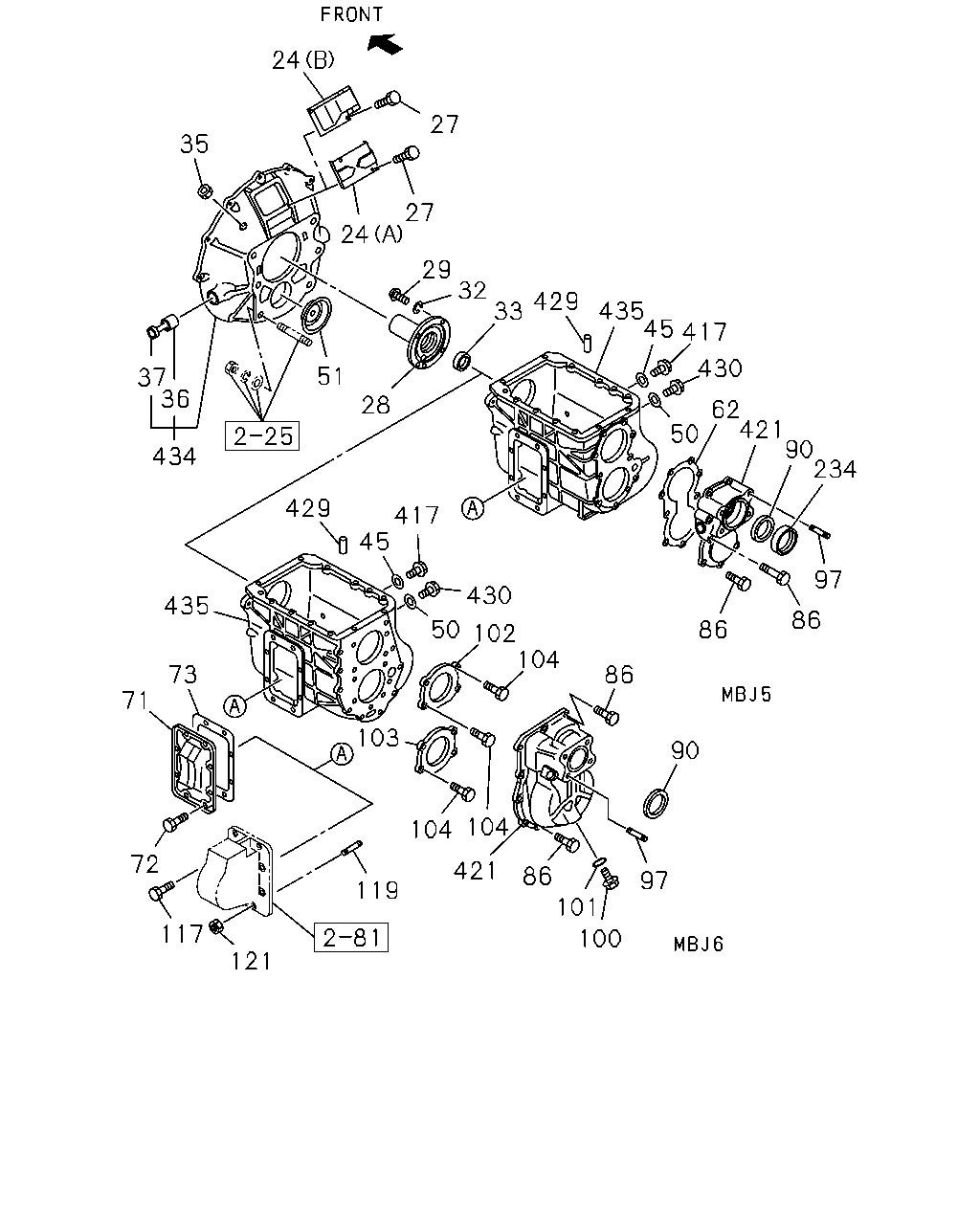

24 27 35 27 24 29 32 429 33 435 45 417 430 51 37 36 28 62 421 90 234 50 434 429 417 45 97 103 430 435 86 50 86 102 104 73 86 71 90 104 104 72 421 86 97 119 101 117 100 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST (A)	1-31131-027-0	01	1	9510-9807	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9808-1410	●	●
24	COVER; CHECK HOLE,DUST (B)	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9510-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	9510-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9510-0805	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9510-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9510-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	9510-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9510-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9510-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-1	01	1	9510-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9510-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9510-	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9510-0512	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9510-	●	●
86	BOLT; RR COVER M10X25	1-09044-080-0	07	1	9510-	●
86	BOLT; RR COVER M10X55	1-09044-083-0	02	1	9510-	●
86	BOLT; RR COVER M10X25	1-09044-080-0	08	1	9510-		●
86	BOLT; RR COVER PARKING BRAKE DRUM 8.5"(B1S) M10X55	1-09044-083-0	03	1	9510-		●
86	BOLT; RR COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X50 FLANGE	1-09044-081-0	03	1	9510-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9510-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	1-09625-522-0	01	1	9510-9710	●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9510-0004	●
97	STUD; PARKING BRK M14X22.5 L=42.5	8-97365-445-0	01	1	0005-	●
97	STUD; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S) M14X22.5 L=42.5	1-09302-138-1	03	1	9510-0604		●
97	STUD; PARKING BRK PARKING BRAKE DRUM 8.5"(B1S) M14X22.5 L=42.5	8-97365-445-0	03	1	0605-		●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9510-		●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-050-0	01	1	9510-		●
103	RETAINER; BRG	1-33151-051-0	01	1	9510-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9510-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9510-0805	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9510-0604	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9510-0602	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
234	COVER; OIL SEAL	1-33139-001-1	01	1	9510-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9510-9802	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9510-	●
421	COVER; RR,TRANS	1-33131-173-2	01	1	9510-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9510-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9510-	●	●
434	HOUSING; CLU	1-31110-154-1	01	1	9510-0203	●	●
434	HOUSING; CLU	1-31110-207-0	01	1	0204-	●	●
435	CASE; TRANS	1-33111-239-1	01	1	9510-0112	●
435	CASE; TRANS	1-33111-318-0	01	1	0201-0303	●
435	CASE; TRANS	1-33111-340-0	01	1	0304-	●
435	CASE; TRANS	1-33111-252-1	01	1	9510-		●
