6-78 — FLOOR HOLE PLUG (#1967) — 16 parça

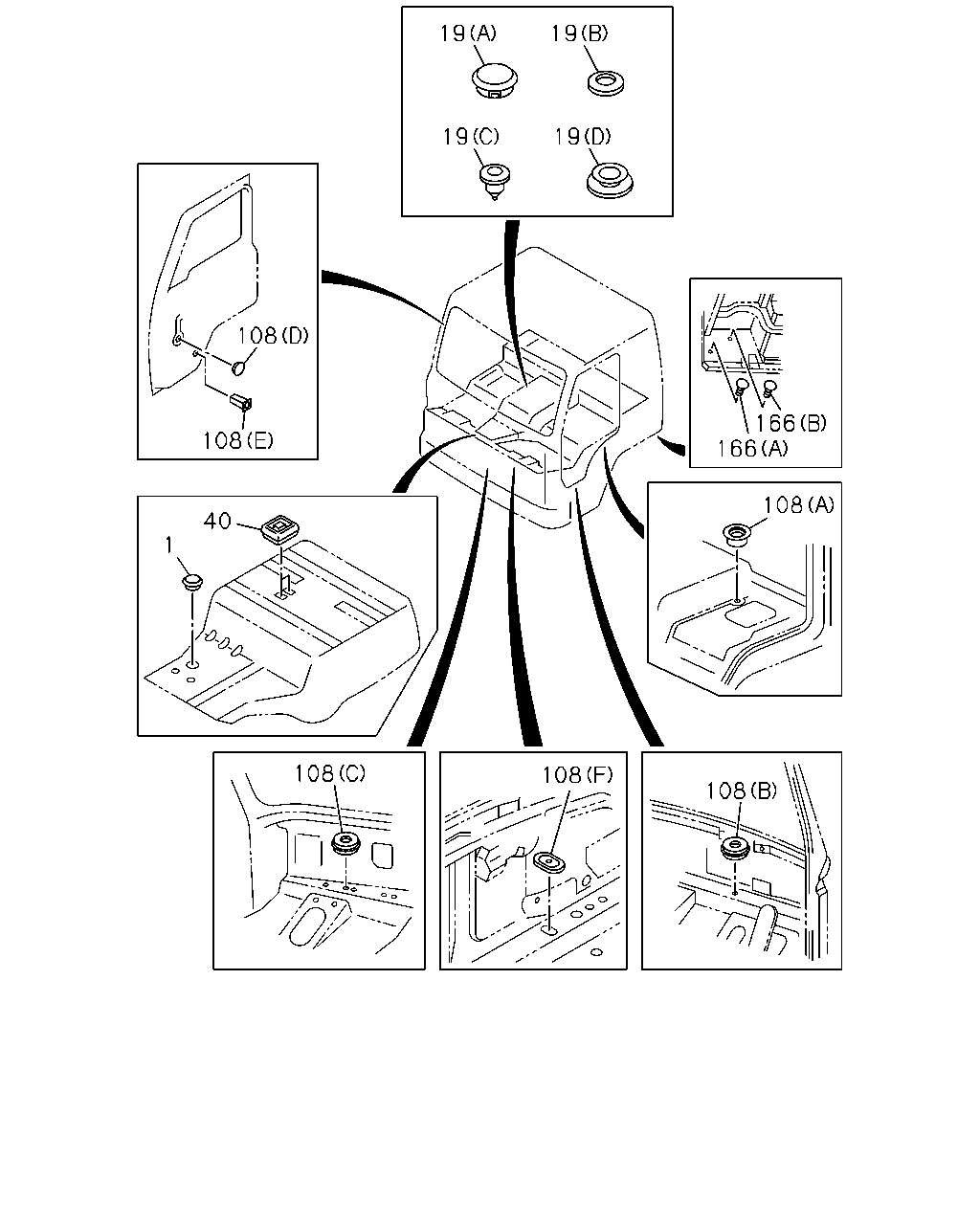

çizim 94090
19 19 19 19 108 166 166 108 108 40 1 108 108 108
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GROMMET
OD=35 		1-09983-066-1 02 1 9503- ● ● ● ●
19 GROMMET; FLOOR FRT
(A) OD=35 		1-09983-066-1 02 1 9207- ● ● ● ●
19 GROMMET; FLOOR FRT
(A) OD=23.5 		1-09983-101-0 04 1 9207- ● ● ● ●
19 GROMMET; FLOOR FRT
(B) OD=32 T=5 		5-09983-018-0 02 1 9207- ● ● ● ●
19 GROMMET; FLOOR FRT
(D) OD=20 		5-09983-020-0 04 1 9207- ● ● ● ●
19 GROMMET; FLOOR FRT
(C) OD=22 		9-61168-535-0 01 1 9207- ● ● ● ●
40 GROMMET; RR,UNION 1-09983-108-0 02 1 9207- ● ● ● ●
108 GROMMET; HOLE PLUG
(F) OD=40X19 T=6 		1-09983-012-2 01 1 9207- ● ● ● ●
108 GROMMET; HOLE PLUG
(D) ID=20 OD=40 		1-09983-077-0 02 1 9207- ● ● ● ●
108 GROMMET; HOLE PLUG
(A) OD=20 		5-09983-020-0 04 1 9207- ● ● ● ●
108 GROMMET; HOLE PLUG
(E) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 9207- ● ● ● ●
108 GROMMET; HOLE PLUG
(C) OD=28 		9-09575-497-0 02 1 9207- ● ● ● ●
108 GROMMET; HOLE PLUG
AUTO ENG SHUTOFF(KB6) (B) OD=36 		1-09983-092-0 01 1 9207- ● ● ● ●
108 GROMMET; HOLE PLUG
EXC. TACHOMETER<UD7> (C) OD=28 		9-09575-497-0 01 1 9207-9310 ● ● ● ●
166 PLUG; UNDER FRAME
(A) D4.7X11 		1-76378-154-0 02 1 9207- ● ● ● ●
166 PLUG; UNDER FRAME
(B) OD=15 L=14.5 		1-76378-157-0 01 1 9207- ● ● ● ●
