2-05 — CLUTCH PIPING (#19669) — 78 parça

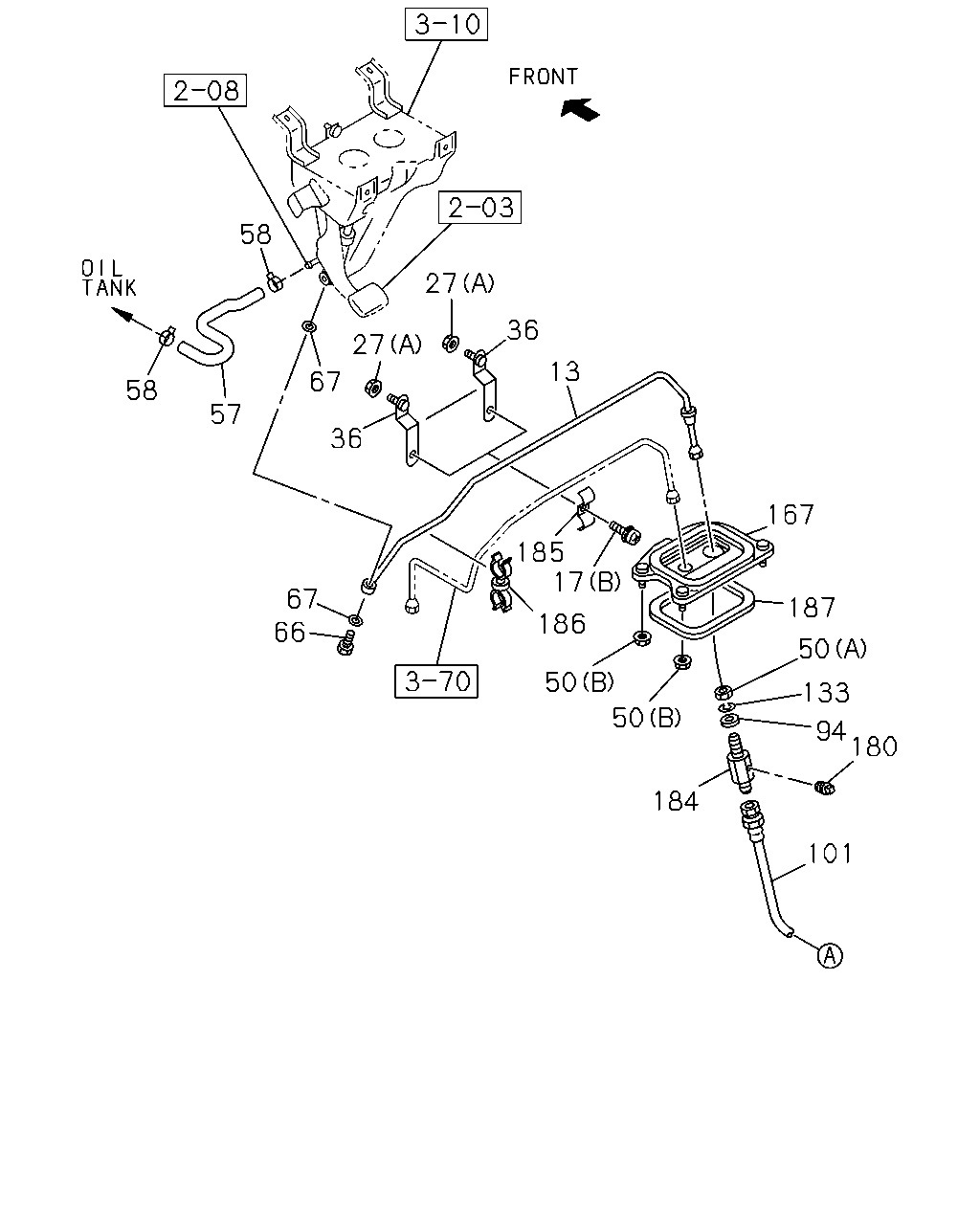

çizim 64906
58 27 36 27 13 67 58 57 36 167 185 17 67 66 187 186 50 50 133 50 94 180 184 101
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47429-143-0 01 1 9510- ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9710 ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9711-0512 ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9510- ● ●
27 NUT; BRKT
(B) M8 		9-09110-408-0 02 1 9510-9606 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
36 BRACKET; CLIP 1-79738-186-1 02 1 9510- ● ●
50 NUT; UNION
(B) M8 FLANGE 		8-94279-517-0 03 1 9510-9611 ● ●
50 NUT; UNION
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 9612- ● ●
50 NUT; UNION
(A) M14 		9-99111-414-0 01 1 9510-0512 ● ●
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 0601- ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47427-312-0 01 1 9510- ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9510- ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9510-0805 ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806- ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9510-1312 ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 9510-0605 ● ●
94 WASHER; PL,UNION
ID=15 		0-91610-514-0 01 1 0606- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 9510-0703 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704- ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9510-0603 ● ●
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
167 BRACKET; UNION 1-79738-204-2 01 1 9510-9911 ● ●
167 BRACKET; UNION 1-79738-845-1 01 1 9912- ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9510-0804 ● ●
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 9510-0804 ● ●
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805- ● ●
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 9510- ● ●
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6 		8-94165-403-0 01 1 9510-9706 ● ●
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8 		8-94313-325-0 01 1 9707- ● ●
187 SEAL; BRKT 1-79738-190-0 01 1 9510- ● ●

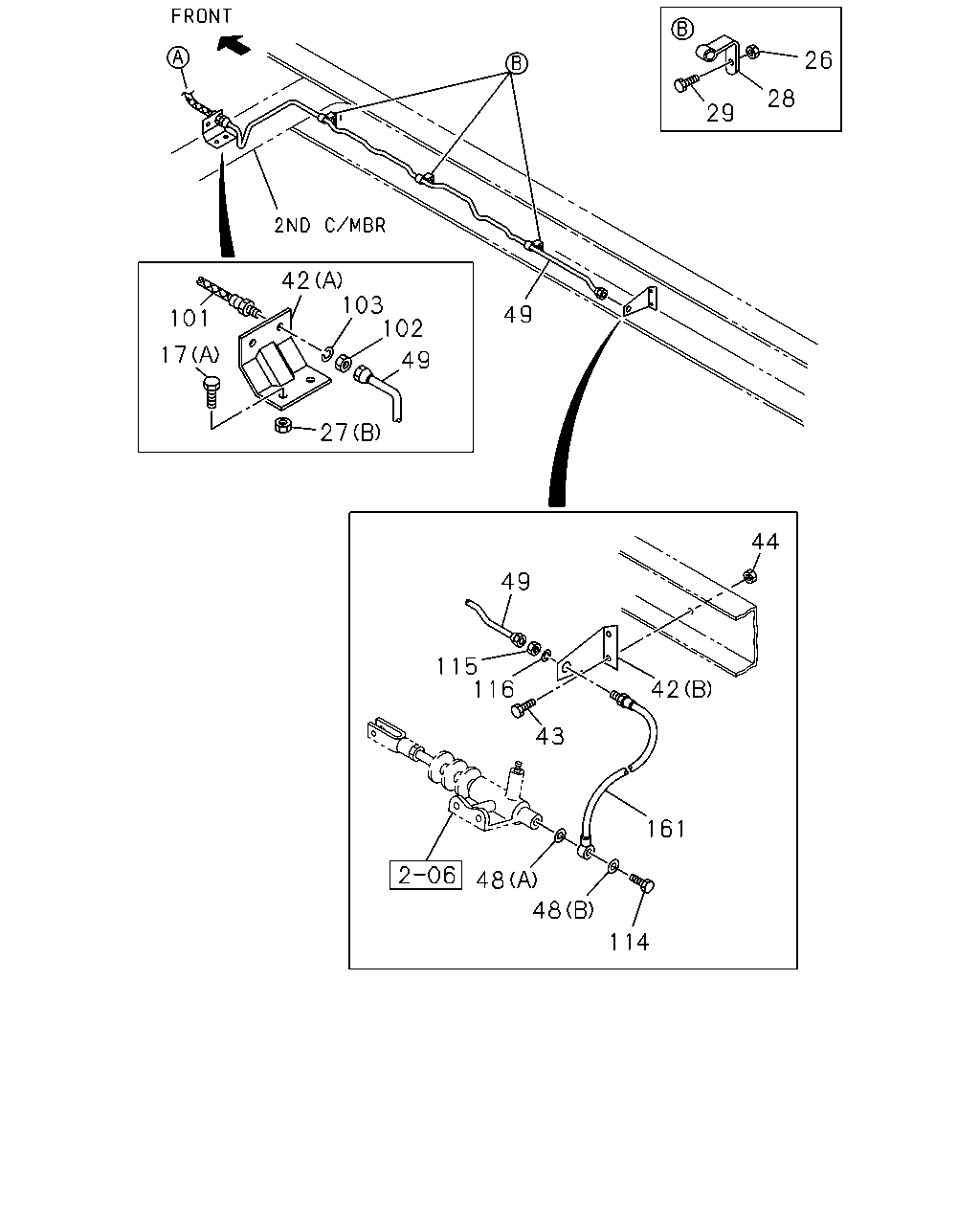

çizim 64948
26 28 29 42 103 102 49 101 17 49 27 44 49 115 116 42 43 161 48 48 114
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9710 ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9711-0512 ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510- ● ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 02 1 9510-9606 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 9607-9809 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 03 1 9810-0602 ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9510- ● ●
27 NUT; BRKT
(B) M8 		9-09110-408-0 02 1 9510-9606 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 02 1 9510-9809 ● ●
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 9810- ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9809 ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 03 1 9810-0512 ● ●
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9510- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9510- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-408-0 02 1 9510-9606 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
48 GASKET; FLEX HOSE,CLU CONT
(B) ID=10.5 		1-09630-074-1 01 1 9510- ● ●
48 GASKET; FLEX HOSE,CLU CONT
(A) T=1.5 ID=14.2 OD=20 		9-09851-004-0 01 1 9510- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=2319 SERVICED BY L=2400 		1-47426-395-0 01 1 9510- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 9510-0703 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		8-98072-326-0 01 1 0704- ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9510-0512 ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601- ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9510-0603 ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 9510- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9510-0512 ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9510-0603 ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
161 HOSE; FLEX,SLAVE CYL
L=310 		0-05567-310-0 01 1 9510- ● ●
