Isuzu WW
▶
TRUCKS
▶
FSR
▶
11339 - FSR(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

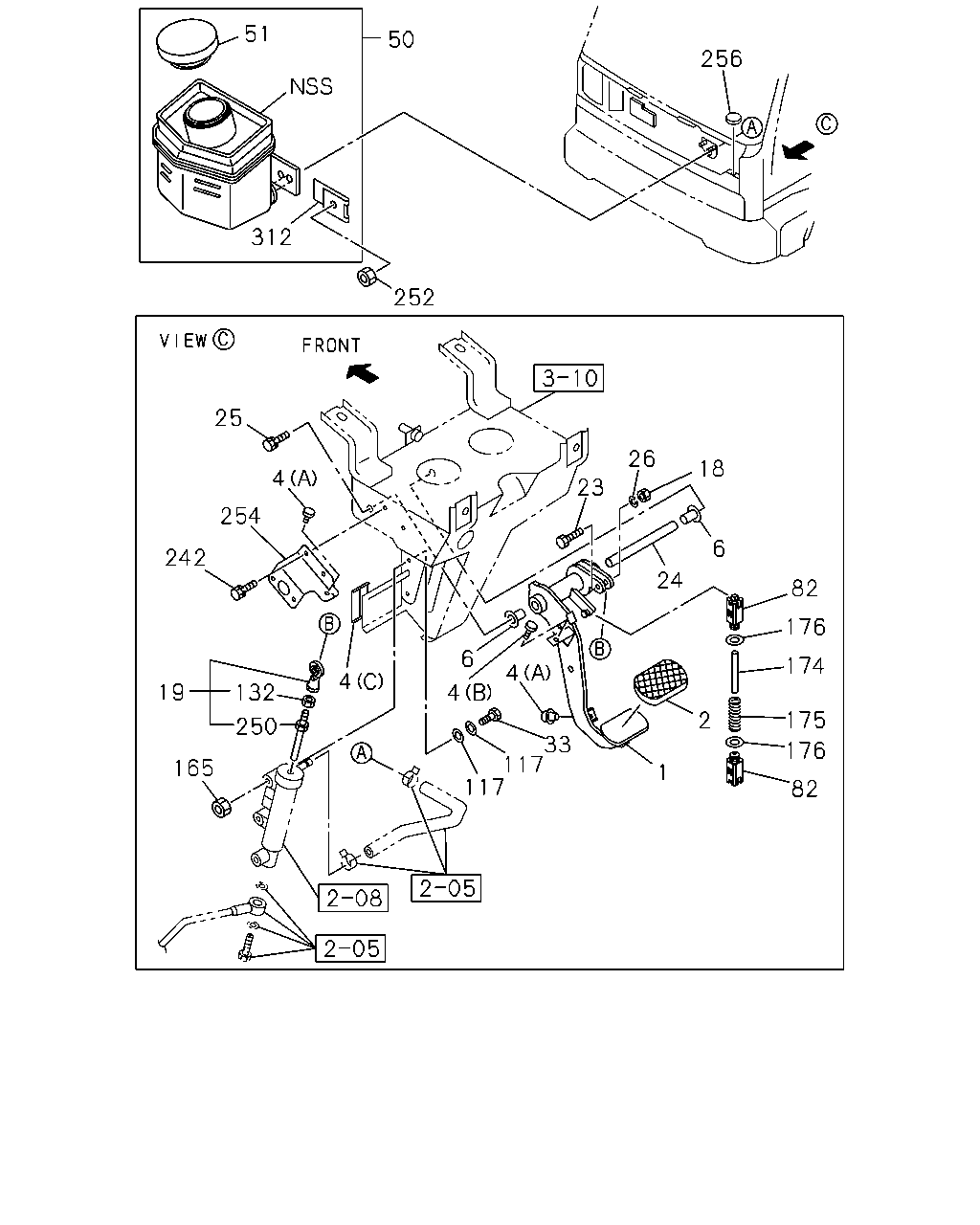

2-03 — CLUTCH PEDAL AND CONTROL
(#19668) — 34 parça
51
256
312
252
25
26
18
4
23
254
6
242
24
82
176
6
174
4
4
19
132
4
175
2
250
33
117
117
176
165
1
82
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73908-078-3
01
1
9510-9803
1
PEDAL; CLU
1-73908-342-2
01
1
9804-
2
COVER; CLU PEDAL
8-94204-810-0
01
1
9510-0103
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0104-
4
STOPPER; CLU PEDAL
(A)
1-47319-014-1
02
1
9510-
4
STOPPER; CLU PEDAL
(C)
1-73908-088-0
01
1
9510-9612
4
STOPPER; CLU PEDAL
(B)
5-31419-003-0
01
1
9510-9904
4
STOPPER; CLU PEDAL
(C)
1-73908-088-1
01
1
0104-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
9510-
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
9510-
19
ROD ASM; PUSH,CLU
1-73996-144-0
01
1
9510-9803
19
ROD ASM; PUSH,CLU
1-73908-332-0
01
1
9804-
23
BOLT; PUSH ROD
M8X35
9-01060-835-0
01
1
9510-9803
23
BOLT; PUSH ROD
M8X43.7
1-73908-333-0
01
1
9804-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
9510-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
9510-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
9510-
33
BOLT; CLU M/CYL TO BRKT
M10X65
5-09030-024-1
02
1
9510-
50
TANK; OIL,CLU
1-47530-182-0
01
1
9510-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
9511-
82
CLEVIS; HELPER,CLU PEDAL
1-73998-472-1
02
1
9510-
117
WASHER; PL,CLU M/CYL
ID=10.5 OD=18
1-09985-173-0
04
1
9510-9601
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
9510-
165
NUT; CLU M/CYL
M10 FLANGE
0-91150-210-0
02
1
9510-0602
165
NUT; CLU M/CYL
M10 FLANGE
0-91180-210-0
02
1
0603-
174
PIN; STRAIGHT,CLU PEDAL
1-73998-474-0
01
1
9510-
175
SPRING; HELPER
1-73908-052-0
01
1
9510-
176
SEAT; SPRING
1-09503-114-0
02
1
9510-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
02
1
9510-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
9510-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9510-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
9510-
256
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
01
1
9510-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
9510-
