Isuzu WW
▶
TRUCKS
▶
FSR
▶
11339 - FSR(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#19667) — 71 parça
Tümü
A - MBJ5J M/T
B - MBJ6T M/T
◀

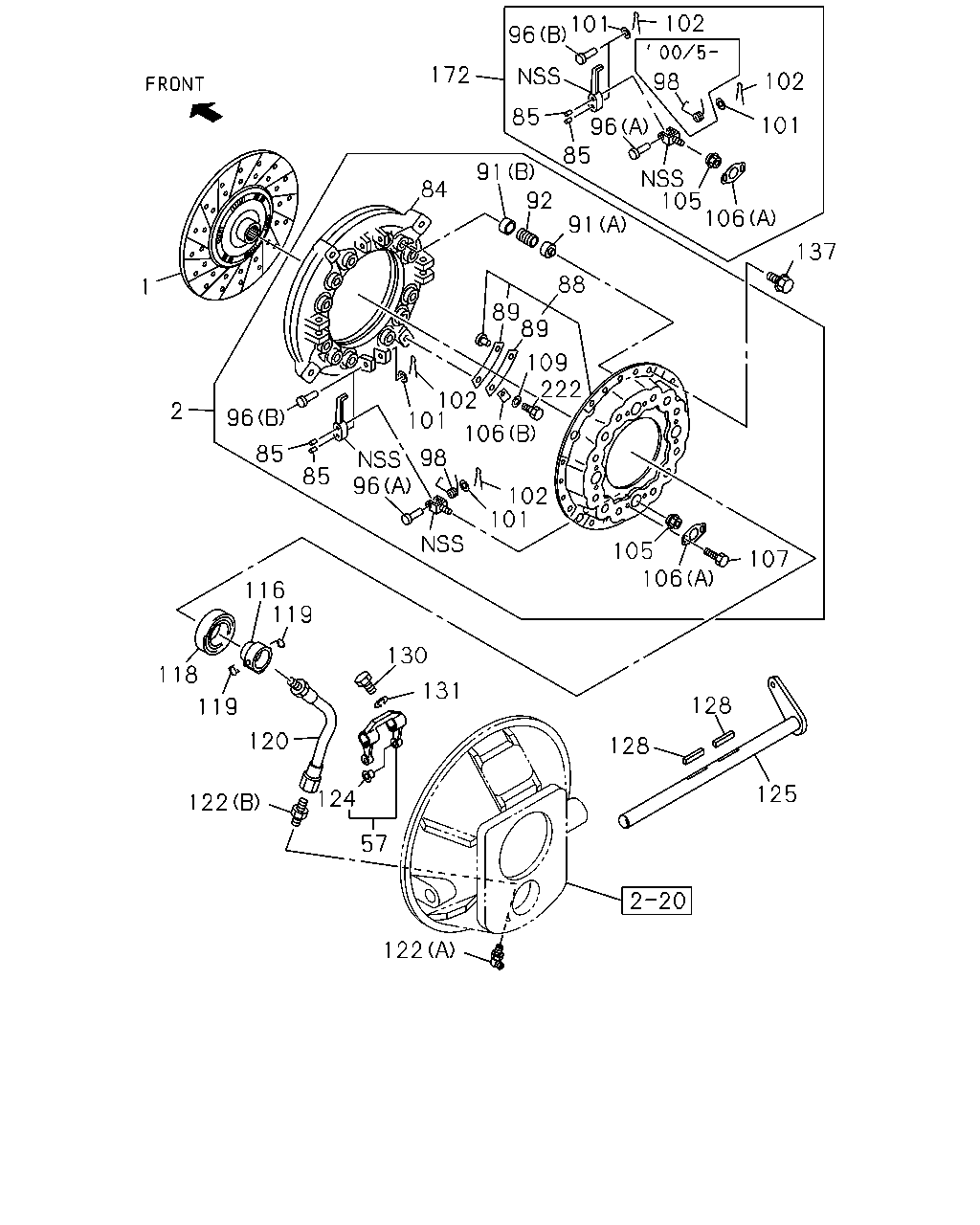

[201A] CLUTCH (61 parça)

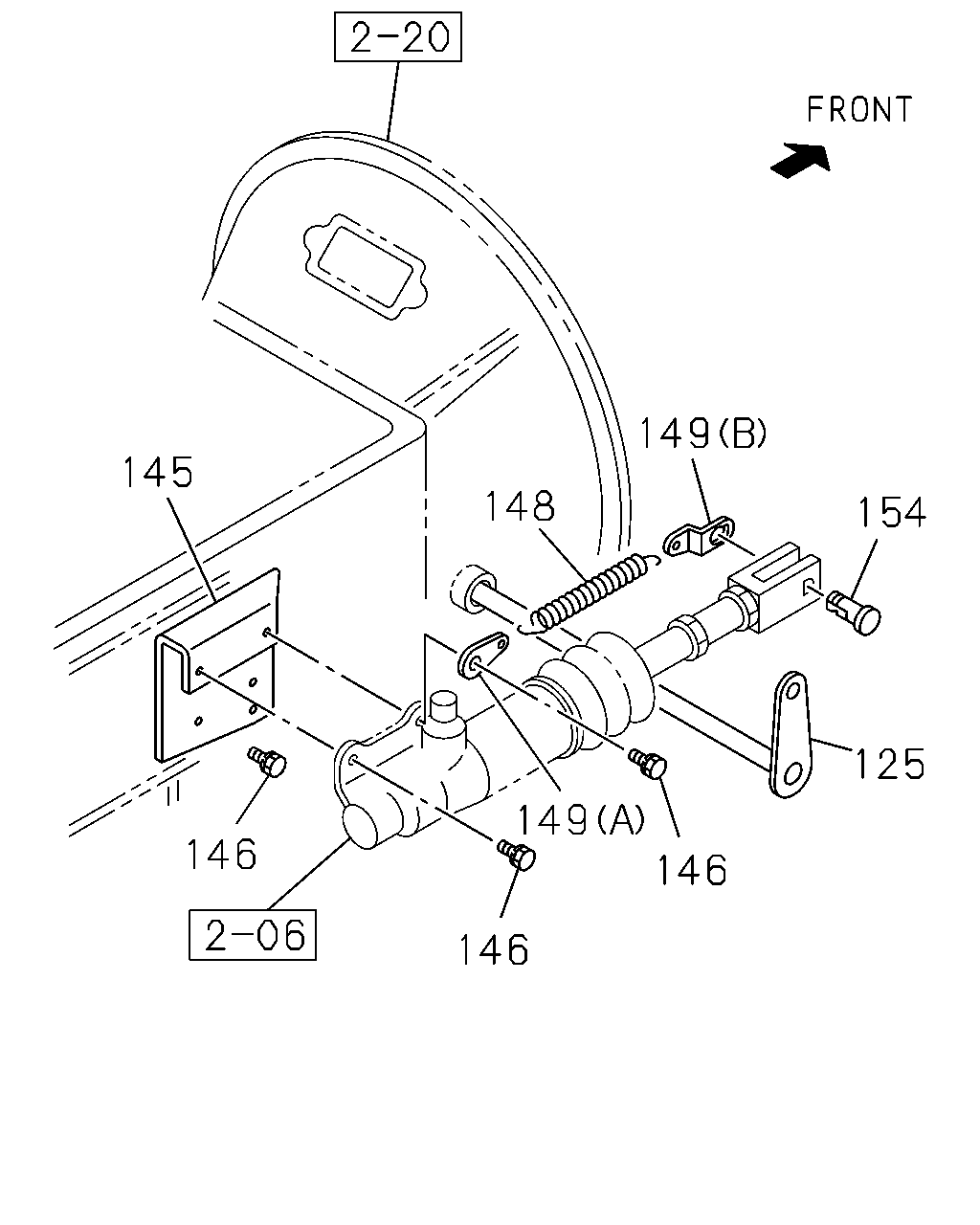

[201A] SLAVE CYLINDER (10 parça)
▶
102
101
96
172
102
98
96
85
85
101
91
92
105
106
84
91
137
88
1
89
89
109
222
102
101
2
96
106
96
85
85
102
101
105
106
107
116
119
130
118
131
128
119
120
128
124
125
122
57
122
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-139-0
01
1
0106-
●
●
1
DISC; CLUTCH
14"
1-31240-671-0
01
1
9510-0105
●
●
1
DISC; CLUTCH
14"
1-31240-901-0
01
1
0106-
●
●
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-144-0
01
1
1006-
●
●
2
PLATE ASM; PRESSURE,CLU
14"
1-31220-291-0
01
1
9510-0109
●
●
2
PLATE ASM; PRESSURE,CLU
1-31220-364-2
01
1
0110-1005
●
●
2
PLATE ASM; PRESSURE,CLU
1-31220-447-0
01
1
1006-
●
●
57
FORK; SHIFT,CLU
1-31340-056-1
01
1
9510-
●
●
84
PLATE; PRESSURE
14"
1-31221-082-0
01
1
9510-
●
●
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
9510-
●
●
88
COVER SUB ASM; CLU
1-31211-036-0
01
1
9510-
●
●
89
PLATE; STRAP
1-31229-001-0
08
1
9510-
●
●
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
9510-1005
●
●
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
08
1
1006-
●
●
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
9510-1005
●
●
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
08
1
1006-
●
●
92
SPRING; CLU
14"
1-09580-234-0
12
1
9510-0308
●
●
92
SPRING; CLU
1-31214-088-0
12
1
0309-1005
●
●
92
SPRING; CLU
1-31214-060-0
08
1
1006-
●
●
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
9510-
●
●
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
9510-
●
●
98
SPRING; RETURN
1-31233-003-0
04
1
9510-
●
●
101
WASHER; RELEASE LEVER
9-31239-039-0
08
1
9510-
●
●
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
9510-
●
●
105
NUT; SUPPORT
9-31235-061-0
04
1
9510-0109
●
●
105
NUT; SUPPORT
1-31235-012-0
04
1
0110-0308
●
●
105
NUT; SUPPORT
1-31235-014-0
04
1
0309-
●
●
106
PLATE; LK,LEVER SUPPORT
(B)
1-31235-008-0
04
1
9510-
●
●
106
PLATE; LK,LEVER SUPPORT
(A)
1-31239-019-0
04
1
9510-
●
●
107
BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER
1-31239-020-0
08
1
9510-0308
●
●
107
BOLT; LK PLATE
1-31239-061-0
08
1
0309-
●
●
109
WASHER; LK,STRAP
ID=10.2
9-09150-510-0
04
1
9510-0603
●
●
109
WASHER; LK,STRAP
ID=10.2
0-91510-510-0
04
1
0604-
●
●
116
BLOCK; SHIFT,CLU
1-31321-070-3
01
1
9510-
●
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-148-0
01
1
0112-
●
●
118
BEARING; CLU RELEASE
1-09820-008-0
01
1
9510-0111
●
●
118
BEARING; CLU RELEASE
1-09820-114-0
01
1
0112-
●
●
119
SPRING; SHIFT FORK
1-09585-053-1
01
1
9510-
●
●
119
SPRING; SHIFT FORK
1-09585-054-1
01
1
9510-
●
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=170
1-09364-869-0
01
1
9510-
●
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
9510-
●
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
01
1
9510-0512
●
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
01
1
0601-
●
●
124
BEARING; CAM,SHIFT FORK
1-31349-004-1
02
1
9510-
●
●
125
SHAFT; CLU
1-31342-273-0
01
1
9510-9803
●
●
125
SHAFT; CLU
1-31342-299-0
01
1
9804-
●
●
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
9510-
●
●
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
9510-0512
●
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0601-
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
9510-0603
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0604-
●
●
137
BOLT; CLU COVER
M10X20 FLANGE
0-28181-020-0
12
1
9510-0512
●
●
137
BOLT; CLU COVER
M10X20 FLANGE
0-28181-020-0
06
1
0601-0601
●
●
137
BOLT; CLU COVER
M10X20 FLANGE
0-28181-020-0
06
1
0601-0601
●
●
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
06
1
0601-
●
●
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
06
1
0601-
●
●
172
LEVER KIT; RELEASE,CLU
1-87830-620-0
01
1
9510-0004
●
●
172
LEVER KIT; RELEASE,CLU
1-87830-902-1
01
1
0005-0306
●
●
172
LEVER KIT; RELEASE,CLU
1-87831-173-1
01
1
0307-
●
●
222
BOLT; STRAP
M10X26 HEX SOCKET
1-09040-101-0
04
1
9510-0109
●
●
222
BOLT; STRAP
1-31239-059-0
04
1
0110-
●
●
149
145
148
154
125
149
146
146
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
125
SHAFT; CLU
1-31342-273-0
01
1
9510-9803
●
●
125
SHAFT; CLU
1-31342-299-0
01
1
9804-
●
●
145
BRACKET; SLAVE CYL,OIL CLU
1-47579-054-0
01
1
9510-9803
●
●
145
BRACKET; SLAVE CYL,OIL CLU
1-47579-059-0
01
1
9804-
●
●
146
BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE
0-28181-025-0
04
1
9510-0512
●
●
146
BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE
0-28151-025-0
04
1
0601-
●
●
148
SPRING; CLU RETURN
1-09583-249-0
01
1
9510-
●
●
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-019-1
01
1
9510-
●
●
149
EYE; SPRING,RETURN SPRING
(A) T=2.3
1-47324-005-1
01
1
9510-
●
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
9510-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
