1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#19665) — 240 parça

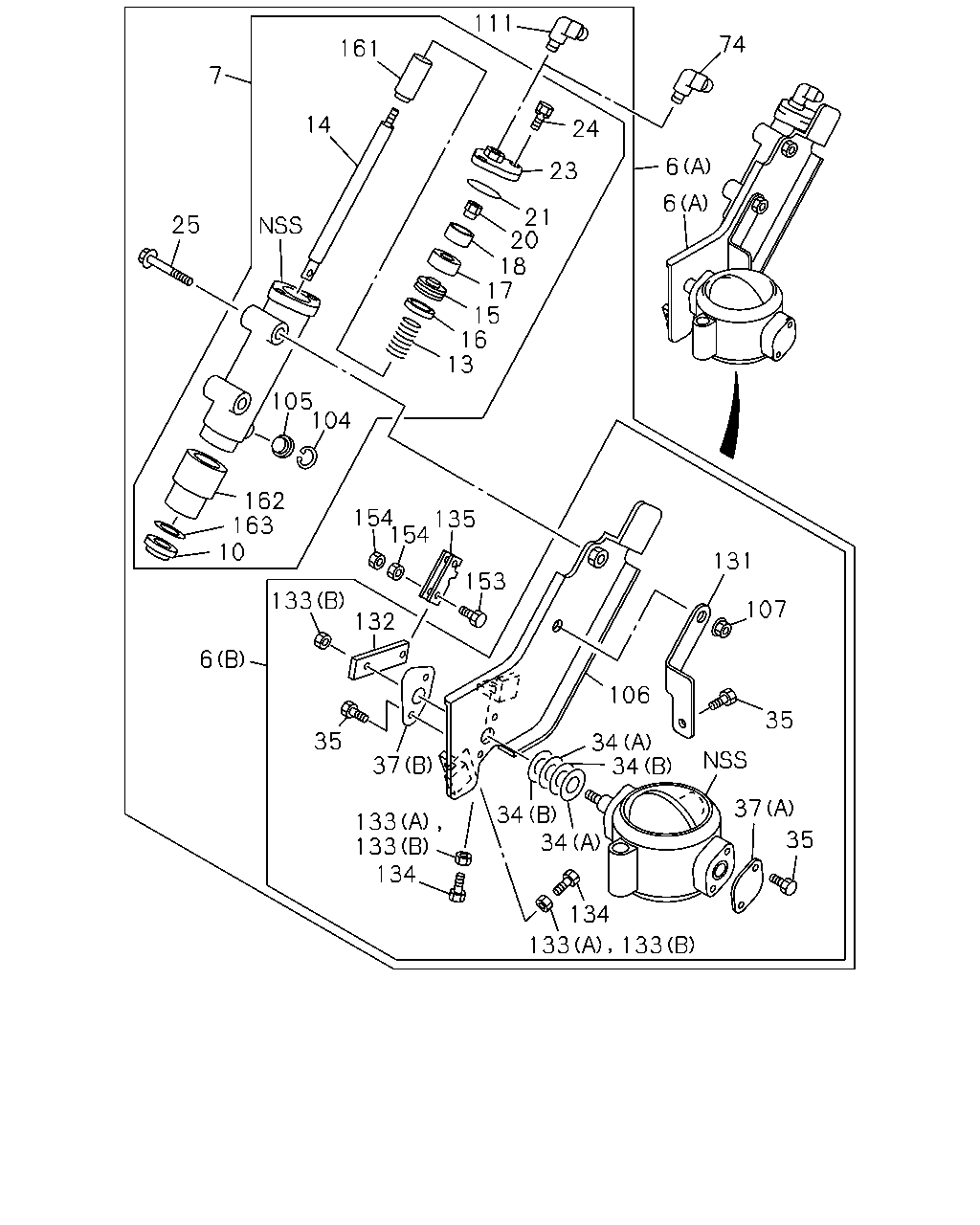

çizim 16411
111 74 161 7 14 24 6 23 6 21 20 18 17 15 16 13 25 105 104 162 163 10 154 135 154 131 153 133 107 132 6 106 35 35 34 34 37 37 34 34 133 133 134 35 134 133 133
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(B) 		1-22181-133-0 01 1 9510-9609 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9610-9802 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9803-9809 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-158-0 01 1 9810-0211 ● ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 0212- ● ●
6 VALVE; EXH BRAKE
(A) 		8-94395-759-0 01 1 9510-9609 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-044-0 01 1 9610-9802 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-043-1 01 1 9803-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ● ●
7 CYLINDER ASM; CONT 8-94396-813-0 01 1 9510-9510 ●
7 CYLINDER ASM; CONT 1-22190-631-0 01 1 9510-9802 ●
7 CYLINDER ASM; CONT 1-22190-631-0 01 1 9803-9809 ● ●
7 CYLINDER ASM; CONT 1-22190-655-0 01 1 9810-0211 ● ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 0212- ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9510-9802 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9803- ● ●
13 SPRING; CONT CYL 1-09580-465-0 01 1 9510-9510 ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9510-9609 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9610-9802 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9803-9809 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9810- ● ●
14 SHAFT; CONT CYL 1-22196-256-0 01 1 9510-9510 ●
14 SHAFT; CONT CYL 1-22199-145-0 01 1 9510-9802 ●
14 SHAFT; CONT CYL 1-22199-145-0 01 1 9803- ● ●
15 PLATE; CONT CYL 1-22199-001-0 01 1 9510-9510 ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9510-9802 ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9803-9809 ● ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 9810- ● ●
16 RING; WEAR,CONT CYL 1-22199-002-0 01 1 9510-9510 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9510-9802 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9803-9809 ● ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 9810- ● ●
17 GASKET; CONT CYL 1-22199-110-0 01 1 9510-9510 ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9510-9802 ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9803-9809 ● ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 9810- ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9510-9802 ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9803-9809 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9510-9510 ●
20 NUT; CONT CYL
M8 W/LK WASHER 		8-94279-050-0 01 1 9510-9802 ●
20 NUT; CONT CYL
M8 W/LK WASHER 		8-94279-050-0 01 1 9803-9809 ● ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 9810- ● ●
21 GASKET; COVER 1-22199-072-0 01 1 9510-9802 ●
21 GASKET; COVER 1-22199-072-0 01 1 9803- ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9510-9802 ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9803-9809 ● ●
23 COVER; CONT CYL 8-97600-319-0 01 1 9810- ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9510-9802 ●
24 BOLT; COVER 1-22199-155-0 02 1 9803-9809 ● ●
24 BOLT; COVER 1-22199-174-0 02 1 9810- ● ●
25 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-0 02 1 9510-9609 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		0-28081-060-0 02 1 9610-9802 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		0-28081-060-0 02 1 9803-9809 ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 9810- ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9510-9802 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9803- ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9510-9802 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9803- ● ●
35 BOLT; PLATE FIX
M8X16 		9-02050-816-0 05 1 9510-9609 ●
35 BOLT; PLATE FIX 1-22199-154-0 05 1 9610-9802 ●
35 BOLT; PLATE FIX 1-22199-154-0 05 1 9803-9809 ● ●
35 BOLT; PLATE FIX 1-22199-174-0 05 1 9810- ● ●
37 COVER; BODY
(B) 		1-22199-130-0 01 1 9510-9802 ●
37 COVER; BODY
(B) 		1-22199-130-0 01 1 9803- ● ●
37 COVER; BODY
(A) 		9-22189-160-0 01 1 9510-9802 ●
37 COVER; BODY
(A) 		9-22189-160-0 01 1 9803- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0212- ● ●
104 RING; RET 9-88510-331-0 01 1 9510-9802 ●
104 RING; RET 9-88510-331-0 01 1 9803- ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9510-9802 ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9803- ● ●
106 BRACKET; CONT CYL 8-94396-192-0 01 1 9510-9609 ●
106 BRACKET; CONT CYL 8-94391-038-0 01 1 9610-9802 ●
106 BRACKET; CONT CYL 8-94391-038-0 01 1 9803-9809 ● ●
106 BRACKET; CONT CYL 8-97600-313-0 01 1 9810-0211 ● ●
106 BRACKET; CONT CYL 8-97600-869-0 01 1 0212- ● ●
107 NUT; CONT CYL
M10 FLANGE 		0-91150-110-0 01 1 9610-9802 ●
107 NUT; CONT CYL
M10 FLANGE 		0-91150-110-0 01 1 9803- ● ●
111 ELBOW; CONT CYL 8-94393-086-1 01 1 9510-9802 ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 9803-0211 ● ●
131 PLATE; BODY 8-94391-039-0 01 1 9610-9802 ●
131 PLATE; BODY 8-94391-039-0 01 1 9803- ● ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9510-9802 ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9803- ● ●
133 NUT; LK
(A) 		8-94311-428-0 04 1 9510-9510 ●
133 NUT; LK
(A) 		8-94311-428-0 03 1 9510-9802 ●
133 NUT; LK
(A) 		8-94311-428-0 03 1 9803-9809 ● ●
133 NUT; LK
(B) 		1-47829-069-0 01 1 9610-9802 ●
133 NUT; LK
(B) 		1-47829-069-0 01 1 9803-9809 ● ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 9810- ● ●
134 BOLT; STOPPER 1-22199-121-0 05 1 9510-9510 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9510-9609 ●
134 BOLT; STOPPER 1-22199-121-0 05 1 9610-9802 ●
134 BOLT; STOPPER 1-22199-121-0 05 1 9803-9809 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9810- ● ●
135 CLEVIS; CONT CYL 1-22199-053-0 01 1 9510-9802 ●
135 CLEVIS; CONT CYL 1-22199-053-0 01 1 9803- ● ●
153 BOLT; CLEVIS,CONT CYL
M6X30 		1-09000-559-0 02 1 9510-9802 ●
153 BOLT; CLEVIS,CONT CYL
M6X30 		1-09000-559-0 02 1 9803-9809 ● ●
153 BOLT; CLEVIS,CONT CYL 8-97600-320-0 02 1 9810- ● ●
154 NUT; CLEVIS,CONT CYL 9-88510-123-0 04 1 9510-9510 ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 04 1 9510-9802 ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 04 1 9803- ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9510-9802 ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9803- ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9510-9802 ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9803- ● ●
163 WASHER; CONT CYL
ID=8.2 		9-09150-508-0 01 1 9510-9510 ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9510-9802 ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9803- ● ●

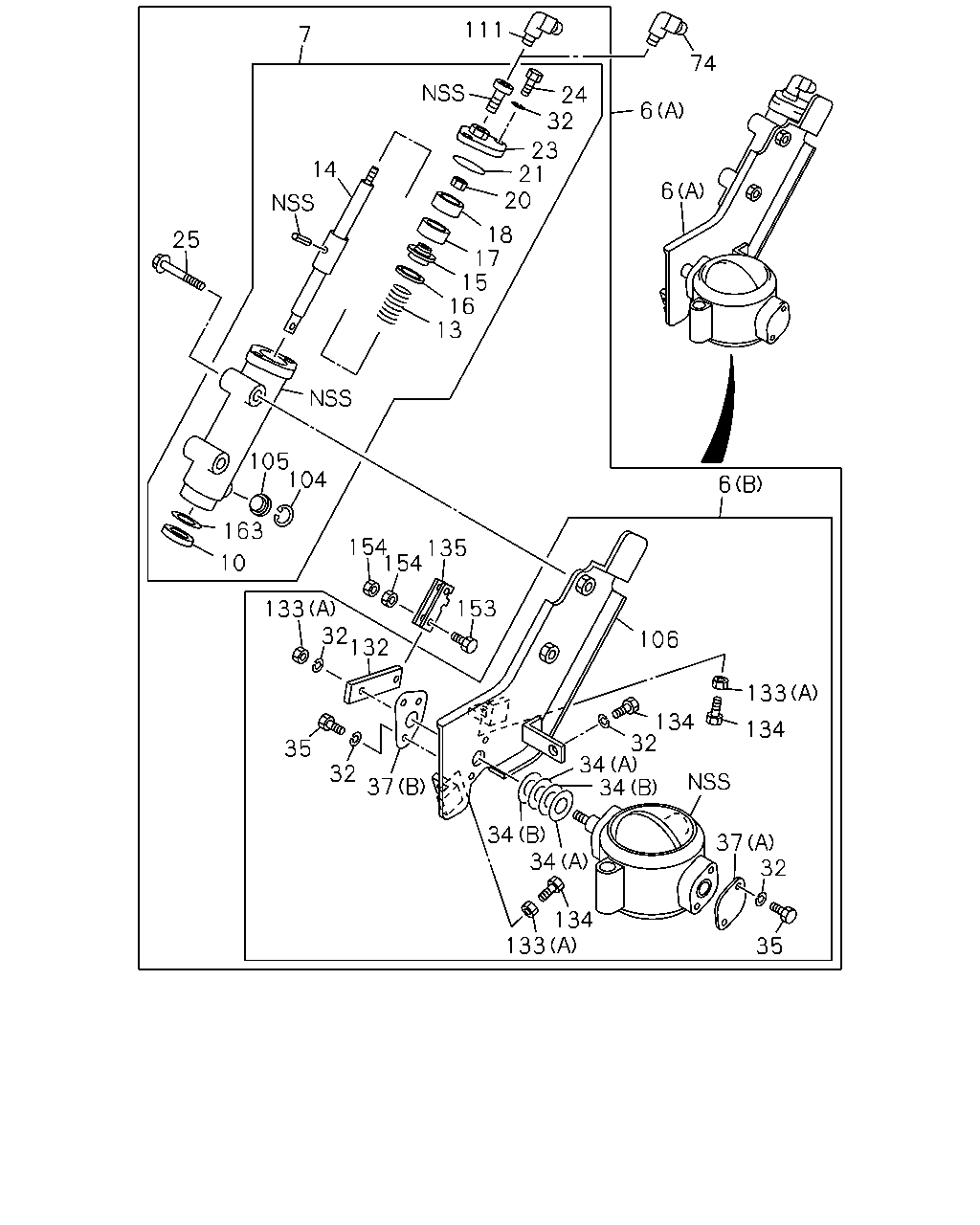

çizim 16944
111 7 74 24 32 6 23 21 20 14 6 18 17 15 16 13 25 105 104 6 163 154 135 154 10 153 133 32 132 106 133 134 32 34 34 134 35 32 37 34 34 37 32 134 133 35
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(B) 		1-22181-133-0 01 1 9510-9609 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9610-9802 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9803-9809 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-158-0 01 1 9810-0211 ● ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 0212- ● ●
6 VALVE; EXH BRAKE
(A) 		8-94395-759-0 01 1 9510-9609 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-044-0 01 1 9610-9802 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-043-1 01 1 9803-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ● ●
7 CYLINDER ASM; CONT 8-94396-813-0 01 1 9510-9510 ●
7 CYLINDER ASM; CONT 1-22190-631-0 01 1 9510-9802 ●
7 CYLINDER ASM; CONT 1-22190-631-0 01 1 9803-9809 ● ●
7 CYLINDER ASM; CONT 1-22190-655-0 01 1 9810-0211 ● ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 0212- ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9510-9802 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9803- ● ●
13 SPRING; CONT CYL 1-09580-465-0 01 1 9510-9510 ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9510-9609 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9610-9802 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9803-9809 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9810- ● ●
14 SHAFT; CONT CYL 1-22196-256-0 01 1 9510-9510 ●
14 SHAFT; CONT CYL 1-22199-145-0 01 1 9510-9802 ●
14 SHAFT; CONT CYL 1-22199-145-0 01 1 9803- ● ●
15 PLATE; CONT CYL 1-22199-001-0 01 1 9510-9510 ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9510-9802 ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9803-9809 ● ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 9810- ● ●
16 RING; WEAR,CONT CYL 1-22199-002-0 01 1 9510-9510 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9510-9802 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9803-9809 ● ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 9810- ● ●
17 GASKET; CONT CYL 1-22199-110-0 01 1 9510-9510 ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9510-9802 ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9803-9809 ● ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 9810- ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9510-9802 ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9803-9809 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9510-9510 ●
20 NUT; CONT CYL
M8 W/LK WASHER 		8-94279-050-0 01 1 9510-9802 ●
20 NUT; CONT CYL
M8 W/LK WASHER 		8-94279-050-0 01 1 9803-9809 ● ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 9810- ● ●
21 GASKET; COVER 1-22199-072-0 01 1 9510-9802 ●
21 GASKET; COVER 1-22199-072-0 01 1 9803- ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9510-9802 ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9803-9809 ● ●
23 COVER; CONT CYL 8-97600-319-0 01 1 9810- ● ●
24 BOLT; COVER 1-22199-155-0 02 1 9510-9802 ●
24 BOLT; COVER 1-22199-155-0 02 1 9803-9809 ● ●
24 BOLT; COVER 1-22199-174-0 02 1 9810- ● ●
25 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-0 02 1 9510-9609 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		0-28081-060-0 02 1 9610-9802 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		0-28081-060-0 02 1 9803-9809 ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 9810- ● ●
32 WASHER; LK
ID=8.2 		9-09150-508-0 07 1 9510-9510 ●
32 WASHER; LK
ID=8.2 		9-09150-508-0 06 1 9510-9609 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9510-9802 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9803- ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9510-9802 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9803- ● ●
35 BOLT; PLATE FIX
M8X16 		9-02050-816-0 05 1 9510-9609 ●
35 BOLT; PLATE FIX 1-22199-154-0 05 1 9610-9802 ●
35 BOLT; PLATE FIX 1-22199-154-0 05 1 9803-9809 ● ●
35 BOLT; PLATE FIX 1-22199-174-0 05 1 9810- ● ●
37 COVER; BODY
(B) 		1-22199-130-0 01 1 9510-9802 ●
37 COVER; BODY
(B) 		1-22199-130-0 01 1 9803- ● ●
37 COVER; BODY
(A) 		9-22189-160-0 01 1 9510-9802 ●
37 COVER; BODY
(A) 		9-22189-160-0 01 1 9803- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0212- ● ●
104 RING; RET 9-88510-331-0 01 1 9510-9802 ●
104 RING; RET 9-88510-331-0 01 1 9803- ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9510-9802 ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9803- ● ●
106 BRACKET; CONT CYL 8-94396-192-0 01 1 9510-9609 ●
106 BRACKET; CONT CYL 8-94391-038-0 01 1 9610-9802 ●
106 BRACKET; CONT CYL 8-94391-038-0 01 1 9803-9809 ● ●
106 BRACKET; CONT CYL 8-97600-313-0 01 1 9810-0211 ● ●
106 BRACKET; CONT CYL 8-97600-869-0 01 1 0212- ● ●
111 ELBOW; CONT CYL 8-94393-086-1 01 1 9510-9802 ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 9803-0211 ● ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9510-9802 ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9803- ● ●
133 NUT; LK
(A) 		8-94311-428-0 04 1 9510-9510 ●
133 NUT; LK
(A) 		8-94311-428-0 03 1 9510-9802 ●
133 NUT; LK
(A) 		8-94311-428-0 03 1 9803-9809 ● ●
133 NUT; LK
(B) 		1-47829-069-0 01 1 9610-9802 ●
133 NUT; LK
(B) 		1-47829-069-0 01 1 9803-9809 ● ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 03 1 9810- ● ●
134 BOLT; STOPPER 1-22199-121-0 05 1 9510-9510 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9510-9609 ●
134 BOLT; STOPPER 1-22199-121-0 05 1 9610-9802 ●
134 BOLT; STOPPER 1-22199-121-0 05 1 9803-9809 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9810- ● ●
135 CLEVIS; CONT CYL 1-22199-053-0 01 1 9510-9802 ●
135 CLEVIS; CONT CYL 1-22199-053-0 01 1 9803- ● ●
153 BOLT; CLEVIS,CONT CYL
M6X30 		1-09000-559-0 02 1 9510-9802 ●
153 BOLT; CLEVIS,CONT CYL
M6X30 		1-09000-559-0 02 1 9803-9809 ● ●
153 BOLT; CLEVIS,CONT CYL 8-97600-320-0 02 1 9810- ● ●
154 NUT; CLEVIS,CONT CYL 9-88510-123-0 04 1 9510-9510 ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 04 1 9510-9802 ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 04 1 9803- ● ●
163 WASHER; CONT CYL
ID=8.2 		9-09150-508-0 01 1 9510-9510 ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9510-9802 ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9803- ● ●

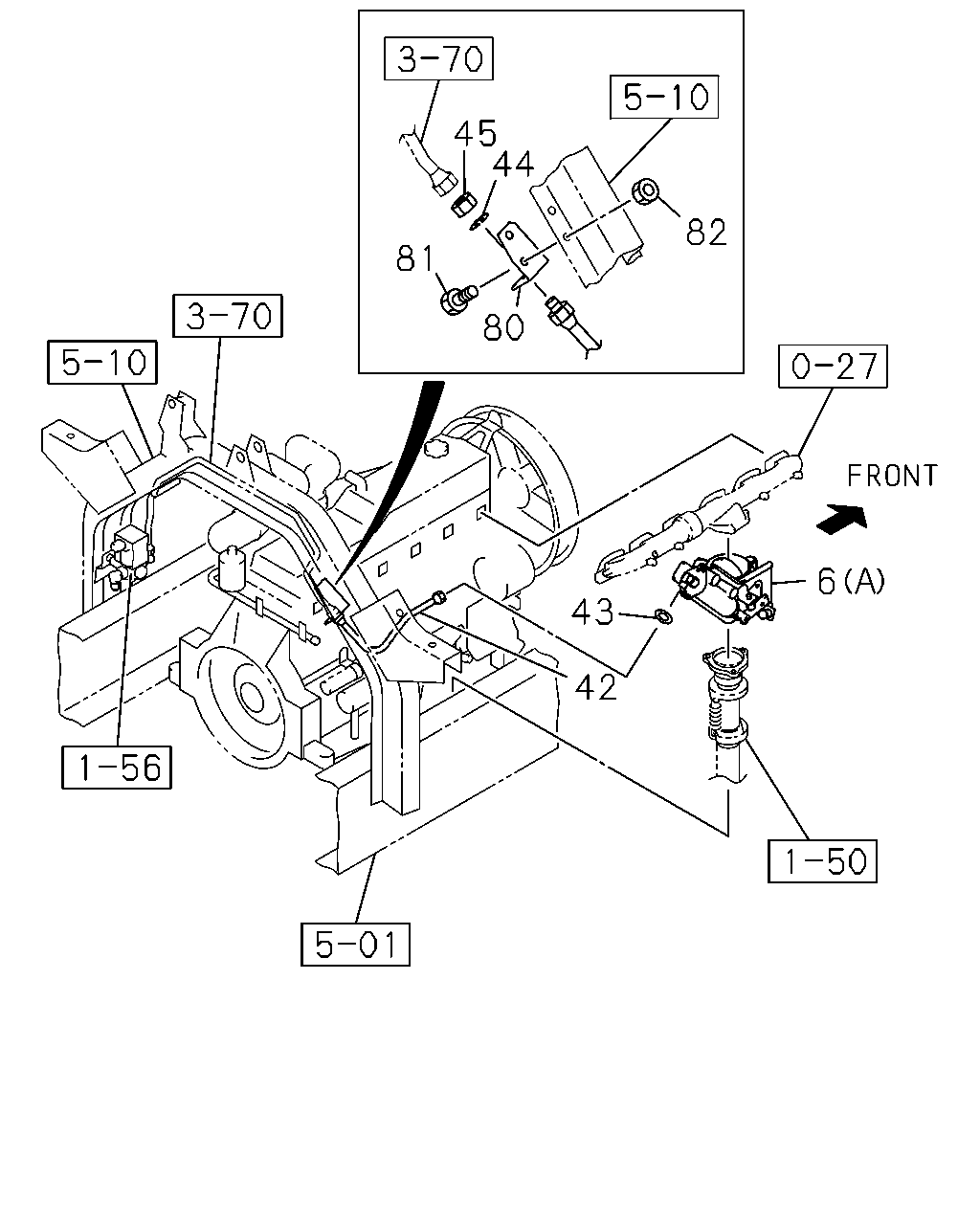

çizim 65107
45 44 82 80 81 6 43 42
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(B) 		1-22181-133-0 01 1 9510-9609 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9610-9802 ●
6 VALVE; EXH BRAKE
(B) 		8-94391-042-0 01 1 9803-9809 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-158-0 01 1 9810-0211 ● ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 0212- ● ●
6 VALVE; EXH BRAKE
(A) 		8-94395-759-0 01 1 9510-9609 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-044-0 01 1 9610-9802 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-043-1 01 1 9803-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ● ●
42 HOSE; FLEX,EXH BRK
L=300 		0-07120-300-0 01 1 9510-9802 ●
42 HOSE; FLEX,EXH BRK
L=300 		1-09363-608-0 01 1 9803- ● ●
43 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 9510-9802 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9510-0004 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9510-0004 ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0005- ● ●
80 BRACKET; FLEX HOSE 1-47476-355-0 01 1 9510-9802 ●
80 BRACKET; FLEX HOSE 1-47476-355-0 01 1 9803- ● ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
81 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9712 ● ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9801-0512 ● ●
81 BOLT; HOSE BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
82 NUT; HOSE BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ● ●
82 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
