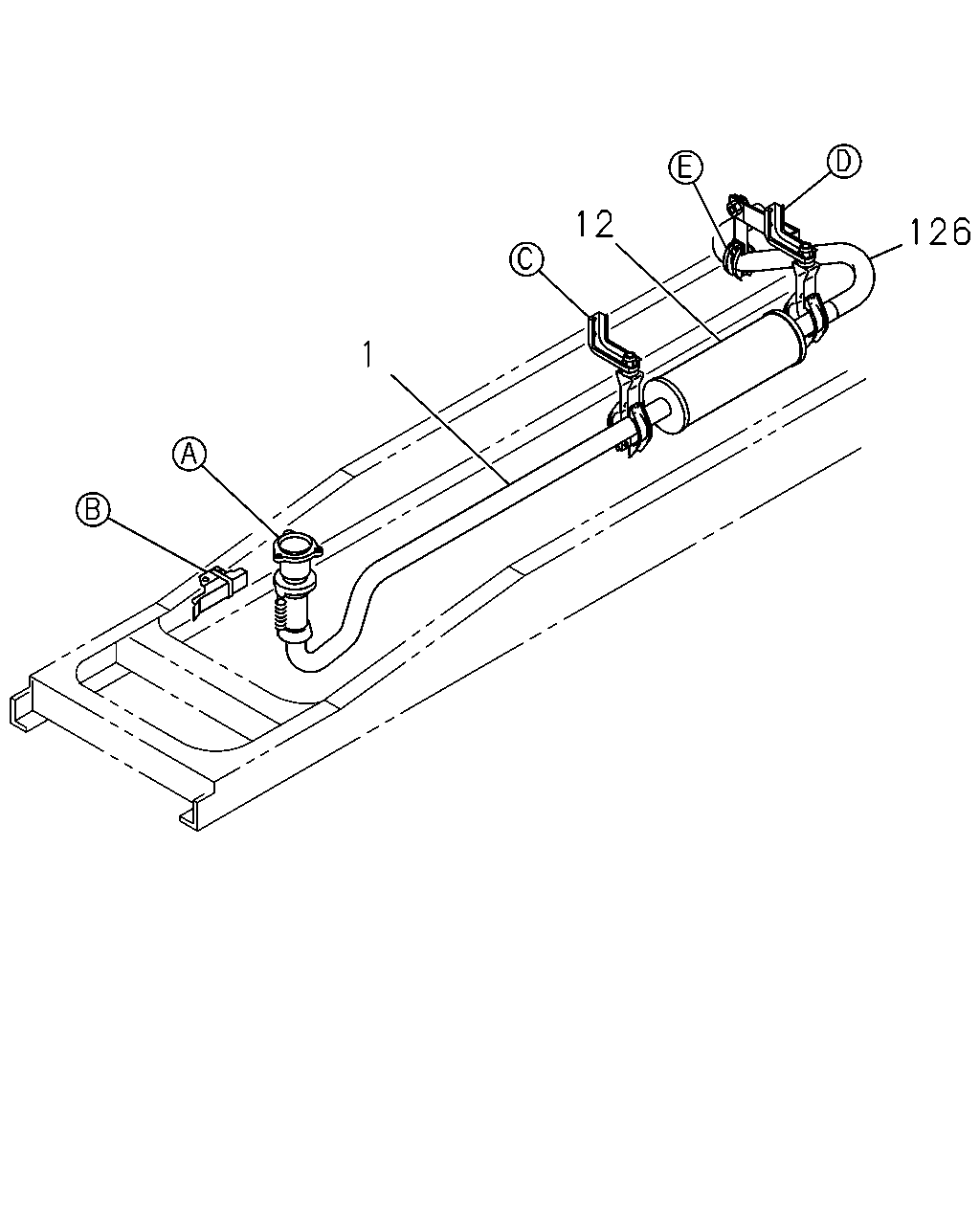

1-50 — EXHAUST PIPE AND SILENCER (#19664) — 200 parça

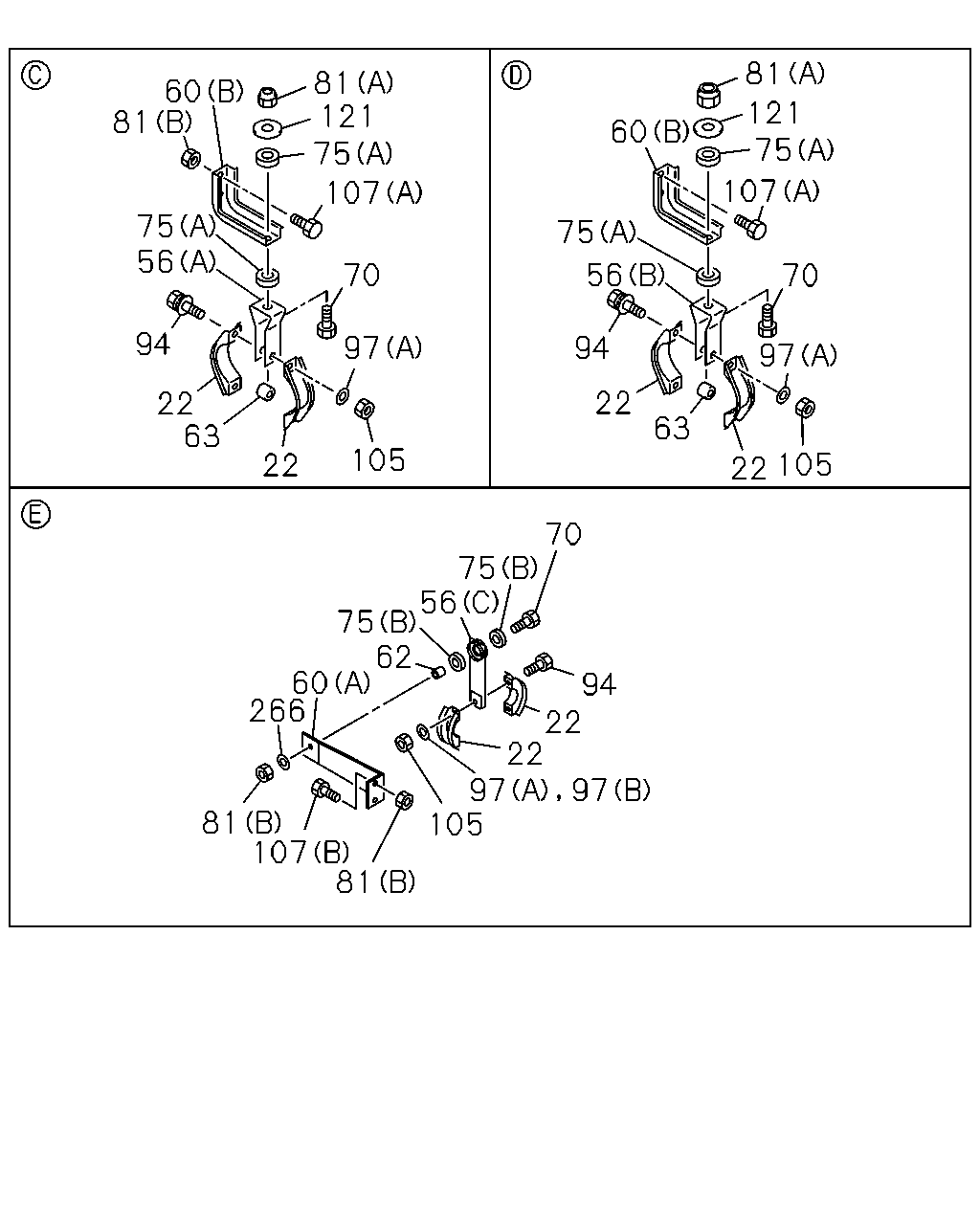

çizim 17998
81 81 121 75 60 81 121 75 60 107 107 75 56 75 56 70 70 97 94 97 94 22 22 63 63 105 22 105 22 70 75 56 75 62 60 266 94 22 22 105 81 107 81 97 97
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9510-0004 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9510-0004 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 9510-0004 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0005-0309 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0005-0309 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0005-0309 ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 3700MM(37W) ID=80-84 		1-22133-233-0 04 1 0310- ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=80-84 		1-22133-233-0 02 1 0310- ● ●
22 CLAMP; EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=80-84 		1-22133-233-0 02 1 0310- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=119 		1-22139-060-0 01 1 9510-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(B) H=119 		1-22139-060-0 01 1 0005-0309 ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) H=119 		1-22139-060-0 01 1 0310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 9510-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-082-0 01 1 0005-0309 ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) 		1-22139-082-0 01 1 0310- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (C) 		1-22131-528-1 01 1 9510-0004 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (C) 		1-22131-528-1 01 1 0005- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (C) L=254 		1-22131-527-1 01 1 9510-0004 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (C) L=254 		1-22131-527-1 01 1 0005- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (A) H=125 		1-22139-048-0 01 1 0310- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (A) H=135 		1-22139-054-0 01 1 0310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (A) 		1-22131-435-1 01 1 9510-0004 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (A) 		1-22131-435-1 01 1 0005- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) 		1-22131-514-0 01 1 9510-0004 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) 		1-22131-514-0 01 1 0005- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9510-0309 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-679-0 01 1 9510-0309 ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (B) 		1-22151-679-1 02 1 0310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) 		1-22151-679-1 01 1 0310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) 		1-22151-679-1 01 1 0310- ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9510- ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9510-0309 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9510-0309 ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 3700MM(37W) L=11 		1-22139-026-0 02 1 0310- ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) L=11 		1-22139-026-0 01 1 0310- ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) L=11 		1-22139-026-0 01 1 0310- ● ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) M10X55 		0-10806-055-0 01 1 9510-9609 ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X60 FLANGE 		0-28081-060-0 01 1 9607-9609 ●
70 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 01 1 9610-9705 ● ●
70 BOLT; BRKT
M10X55 		0-10806-055-0 01 1 9706-0204 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9510-0204 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 9510-0204 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0309 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0309 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0309 ● ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) M10X50 		0-10806-050-0 02 1 0310-0512 ● ●
70 BOLT; BRKT
WHEEL BASE 3700MM(37W) M10X50 		0-10856-050-0 02 1 0601- ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X50 		0-10806-050-0 01 1 0310-0512 ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X50 		0-10806-050-0 01 1 0310-0512 ● ●
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0310-0512 ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0601- ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W) (B) OD=40 		1-22159-094-0 02 1 9510-0004 ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W) (B) OD=40 		1-22159-094-0 02 1 0005- ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) OD=40 		1-22159-193-0 02 1 9510-0004 ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) OD=40 		1-22159-193-0 02 1 0005- ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9510-0309 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9510-0309 ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3700MM(37W) (A) OD=30 		1-22159-106-1 04 1 0310- ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) OD=30 		1-22159-106-1 02 1 0310- ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) OD=30 		1-22159-106-1 02 1 0310- ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) M10 FLANGE 		0-91150-210-0 01 1 9607-9609 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9610-9802 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9803-0403 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0405-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9510 ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9510 ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9510-9606 ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) (B) M10 		9-09110-510-0 01 1 9607-9609 ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 01 1 9510-9606 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-9802 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 9803-0205 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9510-0309 ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 9510-0309 ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) (A) M10 LOCK NUT 		9-09131-510-0 02 1 0310-0603 ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) (A) M10 LOCK NUT 		0-91370-010-0 02 1 0604- ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) M10 LOCK NUT 		9-09131-510-0 01 1 0310-0603 ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9510-9606 ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9510-9606 ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9607-9609 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9609 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9609 ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X40 FLANGE 		0-28681-040-0 02 1 9607-9609 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9610-9612 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9610-9612 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9610-9612 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 9701-9705 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9701-9705 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9706-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0309 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0309 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0309 ● ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0310-0805 ● ●
94 BOLT; CLAMP
WHEEL BASE 3700MM(37W) M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0310-0805 ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) ID=10.5 		9-09164-510-0 04 1 0005-0309 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 04 1 0310-0812 ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) ID=10.5 		9-09164-510-0 02 1 0901- ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) ID=10.5 		9-09164-510-0 02 1 0901- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0901- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9701-9705 ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9701-9705 ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9706-0004 ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9706-0004 ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9706-0004 ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0005-0309 ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 3700MM(37W) (A) ID=10.5 		9-09164-510-0 02 1 0005-0309 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0005-0309 ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0310-0812 ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 3700MM(37W) (A) ID=10.5 		9-09164-510-0 04 1 0901- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9510-9606 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 9510-9606 ● ●
97 WASHER; PL,CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) ID=10.5 		0-91614-510-0 02 1 0901-0907 ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 		9-09110-510-0 02 1 9510-9606 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9607-9609 ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 02 1 9610-9612 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9701-0204 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9701-0204 ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 02 1 9701-0204 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0309 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0309 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0205-0309 ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 		9-09110-510-0 04 1 0310-0512 ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 		0-91110-510-0 04 1 0601- ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 04 1 9510-9606 ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9609 ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9607-9609 ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91150-210-0 02 1 9607-9609 ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9610-9612 ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9610-9612 ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9610-9612 ●
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 9701-9810 ● ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91150-210-0 02 1 9811-0004 ●
105 NUT; CLAMP
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91150-210-0 02 1 0005-0204 ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 02 1 0310-0512 ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		9-09110-510-0 02 1 0310-0512 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0310-0512 ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		0-91110-510-0 02 1 0601- ● ●
105 NUT; CLAMP
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 		0-91110-510-0 02 1 0601- ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601- ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28081-030-0 02 1 9510-9606 ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9607-9802 ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9803-0512 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
107 BOLT; BRKT
(A) M10X25 FLANGE 		0-28081-025-0 04 1 9510-9606 ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9607-0004 ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 0005-0512 ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9510-0309 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9510-0309 ● ●
121 WASHER; PL,BRKT
WHEEL BASE 3700MM(37W) ID=10.5 OD=32 		9-09164-810-0 02 1 0310-0605 ● ●
121 WASHER; PL,BRKT
WHEEL BASE 3700MM(37W) ID=10.5 OD=32 		0-91614-810-0 02 1 0606- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ● ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=10.5 OD=32 		9-09164-810-0 01 1 0310-0605 ● ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9706-0204 ● ●
çizim 65069
1 34 36 476 475 475 36 476 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22122-650-1 01 1 9510-0210 ●
1 PIPE; EXH 1-22122-382-1 01 1 0211- ●
5 PROTECTOR; HEAT
PARKING BRAKE DRUM 8.5"(B1S) 		1-33659-182-1 01 1 9510- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9510-0004 ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0005-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9510-9802 ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9803- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-0 02 1 9510-0004 ●
475 BEARING; SEAL,VIBNON,EXH PIPE 1-22119-277-1 02 1 0005- ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 9510-0004 ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 02 1 0005- ● ●
çizim 66813
12 126 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH 1-22122-650-1 01 1 9510-0210 ●
1 PIPE; EXH 1-22122-382-1 01 1 0211- ●
12 SILENCER ASM; EXH 1-22140-752-0 01 1 9510-9807 ●
12 SILENCER ASM; EXH 1-22140-873-0 01 1 9808-0205 ●
12 SILENCER ASM; EXH 1-22140-880-0 01 1 0206-0210 ●
12 SILENCER ASM; EXH 1-22141-074-0 01 1 0211- ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-148-0 01 1 9510-0004 ●
126 PIPE; EXH,RR
WHEEL BASE 3700MM(37W) 		1-22126-148-0 01 1 0005- ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) 		1-22126-119-1 01 1 9510-0004 ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) 		1-22126-119-1 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
