◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#19663) — 41 parça

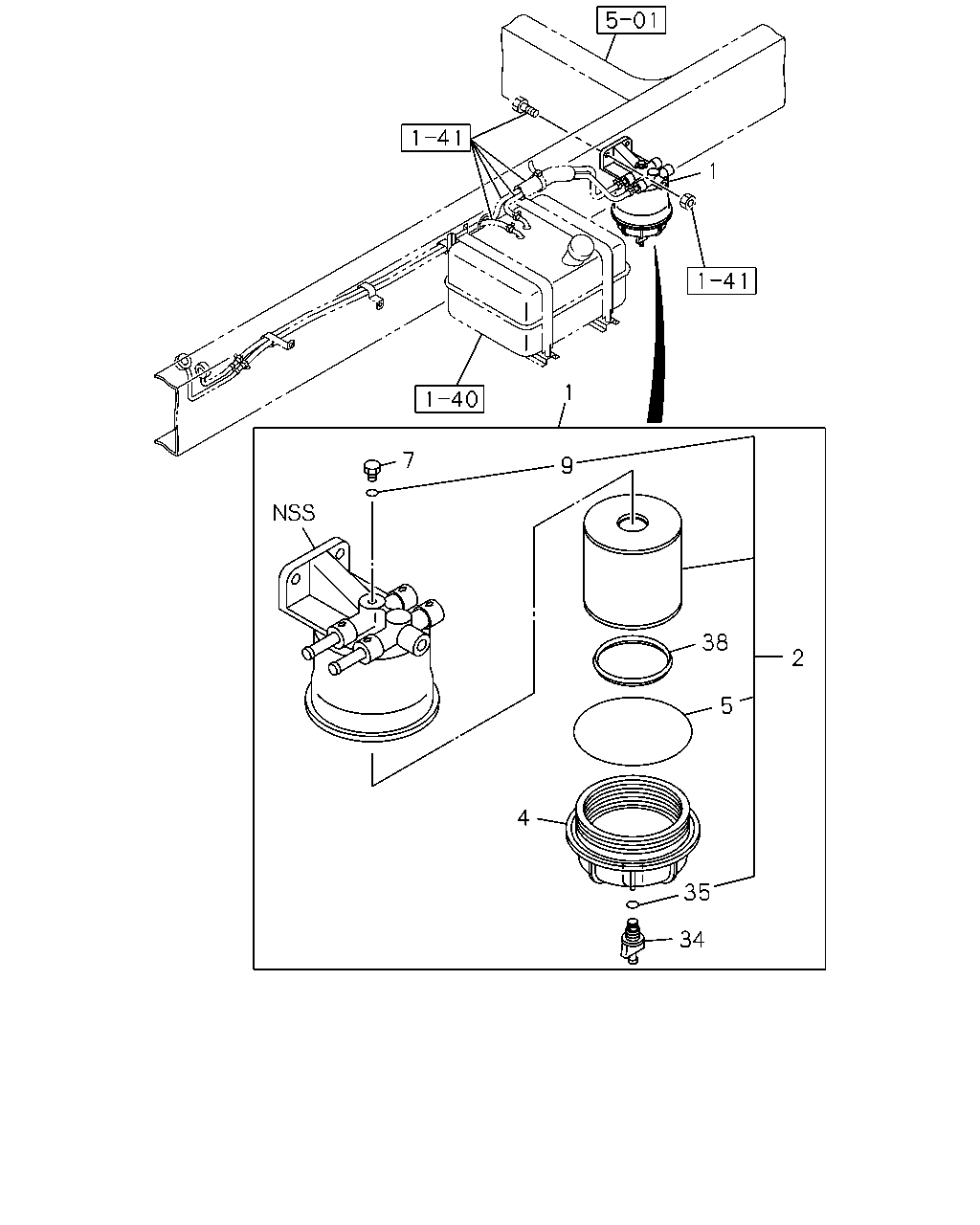

çizim 17997
1 1 7 9 38 2 5 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13200-964-1 01 1 9607-9802 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9510-9606 ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13200-953-2 01 1 9607-9802 ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9803-0006 ● ●
1 SEDIMENTER; FUEL 1-13201-015-1 01 1 0007- ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9510-9802 ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9803- ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-1 01 1 9510-9603 ●
5 GASKET; UPR COVER,SEDIMENTER 9-09920-643-0 01 1 9510-9603 ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604- ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9510-9802 ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9803- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9510-9802 ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9803- ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9510-9802 ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9803- ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9510-9802 ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9803- ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9510-9802 ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9803- ● ●
çizim 65058
1 1 7 9 2 38 5 91 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
FUEL TANK 140L FRAME SIDE<N19> 		1-13200-964-1 01 1 9607-9802 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9510-9606 ●
1 SEDIMENTER; FUEL
EXC. FUEL TANK 140L FRAME SIDE<N19> 		1-13200-953-2 01 1 9607-9802 ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9803-0006 ● ●
1 SEDIMENTER; FUEL 1-13201-015-1 01 1 0007- ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9510-9802 ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9803- ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-1 01 1 9510-9603 ●
5 GASKET; UPR COVER,SEDIMENTER 9-09920-643-0 01 1 9510-9603 ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604- ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9510-9802 ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9803- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9510-9802 ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9803- ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9510-9802 ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9803- ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9510-9802 ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9803- ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9510-9802 ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9803- ● ●
91 COVER; LWR,SEDIMENTER 1-13212-176-3 01 1 9604- ● ●
